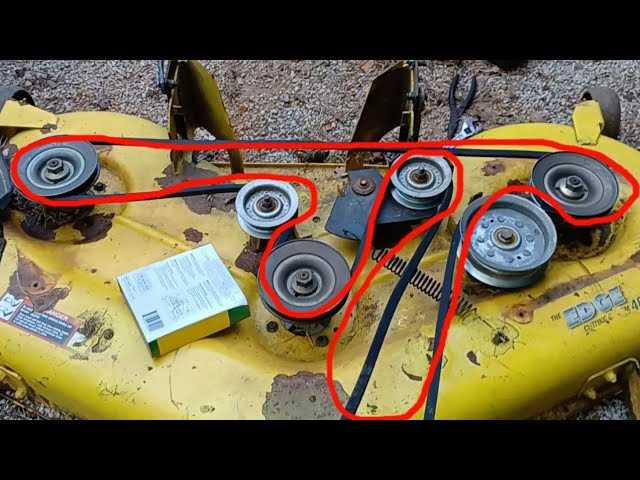

Start with the official illustrated breakdown available through authorized service centers–this remains the most reliable reference for identifying genuine replacements. Request part number M138788 for the deck belt routing example, as it shows pulley positions distinct from aftermarket schematics that often mislabel orientation.
For engine components, cross-reference your model’s serial number plate with the engine-specific exploded view. A Briggs & Stratton Intek 44 engine (common in this series) uses different piston assemblies depending on whether it’s a 2007 or 2010 build–consult page 12 of manual 25HP-8 to avoid mismatched rings. Hydraulic filters (OEM M806017) require annual replacement but share housing threads with inferior aftermarket options (check thread pitch: M24x1.5).
Steer clear of universal diagrams sold online. The PTO engagement fork (OEM M130487) appears near-identical to a 140-series fork but has a 1.5mm shorter throw slot. Measure twice–most third-party suppliers omit this detail. For electrical schematics, isolate the 12-volt wiring harness first: the yellow-striped lead (terminal G) connects exclusively to the hour meter, not the ignition coil (red stripe, terminal B).
Transmission disassembly demands the exact torque specs for axle bearings: 45-55 ft-lbs for output shafts, but 80-90 ft-lbs for differential housing bolts. Over-torquing strips the aluminum case; under-torquing risks seal failure. Replace the differential gearset as a matched pair (OEM M135168/M135175)–individual gears wear unevenly, leading to premature failure.
Locating Genuine Components for Your Garden Tractor: A Step-by-Step Approach
Begin by identifying the model-specific manual under “Technical Publications” on the manufacturer’s official support portal–input “LVA130” in the search field to filter irrelevant documents. The exploded-view schematics list each component with a unique identifier, typically a 4-6 digit code (e.g., 35-2112 for the drive belt). Cross-reference this code with the parts catalog to confirm compatibility, as aftermarket suppliers often use generic numbering that doesn’t match OEM standards. For critical assemblies like the transaxle (part cluster M167059), verify torque specifications in the maintenance section–over-tightening can warp housing surfaces, leading to premature failure.
Essential Tools and Verification Tips
Use a magnetic pickup tool (6-10 inch) to retrieve dropped fasteners during disassembly, as losing a single washer (e.g., 41-5159) can misalign the PTO clutch. When ordering spindles (e.g., M129634), check the thread pitch (usually 1/2″-13 UNC) with a thread gauge to avoid mismatches–metric alternatives require adapter kits costing 30-50% more. Label wiring harness connectors with masking tape before disconnecting; the ignition switch (component AM133442) has color-coded leads that, if reversed, prevent starter engagement. For hydraulic lines, replace crush washers (part M80297) after every removal to prevent fluid leaks that degrade pump efficiency by up to 18% over 100 hours of use.
Locating the Official PDF for Your Garden Tractor’s Component Layout
Download the manufacturer-authorized schematic directly from Deere’s dedicated parts portal. Enter the model code `LA130` in the search bar, then filter results by selecting “Illustrated Parts List” under the document type dropdown–this yields a 32-page PDF (publication P/N LP13066) detailing every assembly, including the mower deck, transmission, and engine subsystems, with exploded views and corresponding part numbers.
Regional dealers retain offline copies; contact a certified service center and reference section 6 in the owner’s manual for the exact figure numbers–technicians will email the PDF within 24 hours if you provide the tractor’s serial plate digits.
Critical Assemblies in the LA-Series Mower Component Layout
Begin repairs by disconnecting the blade engagement mechanism from the PTO shaft to prevent accidental activation while inspecting subassemblies. The deck lift pedal, located on the right operator platform, should be tested for smooth travel between 1.5″ to 4″ height settings–irregularities often indicate worn nylon gears or misaligned linkages.
Structural and Drive Essentials
Inspect the welded steel frame for hairline fractures near the engine mounts and rear axle supports–these stress points degrade after 250–300 operating hours under uneven terrain loads. Replace the 3/8″ hex drive shaft if excessive play exceeds 0.03″ at the drive pulley interface, as this leads to premature belt slippage on inclines.
| Component | Wear Limit | Replacement Interval |
|---|---|---|
| Mower deck spindle bearings | 0.015″ radial play | 400–500 hours |
| V-belt (C-section) | 1/32″ sidewall cracking | 200 hours or seasonal |
| Front wheel bushings | 0.05″ lateral movement | 300 hours |
Check the twin-cylinder engine’s valve lash every 100 hours using a 0.004″ feeler gauge–intake valves should measure 0.006–0.008″, exhaust valves 0.008–0.010″ for optimal compression. Neglecting this adjustment accelerates cam lobe wear, reducing power output by up to 18%.
Electrical and Safety Subsystems
Test the seat safety switch by lifting off the operator position while blades are engaged–the ignition circuit must cut within 0.5 seconds to avoid violating ANSI B71.4 standards. Clean corroded battery terminals with a wire brush and apply dialectric grease to prevent voltage drops below 12.2V during starter engagement. Replace the hour meter if LCD segments appear dim or flicker, as inaccurate readings skew maintenance scheduling.
Examine the blade brake clutch assembly for resin buildup on the friction disc–excessive deposits (above 0.02″) require disc resurfacing or replacement to maintain 3–5 second stopping times. Verify the deck anti-scalp wheels clear turf by 0.25″ when adjusted to the lowest cutting height; misalignment causes scalping damage at a rate of 1/16″ per hour of operation on Bermuda grass.
Lubricate all pivot points with NLGI #2 lithium grease every 50 hours, focusing on the deck lift linkages and steering control arms–omitting this step increases friction coefficients by 40%, leading to early bushing failure. Replace the air filter element when restriction reaches 10″ H2O, using oiled foam pre-cleaners only in dusty environments to extend paper element life by 30%.
Calibrate tire pressure at 12 PSI front, 10 PSI rear to ensure even cutting width–underinflation below 8 PSI reduces deck stability by 22% on 15° slopes. For models equipped with mulching kits, sharpen blades at a 45° angle every 20 hours, maintaining a 0.015″ relief on the cutting edge to prevent clogging in wet conditions.
How to Match Component Codes from the Schematic to Your Garden Machine
Locate the exploded view for your specific model year–serial numbers matter. Cross-reference the label on each physical component with its corresponding identifier on the assembly chart. If the code starts with M (e.g., M123456), it’s a factory-assigned stock unit; if it begins with AM, it’s an aftermarket equivalent. Verify the last three digits–mismatches often signal incompatible variants. For wear-prone elements like blades or belts, check the maintenance log for replacement intervals; glance at the schematic’s revision date to ensure alignment with recent updates.
Key Discrepancies to Catch
- Dimensional variances: Measure width, length, and mounting hole spacing–even a 2mm deviation can prevent fitment.
- Material specs: Stamped metal housings versus cast aluminum may share codes but fail under stress.
- Fastener thread pitch: M10x1.5 differs from M10x1.25–cross-threaded bolts will strip.
Use a caliper or thread gauge for confirmation. When in doubt, compare the exploded view’s right-side identifiers (e.g., B for bearings, G for gaskets) against the OEM’s online catalog–filter by exact serial number range. Replace only after confirming dual verification: code + visual match.
Key Components Frequently Replaced in the LA-Series Riding Mower Exploded View
Start with the cutting deck assembly–blade spindles and pulleys demand regular attention. The spindle housings (OEM #M131378) tolerate heavy use but degrade under debris buildup or uneven terrain. Replace worn bearings (OEM #M146831) before they seize; a failing spindle often manifests as excessive vibration or squealing. Deck belt tensioners (OEM #M131381) lose elasticity over time–inspect for cracks or stretch, and swap them preemptively every 100 hours of operation to maintain proper engagement.
Engine-related wear items include the air filter (OEM #M124789) and spark plug (OEM #M146828). The paper-element filter clogs rapidly in dusty conditions; clean it every 25 hours, but replace it every 100 hours regardless. Spark plugs foul after 50–75 hours, especially with rich fuel mixtures–gap them at 0.030″ and check for electrode erosion. Fuel filters (OEM #M128783) should be swapped annually to prevent clogged injectors, which cause hard starts and rough idle. Don’t overlook the fuel line; ethanol blends degrade rubber compounds in under two seasons, leading to leaks or engine stalls.
Traction components fail predictably: drive belts (OEM #M146896) stretch or fray, reducing speed consistency–listen for slippage and replace at first sign of damage. Wheels and tires wear unevenly; check tread depth and sidewalls for cracks. Lug nuts torque to 70–80 ft-lbs–loose fasteners cause wobble, accelerating bearing failure in axles (OEM #M147553). For pivot points, use a high-temperature grease like Mobil 1 Synthetic on the steering sector gear (OEM #M131364) to prevent seizure, a common issue in older units.
Electrical failures often trace to the ignition switch (OEM #M124786) or safety interlock microswitches (OEM #M147554). Corroded terminals or melted plastic housings disrupt circuit continuity–clean connections with dielectric grease or replace if voltage drops below 9V. The battery dies prematurely if sulfation builds; maintain a trickle charger under 1 amp during storage. Finally, blade engagement cables (OEM #M146833) require periodic tensioning–adjust to 1/8″ free play to prevent premature wear or accidental engagement.
