Begin by referencing part number 35A932-01 for the mower deck belt pulley assembly–this identifier appears across multiple OEM manuals and aftermarket listings. Cross-check dimensions (3.5″ diameter, 0.5″ bore) before ordering replacements, as third-party suppliers often mislabel compatible substitutes. Official service literature provides exploded views with sequential numbering; use section 4, page 22 of the original workshop guide as the primary reference.
For hydraulic linkage schematics, target solenoid valve cluster LVA320-H when diagnosing intermittent lift failures. Pressure ratings (1,500 PSI max) and port thread sizes (SAE-8) should align with specifications in the System Integration Manual, available through authorized dealers under document code RE55780. Avoid relying solely on visual inspection, as corrosion can conceal internal wear patterns.
Electrical wiring harnesses require tracing circuits via fuse panel layout L100-E, where color-coded leads (e.g., yellow/red stripe for ignition feed) correspond to distinct connectors. Consult the Component Location Guide (appendix B) to isolate ground faults–common issue points include terminal block TB4 beneath the control panel. Replace damaged leads with 16-gauge, tinned copper wire to match factory conductivity.
Blade spindle assemblies (BT210-X series) frequently fail at the bearing seal interface. Verify torque specifications (45 ft-lb for spindle nuts) and use thread-locking compound (medium-strength) to prevent loosening. Aftermarket bearings labeled NTN 6205ZZ meet tolerances but lack the factory-applied sealing grease–apply high-temp molybdenum disulfide during installation to extend service life.
Track down legacy schematics through equipment serial numbers embossed on the left rear frame rail–a suffix “P” denotes early production models with non-interchangeable transmission mounts. For serialized units post-2010, fetch updated diagrams via the manufacturer’s Parts Catalog Portal using query LA-120-YYYY (replace YYYY with build year). Hardcopy manuals for pre-2008 models remain the most reliable source, as digital archives often omit custom hydraulic circuit annotations.
Tractor Model LA125 Component Breakdown: Visual Aid for Owners
Locate the blade mounting hardware by referencing zone 3 on any schematics–bolts (#83447) and washers (#83448) are marked in red. These fasteners secure the cutting deck to the frame and require 20 Nm torque. Check for wear every 50 operating hours; replace if threads exceed 0.05 mm deformation.
Critical Assembly Sections
- Engine Bay: Fuel filter (#67532) sits left of the carburetor. Replace annually or after 200 hours. Air cleaner (#45981) uses dual-stage filtration–outer pleated paper (#11240) and inner foam (#11241)–clean with compressed air at 40 psi.
- Power Train: Drive belt (#33467) routes around pulleys A, B, and C (labeled on gearbox outlines). Measure tension with a deflection gauge; ideal range is 12–15 mm at midpoint. Replace if cracks appear or width reduces below 80% of original.
- Deck Mechanics: Spindle housings (#98765) require grease every 25 hours. Use NLGI #2 lithium complex. Blade adapters (#76543) fit left-handed threads–turn counterclockwise to loosen.
Download OEM schematics from manufacturer portal using serial number prefix “LA125-XXXX”. Paper manuals often omit microfilament wiring harnesses (#23456) connecting the ignition module to safety switches–trace blue-red striped cable in electrical overlays.
When sourcing replacements, cross-reference component codes with aftermarket suppliers. For example, Kohler (#25 050 01-S) alternators fit this model; verify amperage (15A) matches stock (#87654). Hydro-static transaxle seals (#54321) must align with shaft diameter (±0.02 mm tolerance)–scan micron specifications before ordering.
Maintenance Workflow from Diagrams
- Print schematics at 100% scale. Overlay tracing paper to mark wear points.
- Color-code components by service interval: red (50-hour), yellow (100-hour), green (200+ hour).
- Label storage bins with QR codes linking to exploded-view images of sub-assemblies.
- Photograph disassembly steps before loosening fasteners–align images with numbered callouts.
Locating the Authorized PDF for Your Equipment’s Component Schematic
The manufacturer’s official website remains the most reliable source for obtaining the original breakdown of components. Navigate to the support section, where documentation for legacy and current models is often archived. Use the model identifier to filter search results–this method ensures accuracy and avoids third-party inaccuracies. Registration may be required, but access is typically granted without charge for owned equipment.
Dealership portals frequently host these schematics under customer service or technical resources. Authorized service centers upload maintenance manuals and exploded views directly from corporate servers, guaranteeing alignment with factory specifications. Contact a local dealer via phone or email to request a direct link if the document isn’t publicly listed. Some branches provide temporary guest credentials for file downloads.
Specialized agricultural equipment forums occasionally host verified PDFs shared by experienced operators or certified technicians. Platforms like GreenTractorTalk or MyTractorForum maintain dedicated threads where users exchange documentation. Verify the file’s authenticity by cross-referencing page counts, revision dates, and manufacturer watermarks against known official releases.
| Source | Access Method | Verification Tip |
|---|---|---|
| Manufacturer’s Support Page | Direct download after model search | Check file metadata for corporate domain |
| Authorized Dealership Portal | Login or email request | Compare with dealership-stamped paper copies |
| Technician Forums | Thread attachments | Look for technician upload signatures |
Paid subscription services like ManualsLib or TradeBit aggregate official schematics but may include outdated revisions. Prioritize platforms that credit the OEM, as unauthorized hosts often compress files, degrading image quality. For models produced post-2010, factory technicians sometimes embed interactive 3D views in online configurators–these require plugin installations but offer superior detail.
Printed manuals purchased from corporate-approved vendors retain value for offline reference. Order through the manufacturer’s merchandise portal or verified resellers like Amazon Business to avoid counterfeit editions. Scan receipts or QR codes on physical copies to confirm legitimacy; counterfeit manuals often lack holographic seals or precise registration marks.
Critical Elements in the Mower Deck Assembly Blueprint

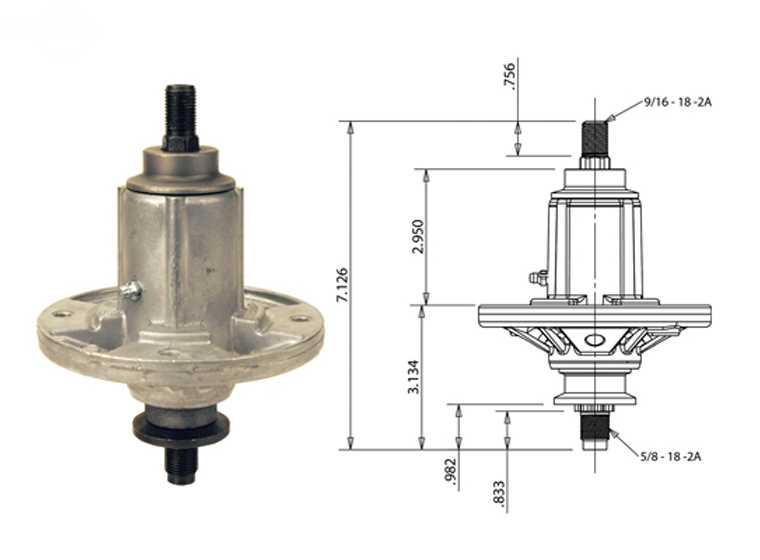

Begin by locating the spindle housings–three heavy-duty cast units bolted beneath the cutting deck’s frame. Each housing secures a blade spindle with dual bearings (typically sealed 6205 or 6305 models), requiring annual greasing via the zerk fittings. Replace spindles immediately if lateral play exceeds 0.5mm or if blade wobble becomes visible during operation, as compromised bearings accelerate deck misalignment and uneven cutting. Keep spare blade mounts (part #M149331) on hand; stripped threads from overtightening are a frequent failure point.
Belt Tensioning and Drive System Integrity
The deck’s primary drive belt (GX20070) routes from the engine pulley to the idler pulley (M120989) before engaging the three mandrel pulleys. Verify belt tension weekly by pressing mid-span–deflection should measure 12-15mm under 10kg force. Adjust tension via the spring-loaded idler arm, ensuring the belt sits centred on the crowned surfaces of all pulleys. Misalignment of even 2mm causes rapid edge wear on belts, reducing their lifespan to under 50 hours in dusty conditions. When replacing, clean pulley grooves with a wire brush to remove glazed rubber residue.
Inspect the deck shell’s reinforcement plates–four welded brackets along the underside resist impact deformation during debris strikes. If cracks appear (especially near the discharge chute), repair immediately with 3/32″ steel plate welded over the damaged area; untreated fractures propagate into the deck’s top surface, warping blade clearance. The discharge chute itself (X713513) uses two replaceable wear inserts (X713514) to protect the chute edges–monitor these inserts monthly and replace when thickness falls below 3mm to prevent deck shell erosion.
Step-by-Step Guide to Leveraging the Equipment Schematic for Mower Deck Component Swaps
Locate the exploded view corresponding to the cutting deck in the manufacturer’s manual. Each component is numbered, matching the list of replaceable elements below the illustration. Identify the blade assembly zone–typically clustered near the underside of the deck–and note the bolt patterns, spacers, and brackets that secure the rotary cutter.
Before disassembly, gather metric tools: a 10mm, 13mm, and 15mm socket set, along with a torque wrench calibrated to 45-55 Nm. The schematic will specify fasteners (e.g., flange bolts, nylock nuts) and their exact placement. Remove the deck from the tractor first if the replacement requires full underside access, as accessing bolts near pulleys or idler arms while mounted is impractical.
Align the new blade assembly with the original position using the schematic’s shadow outlines. Ensure the cutting edge orientation matches the directional arrows–most decks require blades angled slightly upward on the leading edge for optimal lift. Misalignment causes uneven cuts or premature wear. Tighten bolts in a crisscross pattern to distribute load evenly; consult the torque specs to avoid warping the deck’s housing.
Recheck pulley tension and belt routing against the exploded view after installation. A common oversight is skipping the anti-scalp rollers or skirt adjusters–small, low-profile components that prevent uneven terrain damage. Compare the schematic’s side profile to confirm all elements sit flush; gaps in assembly often indicate missing washers or incorrect bracket angles.
Verify operation by engaging the deck at half throttle, observing for vibrations or unusual noise. If the blade assembly tracks poorly, reference the manual’s troubleshooting section–often linked to pulley misalignment or debris lodged behind the spindle housing. The schematic’s callouts for grease fittings are critical; neglecting these leads to seized bearings within 50 hours of runtime.
