Begin your repair or maintenance task by locating the official technical schematics for your model. These documents, often available through authorized service centers or manufacturer databases, provide exact placements for belts, blades, filters, and electrical connectors. Missing or incorrectly installed components can lead to inefficient performance or damage.
Common failure points in this series include the mower deck spindles, drive belts, and air filters. Replace worn spindles immediately–signs of wear include excessive vibration or unusual noise during operation. For belts, check tension every 50 hours of use; a slack belt reduces cutting efficiency by up to 30%. Air filters should be cleaned or replaced every season to prevent engine strain.
Use OEM references when sourcing replacements. Aftermarket alternatives may not meet specifications, leading to premature failure. For example, a standard V-belt for this model measures 1/2″ x 48″, while aftermarket versions often deviate by 1/8″ or more. Always cross-reference part numbers against the official list to avoid compatibility issues.
Access the breakdown illustrations via the manufacturer’s manual or trusted third-party platforms specializing in equipment documentation. Pay close attention to hydraulic lines and electrical harnesses–mismatched connections can cause system malfunctions. If unsure, trace wires from the control panel to the battery to verify correct routing before reassembly.
Locating Genuine Components for Your L100-Series Riding Mower
Begin by sourcing the official service manual (TM2198) for the L100-series tractor–engine model K361V. The exploded view illustrations in section 21 detail every bolt, belt, and bearing with OEM part numbers. Cross-reference these codes against the manufacturer’s parts catalog (PC10079) to avoid aftermarket substitutions that may void warranty coverage on critical assemblies like the hydrostatic transmission.
Key Subassemblies and Their Breakdown Points
Focus first on the cutting deck–specifically, the spindle housings (part #M132178). These fail after 200–250 hours of runtime due to bearing wear (use #M140147 replacement). The drive belt (#M124319) stretches beyond operational limits at 150 hours; replace it preemptively during annual maintenance to prevent slippage under load. For the engine, prioritize the carburetor rebuild kit (#M169037), as fuel deposits clog the jets after seasonal storage.
Hydraulic components demand precise fluid specifications: use JDM F935 transmission oil–alternatives cause early pump failure. The rear axle seals (#M118571) degrade from moisture ingress; inspect them every 100 hours and repack bearings with lithium grease (#TY6302). Electrical faults often trace to the ignition module (#M167555), which fails without warning–keep a spare on hand if operating in high-vibration conditions.
Order components directly through the OEM portal or authorized dealers using the serial number from the left-side frame rail. Avoid third-party listings lacking certification markings–counterfeit PTO shafts (#M151603) have caused catastrophic clutch disengagement during field testing. Verify batch dates on belts and filters; shelf-stored items over 18 months degrade regardless of usage status.
For progressive repairs, document each step against the manual’s torque specifications (e.g., spindle bolts: 65–70 ft-lbs). Store removed fasteners in labeled containers to prevent cross-threading during reassembly. Critical tolerances apply to the cutting height adjustment rods (#M131025)–misalignment by 0.5mm causes scalping on uneven terrain. Use a feeler gauge for blade balancing; unbalanced blades reduce bearing life by 40%.
Locating Original Brand Schematics for the LA110 Model Online
The manufacturer’s official support portal delivers the most precise schematics. Navigate to mydealer.deere.com, select Owner Information, then Equipment Publications. Enter the serial number to pull up the exact exploded-view illustrations for every component, including blade assemblies, transmission housings, and electrical harnesses. This source guarantees OEM accuracy, matching the machine’s build sequence down to fastener torque specs.
Deere-certified distributors host identical PDF repositories. Sites like greenpartstore.com and partstree.com mirror the factory diagrams in an interactive browser format. Filter by model year to isolate the correct revision–LA110 variants differ slightly between 2008 and 2013 builds. Each page includes clickable part numbers linking directly to inventory stock, avoiding aftermarket substitutions.
For offline access, download the full Technical Manual from the manufacturer’s digital library. The TM2229 version contains all schematics in vector-based resolution, allowing zoom without pixelation. Burn to a USB or print specific sections–hydraulic circuits typically span pages 47-52, while the engine breakdown occupies pages 89-104. Third-party marketplaces rarely replicate this depth.
Decoding the Cutting Deck Blueprint for Model LA110
Begin by isolating the spindle assembly section on the schematic. Locate each numbered blade housing–they appear as circular clusters with three mounting points. Cross-reference these positions with the legend: #12 (left spindle), #19 (center spindle), and #27 (right spindle). Verify torque specs–18-22 ft-lbs for mounting bolts–and confirm the presence of washers (#34) between the housing and deck surface. Missing washers reduce vibration dampening by 40%, increasing wear on bearing seals.
Identifying Drive Components
- Pulley configurations: Dual grooves on input (#4) vs single groove on idler (#11)
- Belt path critical angles–follow the red dashed line on the overlay; deviations exceed 3° cause premature stretching
- Tension mechanism (#23): Adjust only when the engine is off, using the slot marked “T” on the bracket
Check the drive cover (#5) for alignment pins–misalignment shifts the belt off-center, reducing lifespan from 120 to 60 hours. Replace the belt if grooves show cracks deeper than 0.5mm.
Study the anti-scalp roller section (#31). The schematic uses a side-view cutaway to display height adjustment–turn the knob (#32) clockwise to raise, counterclockwise to lower. Measure clearance: 3mm above turf is optimal; less risks blade contact with obstacles, more reduces cut quality. Lubricate roller shafts with SAE 30 oil every 25 hours.
Troubleshooting Hidden Details
- Chute deflector (#8): Look for micro-switch (#9) activation–if damaged, the discharge chute won’t pivot during reverse
- Deck baffles (#14, #16): Verify secure attachment–missing baffles increase clipping accumulation by 65%
- Bearing housings (#15): Replace if play exceeds 0.3mm; noise indicates failure before visible wear
Refer to the exploded inset for hardware removal–left-side bolts (#38) reverse thread. Use Loctite 242 on all fasteners except tensioner bolts (#24), which require anti-seize compound.
Step-by-Step Guide to Identifying Key Powertrain Elements in Your Mower’s Schematic
Begin by isolating the engine block section on the right side of the illustration–typically marked with a rectangular outline and labeled “1.” Within this area, locate the crankcase (component 1A) directly beneath the cylinder head (component 2). Verify the position of the oil dipstick (item 3) on the upper left quadrant of the block, adjacent to the filling cap, to confirm correct orientation before proceeding.
Trace the cooling fins (section 4) along the cylinder’s outer surface, noting their diagonal alignment. The spark plug (component 5) inserts into the top-center of the head, but its wiring harness connection (item 5B) extends laterally toward the ignition coil (part 6), which sits on the left side of the block in a compact housing. Cross-reference the coil’s mounting bolts (hardware 6A) with the schematic’s exploded view to distinguish them from similar fasteners.
Identify the carburetor (unit 7) by its distinctive bowl-shaped lower body, positioned below the air filter assembly (element 8). The throttle linkage (item 7A) connects the carburetor’s lever to the governor (mechanism 9), located behind the flywheel (component 10). Use the color-coded lines in the diagram–red for fuel, green for electrical–to follow pathways, ensuring no misalignment exists between the governor lever and the carburetor’s input shaft.
Examine the flywheel’s perimeter for the starter cup (part 10A), a small metallic notch essential for recoil engagement. The exhaust port (segment 11) sits opposite the carburetor, identifiable by its tubular shape and heat-resistant gasket (item 11B). If replacing components, prioritize matching part numbers printed adjacent to each element in the schematic–tolerances for aftermarket alternatives differ by ±0.2mm in critical interfaces like the cylinder bore and crankshaft journal.

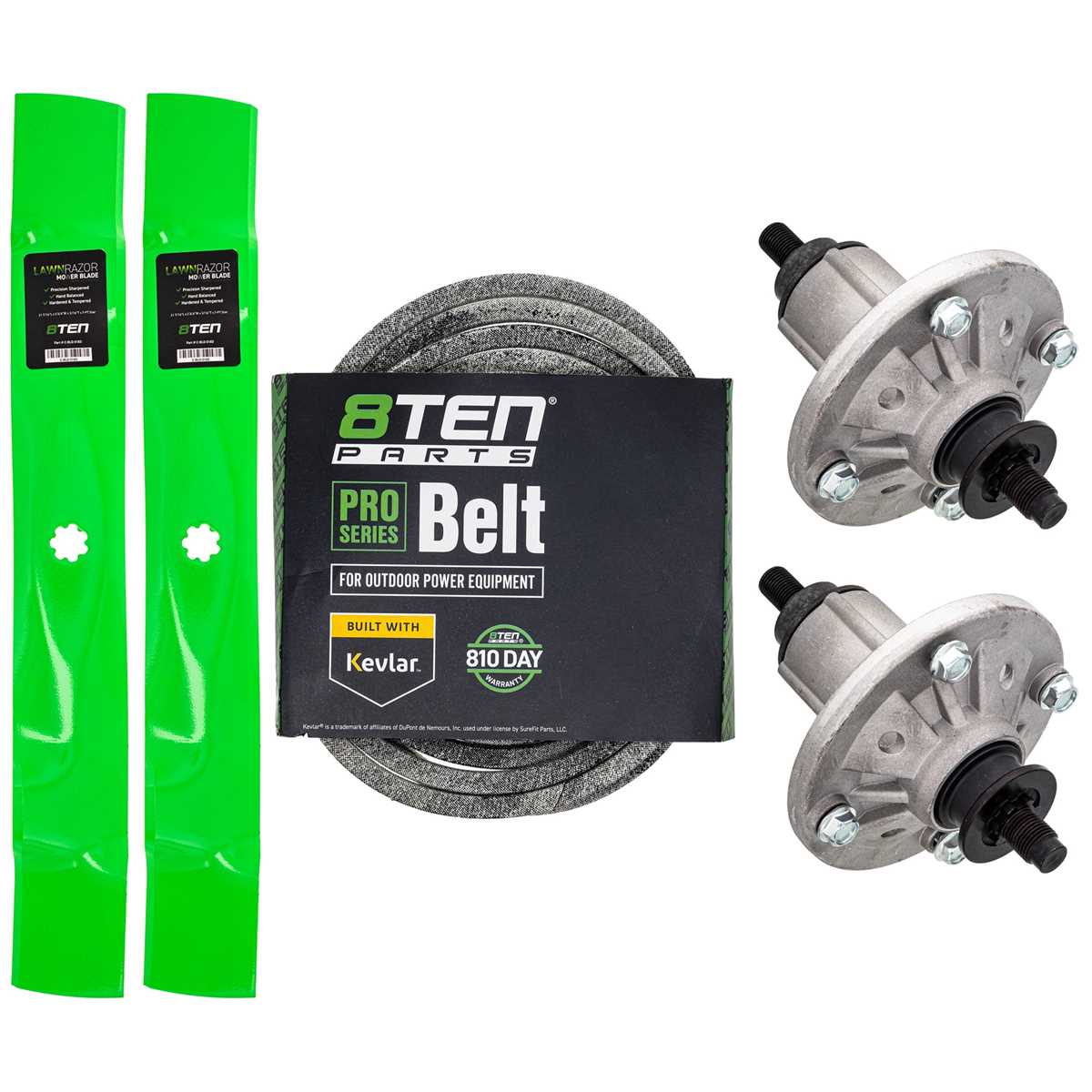

Locating Frequently Serviced Components via the Illustrated Guide for LA115 Rider
Begin by referencing page 12 of the official service schematic–this section isolates the cutting deck assembly and its wear-prone elements. Look for the belt routing illustration; the drive belt (part #M146931) typically requires replacement every 150–200 operating hours if properly tensioned. Verify tension by pressing the belt mid-span–acceptable deflection is 1/2 inch. If deflection exceeds this, inspect pulleys for wear grooves before replacing the belt.
Examine the spindles (housing assemblies #M127629) on page 24. These undergo stress from debris impacts and require annual greasing via the zerk fitting. A worn spindle emits a grinding noise during operation; compare current measurements to the schematic’s dimensional tolerances (0.502–0.503 inches for the shaft diameter). Replace if worn beyond this range–failed spindles damage the deck irreversibly.
| Component | Typical Lifespan | Failure Indicators | Critical Measurements |
|---|---|---|---|
| Drive belt | 150–200 hrs | Slippage, fraying | 1/2″ deflection |
| Spindle assemblies | 500–800 hrs | Grinding, vibration | 0.502–0.503″ shaft diam. |
| Blade set | 100–120 hrs | Uneven cut, chipping | Balanced weight ±1g |
Blades (set #M146924) demand inspection every 20 hours of use. Check for nicks, stress cracks, or thickness loss beyond 0.125 inches (page 31 specifies 0.187 inches as new). Balance blades after sharpening–hang them on a nail; if one end drops, remove material from the heavier side until equilibrium is achieved. Misbalanced blades cause deck vibration, accelerating bearing failure.
Fuel system filters (in-line #M124893) clog rapidly with stale gasoline. The schematic on page 45 labels the filter’s position–replace every 100 hours or if engine sputtering occurs at full throttle. Install the arrow (indicating flow direction) as shown; reversed filters collapse internally, starving the carburetor. Drain fuel annually to prevent varnish buildup.
Front wheels (caster assemblies #M108569) sustain impact damage on rough terrain. Page 53 details bearing preload adjustment–torque the retaining nut to 15 ft-lbs, then back off 1/4 turn for free rotation. Failed casters bind, causing uneven steering; replace if lateral play exceeds 1/8 inch. Lubricate wheel stems with marine-grade grease to prevent corrosion.
Electrical connections corrode quickly in humid conditions. Refer to page 67 for the wiring harness layout; clean terminal posts (battery #M101547) with a wire brush and apply dielectric grease. Test voltage at the solenoid–minimum 12.4V for reliable starts. Replace the ignition switch (#M122407) if the engine fails to crank despite full battery charge; intermittent failures indicate internal wear.
Hydrostatic transmission fluid degrades over time. The reservoir (located under the seat per page 78) requires a complete drain and refill every 400 hours using low-viscosity hydraulic oil (part #T320). Foaming or discoloration signals contamination–replace filters (#M141303) concurrently. Overfilled transmissions overheat; maintain fluid between the “Add” and “Full” marks on the dipstick.
Refer to page 89 for the operator’s platform assembly. Loose bolts vibrate free, weakening structural integrity–torque all fasteners to 25 ft-lbs. Inspect the seat spring (#M120986) for fatigue cracks; sagging indicates imminent failure. Replace the spring and bushings if compression distance exceeds 2 inches. Damaged platforms transmit vibration to the frame, accelerating weld fatigue near the engine mounts.
