Replace the spindle housings once every two seasons if operating on rough terrain–corrosion and impact wear accelerate degradation. Use OEM bearings (part #M133046) for the left-side assembly to avoid premature failure. Aftermarket alternatives often lack the hardened coating found in factory units, reducing lifespan by 30-40%.
Check the blade drive belt (part #M144152) every 50 operating hours. A tension loss of more than 1/4 inch indicates immediate replacement–stretched belts cause uneven cuts and engage pulleys unevenly. Align the idler pulley (part #M126728) with a straightedge before tightening; misalignment by even 1/16 inch accelerates belt fraying.
Inspect the mandrel assemblies (part #M133047) for excessive play. Rotate each spindle by hand–grinding or resistance signals bearing failure. Grease zerks biweekly using high-temperature lithium grease (NLGI #2) to prevent overheating. Avoid generic lubricants; they lack tackifiers necessary for shearing forces.
The baffle kit (part #M133051) requires annual replacement if plastic degradation is visible. Cracked baffles reduce suction efficiency, leaving 10-15% of clippings unmulched. Install anti-scalp rollers (part #M124709) for uneven lawns–adjust height to 1/4 inch above blade level to prevent gouging.
Refer to the official service manual (segment B-5) for torque specifications. Spindle mounting bolts (part #M8x35) must be torqued to 45 ft-lbs–overtightening warps the deck housing, while undertorquing causes vibration. Use a click-type torque wrench; standard wrenches lack precision for this application.
Understanding Your Lawn Tractor Cutting Assembly: A Detailed Component Breakdown
Begin by locating the cutting chamber belt routing schematic–ordinarily printed on a metal decal attached beneath the mower housing or inside the engine shroud. This visual guide displays correct pulley alignment and tension paths for the primary drive belt, preventing premature wear and slippage during operation. Verify belt compatibility: the original equipment specification calls for a 48-inch, six-rib design (M144491), while narrower decks may use a five-rib variant (M144696). Always cross-reference measurements with your serial number plate to avoid mismatches.
Inspect the spindle assemblies next–each consists of a hardened steel shaft (M155214), dual sealed bearings (G155212), and an upper bearing housing (M150213). Rotate each blade tip by hand before reinstallation; resistance exceeding 2.5Nm indicates bearing failure. Replace blades in sets (three-blade configuration, M110015) to maintain cutting balance; uneven wear causes excessive vibration, leading to accelerated gearbox degradation. Note torque specifications: blade bolts require 70-80 Nm, while spindle mounting bolts demand 40-50 Nm.
Examine the idler pulleys–critical for maintaining proper belt tension. The spring-loaded idler arm (M138138) should pivot freely without lateral play; excessive movement signals worn bushings (M100926). Clean the pulleys annually using a stiff nylon brush; embedded grass clippings reduce tension efficiency. The stationary idler pulleys (M138111 front, M169869 rear) feature sealed bearings–no lubrication required–but inspect for radial cracks along the plastic housing, which mandate immediate replacement.
The discharge chute and baffle system (M136467) directs clippings outward but accumulates debris over time. Remove the chute assembly by releasing two quarter-turn fasteners (M145016) and check the deflector flap (M163205) for cracks. If mowing in dense vegetation, consider upgrading to a high-lift kit (M165118) for improved airflow and reduced clumping beneath the housing. Always reinstall the chute with silicon sealant along the flange to prevent moisture ingress, which corrodes the inner mounting brackets.
Quick-release levers for height adjustment (M156060) wear over cycles, causing inconsistent cutting depth. Disassemble the lever mechanism by removing the cotter pin (M80277) and inspect the nylon cam (M165414) for deformation. Lubricate pivot points with lithium grease (M193966), avoiding excess buildup that attracts dust. Verify linkage rods (M172180) for straightness–bent rods misalign deck rollers (M138077), creating scalping on uneven terrain.
Check the PTO engagement system–begin with the cable (GX20042), ensuring smooth travel within the sheath (M136344). Adjust cable tension using the threaded barrel adjuster until 1.5–2 mm of free play remains before clutch activation. The electromagnetic clutch (M155024) draws 4.5–5.5 amps under load; deviations indicate slipping discs (M107304) requiring cleaning or replacement. Always disconnect the negative battery terminal before servicing the clutch to prevent accidental engagement.
Lubrication points demand consistent attention: apply multipurpose grease (M193966) to the front caster pivots (M178965) every 25 operating hours, and annually pack the sealed wheel bearings (G140412). The rear anti-scalp rollers (M105407) feature zerk fittings–pump grease until excess exits the seal lip. Overlooking these points leads to seized rollers, forcing deck height adjustments that stress the lift linkage (M134181).
When reassembling, prioritize torque sequences: begin with the center spindle bolts, then alternate outward to prevent warping. Use blue thread locker (Loctite 243) on all fasteners except blade bolts, where medium-strength (Loctite 242) suffices. Finalize by verifying belt tracking–misalignment by even 3mm causes uneven wear. If the drive belt frequently derails from the rear idler pulley, check the pulley bracket (M125985) for cracks or improper installation.
Finding the Right Schematic for Your L110-Series Mower Cutting Assembly
Start by visiting the official manufacturer’s technical resources portal–enter your equipment’s exact model identifier (found on the frame label beneath the footrest) into the search bar. Filter results by year of production, as later revisions often include minor component variations, particularly around the pulley tensioner and blade spindle assemblies. Cross-reference the serial number prefix to confirm compatibility; early runs (before 2005) use a slightly thicker mounting bracket not shown in newer schematics.

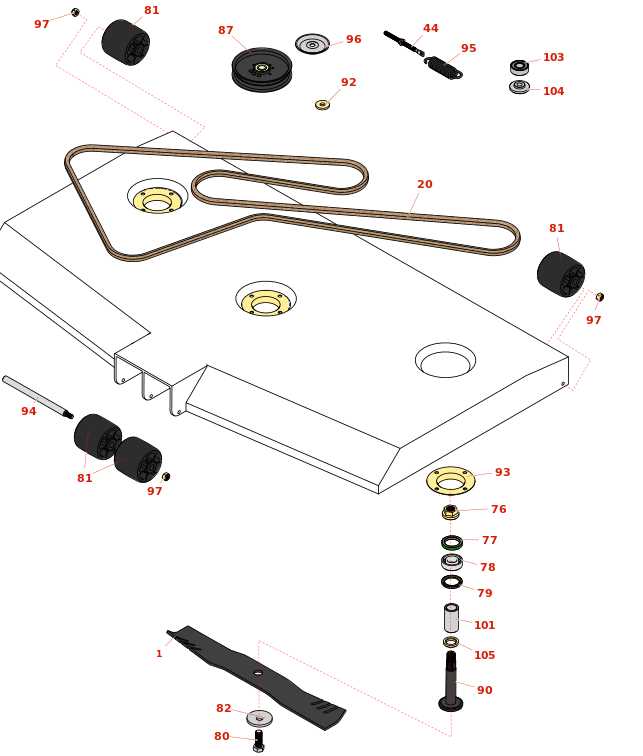

Retrieve the exploded view PDF specific to your cutting unit’s width (42”, 48”, or 54”). Pay close attention to sheet two, where fasteners are listed–note thread pitch and bolt length differences between the left and right spindles. For instance, hex cap screws securing the outer belt guards measure M8 x 1.25 x 25mm, while inner fasteners often require M6 x 1.0 x 16mm.
Third-party repair databases frequently mislabel subcomponents like the idler arm or discharge chute pivot. Verify lineage by matching the part’s casting number–located on the underside of each metal piece–against the official reference. If the diagram lacks a callout for the anti-scalp roller bracket, check supplementary engine deck schematics, as this element appears under the powertrain section in some manuals.
Print the schematic at 120% scale to ensure critical measurements, like the distance between spindle centers, remain accurate. Use calipers to confirm spacing before ordering replacements; aftermarket blades often list incorrect offsets for the star-shaped washers. Highlight discrepancies with a permanent marker directly on the printout, noting any field modifications (e.g., aftermarket mulching kits) that may alter standard dimensions.
Store the schematic in a waterproof sleeve within the equipment’s service logbook. Record the date of retrieval, the database version (if digital), and any serial number suffixes that indicate mid-year engineering updates–such details prevent errors during future rebuilds.
How to Locate and Understand the Mower Cutting Assembly Schematic
Download the official PDF schematic from the manufacturer’s support portal using the model number engraved on the right side of the cutting housing frame–typically near the pivot bracket. Print or open the file on a tablet to cross-reference components in real time while working. The exploded view segments hardware into three primary zones: spindle assemblies (upper left), blade linkage (center), and frame mounts (lower right). Each zone uses color-coded callouts–red for fasteners, blue for bearings, green for pulleys–to simplify identification. If labels are unclear, refer to the accompanying table on page 3, which maps part numbers to descriptions and thread specifications.
Component Matching Workflow
| Zone | Key Items | Verification Steps |
|---|---|---|
| Spindle | Housing, seals, shaft | Spin shaft by hand–grinding indicates worn bearings; leaky grease signals failed seals |
| Linkage | Rod ends, springs, idler | Measure rod length (std: 22.5 in)–shortening alters blade tension; springs should extend 3x compressed length |
| Mounts | Brackets, bushings | Check bushing wear with calipers–replace if >0.1mm gap; brackets must align ±1° for proper belt tracking |
Inspect hardware sequentially: start at the left spindle, move clockwise. Torque bolts to 25-30 ft-lbs–exceeding this strips threads in aluminum castings. For pulleys, note groove wear patterns: uneven wear signals misalignment; smooth grooves confirm correct belt tension (optimum: ½-inch deflection mid-span). Using a flashlight at an angle reveals hairline cracks in cast parts–critical for safety as these components endure 3,200 RPM loads. Keep a magnetic tray handy: lost washers and snap rings often slip into grass chutes during disassembly.
