Locate the engine assembly breakdown under section 5-210 of official service manuals–this covers the carburetor linkage, fuel filter housing, and air intake components. Earlier versions (pre-2015) show a three-bolt mounting flange for the hydrostatic transmission; later variants use a four-bolt pattern. Replace worn linkage rods only with OEM-specified parts to maintain PTO engagement timing.
For the mower deck architecture, refer to sub-diagram 7-160 where blade spindles and belt tensioners intersect. The idler pulley on older units (serial #GX30001–GX45000) requires biannual lubrication with SAE 90 gear oil; newer models feature sealed bearings. Track the left-side caster fork alignment via measurement points A and B–misaligned forks cause uneven cutting paths.
Avoid sourcing aftermarket hydraulic pump internals; OEM seals (part #T18139) maintain 1,800 psi operating pressure. The lift arm pivot shaft (section 3-115) demands torque values of 55 ft-lbs–overtightening shears the splined interface. If troubleshooting electric clutches, check the brush holder assembly first; 80% of failures stem from carbon deposits on the slip ring.
Access the steering gear schematic at sub-diagram 4-300. Rebuild kits for the sector gear require pre-loading via shim stack S3-12; incorrect shim selection results in slack. For battery replacement, note the main fuse location–20-amp blade near the voltage regulator–for consistent cranking amps.
Tractor Model L118 Component Layout: Key Locations & Maintenance Tips

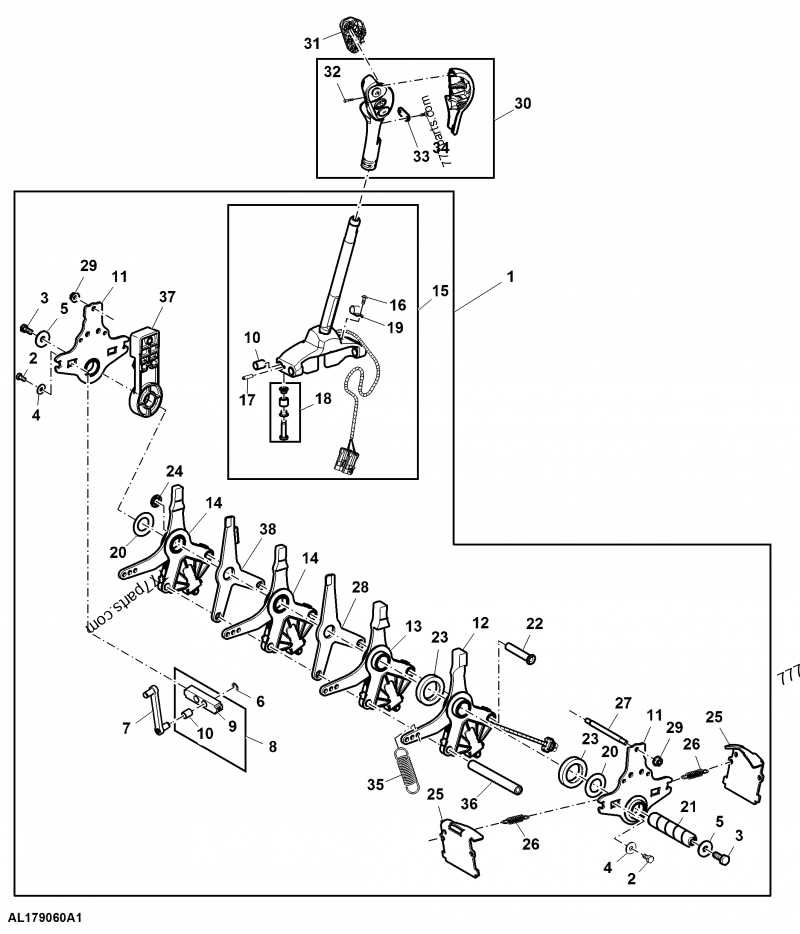

Begin by securing a detailed exploded view schematic–available through authorized service portals like the manufacturer’s official repair manual (component number MIF43072). This document splits the machine into six primary assemblies: cutting deck, propulsion chassis, operator station, electrical harness, powerplant, and hydraulic circuit. Each section includes sub-assemblies down to individual fasteners, providing torque specifications and replacement intervals.

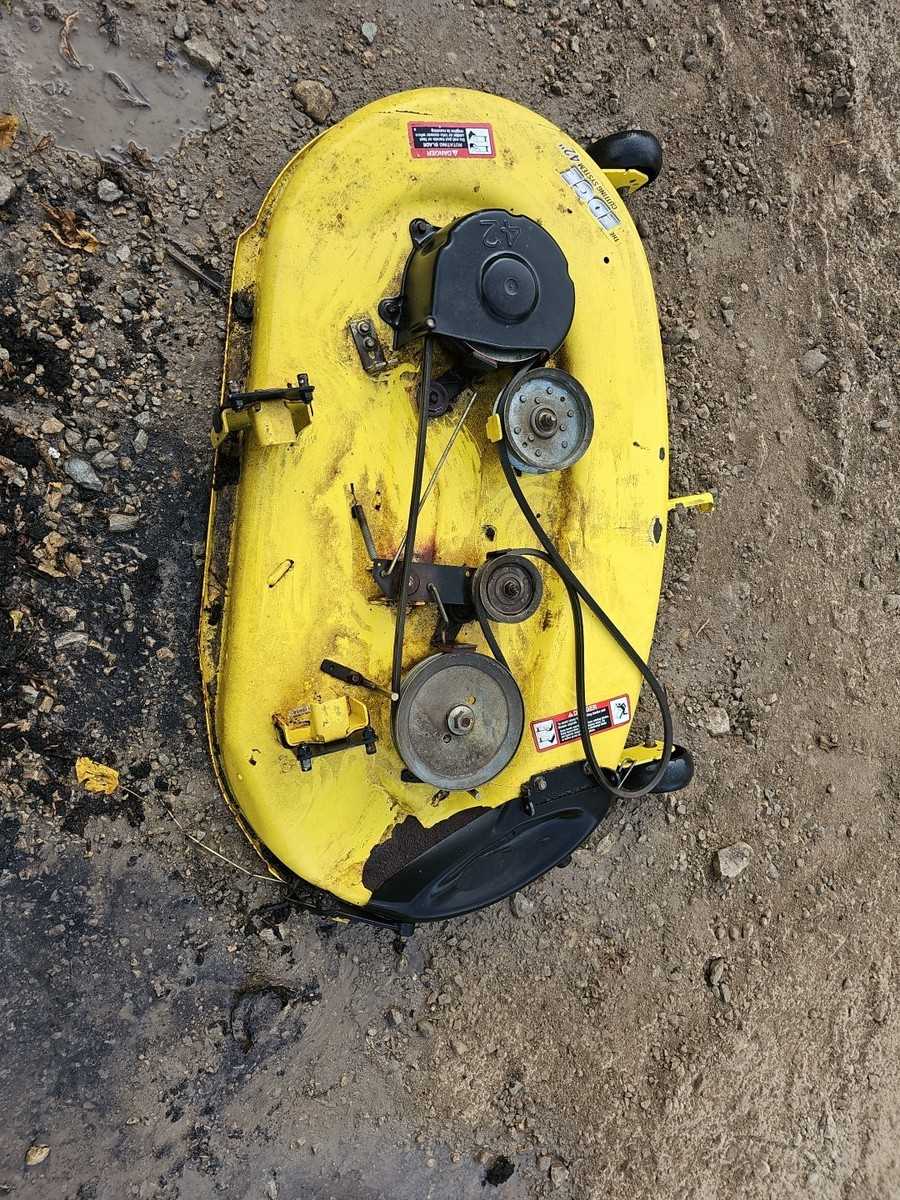

For the mower deck–often referenced as the 42-inch mid-mount unit–identify critical wear points: spindle housings (part group 43A), blade drive belts (code AM102854), and deck lift linkages (PNM103982). Replace spindle bearings every 200 operating hours if unusual vibration occurs during engagement. Belt tension should measure 1/2 inch deflection under 10 lbs of force; adjust idler pulley position if outside tolerance.
Trace the hydrostatic transmission’s pedal linkage before addressing sluggish response. Inspect the forward/reverse pedal rods (assembly MG103756) for bent pivot points–lubricate bushings with synthetic grease every 50 hours. If pedal feel remains spongy, bleed the hydraulic system through the designated bleed port located beneath the right fender, accessing it via a 3/8-inch socket removal of the protective cap.
Electrical faults frequently stem from corroded ground connections near the battery tray. Disconnect terminal clamps, clean surfaces with a wire brush, then apply dielectric grease before reattachment. For intermittent dashboard warnings, check fuse block F1 (rated 20A) serving the ignition circuit–replace if continuity test fails using a multimeter. Battery cables should maintain less than 0.5 ohms resistance; replace if readings exceed this threshold.
The engine’s air filtration system requires strict adherence to service intervals: pre-cleaner every 25 hours, primary paper element every 100 hours or sooner in dusty conditions. Access the housing by removing three Torx-20 screws securing the cover; never tap the filter against a surface to dislodge debris–use compressed air at 30 psi from inside to out. Fuel filters demand replacement every 150 hours; locate the spin-on canister beneath the fuel tank, turning counterclockwise with a strap wrench.
Hydraulic hoses endure constant flexing; inspect all crimped connections for seepage or hardened rubber. Replace lines showing cracks within 0.5 inches of fittings, using OEM-specified DN8 hoses with SAE J517 100R1 at ratings. When reassembling, align markings on couplers to prevent cross-threading–hand-tighten before final torque to 35 ft-lbs using a flare-nut wrench to avoid swiveling.
Store a printed copy of the schematic in a sealed pouch beneath the seat for field repairs. Cross-reference component codes with the parts catalog when ordering–substitutions, even from reputable aftermarket suppliers, often omit critical revisions like pressure-rated hydraulic seals or zinc-plated fasteners, leading to premature failure under manufacturer load specifications.
Locating the Authorized Manufacturer’s Equipment Blueprint in PDF Format
Download the official schematics directly from the manufacturer’s support portal by entering the model code “L118” in the search bar. Filter results by “Technical Manuals” to access the precise PDF–typically labeled “Operator’s Manual” or “Service Components Catalog,” both containing exploded-view illustrations and OEM reference numbers.
Regional distributors like Deere Parts Catalog offer downloadable PDFs indexed by serial number. Select “All Models” then input “L118” to isolate files tagged with “_PCxxxxxx_” (e.g., PC9635) for component breakdowns, including electrical and hydraulic segments. Avoid third-party aggregators; these documents are watermarked and updated quarterly with torque specs and supersession notices.
Verify file integrity by cross-referencing the first three pages: page 1 lists the model variant, page 2 includes the revision date (current: May 2024), and page 3 shows a table of contents with section numbers matching the L118’s engine (Kohler CH440), transaxle (Tuff Torq 440), and PTO systems. Missing these identifiers indicates an outdated or unofficial version.
For offline access, save the PDF to a labeled folder (e.g., “L118_Schematics_2024″) with file names reflecting specific assemblies–”Deck_48in_v2.pdf” for mower decks or “Hydro_Trans_v1.pdf” for drive systems. Use Adobe Acrobat’s “Snapshot Tool” to extract critical sub-assemblies (e.g., spindle housings) for shop-floor reference, ensuring measurements remain scalable to 100% zoom.
Main Powertrain Elements in the BravoCut 118 Gear Schematic
Locate the crankshaft pulley immediately beneath the blower housing–its precise alignment with the timing belt prevents camshaft slippage, which causes inconsistent firing intervals. Replace the pulley every 450 operating hours or if lateral play exceeds 0.03 mm; off-the-shelf aftermarket units often lack hardened bearings, leading to premature failure under heavy turf conditions. Keep a 15 mm wrench on hand for the pulley bolt torque sequence; improper tightening distorts the keyway and throws off belt tension by as much as 3°.
Air intake filtration demands scrutiny: the primary cylindrical foam element must be oiled every 50 hours with ISO viscosity-classified lubricant; dry foam collapses under suction, sending abrasive silica dust directly into the intake valves, reducing compression by 8–12% within two cycles. Concurrently, inspect the pre-cleaner vanes–misaligned blades reduce rotational efficiency by 40%, starving the combustion chamber during peak load. Replace the vane assembly if vane-to-housing clearance exceeds 0.5 mm; loose fit disrupts laminar airflow, causing unburned fuel deposits that foul spark plugs within 60 hours.
Exhaust manifold integrity hinges on gasket thickness: opt for multi-layer steel gaskets rated for 1,200 °F thermal cycling–they prevent flange warping that leaks nitrogen oxides, triggering onboard diagnostic fault P0402. Check flange bolts at 90 lb-ft torque; over-tightened bolts crack the cast-iron manifold, while loose bolts allow oxygen sensor drift, skewing fuel mapping. Pair the manifold with a catalytic converter containing 400 cells per square inch; lower cell counts fail to scrub particulate matter below the 15 mg/m³ threshold mandated by Tier 4 emissions protocols.
How to Identify Transmission and Drive System Components for Your Garden Tractor
Locate the transmission housing beneath the tractor’s middle section, typically bolted to the frame near the rear axle assembly. Use a flashlight to inspect the casting for model-specific markings or raised numbers–these often indicate the gearbox type (hydrostatic or manual). On hydrostatic units, examine the external pump and motor flanges; their orientation and bolt pattern reveal compatibility with service kits.
Trace the drive belt path from the engine pulley to the transmission input shaft. The belt’s width, rib count, and material (EPDM vs. neoprene) should match the original specifications–check for a part number embossed along the inside edge. If absent, measure the center distance between pulleys and compare it to repair manual tables. Incorrect belt dimensions accelerate wear on tensioners and idlers.
Key Components to Inspect
- Hydrostatic transaxle: Look for two hoses (supply/return) connecting to the rear axle housing–these must remain unobstructed to prevent overheating.
- Differential gears: Access requires removing the rear wheel hubs; count the teeth on the ring gear and pinion for replacement accuracy.
- Shift linkage: Verify rod ends align with detents on the control valve–misalignment causes erratic engagement.
- Axle shafts: Inner CV joints may show grease leakage; replace seals if splines appear worn or discolored.
For manual gearboxes, remove the side cover to expose the shift forks. Use a magnetic inspection tool to retrieve loose components; count each detent ball and spring, noting their arrangement. Cross-reference findings with assembly schematics–missing parts often correlate to slipping gears. Tag removed components with masking tape to preserve reassembly sequence.
Test the PTO clutch by engaging it under load–listen for unusual noises or delayed response. The clutch disc should disengage fully within 2-3 seconds; slower disengagement suggests worn friction plates or a seized release bearing. Grease the splines annually to prevent corrosion, which locks plates together.
- Drain transmission fluid into a pan, noting color and debris–milky fluid indicates water ingress, while metal shavings signal internal wear.
- Inspect the filter screen (if equipped); tap against a clean surface to dislodge trapped particles.
- Flush the system with detergent-free solvent if sludge is present, then refill with manufacturer-specified oil weight.
- Adjust drive belts to 1/4″ deflection at midpoint–excess slack causes slippage, while overtightening damages bearings.
