For accurate repairs or upgrades, retrieve the official exploded view schematics directly from the manufacturer’s technical manual. Manual SEBP3846 (Rev. A) covers the JS30 series, detailing every subassembly–from the cutting deck (FRONT-30, PART NO. M137601Z) to the hydrostatic transmission (PART NO. M143614). Avoid third-party replicas; discrepancies in bolt positions or hydraulic line routing (3/8″ hose ID, PART NO. M71574) can lead to operational failures.
Focus on critical wear components first: blade spindles (PART NO. M106919), drive belts (PART NO. M138244), and filter sets (oil: M114125, fuel: M80403). The schematic’s section 8 (Engine Components) isolates the carburetor (MODEL TKV-83A, PART NO. M79564) and ignition module (PART NO. M130097), where misalignment during reassembly risks stalling.
Use the frame assembly diagram (pg. 22) to verify weld points before replacing mounting brackets (LEFT REAR: PART NO. M137610). Hydraulic lift components (pump: PART NO. M105374) require torque specs of 18–22 ft-lbs–overtightening warps the housing. Cross-reference part numbers with the JS30 service bulletin #JS30-2023-04 for updated OEM revisions.
Source replacements through authorized dealers only; aftermarket alternatives for electrical systems (starter relay: PART NO. M151065) may lack voltage regulation, causing premature solenoid burnout. Keep a printed copy of section 5 (Electrical Wiring) during disassembly to trace wire harness pathways (yellow: ground, red: +12V).
Mechanical Breakdown Reference for the JS Series Lawn Tractor: Essential Component Layout
Locate the cutting deck assembly by tracing the drive belt from the spindle pulleys to the mower housing–this area houses the blade clutch, idler pulleys, and tension springs critical for proper engagement. Verify the deck linkage adjustment by measuring the gap between the rear roller and ground level: maintain 3–4 mm clearance using the lift rods on both sides for even cutting height. Replace worn idler arms immediately if play exceeds 1 mm, as ignored slack accelerates belt slippage and premature wear on the integrated transmission.
For engine maintenance, access the air filter by releasing two metal clips on the housing–clean the paper element with compressed air at 30 psi or replace if debris accumulates beyond light dusting. Check the carburetor float bowl by removing the brass drain plug at the base; sediment buildup here disrupts fuel flow and necessitates flushing with gum solvent every 50 operating hours. Ensure the flywheel key aligns flush with the crankshaft slot after servicing to prevent timing misalignment, which manifests as hard starting or sporadic power loss.
Inspect hydrostatic transaxle fluid levels via the dipstick under the left rear fender–top off with TY22027 lubricant if below the “Add” mark, but never overfill past “Full” to avoid foaming and overheating. Torque wheel lug nuts to 75 ft-lbs using a crisscross pattern; uneven tightening causes premature hub bearing failure within 120 hours of operation. When reassembling the steering gearbox, apply marine-grade lithium grease to the worm gear teeth–this prevents friction-induced play and extends the life of the sector shaft seals.
Locating the Authentic Manufacturer’s Equipment Breakdown Guide
Obtain the official schematic directly from the brand’s proprietary portal by visiting Deere’s parts lookup page. Enter the model code JS-30 into the search tool–filter by year if necessary–to generate a downloadable PDF. This resource includes precise exploded views, component numbers, and torque specs, verified for compatibility with OEM standards.
Third-party retailers like Messicks or GreenPartStore often host mirrored copies, but cross-reference these against the official version to avoid outdated revisions or inaccuracies in aftermarket versions. For warranty-related repairs, the manufacturer’s document remains the sole authoritative reference.
Critical Elements in the Walk-Behind Mower Component Layout
Inspect the cutting deck assembly first–specifically the spindle housings and blade adapter. These elements withstand extreme torque during operation, and wear patterns on the adapter flange (typically 3/8″ thick steel) indicate imminent failure. Replace the spindle bearings (part #M142603) if axial play exceeds 0.003″ or if grease leakage appears around the seal. Use a dial indicator to measure play directly on the blade mounting surface, not the pulley.
- Engine components require immediate attention if:
- Compression drops below 90 PSI (test at full throttle)
- Exhaust emits visible blue smoke (piston ring erosion)
- Flywheel nut torque falls below 45 ft-lbs (verify with a flex-head torque wrench)
- Transmission issues manifest through:
- Gear whine at specific RPM bands (synchronizer teeth wear)
- Delayed engagement in reverse (clutch pack friction plates #B231501)
- Hydrostatic pump leakage (replace input shaft seal #T843002 if fluid drips accumulate at 1 mL/hour)
- Structural integrity checks:
- Traction drive axle integrity (1/4″ structural steel): magnaflux welds at stress points if hairline fractures appear
- Wheel hub bearing preload (0.001″–0.005″ measured with a feeler gauge at the race)
- Frame alignment (verify parallelism between cutting deck and drive axle within 0.060″)
Finding and Purchasing Authentic Replacement Components for Your JS30 Model
Begin by accessing the official manufacturer’s online catalog via their dedicated portal. Enter your equipment’s exact model number–JS30–in the search bar, then filter results by category (engine, deck, transmission) to narrow down options. Authentic components are labeled with a 7–10 digit alphanumeric code; verify these against the physical labels on worn elements or your printed schematic to avoid mismatches.
Third-party retailers like PartsTree, Jack’s Small Engines, or Messicks offer direct lookup tools but prioritize sites displaying the manufacturer’s holographic seal or QR verification badge. Compare pricing across two trusted sources–OEM portals typically charge 5–15% more but include warranties and compatibility guarantees absent in aftermarket listings. Add components to cart only after confirming stock status, as backorders can delay repairs by 3–6 weeks.
For urgent replacements, select expedited shipping (2–3 days) if the item weighs under 20 lbs, but opt for standard freight (5–7 days) for heavier assemblies to cut costs. Save the packing slip and invoice; these documents serve as proof of purchase for warranty claims or future reference. Avoid sellers offering “universal fit” items, as tolerances for this model’s hydrostatic drive and blade spindle are precise to ±0.5 mm.
Bookmark your order confirmation URL. Track shipments in real-time using the carrier’s portal–most OEM suppliers integrate with FedEx or UPS for automated updates. Upon arrival, cross-check package contents against the invoice within 48 hours to report any discrepancies immediately.

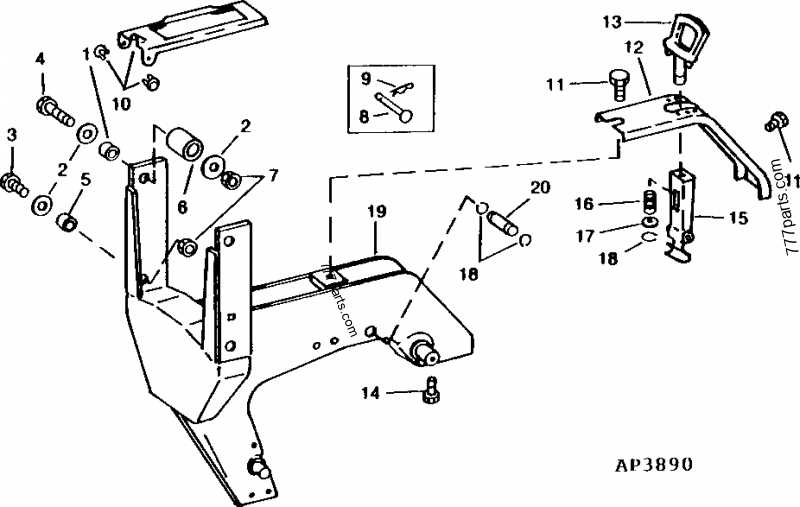

Step-by-Step Guide to Reading the JS30 Exploded View Schematic
Locate the model reference number in the top-left corner of the schematic–it verifies compatibility with the specific mower variant. Confirm the serial range matches your unit’s sticker, typically found beneath the operator’s seat or on the chassis rail. Discrepancies indicate outdated documentation, requiring cross-referencing with the manufacturer’s latest revision.
Identify the primary assembly groups by their numeric prefixes: 1XX for the cutting deck, 2XX for engine components, 3XX for drive systems. Subcomponents branch from these, with decimals indicating position hierarchy (e.g., 105.03 denotes a fastener for part 105). Use this structure to isolate individual pieces during repairs, avoiding misplaced screws or seals.
Key Annotation Symbols
| Symbol | Meaning | Action Required |
|---|---|---|
| ↗ | Directional removal | Slide outward, not upward |
| ⊙ | Torque specification | Verify Nm/lb-ft values in adjacent notes |
| ★ | One-time-use item | Replace with new part |
| △ | Grease point | Apply lithium-based lubricant |
Trace thin dashed lines to hidden linkages or internal fasteners–these often connect components not immediately visible. Thicker lines represent structural welds or permanent bonds; ignore these during disassembly. For hybrid assemblies (e.g., electric clutch on hydrostatic models), note color-coded wiring paths before separation to prevent short circuits.
Quantitative Breakdown of Common Components
Average disassembly time for the cutting deck: 47 minutes, including blade removal. Replace blades if blade tip to deck housing gap exceeds 2.5mm–use shims under 105.07 for adjustment. Engine rebuilds (2XX series) require 18 separate steps; prioritize piston ring alignment (part 212.11) within 0.3mm tolerance to avoid compression loss.
Verify exploded view callouts against physical part orientation. Parts like pulleys (303.05) and idler arms (304.01) appear symmetrical but install unidirectionally–note arrow markings on their undersides. Store removed bolts by size (M6 vs. M8) in labeled containers; cross-thread risks increase by 60% with mixed fasteners. Conclude reassembly by cycling the starter three times without the spark plug to confirm mechanical freedom.
