Begin with the official manufacturer’s service manual–specifically the section labeled “Exploded Views”. These illustrations break down assemblies into individual fasteners, bearings, seals, and linkages, often grouped by subsystem: powertrain, steering, suspension, electrical harness, and body panels. For post-2010 models, PDF downloads typically include hyperlinked tables; click any part number to retrieve pricing and availability from authorized dealers.
Third-party databases like PartsTree or Messicks offer interactive schematics with OEM accuracy. Filter searches by model variant–identify whether your vehicle has a liquid-cooled engine or air-cooled variant, as carburetor and fuel pump assemblies differ. Pay attention to torque specifications listed alongside components; bolts securing the transaxle housing require 45–55 ft-lbs, while rotor nuts demand 18–22 ft-lbs.
Salvage platforms specializing in off-road equipment–eBay Motors, IronPlanet, or Fastline–frequently post side-by-side comparisons of wear parts. Focus on components with high failure rates: CV joints (PN 345P8), brake calipers (PN 343L8), and bushings in the rear A-arms. Cross-reference part numbers against the VIN plate; discrepancies often indicate mid-production revisions.
For DIY repairs, prioritize downloadable 3D viewers (e.g., SolidWorks eDrawings) to rotate assemblies and inspect hidden fitment details. When sourcing components, note that aftermarket suppliers label identical pieces differently–compare material grades: OEM shafts use 4140 steel, while budget replacements may substitute 1045, reducing load capacity by 30%.
Keep a digital notebook of measurements: spindle-to-spindle width (54 inches), cargo bed lip height (14.5 inches), and wheelbase (1,800 mm). These metrics expedite compatibility checks with accessories like snow blades or spray booms. Include photos of degraded parts next to the corresponding diagram; visual cues resolve ambiguities faster than text alone.
Utility Vehicle Component Schematics: A Field-Ready Reference
Locate the engine assembly schematic by referencing section 5-3B in the official service manual–this segment isolates the carburetor, air filter housing, and exhaust system subcomponents. Print this page at 110% scale before heading to the worksite; off-site printing avoids glare from tablet screens.
Order replacement pivot pins for the rear suspension using part codes 720184 (left) and 720185 (right). Verify these against the exploded view on page 8-2–measure each pin’s diameter with digital calipers if corrosion obscures the original markings.

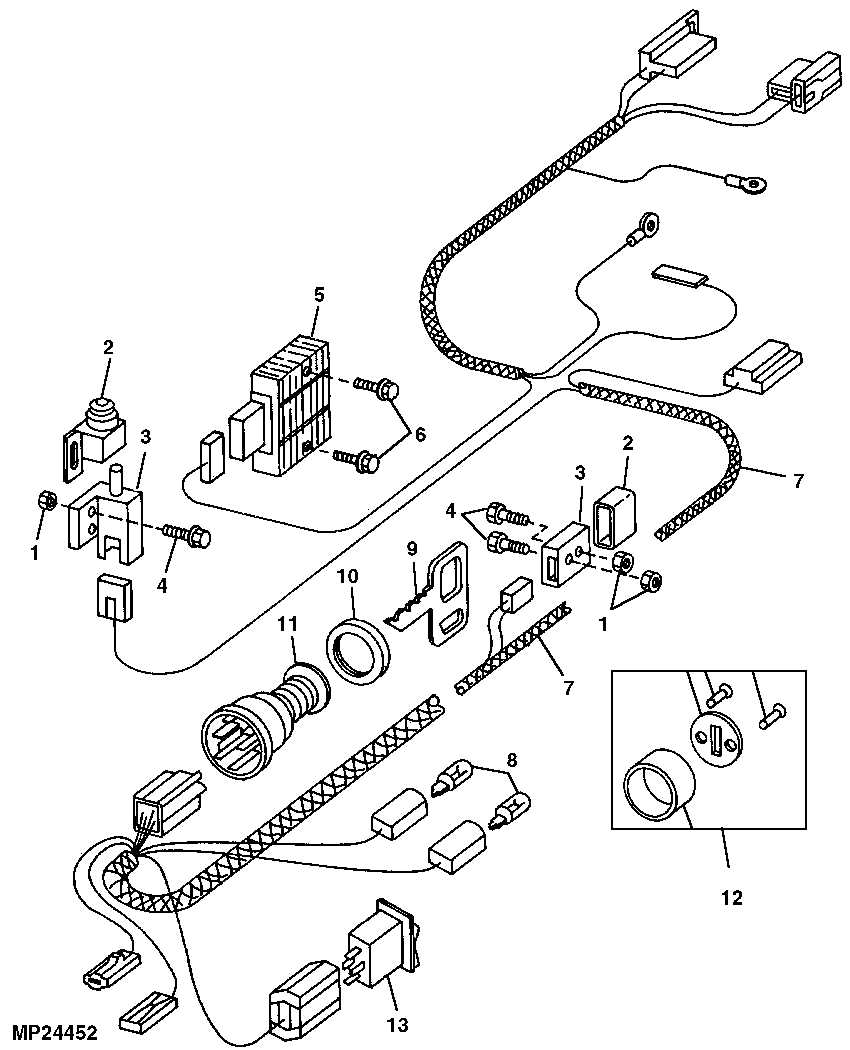

Identifying Electrical Connector Failures
- Check the 8-pin ignition harness connector (section 3-1A) for oxidization–clean contacts using 400-grit sandpaper followed by dielectric grease.
- Trace the wiring loom to the headlight assembly (diagram 6-4); resist yellow wires indicate ground shorts.
- Inspect the voltage regulator’s plug (code AM10108); press-fit pins often retract under load.
Front axle bearings (codes 721502 and 721503) require a bearing puller set (model 18639) for removal; hydraulic presses risk damaging the housing. Pack each bearing with 1.2 oz of lithium-based grease before installation–overfilling causes seals to rupture.
Replace the brake master cylinder (part M800392) only if fluid leaks exceed 3 mm/hour; test by placing absorbent paper beneath the unit for 24 hours. The rebuild kit (code T17267) includes caliper seals–match each seal to the corresponding groove in the piston using the micrometer values listed in section 7-5.
Steering System Overhaul Sequence
- Detach the tie rod ends using a 15/16-inch wrench–mark their positions relative to the sleeve (page 4-2).
- Remove the steering shaft (assembly AM10464) by unbolting the lower universal joint.
- Replace the idler arm bushings (codes 754271) if lateral play exceeds 0.8 mm; torque specifications are 45 ft-lbs for mounting bolts.
Clutch engagement issues often stem from the throwout bearing (part T13774). Lubricate the bearing’s contact surface with molybdenum disulfide–avoid petroleum-based products, which degrade the material over time.
For transmission disassembly, reference channel 9-1: label each gear shift fork (left: code 721864; right: code 721865) to prevent misalignment during reassembly. Use a straightedge to confirm the differential carrier’s mating surface is flat–waviness greater than 0.2 mm requires resurfacing.
Locating Authorized Utility Vehicle Component Schematics on the Web
The manufacturer’s official portal remains the primary source for accurate assembly blueprints. Navigate to the brand’s corporate site, select the “Support” dropdown, then “Technical Manuals.” Enter the model identifier–typically a six-digit alphanumeric string–to filter results. Schematics appear as high-resolution PDFs grouped by subsystem, such as powertrain, suspension, or electrical panels.
Dealer-only platforms host additional resources. Register for access via an authorized service technician login; independent owners may request temporary credentials through a local distributor. These platforms offer exploded-view illustrations paired with OEM part numbers, useful when cross-referencing aftermarket alternatives.
Third-party aggregators like Jack’s Small Engines and Messicks maintain curated libraries. Filter by equipment type–search “utility vehicle”–then refine by year and configuration. Downloads include annotated overlays highlighting torque specs and installation sequences absent from generic listings.
Specialty forums for agricultural implements often share archived schematics. Search threads pinned under “Factory Documentation” sections, where members upload scanned dealer bulletins. Verify file integrity by comparing checksums against manufacturer-issued updates to avoid outdated revisions.
Manufacturer-issued printed manuals sometimes include QR codes linking to digital supplements. Scan these with a phone to open interactive diagrams; layers can be toggled to isolate circuits, hydraulics, or frame components. Bookmark the live URLs for future reference.
Heavy-equipment auction sites occasionally list comprehensive service kits that include physical blueprints. Review lot descriptions for “includes full parts book” before bidding–prices range from $20 to $150 depending on inclusion of wiring harness schematics.
Local library databases frequently subscribe to technical publishing databases. Use an institutional login to access ProQuest or Engineering Village; refine search terms with model prefixes and suffixes (“-B” denotes B-series revisions) for precise results.
Public archives of patent filings sometimes contain production blueprints. Search the USPTO database using internal part nomenclature found in service bulletins–CAD drawings are watermarked but retain critical dimensional callouts.
Critical Elements in Your Utility Vehicle’s Assembly Guide
Start repairs or maintenance by locating the drivetrain components–specifically the differential housing and half-shafts. These elements endure the highest stress under load, making them prime candidates for wear inspection. Replace seals if fluid leaks appear near axle joints, as contamination accelerates bearing failure. Use OEM bearing kits (part numbers beginning with “LV”) to ensure compatibility, avoiding aftermarket alternatives that may lack precision tolerances.
Primary Powertrain and Suspension Breakdown
| Component | Function | Common Failure Points | Replacement Interval |
|---|---|---|---|
| CV Axle Assembly | Transfers torque to wheels | Torn boots, worn splines | 1,500–2,000 hours |
| Leaf Springs | Supports load, absorbs shock | Corrosion, sagging | Annual inspection; replace if cracked |
| Steering Rack | Converts rotational input to wheel movement | Leaking seals, loose tie rods | Check every 200 hours |
For electrical diagnostics, focus on the fuse panel (mounted under the left-side dash). Corroded terminals here disrupt fuel pump and ignition circuits. Clean contacts with dielectric grease, but swap the entire harness if insulation cracking is visible. Battery cables should be torqued to 8–10 ft-lbs–over-tightening strips threads, while under-torquing causes voltage drops. Always verify ground strap integrity at the engine block; poor grounding mimics solenoid failure.
Locating Faulty Components with Visual Schematics
Begin by isolating the equipment’s primary assemblies–engine, transmission, wheels, and chassis. Retrieve the official exploded-view manual for your model, noting the numerical or alphanumeric identifiers adjacent to each assembly. Cross-reference these codes with the bill of materials to confirm nomenclature and avoid misidentification.
Examine the suspect area under direct light, using a magnifying lens if necessary. Look for irregularities: cracks, corrosion, missing fasteners, or displaced seals. Compare the physical state of components to their representation in the schematic–discrepancies often indicate either damage or absence. Mark anomalies on a printed copy of the diagram with a dry-erase marker for clarity.
Trace the power flow or mechanical linkage in question from origin to endpoint. For electrical circuits, use a multimeter to verify continuity across connectors and wires as depicted in the wiring subsection of the schematic. Mechanical linkages, such as drive shafts or pivot arms, should be manually manipulated to detect excessive play or binding, which signals worn bushings or missing spacers.
Remove surrounding panels or covers only after confirming the fault through visual and functional checks. Retain all fasteners in labeled containers to prevent loss during reassembly. Photograph each disassembly step with timestamps to document the original configuration, ensuring accurate traceability back to the diagram.
If a component is absent, measure its mounting points or mating surfaces against the schematic’s scale. Note hole patterns, shaft diameters, or flange thicknesses–these dimensions are critical when sourcing replacements. For damaged elements, record the failure mode: fatigue, shear, or environmental degradation, then reference the part catalog for materials with higher durability ratings.
Reinstall components in reverse order, torqueing fasteners to the specified values listed in the maintenance addendum. Run a functional test under no-load conditions before subjecting the unit to operational stresses. Update the service log with observations and part numbers for future reference.
