For precise repairs, begin with the engine compartment breakdown. Locate the air filter housing near the rear left–remove the bolt (M8 x 25mm) securing the cover to access the filter element (part #RE54567). The carburetor assembly sits directly beneath; disconnect the fuel line (3/8″ ID) before unthreading the mounting bolts (M10 x 1.5). Reference grid Section 3, Plate 5 for torque specs–over-tightening risks stripping the aluminum threads.
The deck belt routing requires sequential disassembly. Start at the right spindle pulley (48-tooth), loop clockwise under the idler arm (tensioner spring: 12 N·m), then over the left spindle. Misalignment here causes premature wear; verify pulley alignment with a straightedge (Plate 9, Detail C). The drive belt (part #GX20072) should sit flush in the grooves–replace if fraying exceeds 1mm.
Electrical diagnostics demand a multimeter set to 20VDC. Probe the ignition module (behind the flywheel) at terminals A-B; resistance should read 400–600 ohms. If outside range, check the wiring harness continuity (Plate 12) between the module and starter solenoid–corrosion here mimics component failure. Fuse ratings (30A main, 15A lighting) are non-serviceable; bypassing leads to fire risk.
Hydraulic repairs focus on the lift cylinder assembly. Drain fluid via the tank plug (left side, 1/2″ NPT) before removing linkages–note the detent ball (3mm) beneath the control lever. The piston seal (kit #AM107908) must be lubricated with Mobilfluid 424 during reassembly; dry installation tears the seal lips. Bleed air by cycling the lever 10 times post-repair–trapped air causes erratic lifting.
Blade mandrel inspections require removing the deck entirely. Unbolt the mandrel housing (M12 x 1.75 x 30mm) and check the bearing race for pitting–the outer race tolerance is
Step-by-Step Breakdown of Your Mower’s Component Layout
Download the official OEM schematic from the manufacturer’s support portal using your model’s serial number–this document (typically labeled “PC9685” or “TM2385”) splits the deck assembly into three zones: front (blades, spindles), midsection (belt drives, idlers), and rear (discharge chute, rear axle brackets). Match wear patterns on the spindle pulleys (42-inch decks usually pair 15-teeth drive pulleys with 40-teeth driven units) against the color-coded belts (green = 42-inch primary, orange = secondary deck) to isolate misalignment without disassembly. Replace tension springs–found adjacent to the rear axle–if stretch exceeds 2mm, measured between hook centers at rest.
Stow the exploded-view PDF on a tablet for field reference–highlight the fuel system section (fuel filter, sediment bowl) before winterizing; fogging spray (NLGI #2 grease) should coat the cylinder walls via the spark plug holes after draining the carburetor bowl. Air cleaner housings (inner foam pre-cleaners, outer paper elements) clip onto the intake manifold without tools, but mark rotational orientation with a paint pen to prevent re-installation torque variance. Blade sharpening templates (included in the service manual appendix) require an 1/8-inch bevel; dulled edges exceeding 0.030-inch thickness trigger uneven discharge and excessive deck vibration, audible at 3,200 RPM under load.
Identifying Key Powerplant Elements in Your Riding Mower’s Schematic
Begin by locating the air cleaner assembly–typically positioned atop the engine block, identifiable by a large cylindrical or rectangular housing. Use the manufacturer’s visual breakdown to match its shape with reference label #A78219 or equivalent, ensuring correct orientation. Remove the cover by releasing two quick-release clamps; debris accumulation here signals potential fuel mixture issues if neglected.
The fuel pump sits adjacent to the carburetor, distinguishable by its compact, box-like structure with inlet/outlet ports. Trace fuel lines from the tank to confirm connection points–crossed hoses disrupt priming. Replace diaphragms if sediment appears, referencing torque specs (6-8 ft-lb) for mounting bolts to prevent vacuum leaks.
| Component | Schematic Reference | Common Wear Indicators |
|---|---|---|
| Spark Plug | #B43280 | Electrode erosion, oil fouling |
| Oil Filter | #C19475 | Metal shavings in oil, degraded seal |
| Starter Motor | #D21983 | Slow cranking, burnt smell |
Inspect the flywheel by removing the blower housing–usually secured with three bolts (sizes 10mm). Check ignition coil clearance (0.010–0.012″) using a feeler gauge; incorrect gap causes hard starts. Replace shear pins if damaged, ensuring rotational force isn’t transferred improperly to the crankshaft.
For the valve train, remove the valve cover (gasket #E56321) to expose rocker arms. Adjust clearance using a wrench on the locknut while rotating the pushrod–intake valve clearance: 0.005″, exhaust: 0.007″. Confirm cam lobe wear visually; pitting necessitates camshaft replacement and reassembly with lubricant specified for hydrostatic transmissions.

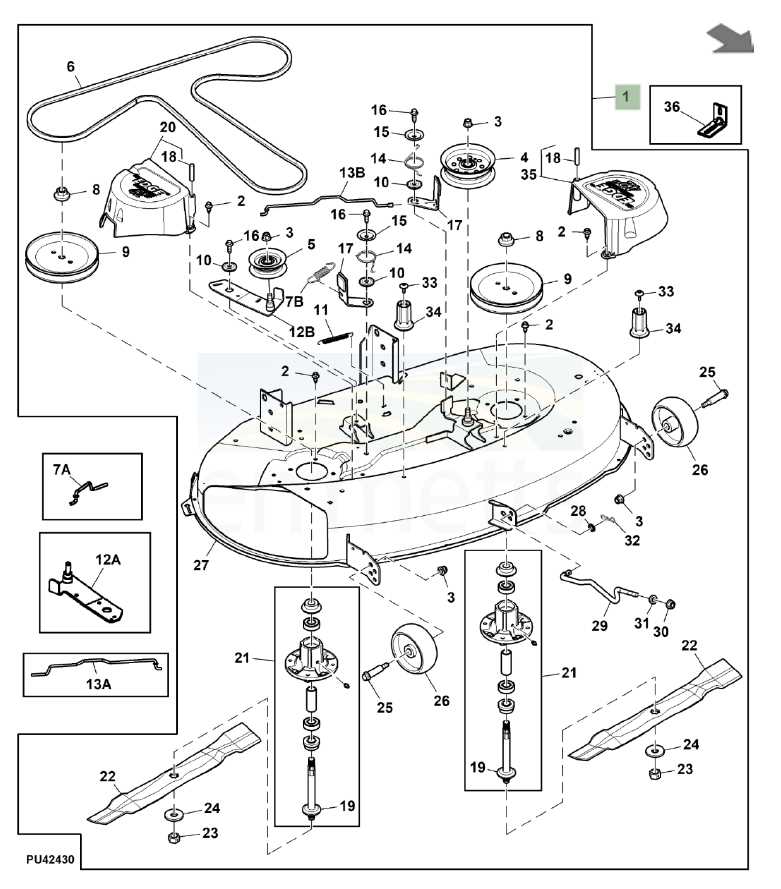

Step-by-Step Breakdown of the Mower Deck Assembly for 42-Inch Cutting Models
Inspect the blade spindle housing before disassembly–rust or thread damage here often causes premature belt failure. Replace all three spindles if play exceeds 0.005 inches, measured with a dial indicator while lifting the blade manually. Use OEM-grade spindle kits (#M142287); aftermarket versions seldom include the hardened thrust washers, leading to rapid wear.
Remove the discharge chute first (two Torx T30 bolts) to access the idler pulley arm. Clean the pulley arm pivot with brake cleaner–the factory grease attracts debris, stiffening movement. Replace the idler spring (#M130490) if it stretches beyond 1.75 inches; a weak spring reduces belt tension, causing slippage under wet grass.
Critical Fasteners and Their Torque Specs
- Blade bolt: 70–80 ft-lbs (use thread locker on new bolts)
- Spindle mounting bolts: 45–55 ft-lbs
- Deck hanger bolts: 35–40 ft-lbs (final position must allow 1/4-inch lateral deck play)
Lubricate the pitch adjustment mechanism with marine-grade grease. The factory nylon bushings (#M144810) wear quickly if dry; replace them if the adjustment lever sticks or requires excessive force. Avoid silicone lubricants–they degrade nitrile O-rings in the system.

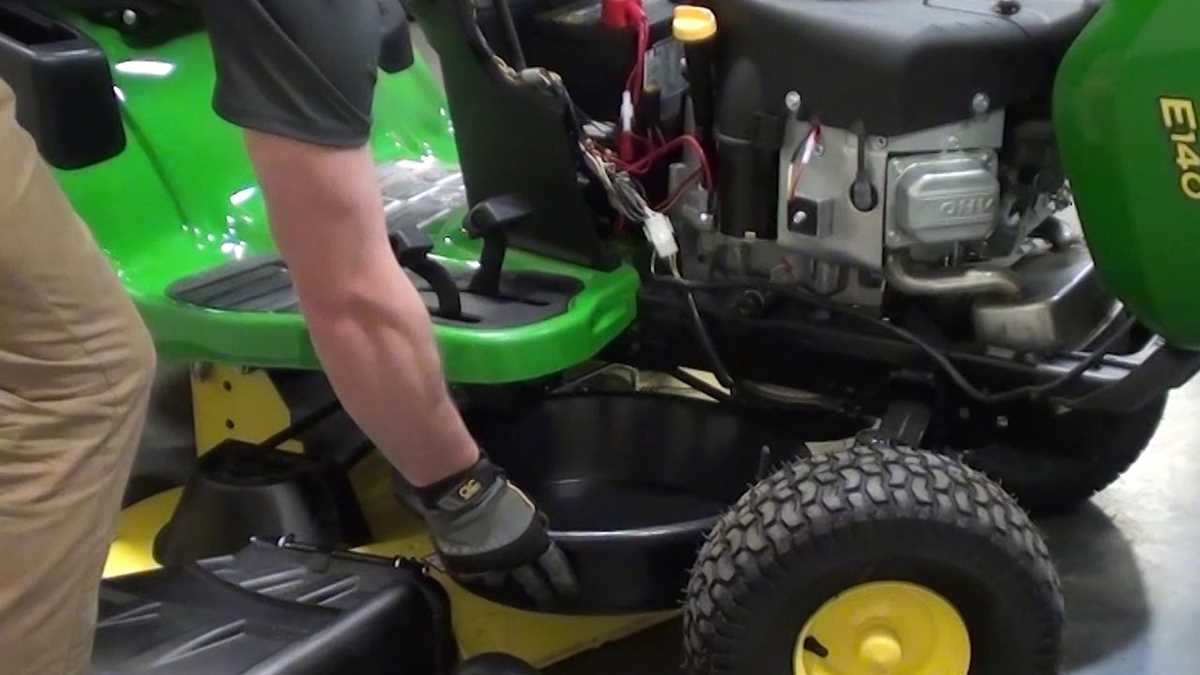

- Lift the deck using the front hitch pins–never lift from the sides as this bends the reinforcement brackets.
- Disconnect the PTO cable by pressing the tab on the engagement lever housing (no tools needed).
- Slide the drive belt off the engine pulley first, then the mandrel pulleys–this prevents misalignment during reassembly.
Check the anti-scalp rollers for flat spots exceeding 1/16 inch. Replace rollers (#M113297) in pairs to maintain even deck height. Adjust roller height so they sit 1/8 inch above the blade tips when the deck is at cutting height (3.5 inches for standard settings).
Replace the belt (#M142893) if fraying exceeds 0.125 inches or cords are visible. Route the belt under the idler pulley before the engine pulley to prevent incorrect seating. Verify tension by pressing the belt mid-span–it should deflect no more than 1/2 inch with 10 lbs of force.
Final Calibration Steps
Set cutting height with the rear adjustment lever first, then the front–this ensures the deck sits level side-to-side. Use a straightedge across the rollers to confirm; a 1/16-inch slope from side to side causes uneven cuts. Recheck all fasteners after 8 hours of use; vibration loosens critical components if not torqued properly.
Locating Spare Components for Your Machine’s Fluid Power System
Begin with the official manufacturer’s service portal. Their online catalog includes exploded-view schematics detailing each cylinder, pump, valve, hose, and fitting. Filter by model number and select the “hydraulics” category–this isolates only the pieces compatible with your 42-inch cutting deck variant. Download the PDF labeled “Fluid Circuit Breakdown” for cross-reference numbers used in dealer inventories.
Regional agricultural equipment distributors stock genuine replacement units. Search for suppliers within a 50-mile radius using terms “OEM tractor hydraulics” combined with your county name. Call ahead and provide the serial number stamped on the original pump housing–this ensures correct shaft spline count and port thread type. Smaller shops often offer same-day pickup for common wear items like seal kits and filter cartridges.
Alternative Sourcing Channels
- Online marketplaces: Input the part code from the exploded schematic into search fields of dedicated machinery retailers. Narrow results to listings marked “new condition” and verify seller ratings exceed 98%. Avoid items shipped from overseas to prevent delays–opt for domestic warehouses instead.
- Salvage yards: Visit yards specializing in turf equipment. Locate intact assemblies by matching the component layout shown in the repair manual. Bring a flashlight to inspect internal wear on valves; metal shavings or discoloration indicate potential failure. Negotiate pricing based on condition, typically 40–60% below retail.
- Aftermarket manufacturers: Companies producing compatible alternatives publish direct-fit guides. Cross-reference dimensions from the original drawing with aftermarket spec sheets–pay particular attention to rod diameter, stroke length, and pressure rating. Bulk discounts may apply for purchasing gasket sets or hose assemblies in multiples.
For rare or obsolete elements, consult specialty hydraulics engineers. Provide photographs and measurements from the diagram–engineers can fabricate custom spools, couplings, or adapter plates. Expect lead times of 2–4 weeks but receive components designed to match original tolerances. Include installation instructions if modifying threads or mounting points.
Schedule purchases during off-season periods. Demand spikes in late spring push prices upward on items such as control levers and return-line filters. Monitor manufacturer promotions offering free shipping on orders over a specific threshold; pairing multiple items–like seals, O-rings, and gaskets–can qualify for these savings without compromising immediate operational needs.
