Start by locating the spindle housings–critical elements holding the blades in place. These are secured with four bolts each on models like the 42-inch cutting platform. Check the torque specs: 45–55 ft-lbs for the upper two and 30–35 ft-lbs for the lower fasteners. Over-tightening risks stripping threads in the aluminum frame; under-tightening leads to blade wobble and uneven cuts.

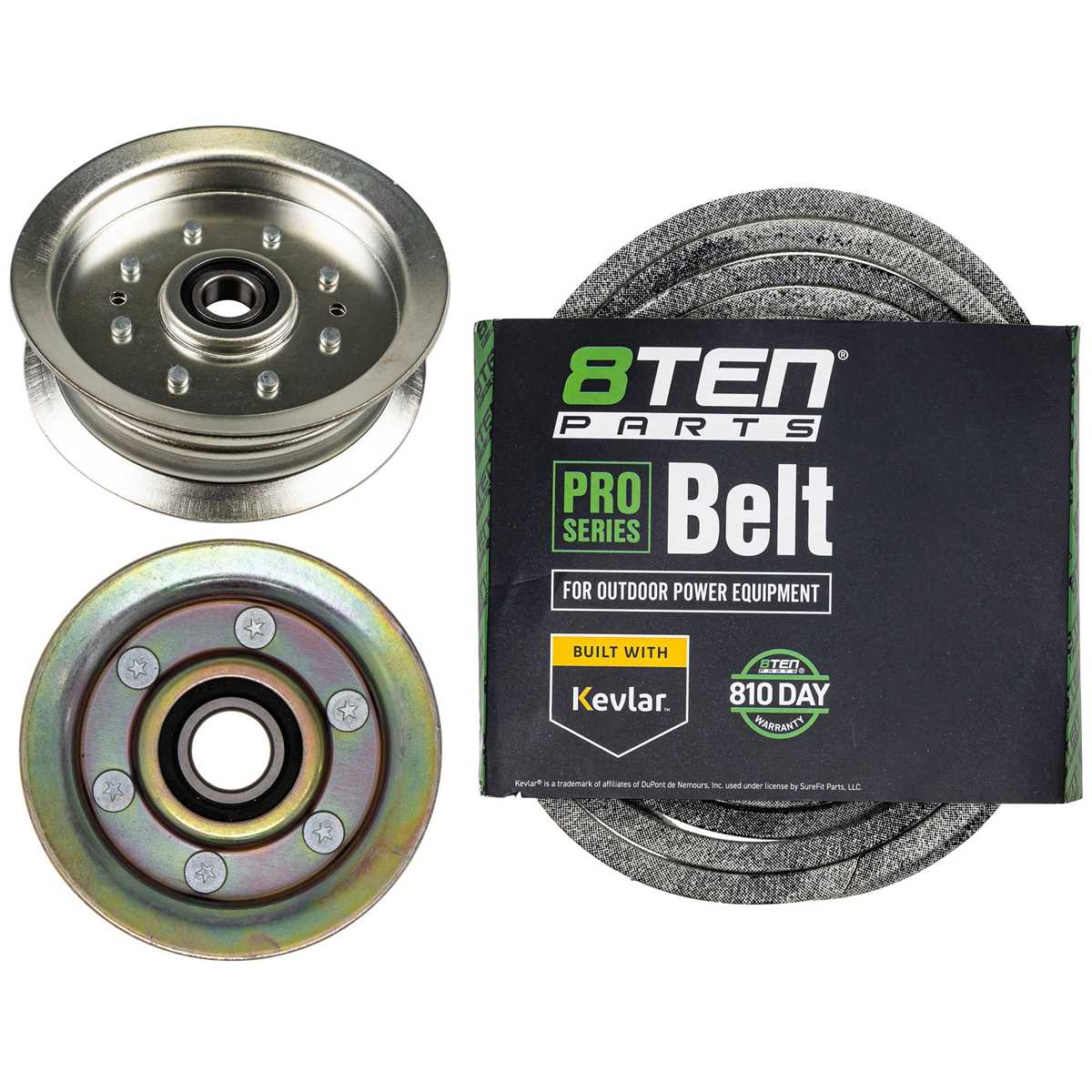

Examine the belt-driven pulley system next. The drive pulley (OEM #M127442) connects to the engine shaft via a Woodruff key–inspect for wear or rounding. The idler pulleys (OEM #M121301) should rotate freely; squeaking indicates bearing failure. Replace the tension spring (OEM #M127658) if stretch exceeds 1/4 inch from the original length–this affects belt tension and engagement.

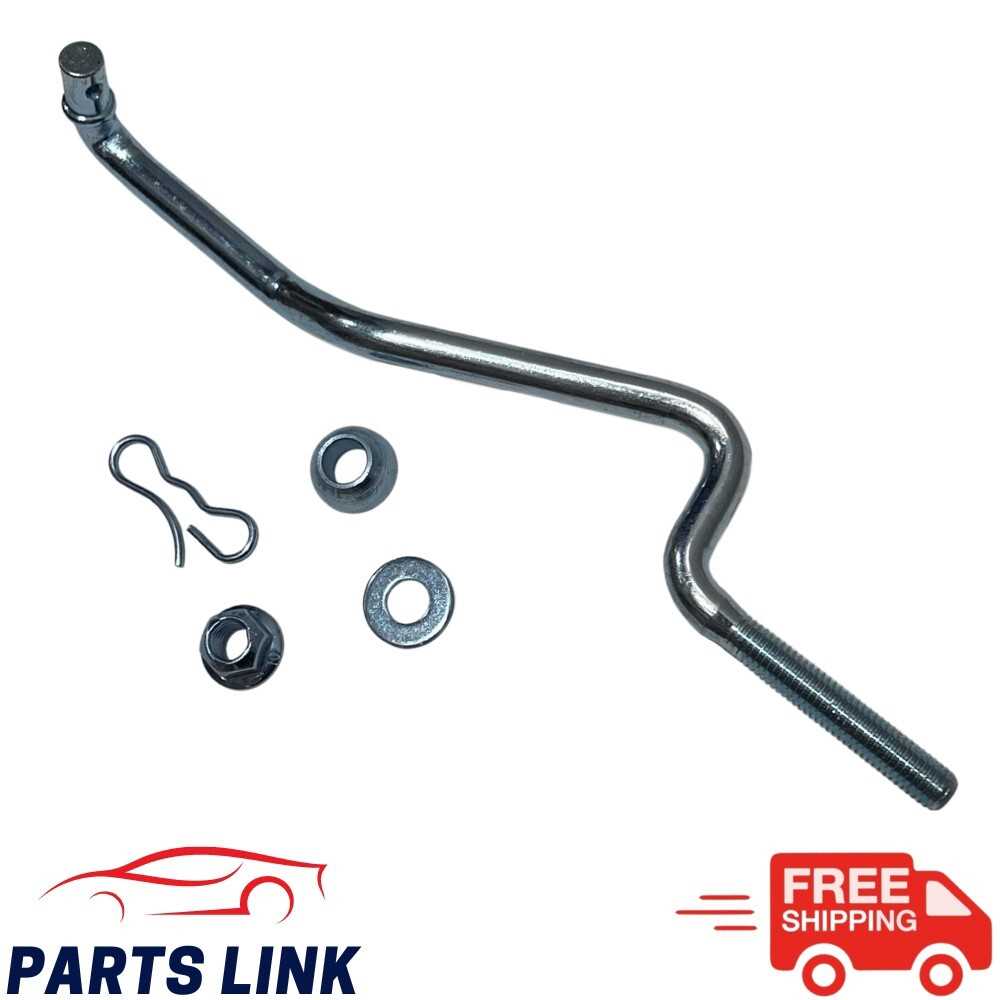

Identify the deck lift linkage components: the lift arms (OEM #M144015) pivot on bushings (OEM #M124093). Worn bushings cause misalignment; press-fit replacements require a 1/2-inch socket as an improvised drift tool. The height adjustment rod (OEM #M127656) threads into the bracket–apply anti-seize to prevent corrosion binding.
Trace the discharge chute for cracks, especially near weld points. The chute’s deflector flap (OEM #M134329) is secured with two rivets; drilled-out rivets allow flap replacement without full chute removal. Inside, clean the baffle plates (OEM #M124162) every 25 hours–clogged debris reduces airflow and scalps turf. Use a torque wrench for baffle screws: 20–25 ft-lbs.
For blade inspection, mark positions before removal to maintain balance. The Gator blades (OEM #M127398) measure 21 inches; replacement candidates should meet a minimum thickness of 5/32 inch. Check the blade adapter (OEM #M111791) for cracks–damaged adapters shear under load, destroying spindles. Balance blades using a magnet-type balancer; unbalanced blades vibrate excessively at 3,600 RPM.
Document all OEM numbers before ordering. The 42-inch platform shares sprockets and belts with the 48-inch model, but spindle lengths differ–verify part interchangeability via service manual tables. Keep a 1/4-inch and 3/8-inch socket set dedicated to this project; standard sockets slip on the 1/4-inch square drives of pulley bolts.
Understanding Your Lawn Tractor Cutting Assembly Breakdown
Locate the spindle housing on the mower frame first–this connects blades to the driving belt. Each assembly includes two bearings, a pulley, and a retention bolt (1/2″ thread, 13mm head). Replace bearings if play exceeds 0.01 inches; measure with a dial indicator clamped to the housing edge. Torque specifications: 55 ft-lbs for retention bolts, 12 ft-lbs for cover screws to prevent warping.
Identify the idler arm near the engine pulley–this maintains belt tension during operation. The spring should stretch no more than 1.5 inches under load. If slack persists, check the 3/8″ pivot bolt for wear; replace if grooves exceed 0.5mm depth. Grease every 25 hours using NLGI #2 lithium complex, focusing on the pivot point and bushing interface.
The discharge chute assembly includes three baffles: left, right, and center. Remove screws (5/16″, #2 Phillips) to access internal wear points. Replace any baffle showing cracks longer than 1 inch or holes wider than 0.25 inches–these reduce cut quality by 30%. Ensure sections align with a 1/4″ gap to prevent grass buildup, which increases motor load by 8-12%.
Inspect the drive belt every 50 hours for fraying or glazing. A properly tensioned belt should deflect 1/2 inch under 10 lbs of pressure at the midpoint. Sidewall cracks deeper than 0.1 inches indicate immediate replacement. Route the new belt over pulleys clockwise, starting from the engine; misrouting burns belts in under 10 operating hours.
Clean the underside of the cutting chamber after each use to prevent corrosion. Use a putty knife to remove debris from hard-to-reach areas–focus on welded seams where moisture accumulates. Apply a thin coat of zinc-rich primer to exposed metal edges, especially near discharge ports, to extend component life by 40%. Store indoors during off-seasons to prevent condensation from forming rust on critical fittings.

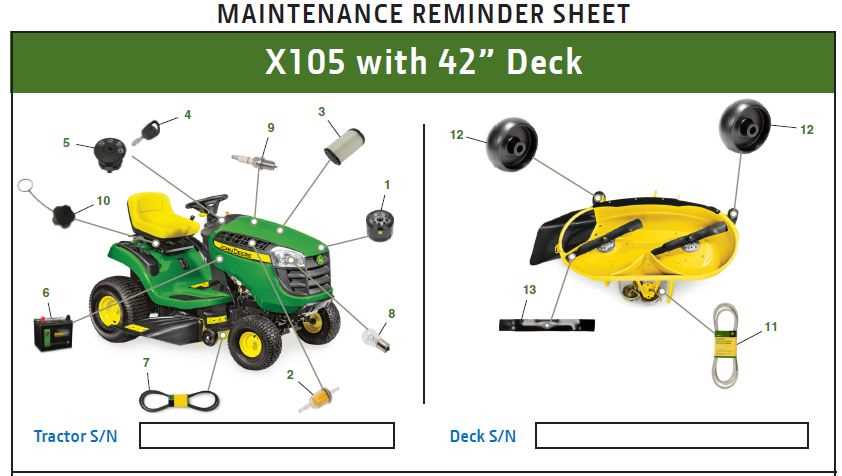

Key Mower Assembly Elements and Their Functions
Start by locating the cutting chamber cover–typically the largest stamped-steel panel that shields the blades. Attached beneath it are three spindle housings, each secured with four bolts (metric size 10mm). Mark their positions before removal to simplify reassembly, as alignment affects blade balance and vibration levels.
Blade retention relies on specialized washers and nuts. Use a torque wrench set to 40-45 ft-lbs to prevent loosening during operation. The outer washers feature a beveled edge that mates with the blade hub; reversing their orientation can accelerate wear on the bearing races inside the spindle housings.
| Component | Material | Replacement Interval | Compatibility Note |
|---|---|---|---|
| Belt (drive) | EPDM rubber | 100-150 hours | Fits models with 42-inch cutting width |
| Idler pulleys | Sealed ball bearings | 200-250 hours | Requires annual greasing (NLGI #2) |
| Anti-scalp wheels | Polyurethane tread | Seasonal inspection | Adjust height via threaded rod (min. 1/2″ clearance) |
Inspect the discharge chute weekly–debris buildup here reduces airflow efficiency by up to 30%. The chute liner, made of high-density polyethylene, should be replaced if cracks exceed 1/4″ to maintain proper clipping dispersion. Secure it with the original J-hook fasteners; substitutes may not withstand vibration long-term.
Side shields (commonly called baffles) prevent uncut grass from escaping the cutting path. Their mounting tabs often fracture near weld points–replace immediately if deformation exceeds 1/8″. The rear shield should pivot freely; stiff rotation indicates bent linkage arms or corroded pivot pins.
Traction engagement requires the pedal linkage to move smoothly. Lubricate pivot points with dielectric grease after every 50 hours of operation. The return spring (wire diameter 0.109″) must snap back without hesitation–weak springs cause unintended blade spin, accelerating clutch wear.
Finding the Belt Path Schematic for Your Lawn Cutter
Check the owner’s manual first–it’s the fastest way to access the belt routing illustration. Flip to the maintenance section or the exploded view pages, where the guide typically includes a labeled layout of pulleys, idlers, and the belt’s path. If the paper copy is missing, download the PDF version from the manufacturer’s official website using the model number stamped on the chassis.
Inspect the cutting assembly itself. Often, a small metal or plastic placard is riveted near the pulley cluster, showing the correct belt wrap with directional arrows. Wipe away grass clippings and dirt to reveal this tag; it’s usually positioned above the middle spindle housing to remain visible during operation.
Remove the cutting unit’s side panels–the left side (viewed from the rear) typically exposes the tensioner and idler pulleys. Trace the existing belt or a piece of string along the known path, comparing it against the placard or manual sketch to confirm alignment before reinstalling a new drive ribbon.
Use the exploded view diagrams available on retailer websites specializing in replacement components. Filter by your machine’s serial prefix when searching–H, G, or L series–to pull up the exact pulley arrangement, avoiding generic illustrations that may differ for similar models.
Capture clear photos of the belt path before disassembly. Include close-ups of every pulley, idler arm position, and spindle engagement point. These reference images simplify reassembly if the placard is faded or absent, allowing you to cross-check each step visually.
Consult online equipment forums where operators share hand-drawn sketches or annotated photos of their specific belt routing. Post the serial number and request confirmation–many enthusiasts archive these details to aid quick repairs when official guides are unclear.
Step-by-Step Guide to Swapping Rotary Mower Cutters
Disconnect the spark plug wire immediately to prevent accidental engine starts before handling cutting components. Locate the spindle housing–four bolts secure each unit on the underside of the housing frame. Use a 15mm socket to remove these bolts; store them in a magnetic tray to avoid misplacement. Rotate the cutter assembly until one of the two blades aligns with the spindle access notch, then slide it free. Inspect the spindle shaft for wear–replace if grooves exceed 0.5mm in depth. Clean the spindle housing interior with compressed air to remove grass clippings and rust particles before installing the new cutting edge. Verify blade balance by suspending it horizontally on a nail; uneven droop indicates imbalance–remove material from the heavier end with a metal file until equilibrium is achieved.
Securing the New Cutting Elements
Position the new cutter onto the spindle shaft, ensuring the cutting edge faces outward away from the spindle. Align the blade with the access notch, then tighten the spindle nut to 65–75 Nm using a torque wrench. Reattach the housing bolts in a cross pattern, applying 35–40 Nm to each. Reconnect the spark plug wire, lower the housing frame, and test blade rotation by hand–listen for smooth motion without scraping sounds. If resistance persists, recheck spindle shaft alignment and housing bolt torque.
Locating Original Equipment Manufacturer IDs for Your Mower Cutting Unit
Start with the manufacturer’s official online catalog. For U.S. models, visit Deere’s parts portal–enter the base model number (remove any suffixes like “D105”) to filter results. The system displays exploded-view schematics with OEM identifiers adjacent to each component, labeled numerically (e.g., “M140093” for a spindle assembly). Bookmark the direct link to bypass redundant searches in the future.
- Input the serial number engraved on the frame near the rear wheel–Deere’s database cross-references production batches to eliminate compatibility guesswork.
- Use the “Where Used” feature to verify part applicability across similar platform configurations (e.g., LA105 or X300 series).
- Download PDF schematics–file names often embed OEM codes (e.g., “PC12345_.pdf” corresponds to part MXXXXX).
Dealer Network Resources
Contact an authorized service center–provide the engine type (e.g., Briggs & Stratton CV24) and cutting width (42″ or 48″) to expedite lookup. Dealers access the Dealer Technical Assistance portal, which lists superseded part numbers and regional variants. Request a printed parts list; dealers often include this with tune-up kits. For urgent orders, specify if the component is “critical” (e.g., PTO clutch) to trigger priority handling.
Third-party agritech databases like Partstree and Jack’s Small Engines aggregate OEM identifiers from salvage yards and aftermarket suppliers. Filter by brand (“D*****”) and category (“Cutting Deck Components”)–these platforms display part thumbnails with cross-referenced codes (e.g., Stens or Oregon equivalents). Verify dimensions against the schematic; discrepancies often indicate older revision levels.
Belt pulley assemblies and blade spindles carry stamped codes–clean the surface with brake cleaner and inspect under direct light. For belts, measure length and grooves (e.g., “A35″ = 35” outside circumference, “AA” = dual profile). Write these down alongside the OEM number to cross-check against Gates’ drive belt lookup or Oregon’s parts finder.
- Inspect the underside of the housing lid–most units have a metal placard listing major assembly codes (e.g., “Rear Axle Kit: M140951”).
- For discontinued items, search eBay listings using the OEM identifier–sellers often include photos of the original packaging, which may display alternate distributor codes.
- Consult TractorByNet forums–thread titles like “LA125 cutting unit rebuild” frequently embed verified part numbers in user posts.
Salvage yards specializing in outdoor power equipment maintain inventories categorized by brand model–provide the serial number and ask for “all available blades, spindles, and linkage parts.” Yard operators often cross-list parts using both OEM and internal stock codes; request a spreadsheet export if purchasing in bulk. For UK/EU markets, Mowerparts UK offers a telephonic parts ID service–be prepared to describe the component’s location and function in detail.
