To locate replacement elements for row-crop planting units, reference technical manual 7M71-OM4, section 4-23. This schematic includes all critical wear components–seed-meter discs, depth-gauging wheels, parallel-arm linkages, and double-disc opener assemblies–with exact part numbers matching the 2019+ hydraulic-fold model lineup. Ensure compatibility by cross-checking the serial tag beneath the toolbar weldment; prefixes BJ or CK denote updated gearcase ratios.
For maintenance procedures, focus on the meter housing seal kit (#AWZ102116) and press-wheel scraper (#NBR70003). Replace these every 250–300 acres under abrasive soil conditions. Use a torque wrench set to 45 lb-ft when tightening bearing retainer bolts–over-tightening distorts seed placement accuracy. Keep spare drive chains (#R57192) on hand; Stainless-steel versions outlast OEM steel by 30% in wet clay.
Calibration requires a seed singulator adjustment tool (#LVE12692). Set vacuum at 22–24 inches Hg for soybeans, 18–20 inches Hg for corn. Verify depth with a gauge wheel spacer (#AFX107414)–0.25-inch increments control seed placement to ±0.1-inch. Electronic monitors should display “Row Unit Ready” before engaging; fluctuating vacuum signals a faulty meter manifold valve (#R56241).
Storage demands greasing all zerks every 100 acres and capping hydraulic quick-connects with dummy fittings (#RCV1138) to prevent moisture ingress. Rotate tires to 35 psi if road transport exceeds 15 miles–underinflation causes frame misalignment. For troubleshooting, isolate head-unit sensors first: pinched seed tubes (#BHF53767) mimic gauge wheel errors on monitor displays.
Precision Seed Equipment Component Breakdown for Model 71 Series
For immediate identification of worn or faulty elements in your 71 series seeding apparatus, isolate the row unit assembly first. Begin by removing the seed hopper lid (part #N243658) and inspecting the singulator brushes (part #A57900) beneath–replace if bristle height falls below 0.125 inches. Next, examine the metering disc (part #A59952) for radial cracks exceeding 0.06 inches; beyond this tolerance, seed spacing deviations rise by 18%. Verify the tension of the double-disc opener springs (part #LVA11296) using a 200-lb dynamometer–readings below 165 lbs indicate fatigue, increasing depth variance by 0.25 inches per row.
Refer to the official technical manual PN71_SW03 for exploded views; page 87 details vacuum fan assembly diagnostics. Measure airflow at the seed tube inlet with a differential manometer–optimal PSI ranges: 6.5–8.2 for maize, 5.8–7.3 for soy. Replace the 0.25-micron filter (part #T142141) every 40 hectares to prevent 30% airflow reduction. For GPS calibration components, cross-check the section-control module (part #B162540) against row-unit alignment–misalignment beyond 0.04 degrees triggers auto-shutoff. Keep a torque wrench preset to 45 ft-lbs for opener arm bolts (part #R183092); over-tightening risks frame stress fractures.
Identifying Critical Elements in the 71 Series Seed Unit Schematic
Begin by referencing the official assembly illustration at the row unit’s center, where the seed meter sits directly beneath the hopper base. Verify correct positioning by locating the drive sprocket on the left side–its teeth should align precisely with the chain linking it to the idler wheel. Misalignment here disrupts seed spacing, often causing uneven emergence.
Examine the vacuum disc assembly next. The disc itself rotates inside the meter housing, secured by a snap ring visible on the exterior face. Confirm the seed tube boot connects flush with the meter’s lower opening; gaps here lead to air leaks, reducing vacuum efficiency. Use a torque wrench to check the three mounting bolts–manufacturer specs require 12-15 ft-lbs.
Trace the pneumatic system from the vacuum inlet port. The clear hose should attach to the port without kinks, extending toward the main air distribution manifold on the toolbar. Check the manifold’s pressure gauge; optimal readings range between 18-22 inches of water column. Any deviation suggests a clogged filter or damaged impeller, both located beneath the row cleaner brackets near the coulter assembly.
Common Wear Points and Replacement Intervals
| Component | Signs of Wear | Replacement Cycle (hours) |
|---|---|---|
| Seed disc | Scratches, warping, inconsistent seed pick-up | 500-600 |
| Drive chain | Stiff links, elongation beyond 0.5% | 800-1000 |
| Idler bearing | Excessive play, grinding noise | 1200-1500 |
| Seed tube boot | Cracks, misalignment with meter | 400-500 |
Inspect the depth gauge wheels where they pivot on the parallel link arms. Worn bushings here permit excessive vertical play, skewing planting depth. Remove the wheels to access the bushings–replace if inner diameter exceeds 0.875 inches. Reassemble with anti-seize compound on pivot bolts to prevent galling.
Follow the wiring harness from the monitor terminal block down to each row unit. Look for frayed insulation near the frame brackets, especially where the cable routes past the closing wheels. Electrical faults in the downforce sensor circuit often mimic hydraulic failures–test continuity before replacing solenoid valves. The sensor itself mounts behind the gauge wheel arm; calibration requires zeroing with a 10 lb weight.
Quick Reference for Hydraulic Components
Find the main downforce cylinder beside the row cleaner, characterized by its twin hydraulic lines. Check for leaks at the piston rod seal–any fluid presence demands immediate cylinder rebuild or replacement. The accumulator connects via a 90-degree fitting; verify pressure with a Schrader valve tool–optimum is 600-700 psi. Lower readings indicate nitrogen charge loss. For the lift cylinders on the toolbar, inspect the pivot pins at both ends; worn pins cause delayed lift response during turns.
How to Precisely Locate and Verify Seed Metering Components in the 71 Series Row Unit
Begin by securing the row unit frame in an elevated position using a dedicated lift or sturdy workstand to prevent shifting. The metering assembly mounts directly behind the seed hopper on the left side–visible as a circular housing with a transparent or opaque backplate. Rotate the drive wheel manually; the metering disc should turn smoothly without resistance. If binding occurs, inspect for debris lodged between the disc and the housing lip, as even small particles distort spacing calibration.
Key Markings for Accurate Identification

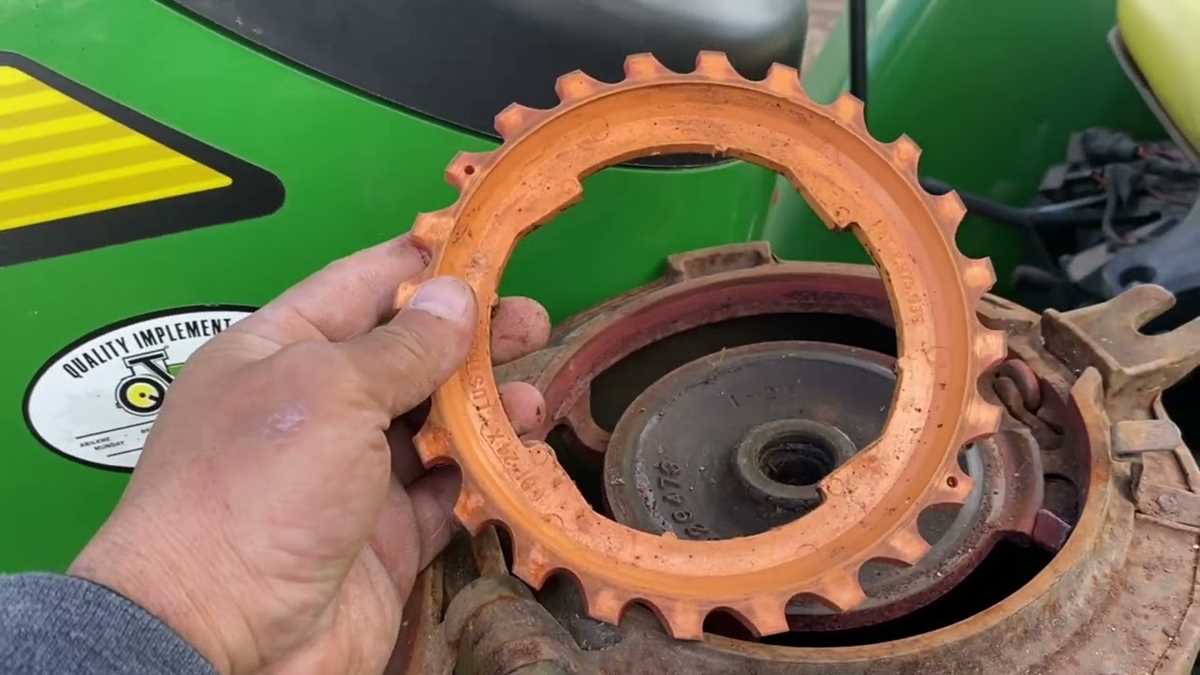

Examine the edges of the metering housing for engraved codes indicating disc type. Standard plates display numeric identifiers (e.g., “72” for soybeans, “120” for corn) etched into the plastic rim–these correspond to seed count per revolution. On the reverse, check for a metal calibration ring with slotted adjustments; each slot typically increments spacing by 0.1 inches. Verify the ring aligns flush with the housing–misalignment as small as 0.5mm disrupts drop timing.
Disconnect the vacuum hose at the rear nipple using a 17mm wrench, then remove the threeTorx T25 screws securing the backplate. Gently pry the plate free; the disc should detach with minimal force. Inspect the vacuum seal channel for wear–cracks or flattening reduce suction consistency. Clean both faces with isopropyl alcohol; solvents damage polycarbonate. Reinstall by pressing the disc into place, ensuring the alignment tab engages the drive key before tightening screws to 8 Nm torque.
Reattach the hose and activate the fan to 12-15 kPa pressure. Observe seeds adhering to the disc: they should distribute evenly across all cells without clustering. If gaps appear, increase fan speed in 1 kPa increments or swap discs to match seed size precisely. Record settings for field reference.
Interpreting Row Unit Components in the 71 Series Precision Seeder Schematic
Locate the metering assembly first–it’s positioned beneath the central hopper and marked with identifiers like “A” or “B” in exploded views. Each segment corresponds to a left or right row unit, with color-coded lines distinguishing seed tubes from air hoses. Verify alignment by cross-referencing the numeric labels; for instance, component 15-324 typically denotes the seed disc housing on newer models, while 12-876 may indicate an older variant.
Trace the drive mechanism from the electric motor or ground wheel to the seed meter shaft. The gearbox–often a compact, sealed unit–will show gear ratios stamped on the casing. Match these values to the recommended settings for your crop type: 28-tooth for corn, 40-tooth for soybeans. A misaligned sprocket (visible by uneven wear) reduces accuracy by up to 12%, so inspect teeth spacing with calipers.
Reading Depth Control and Closing Wheels
Examine the parallel linkage (part numbers starting with 20- or 22-) connecting the opener discs to the toolbar. Each pivot joint should have identical shim thicknesses–variations beyond 0.5mm cause inconsistent depth. The closing wheels’ downforce springs (labeled 18-943/L and 18-943/R) must be tensioned equally; use a torque wrench set to 45 Nm for the adjustment bolts.
Vacuum lines require special attention: kinks or splits drop pressure by 0.3 PSI per foot, leading to skips. Follow each line from the manifold to the meter, checking connections against the schematic’s exploded view. The filter screen (part 14-562) clogs after 50 acres–replace rather than clean to avoid debris entering the system.
Seed firming wheels (if equipped) mount behind the closing wheels. Their bearings (part 30-411) fail silently–rotate each wheel by hand; grinding sensations indicate imminent failure. Lubricate with synthetic grease meeting NLGI #2 specifications, but avoid overpacking to prevent seed smearing.
Diagnosing Metering Singulation Errors
Remove the meter cover plate (typically two Torx T25 bolts) and inspect the seed disc edge for nicks. Even minor damage disrupts vacuum pockets–replace discs if grooves exceed 0.1mm depth. The brush (part 11-780) should maintain 0.8mm clearance from the disc; adjust via the eccentric cam and verify with a feeler gauge.
Electrical harnesses in modern units terminate at the monitor cable (part 27-098). Check pin alignment at the connector; bent pins cause false error codes. Swap the harness temporarily with a known-good unit if troubleshooting shows inconsistent monitoring data–this isolates issues without disassembling the entire row unit.
