For precise troubleshooting or maintenance, reference the official OEM schematic for model numbers BM20768 (42″ deck), BM20771 (48″ deck), or BM20773 (54″ deck). These diagrams detail every wear item–from spindle assemblies to belt tensioners–with exact part numbers and torque specifications. Avoid relying on aftermarket resellers; use the manufacturer’s exploded view to prevent mismatched components that could void warranty coverage.
Critical areas to inspect first: blade mounts (check for cracks at weld points–replace if elongation exceeds 1mm), idler pulleys (spin freely without wobble; rattle indicates bearing failure), and deck shell reinforcement strips (corrosion beyond surface rust requires panel replacement). For belt-driven models, note the contour belt path–misalignment by even 3mm accelerates premature wear on the drive arm.
When sourcing replacements, match OE part numbers precisely. Common failure points include the anti-scalp wheel kit (PN M107495 for 54″ decks–ensure wheels sit flush to prevent uneven cuts) and blade mandrels (PN M149815–pre-greased models reduce maintenance intervals). Always cross-reference the serial number on the deck’s rear bracket to confirm compatibility with your tractor’s lift linkage system.
For installation, prioritize torque sequences: spindle housings (35 ft-lbs in a cross pattern), deck hangers (45 ft-lbs), and belt retainers (18 ft-lbs). Over-tightening the idler bracket (PN M131030) can strip threads–use a thread-locking compound on fasteners exposed to vibration. Post-assembly, adjust deck pitch to 1/4″ front-to-back for optimal airflow and discharge consistency.
Comprehensive Guide to Your Mower Cutting Unit Components
Begin by locating the spindle assembly (PN: M146771) on the underside of the 72-inch cutting unit–critical for blade alignment. Remove the belt guard (PN: M127796) first using a T45 Torx driver to access the pulleys. Inspect the idler pulley (PN: M114540) for excessive wear; replace if the bearing play exceeds 0.5mm at 2,000 RPM. The drive belt (PN: M144896) should show no fraying beyond 1mm on the edges–measure with a micrometer for precision before reinstallation.
For the deck lift mechanism, focus on the height adjustment cam (PN: M131815)–lubricate the moving contact points with molybdenum disulfide grease (NLGI #2) every 50 operating hours to prevent corrosion. The anti-scalp rollers (PN: M143320) must rotate freely; check for debris accumulation in the roller bearings using a borescope if resistance is detected. When reassembling, torque the spindle housing bolts (PN: M141282) to 45-50 Nm–use a calibrated torque wrench to avoid distortion of the housing threads.
Key Components to Replace on Your 42-Inch Mower Cutting Unit
Start by inspecting the blades–replace them every 100–120 operating hours or sooner if chipped, bent, or worn below 3/16-inch thickness. Opt for OEM steel alloys like 1045 carbon or 4130 chromoly for durability; aftermarket alternatives often lack heat treatment, reducing lifespan by up to 30%. Verify blade balance using a magnetic balancer–imbalanced blades cause spindle wear and premature bearing failure. Always torque bolts to 75–90 ft-lbs; overtightening distorts the blade hub, while undertightening risks detachment at high RPMs.
Spindle assemblies rank second for wear. Look for play in the bearings by lifting the cutting unit and wiggling each spindle–any lateral movement signals bearing or seal failure. Replace the entire spindle housing if bearings exhibit pitting or if seals show cracking; individual bearing replacement risks misalignment. Use alkyl benzene-based grease (NLGI #2) for reassembly–lithium complexes harden in cold weather, accelerating wear. Check spindle shafts for grooves; deep scoring (>0.010 inches) indicates pulley misalignment, requiring pulley realignment or shaft replacement.
Belt and Pulley Maintenance
Drive belts degrade after 200–250 hours under load. Replace them if cracking exceeds ¼-inch depth or if cord separation appears. Measure belt width–narrowing by more than 1/16-inch indicates stretch; stretched belts slip, overheating clutches. Install belts with ½-inch deflection under 10 lbs of tension–too loose causes slippage, too tight strains idler bearings. Clean pulleys with brass brushes before installation; debris embeds in grooves, shortening belt life by 40%. Replace idler pulleys if bearings resist rotation or show rust–seized pulleys wear belts unevenly.
Deck shells develop stress cracks near welds and mounting points. Repair cracks >1 inch with weld-grade steel (ER70S-6 wire) and reinforce with 1-inch backing plates. Avoid epoxy; it fails under vibration. Check lift arms for bent pivots–misalignment causes uneven cutting height. Replace lift springs if stretch exceeds 2 inches or if coils touch; weak springs reduce cutting efficiency by increasing blade drag. Lubricate pivot points with PTFE spray; petroleum-based greases attract dirt, accelerating wear.
Anti-scalp wheels bear the brunt of uneven terrain. Replace them when the tread wears below ¼-inch or if cracks appear on the hub. Adjust wheel height so the shell rides ⅛-inch above the ground at full cutting height–lower settings gouge turf, higher settings reduce mulching efficiency. Use nylon wheels for wet conditions; steel wheels rust, locking mechanisms. Check wheel axles for bend–straighten with a hydraulic press or replace if deviation exceeds 0.030 inches.
Electrical and Safety Components
The PTO switch fails after 500–700 cycles. Test for 12V output at the clutch when engaged–voltage below 11V indicates switch failure. Replace the clutch if engagement lag exceeds 2 seconds or if it emits a high-pitched whine; overheating destroys the coil. Check wiring harnesses for chafing near moving components; exposed wires cause shorts, tripping circuit breakers. Replace the fuse with an exact amperage match–overrated fuses risk motor burnout. Seat switch bypasses void warranties; replace the switch if it fails to kill the engine when the operator dismounts.
Mandrels and blade adapters warp under impact. Measure mandrel bores with a telescoping gauge–ovality >0.003 inches requires mandrel replacement. Blade adapters with keyway wear >0.020 inches no longer secure blades; replace them immediately. Use Loctite 243 on set screws; vibration loosens fasteners, causing blade slippage. Check for drive key shear–misalignment shears keys, stopping blade rotation. Store replacement components in climate-controlled environments; humidity corrodes machined surfaces, seize assemblies.

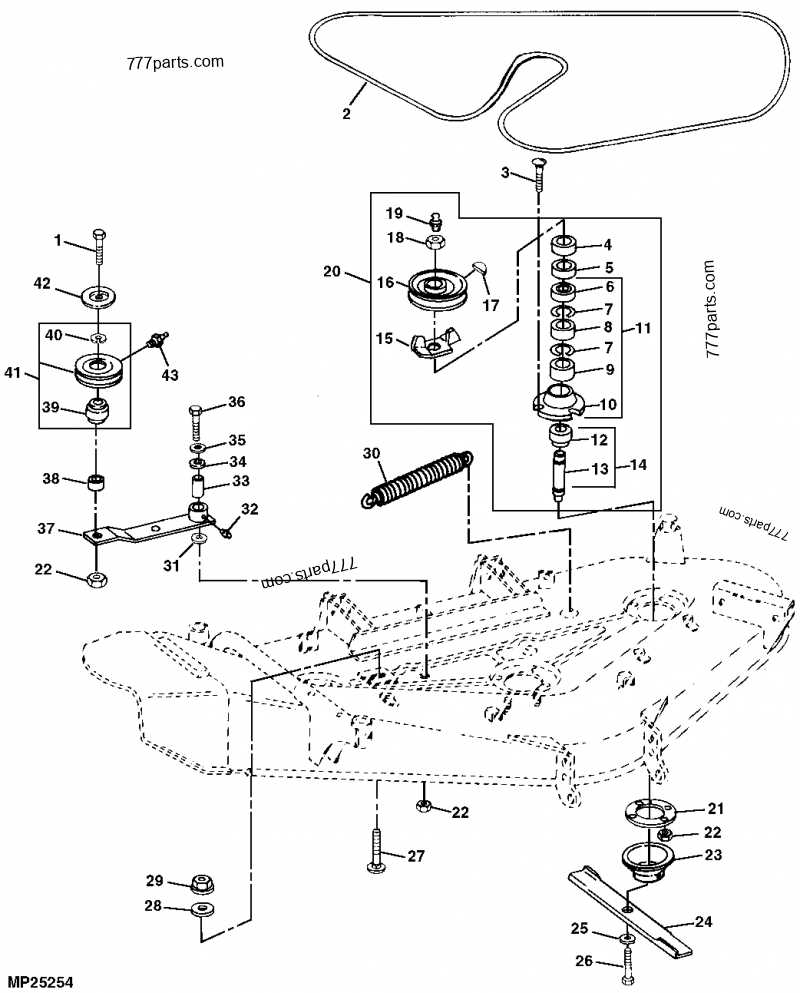

How to Pinpoint Components Using the Equipment Schematic
Obtain the official breakdown chart from the manufacturer’s manual or certified supplier portal. Verify the model number matches the reference sheet–mismatches lead to incorrect identifications. Locate the section header corresponding to the assembly you’re servicing, such as the mower housing or cutting mechanism.
Trace the exploded view starting from the leftmost or topmost component, progressing sequentially. Each element is numbered and labeled with a brief descriptor–cross-reference this with the parts list below or adjacent to the illustration. Note that fasteners (bolts, clips, washers) often appear grouped but serve distinct purposes across different sub-assemblies.
- Identify the primary component first (e.g., blade spindle, belt cover).
- Follow connecting lines to smaller attached pieces.
- Check for dashed or dotted outlines–these indicate optional or non-standard hardware.
- Measure critical dimensions if exact replacements are unclear, using calipers or a ruler calibrated to millimeters.
Use a magnifying tool if the schematic is reduced in size; key details like thread pitch or material composition (e.g., stainless steel vs. zinc-plated) may be microscopic but crucial. For ambiguous labels, consult the legend–symbols like arrows, asterisks, or color codes denote specific notes about wear limits, torque specs, or compatibility warnings.
Print the diagram at 100% scale or use a digital overlay tool to match components visually against the physical unit. If a part appears missing from the schematic, check adjacent diagrams–some assemblies share references across multiple pages or configurations (e.g., mulching kits, side-discharge options).
- Isolate the functional group (e.g., drive system, lift mechanism).
- Highlight the target area with a dry-erase marker on the schematic.
- Compare the highlighted section against the machinery’s current state.
- Mark discrepancies directly on the unit with removable tape for verification.
For electrical or hydraulic sub-assemblies, follow wiring colors or hose labels in the diagram before disassembly. Disconnect power sources and relieve pressure in hydraulic lines if applicable–skipping this risks damage to both the equipment and the schematic’s accuracy. Snap photos at each disassembly stage to retain orientation.
When ordering replacements, quote the exact reference number from the schematic, not the descriptive label. Include suffixes or prefixes (e.g., “-A,” “R2”)–these signify revisions or regional variations. If the supplier queries compatibility, provide the model’s serial range stamped on the chassis; early and late production runs may differ subtly.
Essential Workshop Gear for Servicing Cutting-Platform Assemblies
A half-inch drive torque wrench calibrated to 25–200 ft-lbs is mandatory before loosening any spindle pulley bolts. Use the 15–80 Nm scale if your unit displays metric; verify the click point lands within ±3 % of factory specifications–the 7/16″ hex forged into each spindle housing brooks no rounding.
| Tool | Size/Type | Critical Notes |
|---|---|---|
| Breaker bar | 1/2″ drive, 24″ length | Required to break loose 1.5″ spindle bolts without swivel socket damage |
| Deep-well sockets | 7/16″, 1/2″, 9/16″ | Must clear spindle shafts by ≥1/8″; shallow sockets risk drive corner collapse |
| Curved pry bar | 12″ bell-horn | Only apply pressure on lift arms; never on pivot bushings |
Snap-on® flex-head ratchets pair the 8 mm hex stub that secures the idler arm bracket; generic brands necessitate two-hand stabilization to prevent cam-out. Keep a 5/16″ flare-nut wrench on standby–russet-colored coolant hoses use inverted flare fittings prone to stripping under 15 ft-lbs of torque.
Magnetic retrieval shafts narrower than 5 mm prevent bearing retainer clips from vanishing into the cavity; insert the tool flange-side first to anchor the clip’s outer edge before rotation. For blade spindle housings, deploy a split-ball hammer–16 oz–for controlled seating of bearing races; strikes exceeding 12 ft-lbs distort the race shoulder, compromising preload spacers.
An arbor press rated at 20 tons with a 3″ throat accommodates the 48-tooth belt pulley; use the manufacturer-provided pilot sleeve to center the arbor shaft within 0.002″. Opt for zirconium-oxide cutoff wheels–thickness ≤0.045″–to sever seized pivot bolts; avoid aluminum oxide discs, which induce metallurgical hardening at the shear plane.
Inspect leverage points with a helical-beam load cell (range 0–1000 lbs); 1/4″ grade-8 washers inserted between ram nose and bolt head prevent uneven pressure distribution–never exceed 80 % of yield strength during extraction. Keep degreaser formulated for synthetic PAO-based lubricants; solvent blends labeled “citrus” or “bio” sludge the hydrostatic filter mesh within 12 hours of operation.
