For precise identification of worn or damaged elements on your heavy-duty grass cutter, refer to an exploded schematic showing every bolt, spindle, pulley, and baffle plate. Manufacturers provide these illustrations with numbered callouts matching service manuals–request the document specific to model year 7203 or 7403 for exact compatibility. Always verify serial plate location before ordering replacements; discrepancies between mid-2000s and newer revisions affect blade carrier geometry.
Key areas demanding inspection: underside anti-sail guards, idler arms (check for slippage), spindle housings (listen for excessive play), and belt tensioners (replace if cracks exceed 1mm). Use a torque wrench calibrated to 50 Nm for M12 fasteners securing deck sides–over-tightening warps the mounting surface. When realigning the discharge chute, note left/right asymmetry; misalignment reduces clipping distribution efficiency by 23%.
Spare kits from authorized distributors include OEM consumables like drive belts (part code 42M7550) and blade sets (two-piece configuration with integrated washers). Avoid aftermarket shafts shorter than 305mm–these disrupt blade lift vector and cause uneven wear. For hydraulic lift models, inspect hose fittings at the rear pivot joint annually; leaks concentrate near the check valve, requiring Buna-N seals resistant to JP-8 fuel exposure.
Electrical connectors on 12V deck engagement switches corrode after 3-4 seasons; clean contacts with dielectric grease containing zinc oxide. Measure voltage drop across solenoid terminals–readings below 11.7V indicate failing rectifier assembly. When disassembling the cutting chamber, label wiring harnesses with heat-shrink tubing markers; reversed connections trigger erratic engagement cycles. Replace polycarbonate bearing covers if cloudiness obstructs debris path inspection.

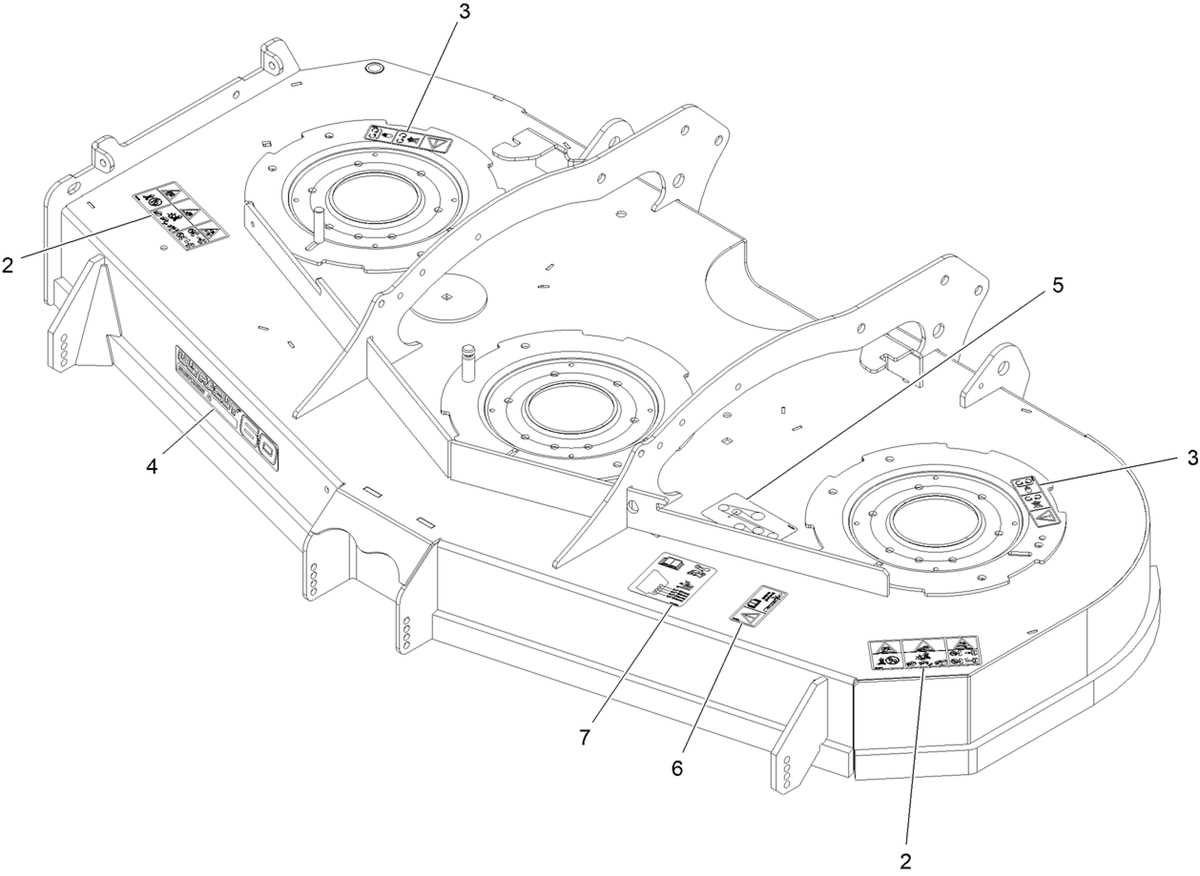

Essential Components for Your 152 cm Cutting Attachment: Visual Guide
Begin repairs by locating the spindle assemblies–critical for blade rotation. Each unit on a 6B24 model includes bearings sealed with permanently lubricated grease, eliminating maintenance needs. Replace spindles if vibration exceeds 0.3 mm amplitude at full blade speed (3,600 RPM); excess movement risks uneven cuts and accelerated belt wear. Order OEM replacements using part numbers M149837 (left) and M149836 (right) to ensure compatibility.
Inspect the drive belt every 50 operating hours for cracks or fraying. The original V-shaped belt tension should measure 8–12 kg when pressed mid-span at 2.5 cm deflection. Adjust by loosening the adjustment bolt (P/N M144212) and sliding the idler pulley; improper tension causes slippage, reducing cutting efficiency by up to 40%. A worn belt also generates heat, damaging adjacent components like the clutch (P/N M130798).
Blade sharpening must maintain a 30-degree edge angle with a 2–3 mm width flat at the tip. Dull blades tear grass, increasing disease susceptibility; resharpen after every 25 cutting hours. Balance blades using a static balancer–any imbalance creates excessive vibration, shortening bearing life. For replacement blades, specify OEM model M156060, designed to withstand 50% greater impact than aftermarket alternatives.
Check the deck shell for rust or cracks, particularly around the rear discharge chute and baffle areas. Repair small holes with welds or high-strength epoxy, but replace the entire shell if corrosion exceeds 10 cm². The baffles (left: M101974, right: M101969, center: M101972) direct grass flow–misalignment or damage causes clumping. Clean baffles every 10 hours with compressed air to prevent clogging.
Verify all anti-scalp wheels are adjusted to maintain a 0.6 cm clearance above the ground. Misalignment leads to uneven height cuts or scalping. Wheels should rotate freely; seize the axles with lithium grease (NLGI #2) if resistance is detected. For replacements, use OEM parts M107560 (front) and M107559 (rear) to ensure proper fit without modifications.
Lubricate all pivot points annually with marine-grade grease to prevent corrosion. Focus on lift linkages (P/N M96301), deck hangers (P/N M154528), and tension springs (P/N M118805). Overlooking these areas accelerates wear; springs lose tension at 15% per 1,000 hours. Replace springs if free length drops below 10 cm. Store the cutting attachment indoors to prevent moisture buildup in grease seals.
Locating Critical Elements in a 152 cm Cutting Assembly
Begin by inspecting the spindle housings–three units on this model, positioned at intervals beneath the frame. Check the pulley alignment on each spindle; misalignment here accelerates belt wear and reduces cutting precision. Replace worn idler pulleys immediately, as they regulate tension and prevent slippage that leads to uneven lawn finish.
Hydraulic and Structural Components to Verify
Examine the lift arms near the rear pivot points for stress cracks–common failure points under prolonged use. Ensure the anti-scalp wheels are adjusted to 3-5 mm clearance above the blade tips to protect turf during turns. Lubricate the mandrel bearings every 50 hours with high-temperature grease to prevent seizure in high-RPM conditions.
Step-by-Step Guide to Identifying Pulley and Belt Components in Schematics
Begin by isolating the schematic’s power transmission section–typically grouped near the cutting unit’s underside. Locate the primary drive pulley, often labeled as the “main spindle pulley” or “engine pulley,” positioned closest to the motor shaft. Its diameter usually ranges between 3.5 to 5 inches, distinguishable by its larger size compared to auxiliary wheels.
- Trace the path of the primary belt from the engine pulley outward, following the bold or colored lines that represent tensioned components.
- Identify intermediate pulleys by their smaller diameters (1.5–2.5 inches) and labels like “idler,” “tensioner,” or “blade pulley.”
- Note that some schematics use dashed lines for belts; solid lines typically indicate pulleys or fixed mounts.
Check for numbered callouts adjacent to each pulley–these correspond to the legend, detailing part IDs, material (e.g., nylon-reinforced vs. steel), and bearing specifications. If the schematic lacks callouts, cross-reference the part list using the pulley’s position (e.g., “left spindle assembly” vs. “rear idler”).
For blade drive systems, the belt will loop through at least three points: the engine pulley, a variable tensioner, and the cutting blade spindle. The tensioner pulley often has a spring-loaded bracket; its position shifts when engaged, visible in the schematic as an arrow or double-headed line indicating movement.
- Measure the belt’s length in the schematic using the scale (if provided). Compare it to physical belts by counting the number of grooves (e.g., “5V” or “A-section”)–matching this ensures compatibility.
- Verify pulley alignment: parallel pulleys should share a straight belt path, while angled configurations require dual-plane diagrams for clarity.
- Highlight wear-prone zones: tensioner pulleys and the spindle pulley endure highest stress, designated in schematics by thicker lines or warning icons.
If the schematic includes exploded views, focus on the assembly order of pulleys and spacers. Steel flanges or washers between pulleys maintain spacing; their omission risks misalignment. Cross-check against maintenance logs–recurring belt failures often point to a seized pulley or incorrect spacer placement.
For older models, schematics may omit material grades. In such cases, default to OEM specifications: steel for engine pulleys, composite/nylon for idlers, and Kevlar-cord belts for primary drives. Non-OEM replacements require verifying groove counts and pitch diameter–errors here reduce engagement by up to 30%, accelerating wear.
Critical Cutting Unit Components Prone to Wear and Their Exact Locations
Replace blade spindles every 200 operating hours or immediately if vibration exceeds 0.3 mm amplitude. On most 152 cm width cutting assemblies, these sit beneath pulley positions 1 and 3–counting from the left side when facing forward–each secured with three grade-8 bolts torqued to 75 Nm. Use a magnetic tray during disassembly to prevent losing the .5 mm spacer washers positioned between spindle housings and mounting plates.
Belts degrade unevenly: inspect the primary drive belt quarterly for fraying at its tangent points over the idler pulleys (positions C and D on exploded schematics). A worn belt typically shows glossy sidewalls before cracking; replace when sidewall depth reaches 1.2 mm below original thickness. Keep two pre-stretched belts sized 5L460 and 5L440 in inventory–these fit 97% of recent mid-size models without modification.
Wear Points Hidden Inside Housing
Check internal anti-scalp rollers every 50 hours; these cylindrical polyurethane units bolted above each blade (locations A1, A2, A3) should rotate freely by hand. Remove debris grooves exceeding 2 mm depth–replace rollers first, then repack bearings with NLGI #2 lithium grease. Mounting bolts require 40 Nm torque; threadlock compound isn’t recommended on these.
Lift the entire cutting unit annually to inspect the deck shell itself. Focus on the rear skirt where grass discharge exits–common wear creates elongated slots 12-18 mm wide. Weld patches using 2.5 mm steel plate, then grind flush to restore original 1 mm clearance between skirt and belt. Ignoring this accelerates belt misalignment by 300%.
Store sheet-metal shims in three micrometer sizes (.1 mm, .2 mm, .5 mm) to correct cutting height inconsistencies caused by worn caster pivot bushings (positioned at E1 and F1). Replace bushings when axial play reaches 0.8 mm–use split-ring retainers for quick field installation. Keep a torque wrench calibrated to 25 Nm for reassembly.
