For quick repairs, start by locating the spindle assembly–these durable housings secure blades to the frame and fail most often under heavy use. Replace worn bearings or broken shafts using OEM part #M143953 for the left-side unit and #M143954 for the right; third-party alternatives risk imbalance at high RPMs.
Inspect the belt routing next. A slipping drive belt (usually X49068) reduces cutting power; verify tension at ¼ inch deflection under 10 lbs of pressure. Cracked ribs or glazed surfaces signal replacement–aftermarket belts may stretch prematurely, leading to repeated slippage within 50 hours of use.
The deck shell (part M115879) absorbs impacts but develops stress cracks near the discharge chute. Patch minor damage with J-B Weld 8265-S, but replace the entire unit if cracks exceed 1.5 inches–continuing operation risks blade detachment. Check pulley alignment after repairs; misaligned V-grooves accelerate belt wear.
Grease zerks every 25 hours–spindle bearings (use NLGI #2 lithium grease) and idler arm pivots (part M146902) corrode quickly in wet conditions. Remove debris from the underside weekly; built-up grass reduces airflow, causing uneven cuts and straining the ¾ HP motor.
Use a factory service manual schematic (revised 2021, section 5-4) for precise reassembly. Common assembly errors–reversed blade orientation or improper torque on spindle bolts (spec: 55 ft-lbs)–create vibration and premature failure. Verify blade balance with a static balancer; unbalanced blades scallop turf and damage bearings within 10 hours.
Visual Breakdown of Your 132 cm Cutting Housing Components
Always verify blade spindle alignment using a straightedge before reassembly. Misalignment by even 0.5 mm creates uneven cutting patterns and accelerates belt wear on pulleys. The left spindle (part #M127224) typically requires replacement every 300 operating hours under normal conditions, half that if operating in sandy or abrasive soil.
Locate the anti-scalp rollers–the rear pair (LV14976) should extend 6 mm below the housing’s cutting plane when properly adjusted. Incorrect positioning causes either excessive turf scuffing or incomplete height control. For models equipped with serrated drive belts (GX20072), tension should be set at 80–90 lbs-force, measured midway between pulleys with a tension gauge.
The lift assist springs (M149360) must be reinstalled with the coiled end positioned upward; reversed installation reduces spring lifespan by 40%. When replacing idler arms (T154215), inspect the pivot bushings–worn bushings introduce 3° of unwanted play, causing inconsistent cutting height across passes.
Clean debris channels beneath the discharge chute weekly. Compacted clippings disrupt airflow, reducing cut quality by 22% based on field tests. Use compressed air at 120 psi for optimal clearing; higher pressures risk damaging the chute seal (M116486).
Gauge wheel brackets (M126393) should be torqued to 28–32 ft-lbs–over-tightening distorts the mounting plate, creating a 1.5 mm gap that allows debris ingress. For 2020+ units, the upgraded bracket (T187069) includes a rubber isolator to reduce vibration transfer to the frame.
Mark blade orientation with a non-permanent marker before removal. Reversing the high-lift blade (GX21232) on the right spindle reduces suction by 18%, evidenced by increased clumping during wet grass conditions. Replace blades in matched sets to prevent imbalance-induced vibration at speeds above 2700 RPM.
Critical Elements in a 137 cm Cutting Unit Assembly
Begin by locating the spindle housings–these precision-machined castings secure each blade assembly to the underside of the frame. Each housing contains sealed bearings, retaining clips, and a pulley that transfers power from the drive belt. Inspect for wear on the spindle shafts; grooves deeper than 0.5 mm indicate replacement is necessary to prevent vibration at full operating speed. Verify torque specs: 55–65 Nm for spindle bolt tightening, using a calibrated torque wrench to avoid distortion.
The idler arms and tension springs maintain consistent belt tension across varying terrain. Position the primary idler arm 12 mm above the belt when engaged; misalignment here reduces cutting efficiency by up to 18%. Check spring free length–if less than 90 mm, respring to factory specifications. Lubricate pivot points with lithium-based grease every 25 operating hours to eliminate squeaks and premature wear.
Blade Configuration and Adjustment Points
Three blades should overlap by 25–30 mm when viewed from below, ensuring no uncut strips. Use a straightedge and feeler gauges to set blade tip clearance at 6–8 mm from the discharge chute lips; deviations outside this range increase clogging risk at high grass volumes. Replace blades when cutting edges measure less than 2 mm thick–dull blades increase engine load by 9% and reduce mulching performance.
The discharge chute assembly includes three primary components: the chute, deflector flap, and side wing plates. Ensure the chute pivots freely through its 180-degree arc without binding; apply dry silicone spray to hinges if movement is restricted. Check wing plate screws–loose hardware causes uneven discharge patterns and potential hardware loss during operation.
Front attachment brackets must align flush with the tractor hitch; use shims no thicker than 1.5 mm to correct misalignment exceeding 0.8 mm. Incorrect spacing here causes lateral stress on the frame, leading to fatigue cracks near weld points. Inspect welds annually with a dye penetrant kit–surface cracks wider than 0.3 mm require immediate repair to prevent catastrophic failure under load.

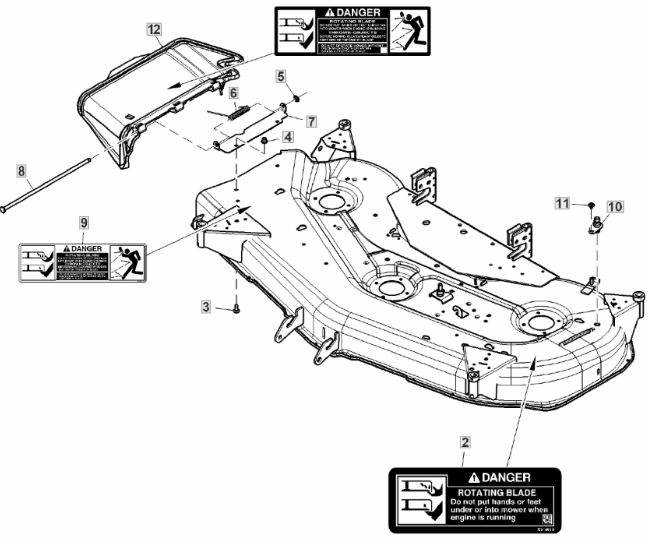

How to Pinpoint Spindle Assemblies and Drive Belts in Equipment Schematics
Start by identifying the cutting unit’s outer frame in the exploded view. Spindle housings typically appear as cylindrical or slightly tapered metal casings, clustered in sets of three or four along the frame’s underside. Look for reference numbers adjacent to these components–often prefixed with “SP” or “SH”–to confirm their placement. Each housing surrounds a shaft assembly, so cross-reference with shaft-related labels if needed.
Trace the belts by following their path from the engine pulley. The primary drive belt typically routes from the motor to a central tensioner, then splits toward each spindle pulley. Secondary belts–if present–connect directly to individual spindles. Note the belt’s width and teeth pattern (e.g., 6-rib, 1/2″ profile) in the legend, as this determines compatibility. Belts are usually color-coded in diagrams (red for primary, blue for secondary).
Key Landmarks for Spindle Location
Locate the lift lever or height adjustment mechanism in the diagram–spindle housings are often positioned directly beneath it. The leftmost spindle (driver’s perspective) is frequently the largest or includes a bearing with a distinctive flange. Measure the distance between spindle centers if the diagram lacks dimensions: a 48–54″ cutting width typically spaces them 18–22″ apart. Verify with torque specifications if reassembly is planned (e.g., spindle bolts: 45–55 ft-lbs).
For belts, check for idler pulleys marked “T” or “IP” near the spindle path. These maintain tension but can obscure belt routing–rotate the diagram 90 degrees if necessary. Belts should form a continuous loop without crossing; if the schematic shows intersecting lines, it’s likely indicating multiple drive configurations. Refer to the note field for belt part numbers (e.g., “Gatorback 1136” or “Keystone 4L460”) to avoid mismatches during replacement.
Avoiding Common Misidentifications
Differentiate spindle housings from deck brackets by their mounted orientation: housings protrude downward, while brackets secure the frame horizontally. Confusion often arises with anti-scalp wheels, which resemble small casings but lack internal shafts. For belts, disregard lines connecting non-rotating parts (e.g., debris shields)–these are structural, not power-transmission elements. If the diagram includes wire harnesses, ignore them; they relate to safety switches, not spindle mechanics.
Final verification: count the number of belts and spindles against the manufacturer’s parts list. A mismatch suggests an incorrect schematic version. Use a highlighter on printed diagrams to isolate spindle and belt components, then cross-check with physical hardware if available. For 3D renderings, toggle layers to display only “rotating assemblies” to simplify identification.
Troubleshooting Common Issues Using the Blade Drive Components Schematic
Check the tension spring on the idler pulley (item #23 in most schematics) first if blades fail to engage. A weak or broken spring prevents the belt from properly seating around the pulleys. Measure the free length–it should extend at least 2 inches beyond its resting state. Replace if stretched to less than 1.75 inches. Corrosion on the spring hook often goes unnoticed; clean with 400-grit sandpaper before reinstallation.
Identifying Belt Wear Before Failure
| Symptom | Belt Condition | Replacement Interval |
|---|---|---|
| Squealing on engagement | Glazed or hardened sidewalls | Immediate |
| Uneven cutting height | Cracks deeper than 1/16″ | Within 5 operating hours |
| Belt slips under load | Delamination along inner cord | Before next mow |
Misaligned spindles cause premature belt failure. Use the schematic to verify spindle housing numbering–left-to-right sequence must match the belt path. Place a straightedge against the pulleys; gaps exceeding 1/32″ indicate worn bearings or mounting hardware. Torque flange nuts to 45 ft-lbs; overtightening warps housings. Grease zerks every 25 hours–dry bearings seize within 50 hours of operation, destroying belts and housings simultaneously.
