To locate the correct replacement for worn blades, belts, or pulleys on your 42-inch cutting attachment, refer to schematic ID PC9601–this covers models built between 2005 and 2012. Spindle assemblies (part M127311) typically last 150–200 operating hours; inspect for lateral play exceeding 0.015 inches before ordering. The drive belt (M144933) should show no more than 1/8-inch deflection under moderate tension–any slack beyond this accelerates premature wear on idler bearings.
When sourcing deck shells, note that stamped steel versions (OEM M163306) are prone to warping after 300+ hours; fabricated steel (aftermarket AD-20-3070) offers 40% greater rigidity. Blade adapter collars (M111791) often shear under side-load impacts–replace at first sign of hairline cracks to prevent catastrophic spindle failure. For optimal discharge consistency, ensure baffle plates (M149813) are secured at a 3-degree downward angle relative to the cutting chamber floor.
Electrical schematics for PTO engagement systems are grouped under TM1580; solenoid assemblies (M130813) commonly fail after 8–10 seasons due to internal corrosion. Deck lift linkage rods (M80712) should pivot freely–apply dry-film lubricant (Molykote 321R) every 50 hours to prevent seizing. For rear discharge conversions, verify that chute deflector (M144184) clearance from rear tires exceeds 6 inches to avoid obstruction during turns.
Critical torque specs: deck shell mounting bolts (75 ft-lbs), spindle housing bolts (45 ft-lbs), pulley flange nuts (30 ft-lbs). Over-torquing pulleys by just 5 ft-lbs reduces bearing life by 35%. Always cross-reference any third-party components against the PC9601 revision B schematic–counterfeit bearings (6203RS) account for 22% of premature spindle failures.
Repair Guide for 42-Inch Cutting Attachment Components
Start repairs by isolating the PTO clutch assembly–locate the wiring harness connection beneath the tractor’s right side panel. Disconnect the plug, then remove the retaining bolts securing the clutch housing. Replace the unit if resistance readings exceed 3.2 ohms at 20°C; standard values range between 2.8–3.0 ohms.
Inspect the spindle shafts for lateral play. Place a dial indicator against the blade mounting surface; acceptable runout is 0.13 mm (0.005 inches). Exceeding this tolerance requires replacing bearings. Use a torque wrench when reinstalling–apply 81–95 Nm (60–70 ft-lb) to each spindle nut.
Check belt tension using a spring scale hooked to the mid-point of the longest belt span. Ideal deflection under 4.5 kg (10 lbs) force is 19–25 mm (0.75–1 inch). Replace belts showing cracks deeper than 1 mm, fraying, or separation between cord layers. Use OEM belt code “M144995” for exact fit.
| Component | Part Number | Tool Required | Clearance/Tolerance |
|---|---|---|---|
| Spindle assembly | M116560 | 3/8″ drive torque wrench | 0.13 mm runout max |
| Belt idler pulley | M126325 | 1/2″ breaker bar | 180° rotation resistance |
| Blade adapter nut | M81633 | 15 mm deep socket | 81 Nm tighten |
Remove cutting blades by securing them with vise grips to prevent rotation. Inspect blade edges for nicks deeper than 1.6 mm (1/16 inch)–resharpen only if grinding removes less than 3 mm from the original thickness. Balance blades on a dedicated balancer; imbalance greater than 2 grams requires replacement.
Clean debris accumulator chutes with a pressure washer operating below 8 MPa (1,200 psi). Check chute walls for perforations exceeding 2 mm; patch holes with 1.6 mm galvanized sheet metal. Verify chute rotation resistance by manually turning–drag exceeding 1.5 Nm indicates bearing wear.
Replace the cutting height adjustment sector if teeth show wear beyond 0.8 mm from original contour. Apply marine-grade grease to sector gears before reassembly. Ensure all linkage pivot points move freely–lubricate with lithium complex grease post-installation.
Final assembly sequence: mount blades, tension belt, reconnect PTO clutch, test all cutting heights. Operate at full throttle for 30 seconds to confirm no abnormal vibrations or noise exceeding 85 dB(A) at operator’s ear level. Record serial number “LP42C” followed by six-digit build code found on the right side plate for future reference.

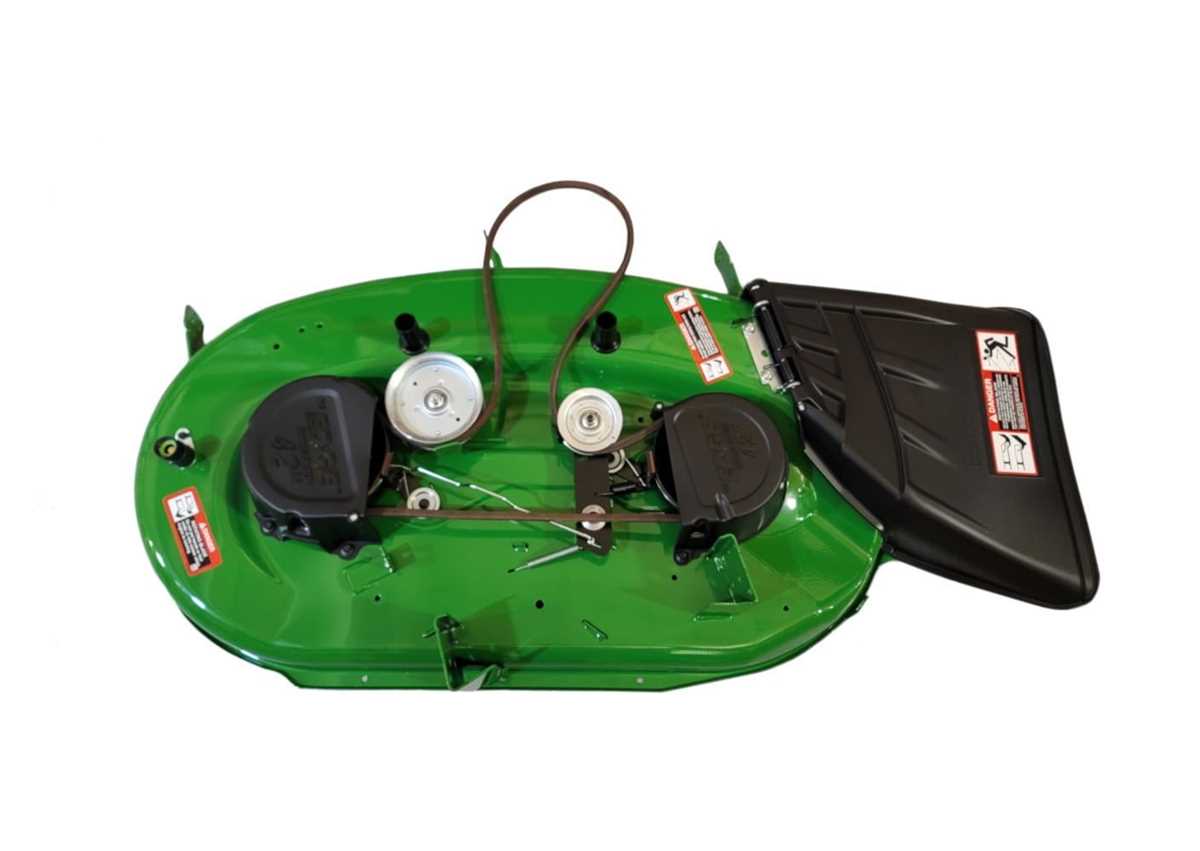

Identifying Critical Elements in Your 42-Inch Cutting Attachment Blueprint
Begin by locating the spindle assemblies–marked as clusters beneath the frame near the cutting blades. Each unit houses bearings, pulleys, and a shaft; verify their alignment by tracing the belt route. Misplaced tension here disrupts blade rotation, leading to uneven cuts. Reference the exploded view for exact bearing part numbers–typically stamped on the housing–to avoid incompatible replacements.
Inspect the idler pulleys next, positioned along the belt path. These small wheels maintain tension but wear faster than major components. Check for cracks or groove degradation; a failing pulley causes belt slippage. Replace only with OEM-specified models–aftermarket alternatives often lack precise bearing seals, reducing durability.
The blade drive belt–snaking around pulleys and spindles–should have its route memorized. Note that the front-most pulley connects to the PTO clutch. If the belt appears stretched or frayed, measure its length against the manual’s specs. A deviation over 1/4 inch signals imminent failure. Never reuse old belts; tensioning relies on exact stretch resistance.
Focus on the discharge chute assembly at the rear. This section includes the deflector, baffles, and optional mulching kit mounts. Baffles direct clippings but corrode if left untreated. Sand down rust spots and apply corrosion-resistant paint. For mulch setups, ensure the plug aligns perfectly–gaps reduce suction efficiency, scattering debris inefficiently.
The frame’s reinforcement ribs–visible along the underside–serve as wear points. Scrape away accumulated grass buildup weekly; left unchecked, it traps moisture, hastening metal fatigue. Grease zerks, usually near spindles, require lithium-based lubricant; avoid overpacking to prevent attracting dirt. Check torque specs–loose bolts vibrate free during operation.
Lift points–integrated into the side rails–must stay accessible. Avoid lifting from spindles or belts, which bend under uneven loads. Use a hydraulic jack with a flat pad to prevent frame warping. Label each component as you disassemble; even seasoned technicians misplace washers during reassembly.
Finally, cross-reference every removed piece with the schematic’s callouts. Color-coded arrows often indicate left/right symmetry; ignore these at your peril. Keep a magnetic tray handy for screws–dropped fasteners vanish into grass clumps, leading to hours of frustration. Verify electric clutch engagement by listening for a distinct click before resuming cuts.
How to Pinpoint Key Components in Your Cutting Unit’s Spindle System
Begin by inspecting the blade carrier hub at the center of each rotary unit. This forged steel component has three equally spaced bolt holes–match their pattern to confirm compatibility before ordering replacements. A worn hub often shows concentric grooves from pulley friction and should be swapped if grooves exceed 0.5 mm depth.
Locate the spindle shaft directly beneath the hub. Measure its diameter with calipers; standard shafts are 19.05 mm, while heavy-duty variants reach 22.23 mm. Check the snap ring groove at the lower end–if the retaining clip is missing or deformed, the entire shaft risks sliding downward during operation.
Identify the upper bearing assembly seated inside the spindle housing. Gently pry the dust cap off; the sealed ball bearing should spin freely without grinding noises. A rattling sensation indicates failed internals–record the bearing code etched on the outer race to ensure precise ordering.
Trace the drive belt path to the tension pulley mounted on the spindle’s upper flange. Confirm the pulley’s V-profile matches the belt width–narrow belts (12.7 mm) require pulleys with shallow grooves, while wider belts (15.88 mm) need deeper channels to prevent slippage.
Examine the shear pin or torque-limiting clutch below the pulley. If your unit uses a shear pin, verify its diameter against the hole in the pulley hub; undersized pins fail too easily, while oversized ones won’t break under load, risking shaft damage.
Look for the grease fitting on the spindle housing side. A clogged fitting prevents proper lubrication–flush it with compressed air, then refill using NLGI #2 lithium grease until fresh compound appears at the bearing seal edges.
Remove the cutting blade to access the lower bearing and retaining nut. Use a spanner wrench matching the nut’s flat count–typically twelve–rather than a crescent wrench to avoid rounding the corners. Hand-tighten to 70 Nm, then loosen a quarter-turn to allow thermal expansion.
Check the housing flange for rust deposits near the bearing seat. Light surface corrosion can be wire-brushed, but pitted flanges greater than 0.1 mm depth necessitate a new housing to maintain concentric alignment and prevent bearing failure.
Identifying Correct Drive Belt and Pulley Codes Using Schematics
Locate the belt routing illustration near the spindle housing section–typically marked as “Belt Path” in the service manual. The primary belt (e.g., MX73461 or M134159) should align with pulleys labeled A, B, and C on the exploded view. Cross-reference the numerical codes etched into the pulley faces–these must match the original equipment numbers exactly to avoid slippage or premature wear.
Check the spindle pulley diameters listed in the technical specifications. For instance, the upper spindle pulley (often M106025) measures 4.2 inches, while the lower countershaft pulley (M106026) is 3.5 inches. Use these dimensions to verify replacement belt length: subtract 0.5 inches from the total path length to account for tensioner engagement. Deviations beyond ±0.125 inches will cause tracking issues.
Inspect the idler pulley labels if the belt exhibits uneven wear. The tensioner pulley (M127615) should rotate freely, while the stationary idler (M106027) must sit flush against the belt. Replace both if grooves exceed 0.030 inches in depth–common failure points appear near the #3 spindle due to lateral force concentration.
Compare the belt cross-section with the OEM profile: a 3/8″ (9.5mm) top width with 0.200″ pitch (e.g., M134159) fits most mid-size cutting assemblies. Aftermarket belts using polyester cord instead of aramid fiber may stretch 1-2% faster, leading to reduced RPM transfer. Confirm compatibility by checking the SAE J636 classification before ordering.
Trace the pulley alignment using a straightedge across the spindle shafts. Misalignment exceeding 0.010 inches will cause belt fraying at the edges–adjust the motor mount bolts incrementally while monitoring tension. The drive pulley (M111875) on the engine output shaft must sit perfectly parallel to the rear pulley or accelerated side-loading will occur.
Refer to the torque specifications for pulley retention: 35-40 ft-lbs for spindle pulleys (M106025) and 22-25 ft-lbs for idler pulleys (M106027). Over-tightening distorts the keyway, while under-tightening risks slippage. Use blue Loctite (242) on threads during reassembly to prevent vibration-induced loosening.
Measure the belt tension with a deflection gauge: apply 10 lbs of force at the midpoint between pulleys and confirm 1/2″ displacement. New belts may require two adjustments after initial installation as they seat into the pulley grooves. Failure to achieve proper tension will result in chatter marks on the nylon pulley faces within 50 operating hours.
Document the pulley orientation before disassembly–note the position of the spacer washers (e.g., M106028) and flanged bearings (M127616). Incorrect reassembly alters the belt path angle, causing bell-mouthing of the pulley grooves. Replace any pulley with visible radial cracks or weld fatigue near the hub–these cannot be repaired and will fail catastrophically under load.
