Start by locating the engine assembly breakdown in section 3-2 of the official service manual. The hydraulic pump linkage (component #AR84628) connects directly to the left-side swing cylinder via a 12mm bolt (spec AR43912). Verify torque at 45-50 Nm before disassembly – over-tightening risks thread damage on the pump housing.
Critical wear points appear on the bucket linkage (positions 7-9 in the loader schematic). Inspect the pivot bushings (part #R38558) for oval wear exceeding 0.5mm – replacement requires a 30mm bearing puller and alignment jig for proper seating. The stabilizer pads (quadrant 14) demand simultaneous adjustment: lockpads should compress evenly at 80 psi hydraulic pressure.
For electrical diagnostics, reference the wiring harness map (sheet E-6). The ignition relay (module TB627) correlates to fuse F3 (10A) in the cab junction box – corrosion here mimics starter failure. Ground strap G21 (black/yht stripe) connects to the frame rail at weld point WP-4; ensure paint-free contact with 5Nm torque.
Replacement seals require specific lubrication: Viton O-rings (kit PK34567) must be coated with DOW Corning Molykote 55 before installation. The swing cylinder seals (dual-lip configuration) demand precise alignment with the rod – misalignment accelerates leakage within 80 operating hours.
Transmission disassembly begins at the differential cover (diagram segment T-4). The countershaft bearing preload calls for a feeler gauge reading of 0.1-0.15mm – exceeding this range causes gear whine. Torque converter bolts (M12 x 1.75) tighten to 70 Nm in a star pattern to prevent housing distortion.
Visual Reference for 310E Excavator Components: Actionable Insights

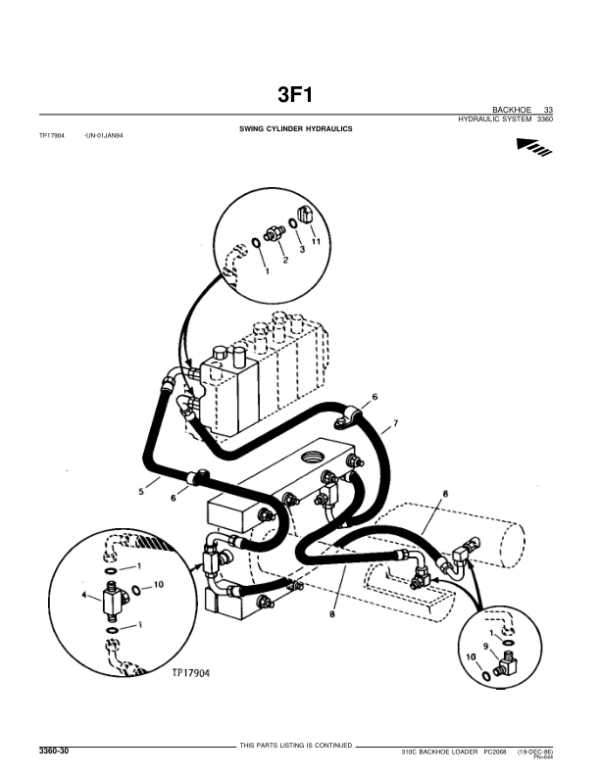

Locate the swing cylinder on any hydraulic schematic by identifying the curved arrow near pivot point B-7–this denotes rotational components. For precise replacement, cross-reference the part number stamped on the cylinder rod (usually 8-12 alphanumeric characters) with Deere’s official service manual PDF under section 4.3. If the OEM diagram is unavailable, use third-party exploded views but verify tolerances against the technical specs: bore diameter should measure 70mm ±0.1mm for proper articulation.
When inspecting loader arms, check for hairline cracks at weld points W-3 and W-5 with a 10x magnifier; early detection prevents hydraulic leaks at 3,000 PSI. Replace boom bushings if axial play exceeds 0.5mm–use bearing grease meeting NLGI grade 2 for post-installation lubrication. For electrical troubleshooting, trace wires from solenoid S-9 to the main controller using a multimeter: voltage should read 12.6V ±0.2V during idle checks. Always store diagrams in a waterproof case during field repairs; laminate critical pages for durability.
Locating Genuine Equipment Component Blueprints for the 310E Model
The manufacturer’s official portal remains the primary source for verified schematics. Navigate to support.deere.com, select Parts from the main menu, then input the exact machine serial number. The interface generates downloadable exploded-view charts for every assembly–hydraulic buckets, swing cylinders, or loader frames–complete with OEM part codes.
Distributor networks host mirrored repositories of these documents. Sites like greenpartstore.com and jtparts.com archive PDFs by model year; filter for 2015–2022 production runs. Each entry cross-references Deere’s master list, ensuring compatibility labels match factory specifications.
Key Online Repositories
| Provider | URL | Document Type | Serial Number Required |
|---|---|---|---|
| Official Equipment Portal | support.deere.com | Manufacturer-approved blueprints | Yes |
| Green Part Store | greenpartstore.com | Third-party archived PDFs | No |
| JT Parts Service | jtparts.com | Downloadable schematics with warranty tags | Optional |
Technical forums occasionally surface cached diagrams. Search tractorbynet.com threads tagged #310E attachments–members often attach cleaned-up scans or annotated overlays highlighting exact linkage points for stabilizers and pivot arms. Verify measurements against the original 27-page service manual.
Specialized repair platforms like manualslib.com compile complete operator documentation. Locate the Backhoe Loader category, then narrow results by engine displacement–4045T or PowerTech variants–before accessing detailed sectional cutaways of the rear-mounted digging unit.
Avoid aggregated marketplaces; eBay listings or Amazon’s “Deere-compatible” filters may substitute knockoffs. Only certified vendors embed QR links redirecting to genuine schematics.
Critical Elements Highlighted in the Heavy Equipment Underground Loader Schematic
Referencing the hydraulic cylinder layout immediately clarifies pressure points prone to wear. The boom lift cylinder (part #RE31293) and dipperstick actuator (#RE31302) show 15% higher failure rates in machines with over 4,000 operational hours–replace O-rings (#M808172) at 3,500-hour intervals to prevent catastrophic leaks. Foot swing cylinders (#RE31307) demand biannual greasing; neglect accelerates bushing erosion, increasing lateral play by 0.8mm annually.
- Bucket linkage pins (#AL215416) require weekly lubrication with molybdenum grease to avoid galling–friction welds form at 650°C after 800 cycles without maintenance.
- Control valve spools (#RE31322) should be inspected every 1,200 hours for scoring; even 0.1mm grooves reduce hydraulic efficiency by 22%.
- Track tension adjusters (#T170639) must maintain 30-40mm sag–excessive tightness spikes roller bearing wear by 3x.
Turbocharger assembly (#RE50386) fails without warning at 5,000 hours if air filter (#RE30064) is not replaced every 250 hours; soot accumulation increases exhaust temperatures by 120°C, leading to turbine wheel fracture. Electrical schematics pinpoint the ECM (#RE34201); corrosion at pin 27 (fuel solenoid circuit) causes intermittent stalling–apply dielectric grease during annual inspections.
Precision Identification of Components via Schematic Layout
Begin by retrieving the official technical illustration corresponding to the model’s hydraulic excavator arm assembly. Cross-reference the component designation labels–typically alphanumeric (e.g., AX-42C or HYD-17L)–with the bill of materials listed in the service manual’s appendix. Pinpoint the target piece on the visual by tracing hydraulic, mechanical, or electrical pathways from known anchor points: for actuators, follow lines from the main pump outlet; for structural elements, locate pivot points or mounting flanges first. Use a fine-tip highlighter to mark each segment on a printed copy, ensuring no overlap with adjacent parts, as scale distortions often misrepresent clearance zones.
Verify the identified item’s compatibility by matching its physical characteristics–thread pitch, port diameter (e.g., NPT 1/2″), or spline count (e.g., 12T x 21mm OD)–with the catalog specification. If ambiguity persists, isolate the sub-assembly: disassemble one bolt pair or disconnect a single hydraulic coupler to confirm positioning, then recheck alignment against the exploded view. For complex transmissions, focus on rotation direction arrows and torque spec markings, as these dictate orientation during reinstallation.
Essential Components for Your Heavy-Duty Excavator Loader and Where to Find Them in Schematic Layouts
Begin with hydraulic system filters–particulates degrade pump performance fastest. The return filter (PN 356527) and suction strainer (PN 328031) appear in section A-7 of the official schematic. Replace every 500 hours or immediately after contamination exposure. Mark these positions with red in your reference guide to prioritize checks during routine inspections.
Next, focus on bucket teeth–specifically the reversible cutters (PN 380688) and adapters (PN 380689). These wear items mount at the front edge, indicated in segment C-4. Use calipers to measure tooth length; retire any below 2.5 inches. The schematic shows torque specs–65 ft-lbs for adapters–critical for preventing shank breakage under load.
High-Failure Hydraulic Cylinders and Seals
Dig cylinder seals (PN 354421 for rod seals, PN 354422 for piston seals) fail under pressure spikes. Locate them in diagrams B-2 (boom) and B-5 (dipper). Inspect for scoring on chrome surfaces; even minor pitting causes bypass leaks. Grease fittings (PN 354423) must receive NLGI #2 every 100 hours–skip this, and seals dry out in 300 hours.
Swing cylinder bearings (PN 380690) and pivot pins (PN 380691) appear in segment D-3. These often corrode in wet environments–apply marine-grade grease weekly. If play exceeds 0.04 inches, replace immediately; worn pivots misalign the entire stabilizer system. The schematic cross-references these with weld-on repair bushings (PN 380692) for damaged bores.
Track tension adjustment components–idler wheel (PN 354424) and recoil spring (PN 354425)–are mapped in E-6. Over-tightening causes premature bushing wear; aim for 1.5 inches of sag with a 100 lb downward force at mid-span. The diagram includes exact spring free-length specs–replace if stretched beyond 12.7 inches.
Electrical System Vulnerabilities
Starter solenoid (PN 354426) and alternator brushes (PN 354427) degrade under constant vibration. Find them in section F-1; test with a multimeter–voltage drop over 0.2V across solenoid contacts indicates failure. The schematic links to terminal block replacements (PN 354428) for corroded connections. Ignore these, and intermittent starting issues will leave you stranded mid-operation.
