Replace worn hydraulic filters every 200 hours or annually to prevent pump damage–refer to Section 3.5 of the official service manual for precise torque specs (18-22 ft-lbs). The transmission dipstick (Part #M130835) should register oil between the HIGH and LOW marks when checked at operating temp (180°F). Ignoring this triggers early gear wear.
Locate the lift arm pivot bushings (Part #M94314) beneath the rear fender–replace if play exceeds 0.03 inches. Grease zerks at all pivot points using GC-LB lithium grease every 50 hours. Skip this, and load spikes collapse linkages.
Trace electrical wires by color:
– Red/White: 12V constant to ignition
– Black/Yellow: Starter solenoid trigger
– Brown/Orange: Headlight relay. Snip zip ties securing harnesses–chafing at the battery tray (left rear corner) causes random cutouts.
Clock the fuel injection pump (Part #R53442) to TDC using a timing tool set #RT500–offset pins align at cylinder #1. Misfires destroy injectors within 150 hours.
Order components via DealerConnect using exact serial number stamped on the right-side frame rail. Third-party aftermarket filters (e.g., WIX #33785) void warranty if installed without OEM seals.
Compact Utility Tractor Component Layout: Hands-On Reference
Start by locating the engine cover removal points–two 10mm bolts under the front grille and a single 8mm screw behind the instrument panel. The radiator fan detaches with a T25 Torx driver after disconnecting the wiring harness clip (marked with yellow tape). Store fasteners in labeled containers, grouping them by subsystem: hydraulic lines (1/4″ flare nuts), PTO shaft (13mm bolts), and lift arms (17mm castellated nuts). Without this step, reassembly risks misalignment, leading to premature wear on the drive axle seals.
- Fuel filter housing sits beneath the left rear fender–replace the 7.5 micron element every 200 hours with part #RE505852.
- Hydrostatic pedals use 3/8″ clevis pins; lubricate with NLGI #2 grease at each service interval.
- Rear wheel bearings require a 60mm axle puller–apply 5g of Timken SP581 lubricant during installation.
- Seat suspension uses two gas springs (part #M135529); adjust tension by rotating the lower bracket clockwise.
For electrical troubleshooting, probe the main harness connector (24-pin, Molex MX150) using a multimeter in continuity mode. Pin assignments: #4 (12V constant), #12 (key switch), #18 (ground), #22 (PTO solenoid). Corrosion on the battery terminals triggers erratic glow plug cycling–clean with a wire brush and apply dielectric grease. When replacing the instrument cluster, ensure the odometer cable (1.2mm inner diameter) is routed away from the steering column shaft to prevent binding.
Locating Authorized Supplier Breakdowns for the 2320 Compact Utility Model
Start with the manufacturer’s MyDealer portal at mydeere.com. Select Parts, enter the machine’s serial plate digits, then choose Exploded Views. Every assembly–engine, transmission, loader–loads as scalable vector PDFs with exact component IDs and OEM reference codes.
Regional distributors maintain localized parts catalogs; search “[Your State] Dealer Parts Lookup” for branches offering printed manuals or USB drives with interactive schematics. Dealers typically charge $15–$25 for a full breakdown set but waive fees if you purchase replacement elements.
Equipment forums like GreenTractorTalk host user-uploaded scans under Tractor Model Archives. Use browser search (Ctrl+F) for terms like hydraulic pump or PTO shaft–attachments often have their own exploded sheets separate from the base machine.
The Technical Information System (TIS) from official service centers provides downloadable ZIP files containing every engine and drivetrain view. Registered accounts unlock high-resolution files; non-subscribers see preview thumbnails sized for reference only.
Counterfeit PDFs frequently circulate on auction platforms. Verify authenticity by matching the sheet layout–OEM documents always include bordered callouts, torque specs in inch-pounds, and hexagonal part codes (e.g., AL22305). Reputable sellers embed watermarks readable under UV light.
Local equipment co-ops often share physical manual binders. Request the TM105619 volume; it segments the machine into functional units (steering, 3-point hitch) on color-coded tabs. Members typically photocopy sections for $0.50 per page.
Mobile repair apps like MyTractor™ sync exploded views with augmented reality overlays. Point a smartphone camera at a worn axle housing, and the app highlights every gasket and snap ring in real-time 3D. Offline mode stores views for field use without cellular coverage.
For discontinued components, the Heritage Parts Program at deere.com/heritage retrieves original engineering blueprints. Submit a Parts Trace Request form; responses arrive within 72 hours via email linking to scanned microfiche archives.
Locating Key Components in Equipment Schematics
Begin by isolating the tractor’s hydraulic system in the illustrated breakdown. Locate the numbered callouts adjacent to the reservoir, pump, and control valves–these identifiers correlate directly to the service manual’s component list. Cross-reference with the exploded view of the rear three-point hitch, where worn bushings or linkage pins often require replacement, typically labeled as items 18 through 25 on most overhaul charts.
Inspect the engine compartment schematic for the air filter housing (marked near the upper left quadrant), then trace the intake piping down to the turbocharger assembly if equipped. Critical wear items like pre-cleaner elements or rubber gaskets are frequently overlooked but appear in subsections labeled “air induction” or “breathing system” within indexed parts lists.
Focus on the electrical section for alternators, solenoids, and wiring harness connectors–common failure points. Terminal blocks and fuse panels are usually clustered on a dedicated page, with individual wires color-coded in the legend. Verify connections against the diagram’s zoomed-in detail for pigtail wires, as corrosion or fraying often starts at these junctions.
Transmission components demand meticulous scrutiny; shift forks, bearings, and seals cluster in a dedicated subsection. On compact utility models, the hydrostatic pump is separated into its own exploded view–search for torque specs alongside the part number to avoid mismatches during reassembly. Clutch assemblies, though less prone to wear, are detailed in side-by-side comparisons of new versus damaged friction plates.
To prevent misordering, compare the schematic’s part number suffix against the serial number plate on the equipment’s frame. Hydraulic lines, for instance, carry length and thread-pattern identifiers–confusing metric and imperial measurements creates installation failures. Prioritize O-rings and seals by referencing their material composition (nitrile versus Viton) listed adjacent to each drawing.
Attachments like loader arms or mid-mount mowers appear on separate sheets; cross-check pivot points, hoses, and cylinders against the equipment’s specific configuration. Quick-attach couplers, often underrepresented in generic breakdowns, include discrete pin diameters–measure these directly if the diagram lacks clarity.
Use the legend to decode symbols for seals, springs, and fasteners. Torque arrows and directional indicators (e.g., fluid flow) resolve ambiguities in static images, particularly for pumps or steering columns where orientation matters. Keep a digital copy of the schematic open during disassembly to log identified issues directly on the document, accelerating reordering for non-stocked items.

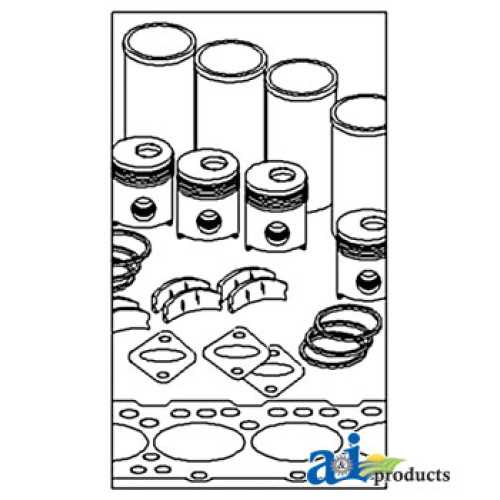

Step-by-Step Disassembly Reference for Engine Components
Begin by draining all fluids from the powertrain system. Place a container beneath the oil pan and crankcase, remove the drain plugs, and allow residual lubricants to empty completely. Failure to do so risks contamination during later stages.
Remove the cooling shroud by disconnecting the retaining clips and unthreading the mounting bolts. Label each connector–intake, exhaust, and sensor wires–to simplify reassembly. Store fasteners in a magnetic tray or segmented container.
Detach the intake manifold by loosening the flange bolts in a cross-pattern sequence to prevent warping. Inspect the gasket surface for debris; clean with a plastic scraper to avoid scoring. Replacement gaskets should match OEM specifications–aftermarket alternatives may lead to vacuum leaks.
Unbolt the cylinder head following the service manual torque sequence in reverse. Lift the head straight upward to avoid damaging the mating surfaces or valve train components. If corrosion is present, apply a penetrating agent 24 hours prior to disassembly.
Extract the piston-connecting rod assemblies by rotating the crankshaft to bring each piston to top dead center. Use a ridge reamer to remove carbon buildup along the cylinder walls before attempting removal. Mark each rod cap with its corresponding cylinder number to maintain balance.
Disassemble the valve train by compressing the springs with a specialized tool. Release tension gradually–sudden decompression can damage retainers or lifters. Store valves in order; mix-ups cause incorrect seating and increased wear.
Inspect the crankshaft bearings for scoring. Measure clearance with Plastigage; replace bearings if tolerance exceeds 0.002 inches. Clean oil passages with compressed air and verify alignment with a straightedge and feeler gauges.
Reassembly follows the reverse order, using new seals and torque specifications from technical documentation. Apply assembly lubricant to all friction surfaces before installation. Recheck timing and valve clearance after startup–adjust as needed to prevent operational failure.
