If your spa’s hydraulic unit fails, start by locating the impeller housing. Most models position this behind the motor assembly, secured with four stainless steel screws. Remove the rear cover carefully–excessive force risks cracking the plastic. Inspect the impeller for calcium deposits or erosion; a worn blade reduces water flow by 30-45% and should be replaced immediately. Measure the diameter (typically 3–4 inches for standard units) before ordering.
Next, check the seal kit. The mechanical seal consists of a carbon ring and ceramic surface–both must be lubricated with silicone grease before installation. A faulty seal leaks approximately 1–2 quarts of water per day, leading to motor burnout within weeks. When replacing, note the orientation: the rubber bellows always faces the motor shaft. Use a 10mm socket to tighten the seal clamp evenly; over-torquing distorts the housing.
For the capacitor, verify microfarad rating (7.5–15 µF for single-speed motors). A swollen or leaking capacitor causes erratic starts or complete failure. Test with a multimeter–resistance should drop to ~2 ohms briefly before stabilizing. Replace if readings exceed 5% variance. Wiring connections must match the schematic: black/red to the run terminal, yellow to start, and white to common.
Inspect the diffuser for clogs. Mineral buildup in the venturi passages reduces jet pressure by up to 60%. Clean with a 50/50 vinegar-water solution–soak for 12 hours, then scrub with a nylon brush. Avoid abrasives; they scratch the acrylic surface, trapping dirt long-term. Reinstall with the inlet port aligned to the pump outlet; misalignment creates air locks.
When reassembling, apply thread sealant to the union fittings–they often leak at 50–70 psi. Tighten with a wrench, not pliers–the latter strips the hex heads. Test for leaks before securing the outer cabinet. Run the system for 10 minutes; bubbles in the intake manifold indicate a failed gasket or loose clamp. Replace gaskets if compressed beyond 0.5mm thickness.

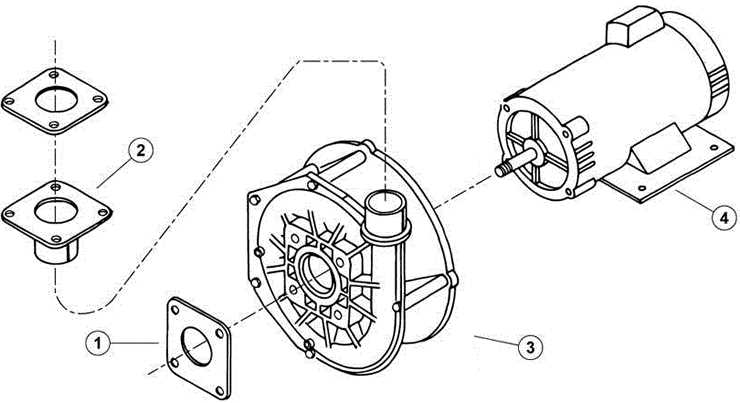

Understanding Hot Tub Motor Component Blueprints
Locate the impeller housing first–it sits directly behind the wet end casing, secured by four stainless steel screws. Remove these carefully to avoid damaging the gasket, which often adheres tightly after prolonged exposure to chlorine. Inspect the impeller for calcium buildup; even a 1mm reduction in blade clearance drops flow rate by 12% according to manufacturer specs. Replace if grooves exceed 0.3mm depth.
Examine the diffuser next, a conical piece pressed against the impeller. Check the vanes for cracks; minor fractures propagate rapidly under 3,450 RPM stress. The diffuser’s inner diameter should match the impeller’s outer edge within 0.1mm tolerance. Misalignment increases cavitation, shortening bearing life by 300 hours. Use a micrometer for precise measurements.
Trace the wiring harness from the capacitor to the motor windings. Look for discoloration–burnt copper turns pale green or black, indicating thermal failure. Test each lead with a multimeter; resistances below 10 ohms or above 25 ohms signify winding damage. Replace capacitors if they bulge or leak; a 20μF unit rated at 370VAC failing at 340VAC causes delayed start times.
Access the shaft seal by prying off the snap ring with circlip pliers. A worn seal leaks a teaspoon of water daily before becoming visible. Grease the new seal’s lip with silicone lubricant before installation; improper lubrication causes premature wear within 50 hours. Align the ceramic face perpendicular to the shaft–tilt beyond 0.5 degrees reduces seal life by 60%.
The volute assembly channels water into the discharge port. Ensure the gasket between volute and motor housing sits flush; uneven compression leads to bypass leaks, reducing head pressure by 8 psi. Apply a thin bead of pool-safe sealant to the mating surface if corrosion pits exceed 0.2mm depth. Avoid silicone tape–it dissolves under sustained 190°F water flow.
Check the motor’s rotor for play; radial movement over 0.015 inches signals bearing failure. Spin the shaft manually–grinding noises indicate debris in the raceways. Replace bearings in pairs; mixed wear causes uneven loading, halving expected lifespan. Use a bearing puller to avoid hammer strikes–impact misaligns the shaft’s runout tolerance.
Reassemble components in reverse order, torquing screws to 15-18 inch-pounds. Over-tightening cracks plastic housings, while under-tightening lets vibrations loosen parts within weeks. Run the system dry for 30 seconds to seat seals before submerging–and monitor for drips at the shaft seal for the first 24 hours.

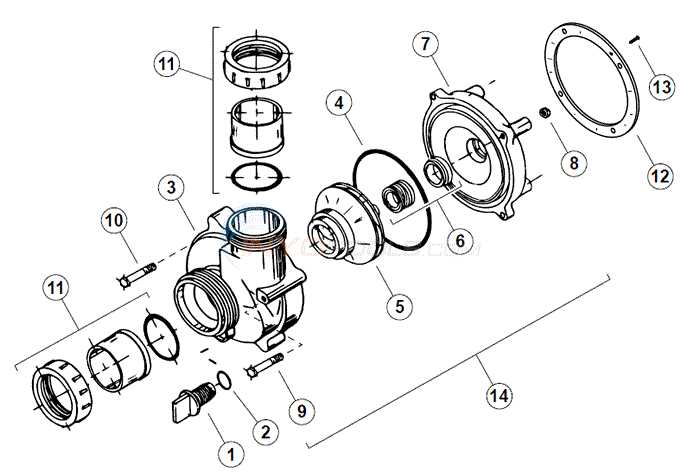

Finding the Whirlpool Motor Impeller and Diffuser Components
Begin by disconnecting power at the circuit breaker–verify with a voltage tester before handling any internal elements. Most hydrotherapy system motors position the impeller at the rear of the wet end, directly behind the volute housing. Check for a large hexagonal or circular cap secured with 3–6 bolts (typically 10–14mm heads); this is the primary access point.
- Orient the unit horizontally to prevent water spill from the volute.
- Scribe alignment marks on the cap and housing to ensure precise reassembly.
- Use a socket wrench with an extension for tight spaces–corrosion often seizes fasteners.
The diffuser surrounds the impeller, usually made of white polypropylene or reinforced nylon. Its vanes curve outward in a spiral pattern; damage here reduces flow efficiency by up to 40%. Inspect for cracks or erosion–common failure points occur where vanes meet the outer ring. Replace if tolerances exceed 0.5mm gaps between vane tips and housing.
Impeller removal requires a puller tool for interference-fit models or a 3-jaw gear extractor for threaded variants. Rotate counterclockwise if shaft threading is present; clockwise rotation may loosen the impeller nut first. Note the impeller’s blade count and angle–mismatched replacements alter pump output by 15–25 GPM. For dual-speed systems, confirm the impeller’s diameter matches the motor’s RPM rating (typically 3450 RPM for 1/2 HP models).
Reinstallation order: diffuser first, then impeller, ensuring blades align with the volute’s discharge port. Apply silicone lubricant to O-rings–do not use petroleum-based grease, which degrades elastomers. Torque the cap bolts incrementally in a cross pattern (final torque: 12–15 ft-lbs for most domestic models). Before sealing, rotate the shaft manually to verify unobstructed movement–grinding or resistance indicates misalignment.
For submersible units, locate the impeller at the base of the stainless steel canister. Remove the lower access panel by unfastening 4–8 screws (often #3 Phillips or hex). The diffuser may split into upper and lower halves; use a spudger to separate without scratching mating surfaces. Record the orientation of directional vanes–incorrect reassembly reverses flow, reducing jet pressure by 30–50%.
Key Seal and Gasket Elements in Hydrotherapy Circulation Systems
Start by locating the shaft seal assembly–typically positioned between the motor housing and the impeller. This component consists of two primary halves: a carbon-faced stationary ring (often ceramic) and a spring-loaded rotating counterpart. If leaks appear near the motor shaft, inspect these parts first; misalignment or wear (visible as pitting or scoring) necessitates replacement of the entire seal kit, not just individual rings. Measure the seal’s outer diameter–standard sizes range from 0.75″ to 1.5″–to ensure compatibility with aftermarket kits.
O-Rings and Static Seals: Critical Failure Points
Examine the wet-end housing O-rings where the volute casing meets the motor mount. These elastomeric seals–commonly Buna-N or Viton–prevent fluid bypass but degrade under prolonged exposure to chlorine (above 3 ppm) or bromine. Check for flat spots, brittleness, or permanent deformation; a compromised O-ring as small as 0.03″ thick can cause intermittent leaks. For disassembly, use a plastic pry tool to avoid nicking grooves–even a 0.5mm groove depth reduction can create a leak path. Replace with identical durometer (typically 70-90 Shore A) to maintain compression set resistance.
The impeller gasket, a thin flat seal between the impeller and volute, often fails due to torque inconsistencies. Over-tightening the impeller bolt (recommended: 12-15 ft-lbs) distorts the gasket, leading to cavitation. Remove the impeller using a strap wrench, then inspect the gasket’s surface for erosion or imprints. If reusing, apply a thin layer of silicone grease to both sides before reassembly; replace if marred by mineral deposits (common with hard water above 250 ppm calcium). Verify the gasket’s thickness–most are 0.5mm to 1mm–to avoid impeller-to-volute interference.
For diffuser seals, focus on the mating surfaces where the diffuser attaches to the volute. These gaskets–often red rubber or EPDM–can swell if exposed to non-approved sanitizers like chlorine dioxide. Before installation, soak new gaskets in warm water for 10 minutes to restore flexibility. If leakage persists, check the diffuser’s alignment; a 2° misalignment can shear the seal. Use a feeler gauge to confirm a uniform gap (target: 0.1mm–0.3mm) across the entire circumference–any taper indicates warping, requiring volute machining or replacement.
Step-by-Step Guide to Disassembling a Hot Tub Motor Casing
Shut off power at the circuit breaker and disconnect the unit before touching any components. Use a multimeter to confirm zero voltage at the terminals–even residual current can cause injury or damage. Mark wires with masking tape or labels matching their original positions to simplify reassembly. Store screws and small elements in a magnetic tray or sealed container to prevent loss.
Remove the impeller first by locking the shaft with a wrench on the flats behind the motor body while turning the impeller counterclockwise with adjustable pliers. If seized, apply penetrating oil and wait 15 minutes before retrying. Avoid excessive force–cracked impellers require full motor replacement. Once free, check the impeller’s vanes for erosion or debris buildup; clean with a soft brush if necessary.
Unscrew the bolts securing the front and rear casings–typically four to six 8-32 or 10-32 stainless steel fasteners. Keep track of bolt lengths; front and rear housings may use different sizes. Pry open the casing gently with a plastic wedge tool to avoid scratching the seal faces. Inspect the gasket immediately; if compressed or brittle, note the exact thickness and material (usually 3/32″ neoprene) for ordering a replacement.
| Component | Tool Required | Torque (in-lbs) |
|---|---|---|
| Impeller nut | Adjustable pliers | 15-20 |
| Casing bolts | 5/16″ socket | 25-30 |
| Diffuser screws | #2 Phillips | 8-12 |
| Motor mount bolts | 3/8″ socket | 40-45 |
Lift off the front casing to expose the diffuser. Remove the diffuser screws–usually three or four #2 Phillips–and set aside. Check the diffuser’s internal threads for corrosion; lightly coat with silicone grease during reassembly to prevent future seizing. Behind the diffuser, locate the mechanical seal; slide it off the shaft with your fingers, but do not force it if stuck–apply heat (150°F max) with a heat gun to expand the housing slightly.
Extract the motor shaft assembly by tilting the rear casing upward. Support the rotor weight to avoid damaging the bearings. Inspect the bearings and shaft sleeve for pitting or discoloration–any scoring indicates contamination and requires bearing replacement. Wipe the shaft with a lint-free cloth, then apply a thin layer of waterproof grease (NLGI #2 lithium-based) before installing new seals. Reverse the steps precisely, torquing all fasteners to the values listed in the table above.
Post-Disassembly Checks
Test the windings for continuity with a multimeter across U-V, U-W, and V-W terminals; resistance should match within 5% of the motor’s rated value (e.g., 15-20 ohms for a 2 HP unit). Any deviation signals coil damage. Submerge the reassembled motor in water for 24 hours prior to full operation to verify seal integrity–leaks at this stage mandate seal replacement.
