Start by installing a backflow preventer rated for at least 10 PSI above your main supply pressure. Residential setups typically require a ¾-inch model, while agricultural zones demand 1-2 inch units. Position it vertically, 12 inches above the highest downstream emitter, to prevent contamination from sediment buildup.
Use schedule 40 PVC piping for lateral lines in zones expecting frequent pressure spikes–premium Blu-Lock tubing suits temporary installations prone to UV exposure. Bury supply lines 10-12 inches deep to avoid frost damage; add insulation wraps in regions dropping below -15°C. For drip networks targeting row crops, maintain 0.5 GPH emitters spaced every 12 inches; spacing increases to 18 inches for sandy loam soils.
Select a controller with at least three programs if managing multiple soil types or plant varieties. Rain sensors should trigger shutdowns at ¼-inch accumulation to prevent overwatering–mount them in open areas, avoiding overhead canopy interference. Solenoid valves rated for 24V AC require direct burial for underground connections; protect wiring with ½-inch conduit and position splices inside waterproof junction boxes above grade level.
Pressure regulators designed for 30-50 PSI extend emitter lifespan by 40%. Use in-line mesh filters with 150-200 micron screens for standard sprinklers; upgrade to 120-micron disk filters for micro-spray heads. Check valves placed at zone midpoints eliminate low-head drainage, reducing water waste by 18-22% in sloped terrain.
Schedule maintenance every 60 days: flush lateral lines for 2 minutes using zone valves, inspect emitters for 10%+ flow reduction, and recalibrate controllers after seasonal temperature shifts. Replace cracked PVC fittings immediately–even minor leaks at 1/16-inch diameter waste 250 gallons daily.
Key Components of Automated Water Distribution Networks
To accurately map a zone-controlled water supply setup, include these primary elements in your schematic: a backflow preventer rated to 8 psi minimum, solenoid valves sized for 1″ to 2″ piping, emitters spaced at 12-18″ intervals for drip lines, pressure regulators set between 25-45 psi, and a filtration unit with a 120-150 mesh screen. Label each component with flow rates (GPM), voltage specs for actuators, and pipe diameters–mistakes in sizing typically cause uneven dispersion or clogs. For lateral lines in clay-heavy soil, use ¼” poly tubing with 0.5 GPH drippers to prevent erosion; in sandy fields, switch to ½” tubing with 1 GPH emitters for consistent saturation.
- Mark feeder lines with color-coded tags: red for main supply, blue for laterals, and green for sub-laterals to simplify troubleshooting.
- At junctions, install ball valves with a minimum 300 PSI rating; lower specs risk leaks under sustained pressure.
- Position rain sensors upstream of controllers–place 6-8 feet above ground, angled 15° southward for optimal exposure.
- For rotary heads, specify nozzles with matched precipitation rates (MPR) within ±5% of adjacent units to avoid dry patches.
- Buried wires between valves and timers require direct-burial-rated cables (14-12 AWG) with gel-filled connectors to prevent corrosion.
Use CAD software with layer separation for pipes, valves, and wiring–export as PDF with zoom extents set to 1:50 scale for field technicians. Avoid generic symbols; custom icons should reflect exact makes/models (e.g., Hunter PGP vs. Rain Bird R-50). On-site, verify elevations at valve boxes–drop ≥6″ from lateral lines to prevent air locks.
Critical Elements in a Typical Water Distribution Setup

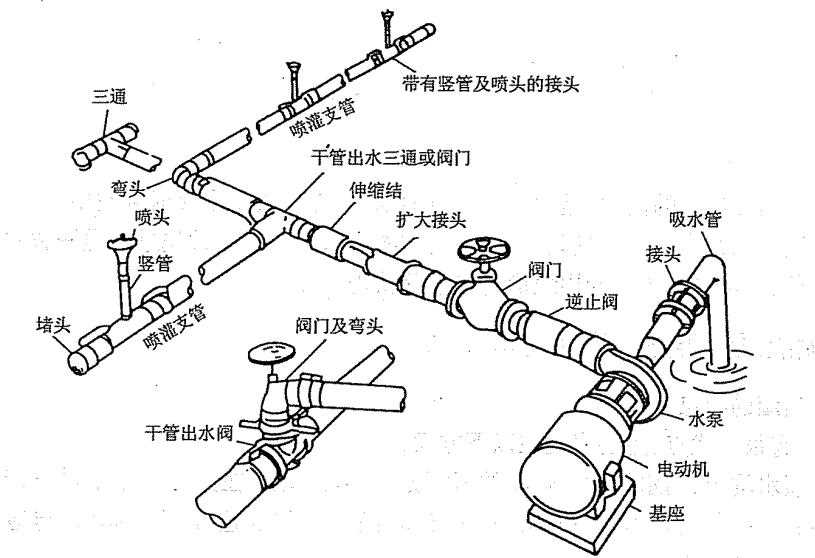

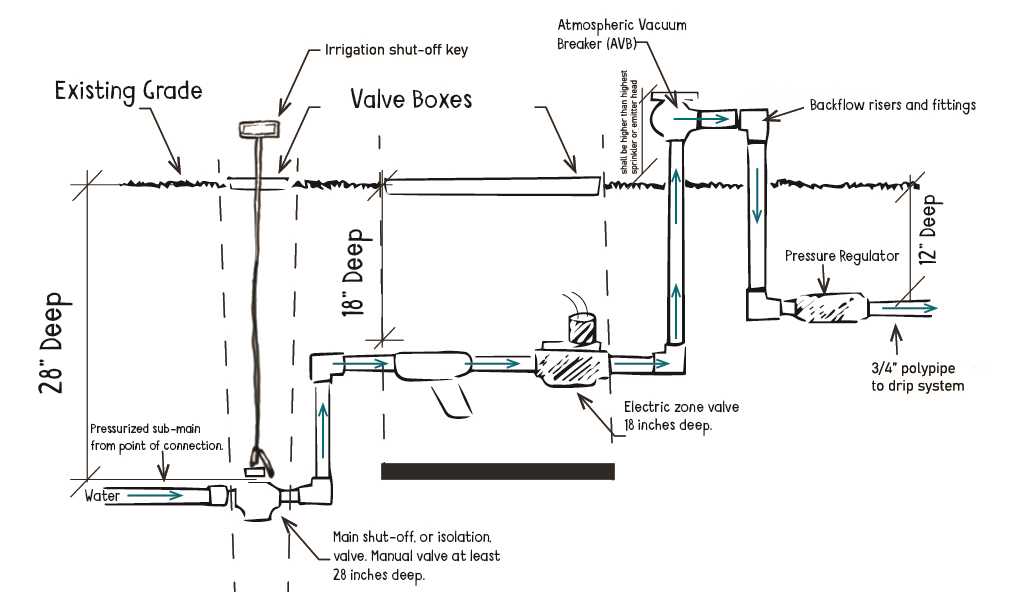

Start with a pressure regulator to maintain consistent flow rates–target 30–50 PSI for drip networks and 50–70 PSI for sprinkler arrays. Without stabilization, uneven coverage leads to dry patches or runoff, wasting up to 30% of supplied water. Install it immediately downstream of the primary shut-off valve to protect all downstream elements.
Select emitters based on plant needs: point-source drippers at 0.5–2 GPH for shrubs, micro-sprayers at 10–25 GPH for ground cover, or rotary nozzles at 0.4–0.6 inches per hour for turf. Space emitters using the formula plant root zone diameter × 0.75 to prevent overlap or gaps. Replace clogged emitters within 24 hours to avoid root stress.
A backflow preventer must comply with local codes–dual-check valves for low-hazard zones (gardens), RPZ assemblies for high-hazard areas (near water supplies). Test annually; failed units risk contaminating potable lines with fertilizers or pathogens. Position it above ground in a frost-free location with a drain plug for winterization.
Zone valves control flow to designated areas–use electric solenoid valves (24V) for automated setups or manual gate valves for small-scale adjustments. Size valves to match pipe diameter: ¾” for lateral lines, 1″ for main supply. Group zones by plant type and sun exposure to optimize runtime; avoid mixing turf and drought-tolerant species in the same zone.
Polyethylene tubing (16–22 mil wall thickness) handles underground or surface runs–opt for thicker walls in high-traffic areas or under driveways. Lay tubing in a serpentine pattern for uniform pressure distribution; bury 6–12 inches deep to prevent UV degradation and accidental damage. Use compression fittings (not glue) for quick repairs without specialized tools.
Include an air valve at the highest point of each zone to release trapped air during startup. A single ⅛” vent prevents water hammer and stalled sprinkler heads; locate it at the system’s peak elevation. For zones exceeding 200 feet in length, add a secondary vent mid-run to prevent pressure fluctuations.
Water meters on the main supply line track usage–digital models with pulse outputs integrate with controllers for real-time monitoring. Aim for consumption under 1.5 inches per week for most crops; exceedance signals leaks or inefficient scheduling. Calibrate meters annually; mineral buildup in hard-water areas skews readings by 5–10%.
A filter screen (150–200 mesh) before the first lateral line blocks debris–clean it when pressure drops by 10% or every 4–6 weeks. Self-cleaning disc filters reduce maintenance in large setups but cost 3× more upfront. For well-fed networks, pair the screen with a centrifugal separator to remove sand before it reaches emitters.
How to Read a Sprinkler System Blueprint for Repairs or Upgrades
Locate the main water supply line first–it’s usually marked with a thick solid or dashed line, often labeled “MAIN” or “SUPPLY.” Measure its diameter from the schematics; common residential sizes are ¾” to 1″, while commercial setups may use 1½” or larger. Cross-reference the pipe material (PVC, copper, or polyethylene) with the legend–color-coding or line patterns (e.g., dotted for buried, dashed for above-ground) clarify installation depth and type. If the blueprint omits this, inspect existing pipes physically: PVC is white or gray, copper gleams red-brown, and polyethylene feels flexible with a matte finish.
Identify control valves by their symbols–typically rectangles or circles with labels like “V1,” “V2,” or “ZONE A.” Note their positions relative to the main line; valves placed before a junction regulate flow to entire sections, while those after splitters manage individual heads. Check the valve’s activation method: solenoid-operated units appear with wire routes (thin lines) leading to a controller, while manual ones lack these. For repairs, verify voltage on solenoids (24V AC); use a multimeter–replace if readings drop below 19V. Upgrades often involve swapping outdated valves for smart models supporting Wi-Fi, identifiable by additional dashed lines linking to a hub icon.
- Head types: Fixed spray (fan-shaped icon), rotor (arrow or curved line), drip emitter (small circle with droplet).
- Flow rates: Printed next to heads (e.g., “2.0 GPM”)–exceeding 50% variance from specs signals clogs or leaks.
- Nozzle radius: Numbers in feet (e.g., “15’”) dictate spacing; overlap by 50% to avoid dry spots.
- Elevation changes: Contour lines or “EL +5’” indicate slopes; adjust head height to prevent runoff.
Trace wiring from valves to the timer–broken or corroded connections are the leading cause of zone failures. Solid lines denote direct burial wires (usually 18-gauge, multi-strand copper), while dotted lines mark conduit-protected runs. Label each wire at both ends with numbered tags (e.g., “VALVE 3 → ZONE C”) to simplify diagnostics. For upgrades, replace single-strand with bundled “communication cable” (e.g., 6-conductor) to support dual sensors (rain/freeze). If the blueprint lacks wiring details, use a tone generator to map live circuits–start at the timer, probe valves until a beep confirms continuity. Always disconnect power before splicing; 120V shocks can occur even in “low-voltage” setups.

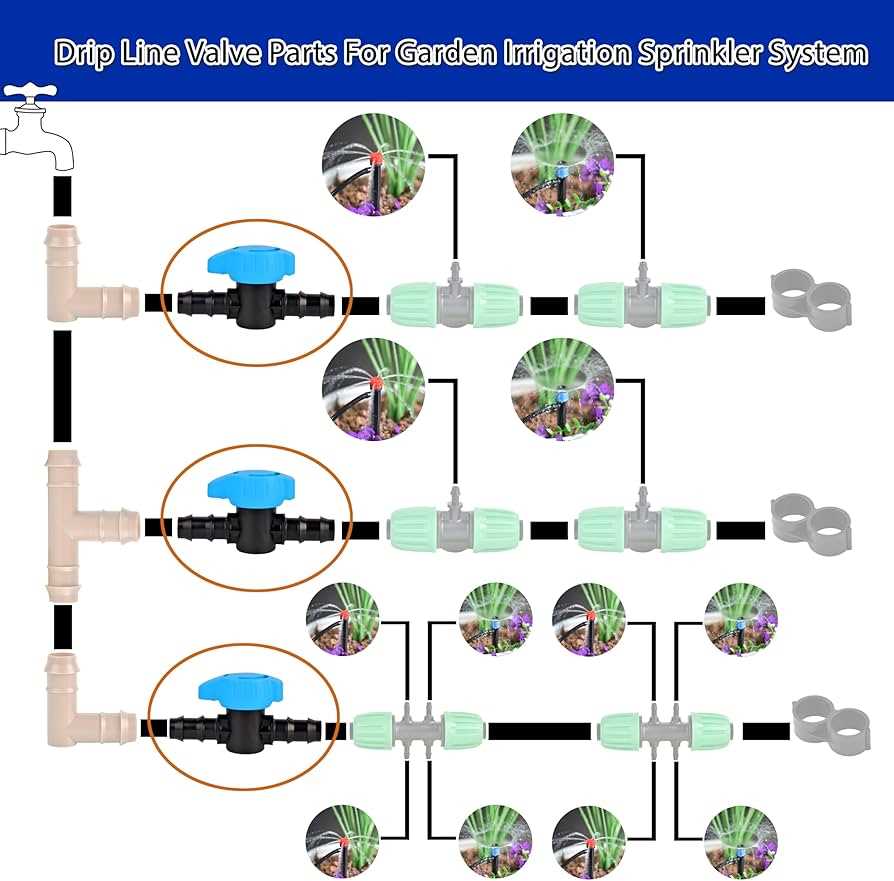

Assembling Drip Line Networks with Precision
Lay out tubing along planting rows before cutting to avoid misalignment. Use a measuring wheel for accuracy–each meter of tubing should align within 5cm of crop spacing. For row crops, maintain a 30-50cm distance from the base to prevent root intrusion. Secure tubing with ground staples every 1.2m on curves and 2m on straight sections. Pre-flush tubes with clean water for 60 seconds to clear manufacturing debris before installing emitters.
Select emitter spacing based on soil type and flow rate requirements. Sandy soils demand closer spacing (20-30cm), while clay holds moisture longer, allowing 40-60cm intervals. Use the table below for emitter selection:
| Soil Type | Emitter Flow Rate (L/h) | Recommended Spacing (cm) | Pressure Compensation |
|---|---|---|---|
| Fine Sand | 1.0-1.6 | 20-30 | Mandatory (PC emitters) |
| Loam | 1.6-2.3 | 30-40 | Preferred (PC emitters) |
| Clay | 2.3-4.0 | 40-60 | Optional |
Punch emitter insertion holes using a 14-gauge punch tool, angled at 45° for secure seating. Apply a 2-3mm bead of pipe-safe silicone around each hole before inserting emitters to prevent leaks. Push emitters fully into the tube until the barbed flange seats against the inner wall–no twisting. For sloped terrain, install emitters on the uphill side of the tubing to ensure uniform distribution.
Connect tubing segments with 16mm compression fittings, ensuring both cut ends are square and burr-free. Slide the compression nut over the tube, insert the fitting body, then tighten by hand before securing with a wrench (1.5 to 2 full turns). Test each joint at working pressure (1-1.5 bar) for 5 minutes–leaks indicate improper seating. Cap tube ends with figure-8 plugs or flush valves, burying the final 10cm to prevent UV degradation.
Emitter Maintenance Sequence
Inspect emitters every 14 days during peak season. Remove sediment buildup by flushing tubes at 1.8 bar for 3 minutes–trigger flush valves sequentially if installed. Replace clogged emitters immediately; soak in white vinegar for 12 hours for calcium deposits. For large installations, map emitter locations with GPS coordinates to streamline troubleshooting–record flow rates during installation for baseline comparisons.
