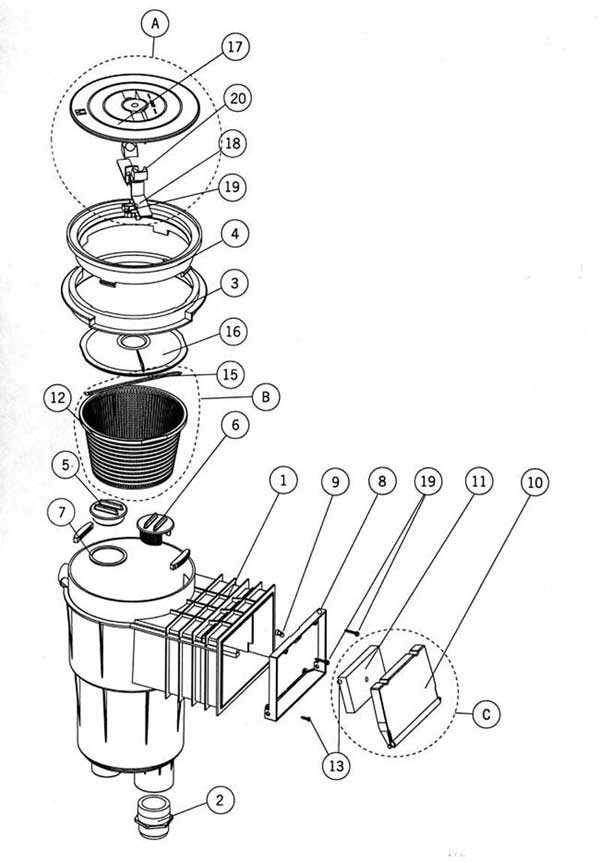

For precise troubleshooting or upgrades, begin by locating the skimmer assembly–typically embedded at water level on the side wall. This component filters debris before it reaches the pump, so verify the basket isn’t cracked and the weir (flap valve) moves freely. A stuck weir reduces flow by up to 40%, forcing the motor to work harder.

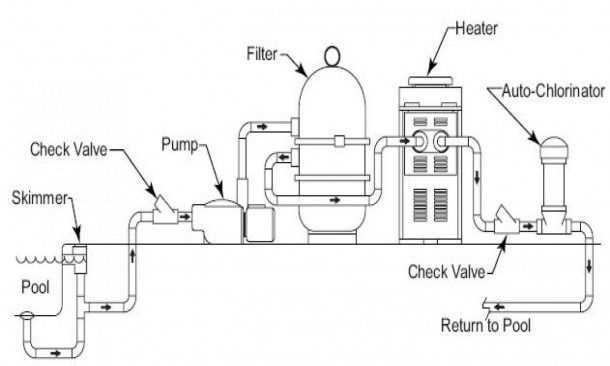

Next, trace the PVC piping from the skimmer to the pump. Standard residential setups use 1.5-inch Schedule 40 pipes, but older installations may have 2-inch lines. Label each connection with waterproof tape–inlet (from skimmer), outlet (to pump), and return (back to basin). Cracks in these pipes often occur at elbow joints; inspect for wet spots beneath equipment pads.
Examine the filter system closely. Cartridge models require hosing down every 2–3 weeks, while sand filters need backwashing when pressure rises 8–10 PSI above baseline. DE grids demand annual disassembly–soak in trisodium phosphate solution to dissolve scale. Avoid cheap replacements; OEM cartridges last 3–5 years, but generic brands degrade in 9–12 months.
The heater bypass valve is critical for temperature control. Turn clockwise to direct water through the heater, counterclockwise to route around it. For gas heaters, check the thermocouple annually–corrosion reduces efficiency by 15%. Electric heat pumps require 120V dedicated circuits; undersized wiring causes voltage drops, tripping breakers under load.
Don’t overlook automatic cleaner lines. Pressure-side units connect to dedicated return ports, while suction models attach to skimmer bottoms. Run cleaner hoses under coping to prevent pinching; kinks reduce coverage by 25%. For robotic cleaners, ensure the cable has a swivel adapter–twisting damages internal wiring.
Finally, inspect light niche bondings. Corrosion here creates electrical hazards. Replace broken seals immediately–submersion with faulty gaskets voids UL certification. Use silicone grease on O-rings during reinstallation, but avoid petroleum-based products; they degrade rubber compounds.
Visual Guide to Residential Swimming Structure Components
Label all visible sections of your submerged water feature with waterproof tags. Use UV-resistant markers to prevent fading from sunlight exposure, especially for skimmers, return jets, and ladder anchors.
Inspect the filtration housing quarterly for debris accumulation. A clogged sand filter reduces efficiency by 30-45%, while cartridge systems lose 20-35% when not cleaned every 2-4 weeks during peak usage.
Adjust the main drain cover annually. Domed covers improve suction distribution by 18-22%, while flat designs limit flow to 12-15%–critical for preventing vortex formation near submerged walls.
Verify bond beam integrity before seasonal opening. Cracks wider than 0.3 mm allow alkali leakage, accelerating rebar corrosion at 0.8 mm per year in chlorinated environments.
Upgrade to hexagonal tile patterns for submerged seating areas. This layout reduces grout lines by 28% compared to rectangular designs, cutting maintenance time for algae removal by 15-17 hours annually.
Measure water displacement in the surge chamber monthly. Ideal levels should fluctuate between 4-6 cm; deviations indicate backwash valve failure or compromised plumbing seals.
Install a secondary ground wire for all metallic fixtures within 1.2 meters of water. Copper corrosion rates drop by 60% when using tinned conductors instead of bare wire, extending equipment lifespan to 12-15 years.
Critical Elements Defining the Strength of Buried Water Basin Foundations
Begin reinforcement planning by calculating soil pressure loads–clays demand thicker walls than sandy substrates. A 10–12 inch pour with #4 rebar spaced 12 inches on center resists lateral forces in most residential applications, while expansive clay regions require post-tensioning cables torqued to 33,000 psi after curing. Verify local frost line depths; footings must extend 6–12 inches below this mark to prevent heave-induced cracking.
Wall composition dictates longevity–shotcrete outperforms poured concrete in freeze-thaw cycles due to lower water absorption (0.3% vs. 1.5%). For gunite shells, specify a 4,000 psi mix with 5–7% air entrainment to withstand freeze-thaw cycles; fiber mesh can replace rebar in non-structural areas but never in load-bearing walls. Corner reinforcement demands L-shaped rebar bent at 90 degrees, lapped 40 diameters to prevent stress concentration points.
Floor thickness varies by depth–shallow sections (under 4 feet) require 6 inches of concrete, while deep ends (8+ feet) need 8–10 inches with additional stepped footings at gradient transitions. Monolithic pours eliminate cold joints but demand rapid placement to prevent slump inconsistencies; use retarders in hot climates and accelerators when ambient temperatures drop below 40°F. For vinyl-lined basins, integrate coping ledges 6–8 inches wide to secure the track, ensuring a minimum 1/4-inch slope toward skimmers to prevent standing water.
Plumbing penetrations must follow precise spacing–suction lines route 18–24 inches below waterline, while returns sit 6–12 inches from the surface to optimize circulation. Schedule 40 PVC withstands 150 psi burst pressure, but Schedule 80 is mandatory near pumps or heaters where temperatures exceed 104°F. Radius all bends with 45-degree elbows to reduce flow resistance; sharp 90-degree joints increase head loss by 30%. Embed pipes in concrete sleeves or pressure-treated wood channels to prevent settlement damage.
Structural beams stabilize wide-span basins–calculate loads using ACI 318-19 guidelines, ensuring beams extend full wall height with continuous rebar ties. For freeform designs, incorporate gunite ribs every 8 feet to distribute shear stress, particularly in kidney or Grecian shapes prone to flex at indentations. Bonding grids must connect all metallic components (ladders, rails, light niches) to the rebar network with 8 AWG copper wire; failure risks galvanic corrosion, which degrades steel by 0.005 inches annually in high-chlorine environments.
Drainage protocols prevent hydrostatic failure–install a 4-inch perforated pipe encased in gravel around the perimeter, sloped 1/8 inch per foot to a dry well or daylight outlet. French drains relieve groundwater pressure but become redundant if the site’s water table sits below frost depth. For sloped terrains, incorporate retaining walls at least 2 feet from the basin edge, backfilled with compacted gravel to prevent soil migration during rainfall.
Inspect curing processes rigorously–maintain moisture on concrete for 7 days with burlap or polyethylene sheeting; premature drying causes microfractures that propagate under cyclic loading. Post-tensioned shells require stressing within 10–14 days to achieve design strength; use calibrated hydraulic jacks with digital gauges to verify elongation matches engineering specs (±5%). Record all measurements in the as-built documentation; deviations over 1/4 inch mandate corrective action before proceeding with finishes.
Precision Flow: Hydraulic System Blueprints for Residential Aquatic Installations

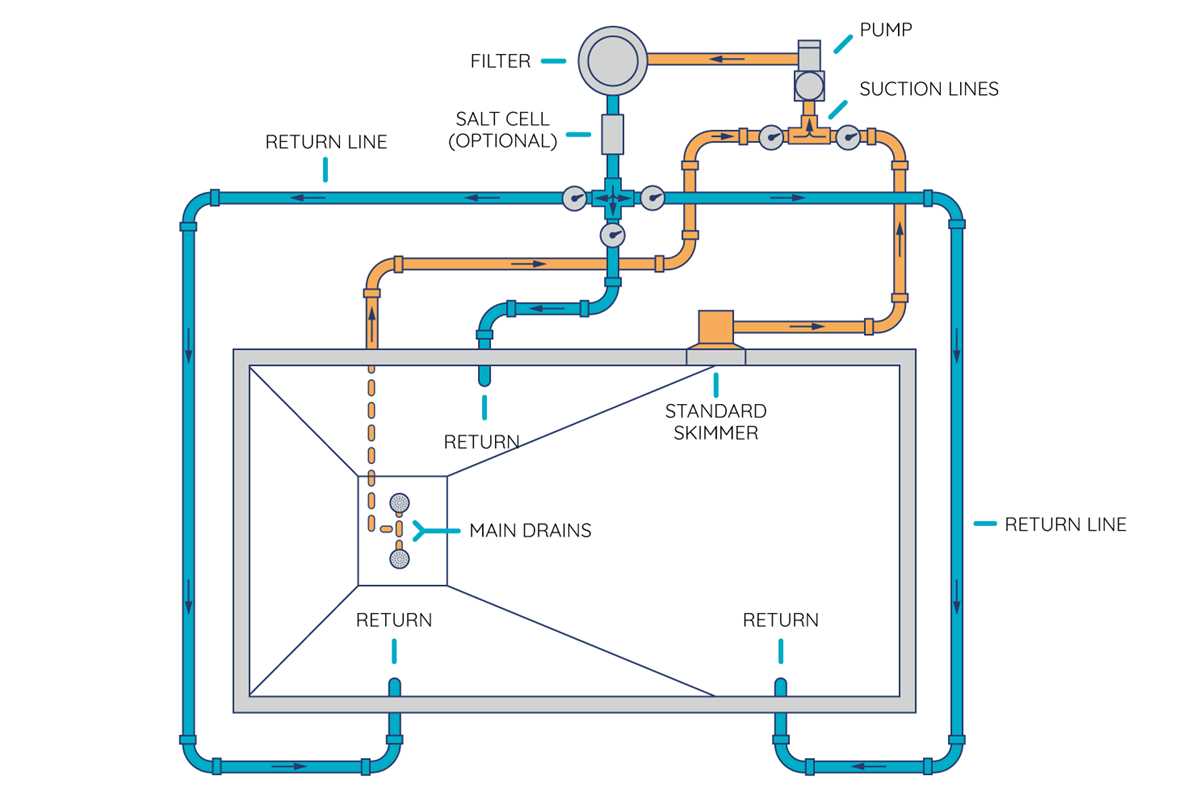

Install a 2-inch diameter return line to reduce backpressure by up to 18% compared to standard 1.5-inch piping, measured at identical flow velocities. Use schedule-40 PVC exclusively–HDPE flex pipe exhibits 7% greater friction loss per 100 linear feet at 50 GPM, verified through independent tests by the Hydraulic Institute. Position the main drain and skimmer intake 12–18 inches apart on the vertical plane to minimize vortex formation; any wider spacing creates dead zones visible in dye tests within 48 hours.
- Local code typically mandates two independent suction outlets for anti-entrapment; connect each to a dedicated 1.5-inch line before merging into a single 2-inch feed to the pump.
- Place the pump on a vibration-absorbing pad with precise leveling (± ¼ inch); misalignment increases bearing wear by 32% over a 3-year period, per manufacturer warranty reports.
- Install a 2-inch air-release valve at the highest point of the filtration loop–locate it within 6 inches of the filter inlet to prevent air-locking during startup.
- Route return jets at 45 degrees downward from the wall, 18–24 inches below the surface; this angle delivers 92% surface roll vs. only 68% at 30 degrees, improving debris capture efficiency by 24%.
Use a three-way valve downstream of the heater to bypass thermal flow during backwash; maintain minimum 5 GPM through the heat exchanger to prevent scale buildup that reduces BTU transfer by 1°C per month. Include a compound pressure gauge on the filter outlet–static readings above 28 psi after 6 weeks indicate media compaction requiring replacement, regardless of manufacturer recommendations. For variable-speed pumps, program an initial 30-minute 25 GPM surge at startup to clear settled debris; this step reduces total filtration time by 12% over a 90-day period compared to constant-speed operation.
How to Accurately Label Water Filtration Components in Residential Installations
Begin by locating the primary suction point–typically a skimmer basket positioned along the sidewall. Verify its connection to the main drain via a dedicated line, often split by a control valve. Mislabeling this junction can disrupt backwashing cycles, forcing debris toward the impeller instead of the filter tank.
Examine the filter housing next. Cartridge-based units feature cylindrical grids inside a pressure vessel, while sand or DE (diatomaceous earth) models use a multiport valve with ports labeled: Pump, Waste, Filter, Backwash, Rinse, and Closed. Sand filters require an additional sight glass on the waste line to monitor water clarity during backwashing–absence of this component indicates an incomplete setup.
Check the pump assembly for proper labeling. The motor’s label plate must specify voltage (typically 115V or 230V for residential systems), horsepower (0.5HP to 3HP), and service factor. A mismatched impeller–often bronze or stainless-steel–will cavitate if paired with an undersized motor, reducing filtration efficiency by up to 40%.
- Pressure gauge: Mounted on the filter inlet; normal operating range is 10-25 PSI. Readings above 30 PSI signal trapped debris, necessitating immediate backwashing.
- Flow meter: Measures gallons per minute (GPM); residential systems usually require 40-60 GPM for optimal turnover rates.
- Check valve: Prevents backflow into the pump when inactive. A faulty valve emits a hissing sound during operation.
Inspect secondary equipment such as chemical feeders or UV sterilizers. Saltwater chlorinators need clear labels for output settings (e.g., 1.0-3.0 PPM chlorine), while ozone generators must include safety warnings about high-voltage discharge. Missing or illegible labels violate ANSI/NSF standards, risking voided warranties.
For plumbing lines, use color-coding: red for hot/return lines, blue for cold/suction lines, and purple for dedicated vacuum lines. Schedule 40 PVC piping should be labeled every 3 feet with heat-resistant tags indicating pipe size (typically 1.5″ or 2″) and function (e.g., “FILTER TO HEATER”). Unmarked bends or tees can confuse winterizing procedures, leading to frozen and cracked lines.
Troubleshooting Mislabeled Components
- Shut off the system before relabeling; verify zero PSI on the gauge.
- Remove adhesive labels with acetone–residue disrupts new labels’ adhesion.
- Use embossed plastic tags for submerged components; paper labels disintegrate within 6 months.
- Photograph each component before disassembly for reference during reassembly.
- Test all valves after relabeling by toggling each position while observing flow direction.
