Replace worn drive cups within the first 200 operating hours if water pressure exceeds 4.5 bar–these degrade 30% faster under high-force conditions. A cracked cup misaligns the nozzle trajectory by up to 12 degrees, reducing coverage radius by 18-22%. Opt for nylon reinforced models; brass alternatives fragment 4x slower but weigh 2.7x more, straining the bearing assembly.
Clean the brass diffuser screen every 50 cycles using a 1:10 vinegar solution–calcium deposits occlude 1mm² pores after 15-20 hours in hard water (7+ gpg). A blocked screen reduces throw distance by 14% and creates uneven distribution lobes ≥3m wide. For mineral-heavy zones, upgrade to stainless steel mesh (.08mm aperture) to prevent gouging from sediment.
Lubricate bronze gears with food-grade silicone grease annually–dry friction increases torque resistance by 2.1Nm, causing erratic rotation speeds (±3 RPM). The 24-tooth central wheel must mesh precisely with the 60-tooth drive gear; misalignment pulverizes brass shavings into the water stream, clogging 1.2mm nozzles in
Inspect the torsion spring every 60-day interval for permanent deformation–elastic limit occurs at 4.8Nm load. A stretched spring drops nozzle elevation by 7° within 500 cycles, producing elliptical rather than circular coverage. Replace springs exhibiting ≥5% elongation; stainless steel variants resist fatigue 3x longer but cost 2.5x more per unit.
Ensure the brass impact arm swings freely through its 90° arc–binds >.5mm offset cause incomplete stop sequences, shortening throw by 9-11%. Check the rubber stopper daily; hardened compounds crack under UV exposure after 110 hours, disabling the reverse mechanism. For exposed installations, apply neoprene caps rated to -20°C–EPDM alternatives brittle at -7°C.
Understanding Your Irrigation Mechanism’s Blueprint
Start by locating the trip lever assembly–typically a metal arm positioned opposite the water stream outlet–responsible for interrupting the rotation cycle. Check for corrosion or mineral buildup here first, as these issues reduce precision in movement by up to 40%. Grease the pivot point with silicone-based lubricant before reassembly, ensuring the lever snaps back vigorously; sluggish return signals wear in the torsion spring, requiring replacement (average lifespan: 700–900 hours under standard conditions). Verify the diffuser screw is tightened to 8–10 Nm torque–loose fittings cause uneven arc patterns and water waste.
Inspect the drive cup teeth for wear; each tooth should exhibit a sharp 0.3mm edge to engage the gear train properly. Replace the cup if rounding exceeds 0.1mm–compromised teeth reduce rotational force and shorten the coverage radius by 15%. The gasket seating against the base must form a continuous, unbroken seal; replace gaskets if flattened beyond 0.5mm thickness or hardened (Shore A durometer
Decoding Critical Elements in Rotary Irrigation Schematics
Begin by locating the drive mechanism–typically positioned at the base of the assembly. This section includes a weighted arm (often metal) that arcs horizontally upon water pressure activation, converting flow into rotational force. Verify its connection to the trip lever, which ensures intermittent motion; misalignment here reduces coverage uniformity. Standard blueprints mark this as “impulse unit” or “hammer assembly.”
Flow Regulation and Trajectory Adjustment
Trace the water inlet to the diffuser plate. This circular component disperses the jet into a fan pattern, with angled grooves dictating spray radius. Blueprints often overlay a scale (e.g., 20°–360°) adjacent to the diffuser; reconcile these values with the friction collar’s position. Loosening this collar widens the arc, while tightening restricts oscillation–critical for avoiding overspray onto non-target zones.
Inspect the reverse mechanism. A spring-loaded pawl engages a ratcheted ring mounted on the rotor body’s underside, enabling full-circle rotation when the diffuser plate encounters the adjustable tab. Schematics label this as “reversal dog” or “trip cam.” Ensure the spring tension aligns with the manufacturer’s torque specifications–excess tension causes erratic stops, while insufficient tension skips cycles entirely.
Evaluate the bearing housing. High-wear models integrate sealed ball bearings; low-cost variants use bushings. Blueprints differentiate these via cross-section hatching–solid fill indicates bushing, while outlined circles denote bearings. Lubrication points (grease fittings) appear as star-shaped symbols; absence suggests maintenance-free but shorter-lived components.
Pressure-Sensitive Components
Locate the diaphragm or piston chamber. This regulates water flow rate via a calibrated spring, visible as a coiled symbol in cutaway views. Blueprints specify optimal pressure ranges (e.g., 30–65 PSI) directly above this section. Exceeding these values distorts spray trajectory or damages seals, labeled as “O-rings” or “gaskets” in exploded views.
Finally, confirm nozzle compatibility. Threaded outlets accommodate interchangeable tips–schematics list orifice diameters (e.g., 3/16″, 5/32″) alongside flow rate tables. Misapplied nozzles create uneven distribution or misting, identifiable by concentric lines in the schematic’s spray pattern illustration.
How to Take Apart a Rotary Nozzle for Maintenance
Before beginning, shut off the water supply and release pressure by activating the mechanism briefly. Place the unit on a clean, flat surface with the nozzle facing upward. Use a 12mm socket wrench to remove the brass cap at the top–rotate counterclockwise until loose. Set the cap aside, then lift out the internal brass weight and spring; these components control the rotation speed and should be inspected for corrosion or wear.
Next, slide off the plastic deflector arm from its metal pivot post. Check the post for mineral buildup–soak in white vinegar for 30 minutes if deposits are visible. The arm’s bearing surface should move freely; lubricate with silicone spray if it sticks. Underneath, you’ll find the stainless steel drive arm assembly; press the small retaining clip inward to release it, then pull upward to detach the arm from the base.
Required Tools and Supplies
| Item | Purpose |
|---|---|
| 12mm socket wrench | Remove brass cap |
| Small flathead screwdriver | Pry retaining clip |
| Silicone spray (food-grade) | Lubricate moving joints |
| White vinegar | Dissolve mineral deposits |
| Clean rag | Wipe components dry |
Examine the base’s internal chamber where the drive arm inserts. A worn rubber gasket here causes uneven spray; peel it out carefully and replace with an identical 8mm O-ring. Reinsert the arm by aligning its tab with the slot inside the chamber–press firmly until the retaining clip clicks into place. Replace the deflector arm, ensuring its bearing surface rests flush against the pivot post.
Reinstall the spring and weight, then thread the brass cap back on. Hand-tighten first, then use the wrench to secure it–over-tightening can strip threads. Test with low water pressure to confirm smooth rotation and even water distribution. If leaks appear at the cap, apply PTFE tape to the threads before reassembly.
Troubleshooting Common Issues
Nozzle vibrates excessively: Check for debris in the drive arm chamber; flush with water if needed. Uneven spray arcs: Inspect the deflector arm’s bearing; lubricate or replace if movement feels rough. Slow rotation: Verify spring tension–stretch slightly if required, or replace if stretched beyond repair.

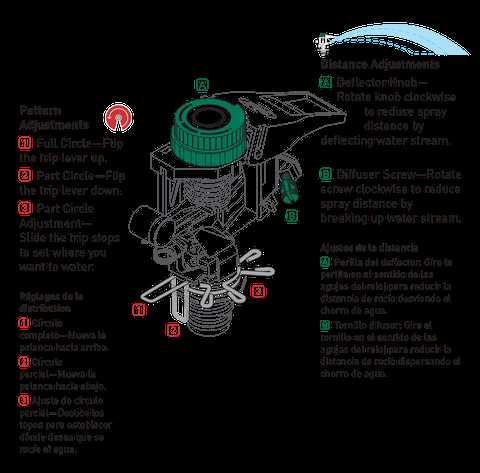

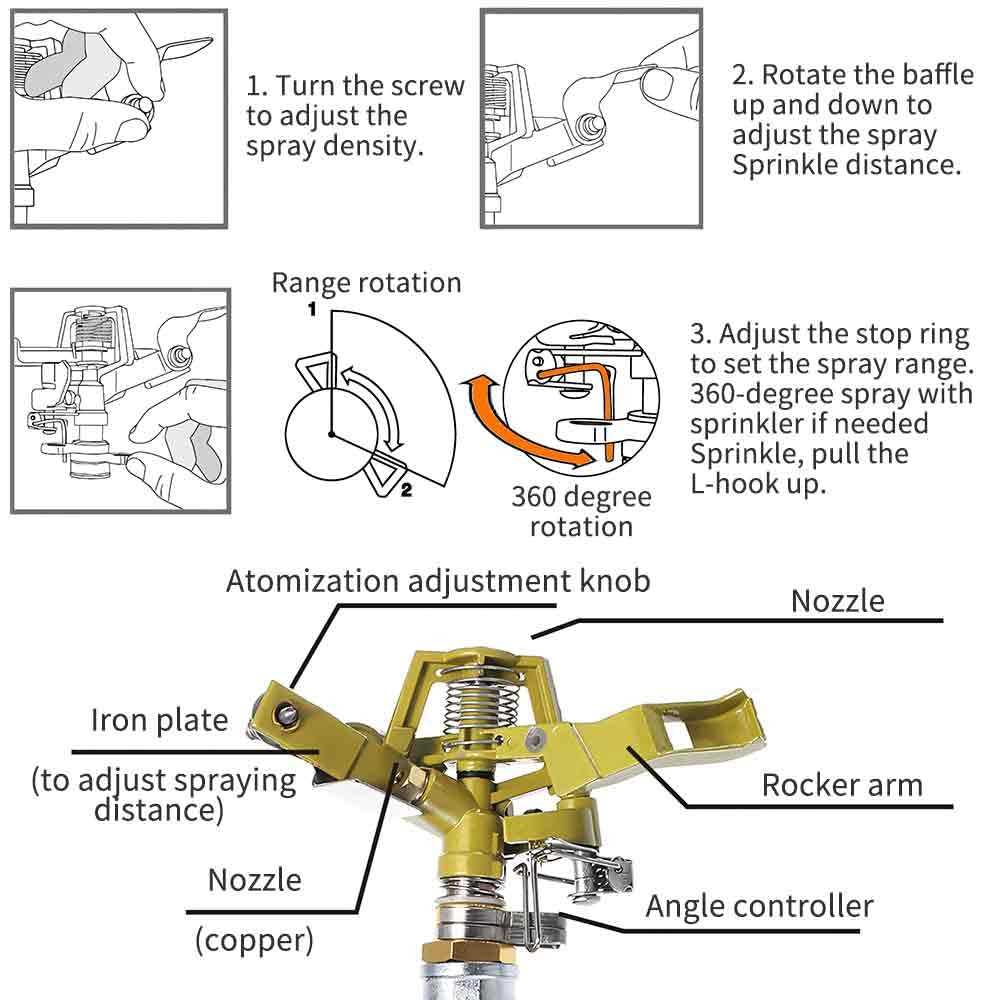

Key Replaceable Components and Their Positions on the Schematic
Inspect the drive arm first–it suffers the most stress during rotation. Look for cracks or deformation where the arm meets the weighted disc, typically marked near the upper left quadrant of the assembly layout. Replace if wear exceeds 1–2 mm along the contact edge.
- Nozzle insert: Located at the front, usually labeled adjacent to the water inlet. Check for mineral buildup every 30 operational hours; clean or swap if outlet diameter shrinks below 90% of original size.
- Bearing pin: Found at the pivot joint, often beneath the arm mechanism. Lubricate every 50 hours; if play exceeds 0.5 mm, install a new pin immediately to prevent uneven spray.
- Diffuser spring: Positioned around the nozzle stem, it compresses during each pulse. Measure free length–replace if shortened by more than 15% from factory specs.
Examine the seal gasket between the water inlet and body. A 0.3 mm gap or visible abrasion indicates failure; swap to prevent leaks that reduce reach by 20–30%. Store spares in a dry, temperature-controlled environment to extend shelf life.
The trip lever, usually near the rear counterweight, should move freely without binding. Apply silicone grease to contact points; if adjustment requires more than 2 N of force, disassemble and realign. Misalignment here distorts spray arc by 10–15 degrees.
- Disassemble the spinner assembly every 100 hours–check vanes for burrs. Sand smooth if edges exceed 0.2 mm roughness; coarse surfaces reduce rotation speed by 8–12 rpm.
- Verify the strainer mesh at the inlet. If clogged, remove debris; a 50% blockage cuts flow by 40%. Use a 0.03 mm wire brush for cleaning–never compressed air.
Track the gasket retention groove along the main body seam. If silicone residue flakes off or groove depth falls below 1 mm, reseal with food-grade adhesive. Failure here introduces 0.1–0.3 L/min leakage, shortening cycle time by 22 seconds.
