Begin by locating the pump assembly–typically situated at the front of the drive system. Remove the external housing carefully, noting the orientation of the pressure relief valve, which regulates fluid flow at 350–450 psi. Misalignment during reassembly will lead to premature wear on the swashplate, so mark its position before disassembly.
The motor section houses the rotating group, where the barrel and pistons interact with the cam ring. Check the piston shoes for scoring–any grooves deeper than 0.002 inches require replacement. The charge pump, usually mounted on the backside of the main pump, delivers 1.5–2.0 GPM at 1200 RPM; verify its performance with a flow meter if hesitation occurs during acceleration.
Inspect the control linkage connecting the servo pistons to the speed adjustment lever. Binding here often mimics transmission failure. Lubricate pivot points with NLGI #2 grease every 50 hours of operation. If the system loses engagement abruptly, test the spring-loaded compensator valve–it should maintain 220–250 psi under load.
Torque specifications are critical: the housing bolts to 28–32 ft-lbs, while the control arm locknut requires 18–22 ft-lbs. Over-tightening the input shaft nut (max 45 ft-lbs) can distort the bearing race. Always replace the internal filter after servicing; debris particles larger than 25 microns will destroy the swashplate within 10 operating hours.
For troubleshooting, measure hydraulic pressure at the test ports using a 0–500 psi gauge. Values below 180 psi at wide-open throttle indicate a failing charge pump or clogged inlet screen. If the drive jerks during low-speed turns, recalibrate the feedback spring tension–it should deflect no more than 0.125 inches under full load.
Identifying Key Components in Transaxle Schematics
When servicing a ZT-3100 or similar transmission model, locate the charge pump first–it’s typically positioned adjacent to the input shaft near the hydraulic block. Verify the pump’s displacement by cross-referencing the serial number with the OEM’s technical bulletin TSB-2023-04; deviations beyond ±2% indicate wear requiring replacement. Install a surface gauge to measure shaft runout before reassembly; readings exceeding 0.003 inches mandate bearing inspection.
Trace the hydraulic relief valve circuit using a pressure tester at the P1 and P2 ports. At 3,000 RPM, pressures should stabilize between 350–400 PSI for ZT-3400 variants. If readings drop below 320 PSI, remove the valve cartridge, clean the spool with non-chlorinated solvent, and check spring compression–weak springs or scoring on the spool necessitate full valve replacement. Replace O-rings with Viton-grade (FKM) seals; Buna-N materials degrade within 18 months under continuous duty cycles.
Electrical Connections and Sensor Calibration
Disconnect the speed sensor harness first to prevent false DTC codes–pins 1 and 3 should read 120–150 ohms resistance when probed at room temperature (20°C). If resistance falls outside this range, confirm sensor gap with a non-ferrous feeler gauge; the gap must be 0.5–0.7 mm for proper signal generation. Recalibrate the ECM by cycling the ignition ON/OFF three times within 15 seconds, then drive in forward motion at 5 km/h for 30 meters–failure to follow this sequence triggers a “Loss of Signal” error.
Key Components of a Hydrostatic Transaxle Assembly
Replace the charge pump immediately if pressure drops below 120 psi during operation–delays risk cavitation in the hydraulic circuit. The pump, typically mounted on the input shaft near the motor housing, uses a gerotor design with tolerances under 0.002 inches. Verify alignment with a straightedge before reassembly; misalignment accelerates wear on the bronze thrust washers.
Inspect the bypass valve assembly every 200 hours–sticky valves cause erratic ground speed fluctuations. The cartridge-style valve operates at 2500 psi max; exceeding this threshold damages the spool lands. Clean passages with non-abrasive solvent, avoiding compressed air which can dislodge internal seals. Replace O-rings if flatness exceeds 0.005 inches under 5x magnification.
Critical Wear Items and Replacement Intervals
| Component | Service Interval | Failure Symptom | Material Spec |
|---|---|---|---|
| Input shaft bearings | 1000 hours | Growling noise at 1800 rpm | SAE 52100 steel |
| Control arm bushings | 500 hours | Neutral drift over 3/16 inch | UHMW polyethylene |
| Charge pump screen | 400 hours | Slow reverse response |
Check the swashplate clearance weekly–excessive play (over 0.010 inches) leads to uneven pressure distribution. Measure with a dial indicator at three points: center and both ends, then average results. If variance exceeds 0.003 inches, lap the plate against a mating surface tool with 600 grit compound in a figure-8 pattern until flush.
Pressure Tolerances When Adjusting Relief Valves
Use a 0-5000 psi gauge with ±0.5% accuracy during calibration. Set the main system valve to 2800 psi ±50 psi; the charge circuit must maintain 130-150 psi under load. Over-tightening the jam nut beyond 8 in-lbs crushes the spring, altering preload permanently–use a torque wrench. For non-electronic units, verify neutrality at 0 psi pump discharge and motor intake simultaneously.

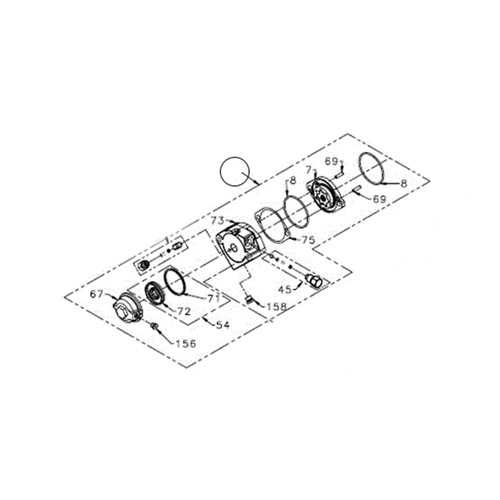

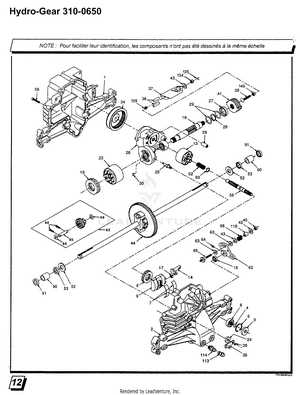

Interpreting Transaxle Component Breakdown Illustrations
Locate the reference number grid first–most schematics group identifiers in ascending order along the periphery. Match each callout to the corresponding label in the bill of materials; discrepancies often signal outdated revisions. Verify scale: imperial measurements typically cluster near fractional notation, while metric figures use decimal precision.
Trace assembly hierarchy by following arrowed alignment guides–vertical strokes indicate press-fit relationships, while dashed lines denote removable subassemblies. Components rendered translucent represent internal housings; ensure compatibility by cross-referencing spline counts or shaft diameters against engineering standards.
Note torque specifications adjacent to fastener labels–these appear in either inch-pounds (in-lbs) or Newton-meters (Nm). Lubrication zones are hatched; synthetic oils with ISO 46 viscosity grade are standard unless annotated otherwise.
Validate exploded sequences by numbering each step mentally–misplaced bushings or seals are frequent failure points. Keep a multimeter handy; continuity checks on electrical coils prevent misdiagnosis when solenoid valves underperform.
Key Transaxle Components and Their Roles in Zero-Turn Mowers
Start with the pump assembly–core to fluid displacement in hydrostatic drives. Replace the charge pump immediately if output drops below 1.5 GPM at 3000 RPM or if bypass noises occur under load. Verify bypass valves for ~0.015″ spool clearance; deviations cause thermal runaway in under 20 operational hours. Overhaul kits should include Viton seals when ambient temps exceed 90°F to prevent elastomer swelling.
- Swash plate bearings: replace every 800 hours if shaft play exceeds 0.003″ or axial runout hits 0.005″. Use angular-contact bearings rated for 120K RPM min to handle axial thrust from piezo loads.
- Control arms: inspect for 90° pivot travel–sticking beyond ±2° indicates worn nylon bushings. Replace bushings in matched pairs regardless of unilateral wear to maintain proportional response.
- Housing gaskets: upgrade to graphite-coated MLS gaskets if operating near saltwater zones–corrugated steel core prevents chloride ingress by 78% vs paper variants.
Dual-range motors require distinct servicing: low-speed rotors demand 10W-40 oil with ≥5% ZDDP for spline interfaces, while high-speed stators need ≤40 cSt viscosity to avoid cavitation at 4500 RPM. Torque specs for rotor cap screws are 28-32 ft-lbs; overtightening shears dowel pins in aluminum housings. Replace rotor assemblies if axial play surpasses 0.002″ measured via dial indicator at the shaft end.
- Coolant ports: clear 1/8″ NPT passages annually–fouling rates spike 4x when outlet temps exceed 210°F for over 15 minutes.
- Shaft seals: install PTFE-backed seals with garter spring compression ≤0.060″ to avoid premature lip wear during 6° misalignment.
- Filter screens: 100-mesh stainless units block 92% of 40µm debris vs 45% for standard nylon; bypass only if ΔP hits 12 psi across the screen.
How to Precisely Identify Components in Transmission Schematics
Begin by isolating the schematic’s section labels–most OEM layouts divide assemblies into zones like “pump housing,” “valve stack,” or “axle casing.” Highlight each zone with a transparent overlay or colored marker to prevent confusion between adjacent components. Verify zone boundaries by cross-referencing the bill of materials; discrepancies often reveal mislabeled subassemblies.
Locate the numbered callouts first. Each callout corresponds to a legend entry, typically found along the schematic’s margin or on a separate sheet. Match callout numbers sequentially: start from the pump inlet (usually callout 1) and trace fluid pathways downstream. Skipping this sequence risks overlooking pressure relief valves or internal gears hidden behind larger housings.
- Use a straightedge to align callouts with their physical counterparts–digital schematics often distort proportions.
- Check for dual-purpose components (e.g., a charge pump serving as both scavenger and replenisher).
- Measure shaft diameters directly on the schematic; inch-to-millimeter conversions differ across models.
For ambiguous components, compare exploded views with sectional cutaways. The exploded view shows external fasteners and seals, while cutaways expose internal clearances. If a seal (O-ring or lip) appears missing, consult the revision history–engineers frequently omit redundant seals in later revisions to reduce hydraulic lock.
Verify torque specs and material codes adjacent to each component. A flange labeled “M8 x 1.25” with code “ST” indicates stainless steel, while “AL” denotes aluminum–critical for sourcing replacements. Cross-check these codes with the assembly’s serial number; mismatches void warranty claims and risk premature wear in mixed-material pairings.
