Start by examining the barrel–the outer housing of the assembly. Its internal diameter determines the force output, calculated as pressure multiplied by area. Forged steel is standard for high-load applications, while aluminum suits lightweight needs. Ensure the barrel’s surface finish is under 0.4 μm Ra to prevent seal wear. A 3° taper per meter is acceptable for rod alignment but zero tolerance for ovality beyond 0.05 mm.
Focus next on the piston. Chrome-plated or nitrided surfaces resist corrosion and scoring. A double-lip seal configuration on both sides of the piston prevents fluid bypass–critical for maintaining pressure. For heavy-duty units, use a piston with bronze bearings to handle side loads up to 5% of axial force. The piston rod should have a hardness of 58-62 HRC to resist pitting; thread rolling is preferred over cutting to retain strength.
Check the end caps. The gland cap must include a wiper seal to block contaminants–look for dual-element designs in dusty environments. The base cap should have a threaded or flanged port for fluid entry, with NPT or metric threads depending on regional standards. For pressures above 25 MPa, use pilot-operated check valves instead of ball checks to avoid pressure spikes during retraction.
Gland seals demand attention. Replace standard nitrile with polyurethane for temperatures above 80°C or with fluorocarbon for chemical resistance. Buffer seals should be preloaded by 10-15% of the rod diameter to prevent extrusion. Always verify seal compatibility with the working fluid–mineral oils tolerate nitrile, but water-glycol requires EPDM or polyacrylate.
Examine the mounting interfaces. Clevis mounts must use spherical bearings to absorb misalignment; cotter pins are insufficient–use locking nuts torqued to 80% of bolt yield strength. For flange mounts, position dowel pins to prevent shear loads on fasteners. Rod eyes should match the actuator stroke length; calculate clearance to avoid binding under thermal expansion.
Visual Breakdown of Linear Actuator Components
Begin by identifying the barrel – the outer shell that houses internal elements. Select corrosion-resistant materials like hard-chromed steel or stainless alloys for prolonged durability, especially in marine or high-moisture environments. Ensure wall thickness matches load requirements; industrial applications typically require 5-10mm, while precision devices need thinner 2-4mm walls.
Examine the piston assembly next. The sealing system directly impacts performance – use U-cup seals for bidirectional movement and O-rings for static interfaces. For applications exceeding 300 bar, incorporate backup rings to prevent extrusion. Material selection depends on fluid compatibility:
- Nitrile rubber for petroleum-based fluids
- Polyurethane for water-glycol mixtures
- Fluorocarbon for phosphate ester fluids
Rod construction determines load-bearing capacity. Hard chrome plating (20-50 microns) protects standard carbon steel rods against abrasion and pitting. For extreme conditions, ceramic-coated titanium rods provide superior corrosion resistance with reduced weight. Surface finish should maintain Ra 0.2-0.4 microns to minimize seal wear while preventing hydrodynamic lubrication breakdown.
Gland components require precise machining tolerances. Counterbore depths must accommodate seal stacks without compression set – calculate based on seal cross-section +0.2mm for thermal expansion. Incorporate wiper seals to exclude contaminants; polyurethane wipers outperform rubber in temperatures above 80°C. For high-dust environments, add magnetically mounted exclusion rings to capture ferrous particles before they enter the rod chamber.
Mounting interfaces dictate installation flexibility. Clevis mounts suit oscillating movements, while foot mounts provide stable base support. For heavy machinery, spherical bearings in trunnion mounts compensate for misalignment up to ±5°. Threaded connections should use fine pitch (metric 1.0 or 1.25) for secure preload – torque values must consider lubrication state (dry = 30% reduced torque capacity).
End caps serve multiple functions beyond closure. Pressure-rated versions include porting for fluid transfer and integrated cushions. Adjustable cushion screws (typically M8-M12) fine-tune deceleration rates by regulating fluid bypass. For high-frequency applications, integrate shock absorbers with nitrile pads to dampen impact forces exceeding 15 m/s2.
Internal passage design affects operational efficiency. Flow paths should maintain constant diameter to prevent turbulent losses – sudden contractions cause ±20% pressure drops. For double-acting units, ensure equal port sizing (typically NPT 1/4″ to 1″) to balance extending/retracting speeds. In single-acting configurations, incorporate breather filters (ISO 20/14 rating) to prevent vacuum cavitation during retraction.
Material pairings influence longevity. Avoid dissimilar metals (galvanic corrosion potential >0.15V) like aluminum pistons with steel barrels. Bronze bearings outperform steel in high-speed applications (>100 mm/s) due to 15% lower friction coefficients. Always apply dielectric grease to threaded connections between different alloys to interrupt electrical pathways that accelerate corrosion.

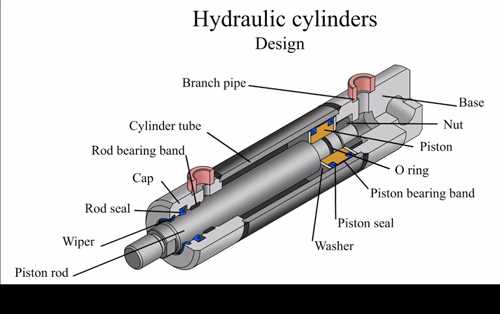

Key Components of a Fluid Power Actuator Assembly
Select actuators with barrel walls hardened to at least 58 HRC for high-pressure applications above 25 MPa; chromium-plated mild steel (CK45) resists corrosion better than untreated variants while maintaining toughness. Avoid welded tube ends in dynamic load scenarios–threaded barrels reduce stress concentration points by 30% compared to welded designs, according to ISO 6020-2 fatigue tests.
The piston rod demands surface treatment beyond basic chrome plating: apply high-velocity oxygen fuel (HVOF) tungsten carbide coatings for abrasive environments. Rod diameter sizing follows a 1:6 stroke-to-diameter ratio for optimal buckling resistance–exceeding this ratio increases lateral deflection risks under eccentric loads, requiring heavier wall sections. Seal grooves must have a surface roughness under Ra 0.4 µm; improper polishing leaves micro-tears that propagate under cyclic pressure, causing early seal failure.
Sealing System Critical Dimensions
| Component | Material | Pressure Rating (MPa) | Temperature Range (°C) |
|---|---|---|---|
| Dynamic U-cup | Polyurethane (TPU) | Up to 40 | -40 to 110 |
| Rod wiper | Nitrile rubber (NBR) | N/A | -30 to 100 |
| Piston seal | PTFE + bronze filler | Up to 60 | -60 to 200 |
| O-ring (static) | FKM | Up to 50 | -20 to 200 |
Specify seal materials based on fluid compatibility: polyurethane degrades in water-glycol mixtures (HFC) after 200 hours; fluorocarbon (FKM) resists HFC but stiffens below -15°C. Install backup rings behind dynamic seals to prevent extrusion–1 mm thick PTFE rings extend seal life by 40% in 35 MPa applications. Grease grooves in piston rods should hold 0.1–0.2 mm of lithium-based NLGI 2 grease; insufficient lubrication causes stick-slip in smooth bore actuators.
Porting requires standardized thread sizes to match pump displacement: M22×1.5 for flows under 60 L/min, SAE 12 for rates up to 150 L/min. Position ports on the barrel’s neutral axis–offset ports create uneven pressure distribution during extension, increasing side loading on the rod. Use dowel pins (ISO 8734) to prevent rotation in non-repairable actuators; pins should carry no load–design pins 0.1 mm undersized to avoid binding.
End Cap Design Considerations
Tie rod preload torque determines joint integrity: apply 80 Nm for M12 rods (8.8 grade) increasing by 15% for each 5 mm increase in diameter. Flanged end caps reduce maintenance downtime by eliminating tie rods–apply bolt circles conforming to ISO 6264 for interchangeability. Blind end caps require 10% thicker cross-sections than rod ends due to asymmetric pressure loading during retraction; FEA analysis reveals stress concentrations 2.3× higher in sharp transitions.
Integrate cushioning chambers for deceleration above 0.5 m/s: adjust plug taper angles between 3°–7°–steeper angles stall flow, shallower angles fail to decelerate. Cushion spear diameter should exceed piston rod by 1.5–2.5 mm; tighter clearances risk hydraulic lock, looser clearances reduce effectiveness. Pilot-operated check valves prevent pressure spikes during cushion engagement–locate valves directly in the end cap to minimize hose routing complexity.
Vent port filters (0.1 mm mesh) safeguard against contamination during installation–omitting filters allows particulate ingress through breathable seals, causing scoring in 48% of premature failures. Use zinc-plated hardware exclusively below 90°C; cadmium plating offers superior corrosion resistance above this threshold but requires special handling due to environmental regulations. Balance structural mass with stability–overbuilt end caps increase inertia by 18% per kg, reducing cycle speed in high-frequency applications.
Systematic Breakdown and Component Recognition
Secure the actuator horizontally on a stable workbench using clamps or a vise lined with protective pads to prevent scoring the barrel. Mark both the barrel and rod ends with a scribe line before loosening any fasteners–this ensures exact realignment during reassembly. Drain all fluid into a sealed container by slowly retracting the piston rod; residual pressure may eject fluid at high velocity if not vented.
- Remove the gland retaining ring (snap ring or threaded collar) with a dedicated retaining ring tool. If stubborn, apply penetrating oil around the joint and lightly tap the tool to break corrosion bonds–avoid prying with screwdrivers to prevent gouging sealing surfaces.
- Extract the gland housing by twisting it counterclockwise (for threaded designs) or pulling straight out (for snap-ring types). Note the orientation of internal seals; some have directional lips that must face the pressure side.
- Slide out the piston rod assembly. Check for signs of side-loading: uneven wear on the rod or scoring inside the barrel indicates misalignment–document these observations for troubleshooting.
Inspect the piston head immediately after removal. Use a plastic scraper to lift seals without damaging the groove walls–metal tools risk creating nicks that cause future leaks. Label each seal by location (primary, secondary, wear band, wiper) and measure their dimensions with calipers:
- Primary seal thickness: tolerance ±0.05 mm
- Wear band width: compare with original specs
- Wiper lip angle: 45° standard profile
Replace any seal showing cracks, extrusion damage, or permanent deformation.
Clean all components with lint-free rags and a solvent compatible with nitrile compounds (acetone dissolves some seal materials). Air-dry thoroughly; moisture trapped in blind holes can accelerate corrosion. Examine the barrel’s honed surface using a borescope–scratches deeper than 20 µm require re-honing or replacement to prevent seal bypass.
Disassemble the piston rod further if internal components are present (check valves, cushion plungers). Record spring tensions by counting active coils before removal–critical for restoring original functions. Store small parts in labeled, segmented trays to avoid mixing similar-appearing components (e.g., spring washers vs. spacer rings).
Reassemble in reverse order, lubricating each seal with fresh fluid matching the system’s viscosity grade. Align scribe marks precisely when seating the gland–misalignment by even 0.5 mm can reduce stroke efficiency by 12%. Torque gland fasteners incrementally in a star pattern to specification (typically 30-40 Nm) to prevent housing distortion. Test for smooth operation before reinstalling into the equipment.
