Begin repairs by referencing the original service manual schematic–identified as model YTH***K4* layout. This document groups components into five functional zones: engine assembly, transmission linkage, electrical harness, deck mechanism, and chassis mounts. Prioritize the engine section first, where critical wear items like air filters, spark plugs, and fuel lines cluster near the rear fender.

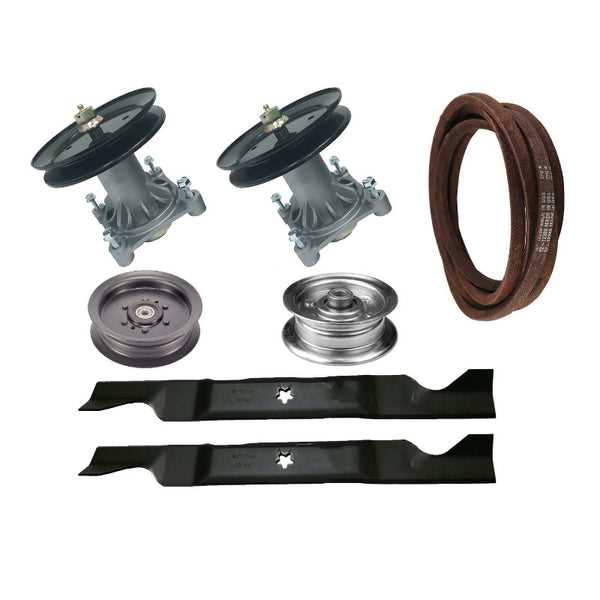

Verify part numbers against the serial tag beneath the seat–digits differ between early-run units (2018–2020) and later models. For the transmission belt, measure width (½ inch) and teeth count (68) before ordering replacements; generic belts often misalign pulleys, causing premature slippage. Deck-side spindles and blades require annual torque checks–tighten to 50 ft-lbs, using a beam-type torque wrench to avoid overtightening.
Electrical troubleshooting starts at the fuse block, hidden behind the dashboard panel. Probe with a multimeter set to DC 20V–common failures include corroded bulb sockets and frayed PTO switch wires. Deck lift motors fail silently; test by applying 12V directly to the motor terminals–if unresponsive, disassemble the housing to inspect gear teeth wear. Chassis bearings demand lubrication every 50 operating hours; use moly grease (NLGI #2) injected through zerks until fresh grease exits the opposite port.
Order authentic components via the manufacturer’s dealer portal–third-party listings frequently substitute inferior metals in gear assemblies. Keep a printed schematic while assembling to track torque sequences, especially for blade bolts and wheel hubs. If axle seals leak, replace the entire seal kit (part #5854-*); partial repairs rarely hold under load.
Comprehensive Breakdown for YTH20K46 Component Layout
Begin by locating the official schematic manual for model YTH20K46–it typically labels components with numbered callouts matching the itemized list in the rear appendix.
Key assemblies to prioritize during disassembly:
- Cutting deck: Remove debris guards first to access spindle pulleys; note alignment marks on belt tensioners before detachment.
- Transmission housing: Drain gear oil via the lower plug–use SAE 80W-90 GL-4 for refills; inspect half-shaft splines for wear before reattaching.
- Steering linkage: Track rod ends use 1/2″ jam nuts; tighten to 35-45 ft-lbs while ensuring zero toe-in after adjustment.
For electrical faults, start with the 20A inline fuse near the battery terminal–corroded contacts often disrupt ignition solenoids. Replace with an ATO-type blade fuse rated at 20A only.
Identify fasteners by thread pitch before removal:
- M8x1.25 bolts (engine mounts, wheel hubs) require a 13mm socket and 25-30 ft-lbs torque.
- M6x1.0 screws (deck brackets) need a 10mm socket and 12-15 ft-lbs.
- Self-tapping screws (plastic shrouds) should be reinserted with thread-lock compound to prevent loosening.
When servicing the hydrostatic pump, note the directional arrow on the charge pump relief valve–incorrect installation causes 40% loss in traction response. Use only Dexron III hydraulic fluid, changed at 50-hour intervals.
Troubleshooting Common Failures
- Uneven cutting: Measure blade tip height variance (max 1/8″ deviation)–adjust via deck hangers’ slotted holes, not spindle nuts.
- Excessive vibration: Check pulley keyways for shearing; replace with OEM #532-18-2185 keys–aftermarket variants crack under load.
- Hydro failure: Test pedal travel resistance–if below 15 lbs, bleed the system using the right-rear bleed screw with engine at 1000 RPM.
Reassembly order matters: install engine-to-frame mounts before attaching the fuel tank to avoid fuel line stress, which causes premature perishing. Tighten exhaust manifold bolts cross-pattern to 18 ft-lbs.
Critical Consumables Reference
Always cross-reference OEM part numbers–aftermarket equivalents often omit critical tolerances:
- Air filter (#532-19-5185) – changes every 25 hours, not the usual foam pre-cleaner.
- Spark plug (Champion 586 RCJ8Y) – gap at 0.030″, torque to 11 ft-lbs.
- Sealed bearings (#6306-2RS) – press-fit only, never hammer–use bearing driver #532-00-5120.
Locating Genuine YTH20K46 Repair Schematics Online
Start with the manufacturer’s support portal at husqvarna.com/us/support/product-manuals. Filter the results by entering the exact model identifier–search for “YTH20K46” in the designated field. The site hosts downloadable PDFs under the “Repair” category, including exploded views for components like the transmission, cutting deck, and electrical system.
Check the “Authorized Dealers” section on the same site if the schematics aren’t directly accessible. Dealers often receive extended documentation not visible to the public. Contact a local service center via the dealer locator tool–provide the serial number engraved on the mower’s frame to confirm you’re downloading the correct revision.
Third-party platforms like Partstree and Jack’s Small Engines mirror official diagrams. Both sites catalog high-resolution images with part numbers overlaid directly on the illustrations. Use the search bar with the exact model variant–avoid vague terms like “mower” or “lawn tractor” to skip irrelevant results.
Amazon’s seller listings occasionally include supplementary materials. Search for the model identifier followed by “repair guide” or “service manual.” Sellers like “Haynes” or “Clymer” frequently bundle PDFs with physical purchases, offering instant downloads post-checkout. Verify the seller’s rating and reviews before purchasing–genuine manuals list exact torque specifications and lubrication points absent in knock-offs.
YouTube hosts visual walkthroughs that supplement static schematics. Channels like RepairClinic and LawnMowerFixed dissect the machine in videos, narrating component locations and part names. Pause the footage at key frames to cross-reference with any downloaded PDFs for precise identification.
For offline access, visit a municipal library with a subscription to EBSCO or ProQuest. These databases archive manufacturer-issued manuals under “Mechanical Engineering” or “Agricultural Equipment” sections. Librarians can retrieve documents via interlibrary loan if the title isn’t locally available–request the exact revision year noted on your equipment’s compliance plate.
Locating Key Motor Elements in Your Lawn Tractor’s Schematic
Start by pinpointing the cylinder head near the top of the engine block–it’s identifiable by its bolt pattern and the attached exhaust and intake manifolds. The head gasket sits directly beneath, visible as a thin, multi-layered ring; verify its condition by checking for carbon deposits or warping along the mating surfaces. If replacement is needed, ensure torque specifications match the manufacturer’s sequence to prevent leaks.
The crankcase houses the crankshaft and connects to the sump; look for the main bearing caps secured by two bolts each. Misalignment here causes excessive vibration–use a dial indicator to measure runout if issues persist. The oil pump, driven by the camshaft, is typically nestled adjacent to the crankshaft’s front side; confirm its drive gear engages properly to maintain lubrication pressure.
Trace the camshaft from the timing cover to its lobes–each lobe corresponds to a valve lifter. Check lobe wear with a micrometer; deviations beyond 0.002 inches signal the need for replacement. The valve train includes rocker arms, pushrods, and springs–inspect for fatigue cracks, especially on the springs, which should exhibit consistent tension.
The flywheel, mounted at the crankshaft’s rear, stores rotational energy; its starter ring gear must mesh smoothly with the starter motor pinion. If grinding occurs during startup, examine the ring gear teeth for chips or excessive wear. The ignition module, often paired with the flywheel, requires precise gap adjustment–0.010 to 0.014 inches–to ensure spark reliability.
Locate the carburetor beneath the air cleaner housing–its bowls, jets, and float must be free of debris. The throttle linkage should move without binding; lubricate pivot points with silicone spray to prevent corrosion. Fuel delivery issues often stem from clogged jets; soak them in carb cleaner, then use compressed air to clear passages.
The exhaust system includes the manifold, muffler, and spark arrestor–inspect for carbon buildup, which restricts flow. Remove the arrestor screen and scrub it with a wire brush if backpressure is detected. The cooling fins on the cylinder and head must remain unobstructed; clean them with a soft brush to prevent overheating.

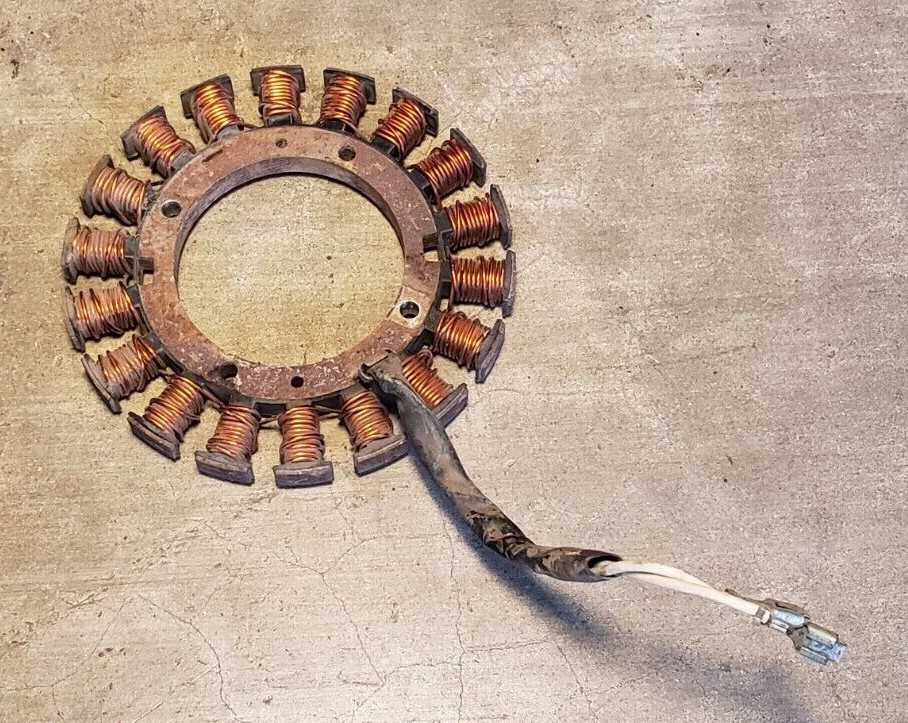

Finally, verify the alternator and charging circuit–test voltage output at the battery terminals under load. A reading below 13.5 volts indicates a faulty stator or rectifier. The oil filter, if present, should be changed annually; use only specified blends to avoid filter bypass or sludge buildup.
Locating Transmission and Drive Belt Components in the Schematics
Begin by identifying the transmission assembly in the upper-middle section of the exploded schematic–typically positioned near the engine output shaft. The primary elements, including the pulley system, hydrostatic unit, and belt tensioner, cluster around reference numbers 50–80. Cross-check labels against the accompanying parts list: the drive belt (often marked with a width measurement, e.g., “½-inch x 96-inch”) appears as a continuous loop spanning the input and output pulleys. For clarity, note the orientation of the belt’s ribs or teeth; incorrect installation reverses direction and accelerates wear.
| Component | Schematic Position | Key Details |
|---|---|---|
| Input Pulley | Adjacent to engine shaft (ref. #62) | Split design; verify alignment with belt grooves |
| Hydrostatic Transmission | Central housing (ref. #58) | Contains swash plate; requires sealed fluid connection |
| Drive Belt | Spans input/output pulleys (ref. #71) | Teeth face inward; replace if frayed or glazed |
| Tensioner Assembly | Between pulleys (ref. #65) | Spring-loaded; adjust gap to ¼-inch |
Trace the belt’s path from the engine pulley downward to the transmission input, then outward to the rear axle pulley–this ensures proper torque transfer. The tensioner arm (visible as a curved lever) must sit perpendicular to the belt’s straight run; misalignment reduces grip and causes slippage. For hydrostatic systems, locate the control arm linkage (ref. #54) connecting to the speed pedal–ensure it moves freely without lateral play. If replacing the belt, also inspect the idler pulleys (ref. #68) for smooth rotation; seized bearings strip belts prematurely.
