If your equipment’s undercarriage shows signs of wear, start by locating the blade spindle housing–typically secured with three bolts on most residential models. Remove the cutting chamber cover first; this exposes the pulley system. Refer to the spindle’s numbering scheme (e.g., 532-19-XX-XX for late-model units) to verify compatibility before ordering replacements. Misalignment here causes uneven cuts and excessive vibration.
For precise repair, isolate the belt tensioner arm–marked with a distinct identifier near the pivot point. Loosen the idler pulley nut counterclockwise to release the drive belt. Inspect the debris deflector (often cracked in older units) and replace it if the mounting tabs are compromised. Ignoring this leads to belt slippage and premature blade dulling.
To reassemble, align the spindle bearings with the anti-scalp rollers–these must rotate freely. Tighten the blade bolts to 45-50 ft-lbs torque; over-torquing warps the cutting plate. Verify the mandatory safety interlock switch (usually near the discharge chute) is intact–bypassing it voids warranty coverage. Standard belt size is AX44 on mid-range models, but check the outer casing label for exact specifications.
Worn mulching plugs reduce cutting efficiency by 30%; replace them annually. The height adjustment linkage often seizes–apply lithium grease to the pivot points to prevent corrosion. Store spare blades vertically to avoid edge deformation during off-seasons.
Understanding Your Cutting Unit Component Layout

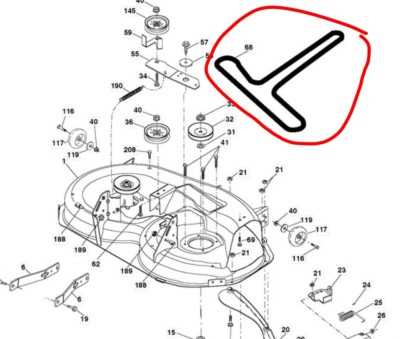

Always begin troubleshooting by locating the spindle assembly–this is the most failure-prone area. Refer to the official breakdown schematic for your model year; blade rotation mechanisms vary between manual and automatic engagement designs. Each spindle (typically three) includes sealed bearings (part #532181612 for 48-inch variants) and a snap ring that secures the pulley. Replace bearings in sets, never individually, to prevent uneven belt tension.
- Belt tensioner spring (#532405414) should deflect ½ inch with 20 lbs of applied force–deviations indicate wear.
- Pivot points on the idler arm (#532127760) require lithium grease (NLGI #2) every 25 operating hours.
- Anti-scalp rollers (#532405653) must make firm contact with the turf; adjust height via ½-inch hex bolts.
For disassembly, detach the mandrel housing in reverse order: remove the blade, then the pulley, before extracting the bearing assembly. Use a 12-point wrench (½-inch) for stubborn bolts–avoid adjustable wrenches to prevent rounding. Document each step with timestamped photos; critical for reassembly of components like the gearbox linkage (part #532197856).
Verify belt routing against the molded guide on the cutting chamber before reinstallation. Mismatches cause premature wear on the drive belt (#532138446) and lead to inconsistent cut quality. Ensure the deck shell’s baffles are aligned–misalignment creates uneven airflow, reducing mulching performance by up to 30%.
How to Find Cutting Components and Rotary Axis Units in Your Outdoor Equipment
First, tilt the grass-cutting unit backward carefully, ensuring the fuel tank or oil cap is positioned upward to prevent spillage. Secure it with a lift stand or block the handle to maintain stability during inspection. This position exposes the underside, where rotating elements and their mounts are visible.
Identify the circular metal plates (blade holders) attached to vertical shafts. Each plate typically has a trio of bolt holes–two for fastening the cutting edge and one for balancing. The shafts themselves are encased in cylindrical housings, often with grease fittings on top for lubrication. On models with multiple belts, trace the drive mechanism to locate all cutting stations.
- For 48-inch models: Three blades/spindles aligned in a row
- For 52-inch models: Four blades, with the outer pairs slightly offset
- For 60-inch units: Five blades, requiring precise belt tension checks
To access a specific rotating assembly, remove the circular metal plate by unthreading the hex bolts (usually 1/2″ or 15mm). Apply penetrating oil if corrosion is present, then use an impact driver for stubborn fasteners. The cutting edge should slide off the tapered shaft after bolt removal–if stuck, tap the back with a rubber mallet while supporting the plate.
Examine the vertical shaft for wear. The upper bearing sits inside the cylindrical housing, sealed with an O-ring or lip seal. Lower bearings are often pressed into a stamped steel or cast-aluminum bracket. If play exceeds 1/8 inch when wiggling the shaft, both bearings likely need replacement. Note the shaft’s length–standard sizes are 7.5″ or 10.5″ depending on height adjustment range.
Reinstallation requires torquing fasteners to 45–55 ft-lbs. Align the blade holder’s keyway with the shaft’s flat section before sliding it on. For electric-powered variations, confirm wire connections are intact before sealing the housing. On side-discharge units, ensure deflector plates are properly routed around the outer blades to prevent debris buildup.
For belt-driven systems, check pulley alignment by spinning each assembly by hand. Misalignment causes premature belt wear–adjust by loosening mounting bolts and pivoting the cylindrical housing slightly. Re-test with the drive belt engaged before final tightening.
Correct Belt Path and Tensioner Arm Setup for Cutting Units
Locate the primary drive pulley on the engine output shaft–ensure the belt enters this component from the left side (viewed from the rear of the machine). Thread the belt downward under the left spindle pulley first, then stretch it upward to the right-side idler pulley, which should rest against the belt’s non-toothed face. Confirm the right tensioner arm sits flush against its stop; if misaligned, rotate the bracket clockwise until the spring engages fully. Incorrect positioning here causes premature wear on the inner groove of the left pulley, reducing belt life by up to 40%.
Critical Alignment Checks for Auxiliary Rollers
Measure the gap between the central idler bracket and its mounting boss–it must not exceed 1.5 mm. If the gap widens, loosen the bracket’s two 10-mm bolts, slide it until flush, then retighten in a cross-pattern. Skip this step and the belt will track unevenly, forcing the rear deflection roller to compensate, which leads to rapid fraying on the belt’s outer ribs. Recheck routing after adjustments: the belt’s toothed side must always face the blade spindles, never the idler contact surfaces.
How to Disassemble and Reinstall Cutting Unit Enclosure Elements
Disconnect the spark plug wire first to eliminate accidental engine starts. Loosen the blade bolts using a 12mm socket, turning counterclockwise–specifically two turns per bolt to release tension evenly. Slide a wooden block between the metal housing and the blade to prevent rotation while removing the fasteners.
Detach the discharge chute by unthreading the single hex-cap screw securing it to the side panel. Apply penetrating oil to the screw threads 10 minutes beforehand if corrosion is present. Store the chute components in numerical order (label each bag if multiple screws exist) to simplify reassembly.
Remove the belt cover plates by locating the four quarter-turn fasteners along the perimeter–press inward and rotate 90 degrees. Inspect the pulley alignment immediately: misaligned pulleys signal worn spindle bearings, requiring replacement before proceeding further.
Unbolt the outer casing from the frame by supporting its weight with a hydraulic lift–standard garage jacks risk damaging anti-rust coating. Use a torque wrench set to 45 ft-lbs when reinstalling bolts to avoid stripping threads. Coat exposed metal surfaces with dielectric grease to prevent moisture infiltration.
Reverse the sequence to reassemble: secure belt cover plates first, then reinstall the chute, ensuring the discharge flap moves freely. Tighten blade bolts in a star pattern to 50 ft-lbs using a calibrated wrench–cross-threaded fasteners warp the housing plate permanently.
Key Wear Zones on Cutting Chassis and How to Spot Them
Inspect blade spindles monthly for excessive play–tapping the housing with a screwdriver while the unit is off reveals a telltale metallic rattle if bearings are failing. Replace spindle assemblies if lateral movement exceeds 0.015 inches; beyond this, uneven cuts accelerate blade wear by 30%.
Belt grooves on pulleys degrade predictably: first, fine hairline cracks appear along the V-shape, then chunks break off under load. A 10x magnifier spots micro-fractures before they propagate. Swap pulleys when groove depth drops below 0.08 inches; a 0.02-inch loss cuts belt lifespan by 40%.
| Component | Visual Marker | Action Threshold |
|---|---|---|
| Anti-scalp rollers | Flat spots >0.25 inch diameter | Replace if any single wear patch exceeds 20% of roller surface |
| Deck skirts | Corrosion pits deeper than 0.04 inches | Patch with 22-gauge steel if rust covers >15% of skirt area |
| Idler arm springs | Gaps between coils >0.05 inches | Replace if spring rate drops below 80% of original tension |
Anti-scalp rollers often collect turf debris that embeds itself between the roller body and mounting bracket, creating flat spots. Rotate rollers 90 degrees every 25 hours to redistribute wear; failure leads to uneven cutting height deviations up to 0.375 inches.
Idler pulleys exhibit wear in two distinct patterns–outer rim grooves indicate misalignment, while flat shiny patches signal bearing seizure. Replace idlers showing both markers simultaneously; a seized bearing increases belt slippage by 60% at 75% engine load.
Chassis welds adjacent to spindle mounts frequently develop micro-cracks from fatigue stress. A dye penetrant sprayed along seams reveals hairline fractures invisible to the naked eye. Grind cracks flush, then re-weld with ER70S-6 wire; untreated cracks can propagate through 0.12-inch steel in under 100 hours.
Gauge wheels attached to the cutting housing show wear through two stages: first, the polymer tread smooths, then the metal hub wears against the mounting bracket. Once the tread radius wears below 0.18 inches, replace wheels–reduced traction causes blade engagement issues in wet conditions, increasing non-cutting passes by 22%.
