If you need to service or repair your cutting tool, start with the air filter housing–typically located near the rear handle. Remove the three screws securing the cover and lift it off to access the filter. Inspect for debris or damage; a clogged filter reduces performance by up to 30%. Replace it if fibers are frayed or compressed.
The carburetor adjustment screws–marked “L” (low speed), “H” (high speed), and “T” (idle)–are critical for engine tuning. Turn the “L” and “H” screws clockwise until they lightly seat, then back them out 1.5 turns as a baseline. Fine-tune by running the engine and listening for smooth acceleration without sputter. Incorrect settings waste fuel and can damage the piston.
Examine the chain tension mechanism before each use. Locate the guide bar’s adjustment screw near the clutch cover. Rotate it clockwise to tighten until the chain snugly fits the bar’s groove without sagging–about 0.5mm gap between the chain and bar. Over-tightening increases wear on the drive sprocket and clutch.
The ignition module beneath the flywheel requires periodic inspection for corrosion or cracked wiring. Disconnect the spark plug, then lift the flywheel cover to access the module. Clean contacts with a wire brush if oxidized. A failing module causes hard starts or erratic idling.
For reassembly, refer to the manufacturer’s exploded view–focus on torque specs. The clutch cover bolts must be tightened to 18 Nm; overtightening strips threads. Replace any damaged gaskets to prevent air leaks, which degrade engine efficiency. Keep a multitool with Torx bits (T25, T27) on hand–standard screwdrivers won’t suffice.
Finding the Right Components for Your 44.5cc Chainsaw
Begin by locating the official exploded view schematics from the manufacturer’s service manual. These documents catalog every replaceable piece–from the ignition module to the guide bar–with part numbers matching the exact model variant. Verify the serial number on your unit’s housing first; revisions between production batches often introduce subtle differences in carburetor jets or clutch springs.
- Clutch assembly: Look for worn pawls or disengaged springs–common failure points after 200 hours.
- Fuel filter replacement: Swap every 50 hours; clogged filters starve the engine, causing erratic idle.
- Air filter: Inspect weekly if working in dusty conditions; foam filters degrade faster than paper types.
Third-party suppliers split replacement kits into tiered options: OEM components cost 30% more but guarantee exact tolerances, while aftermarket versions may require filing or shimming for proper fit. Always cross-reference dimensions–some “universal” spark plugs gap incorrectly, fouling the cylinder in under 10 hours.
For the powerhead’s crankcase, prioritize gaskets with silicone-based seals over paper; thermal expansion cracks paper seals in under 12 months. Note torque specifications: flywheel bolts at 18 Nm, cylinder cover at 12 Nm–over-tightening warps aluminum components. When sourcing bearings, reject any without sealed races; open bearings fail within 80 hours in wet conditions.

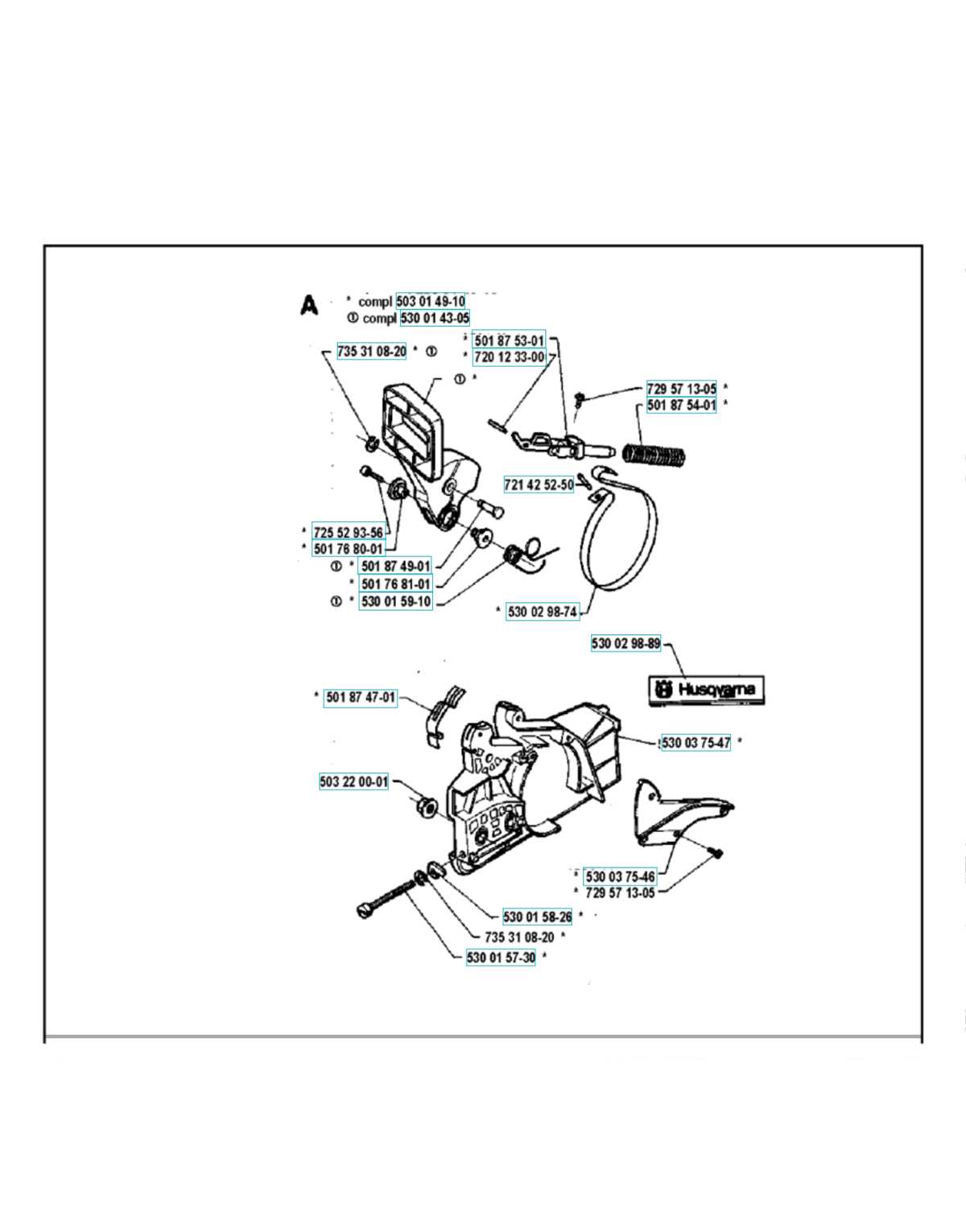

Locating the Official Exploded View Schematic for Your 445e II Chainsaw
Start directly at the manufacturer’s support portal: Husqvarna Product Support. Enter the model identifier–“445e II”–into the search bar and select the exact variant from the dropdown. The exploded view will load as a high-resolution PDF, labeled “Spare Parts List” with assembly breakdowns, part numbers, and torque specifications for each screw, gasket, and spring.
For offline access, download the PDF rather than relying on browser caching. The document includes indexed pages listing components by subsystem: fuel module, clutch assembly, bar mount, and recoil starter. Each item is cross-referenced with a unique Husqvarna SKU, ensuring exact replacements rather than generic aftermarket alternatives.
The support portal also archives older revisions–useful if your saw matches an earlier production run. Click “Documentation” under the model thumbnail to reveal previous manual versions; exploded views often differ in minor revisions, such as revised gasket materials or updated fastener types.
| Source | Access Method | File Format | Update Frequency |
|---|---|---|---|
| Manufacturer Portal | Direct download | Quarterly | |
| Authorized Dealers | Request via email | PDF or printed | As revised |
| Technical Forums | Forum attachments | JPG/PNG | Irregular |
Dealers with certified technician status can email exploded views upon request–provide the serial number stamped on the crankcase to confirm compatibility. Some dealers maintain their own schematic libraries on internal servers, updated weekly, which include annotated notes on common failure points.
While third-party suppliers like Jack’s Small Engines or eReplacementParts host similar diagrams, these versions may omit proprietary elements like OEM bearings or seals. Verify discrepancies by cross-checking the SKU sequence with the original manufacturer’s list; incorrect parts risk voiding warranty or causing mechanical interference.
For immediate reference, save the exploded view to a tablet or mobile device–label it with the model suffix (“e II”) to distinguish it from earlier 445 variants. If printing, set the scale to 100% to preserve dimensional accuracy for gasket templates or bearing seats.
Locating Key Components on Your Chainsaw’s Illustrated Guide
Begin by matching the part name on the exploded view with its exact location in the engine assembly. For example, the air filter housing sits atop the carburetor box, secured by two Torx screws (T25). Cross-reference the item number–typically printed near each piece on the schematic–with the alphanumeric code on the physical unit’s castings or metal stampings. This prevents confusion between similar-looking pieces like the throttle trigger and the choke lever, which serve distinct functions.
Use the color-coded annotations on the diagram as visual cues. Components marked in red usually denote high-wear items such as the spark plug boot or drive sprocket cover, which require periodic inspection. In contrast, blue highlights often indicate routine maintenance targets like the fuel filter or external linkages. These distinctions help prioritize replacements during servicing.
Pay special attention to the small fasteners and seals: a M6x12 bolt differs from a M6x15 only by length, yet swapping them can misalign critical assemblies like the cylinder cover. Measure bolt lengths with calipers if the illustration’s detail is ambiguous. Likewise, verify O-ring sizes by cross-checking their ID markings–common failures occur when incorrect seals cause vacuum leaks.
The wiring harness connectors, though often ignored, are mapped with pin assignments on the schematic. Look for tiny embossed numbers on the plastic housings; a mismatched plug can disable the ignition coil even when the coil itself is functional. Test continuity before ordering replacements for components like the stop switch or kill wire to avoid unnecessary purchases.
For components without visible markings–such as piston rings or needle bearings–refer to the torque specifications listed alongside the diagram. Excessive or insufficient force during installation can shear dowel pins or warp gaskets, invalidating warranties. A torque wrench calibrated in inch-pounds ensures precision where metric values are noted.
Group related items before ordering: bar nuts, clutch drum, and chain sprocket share part cycles, so replacing them together extends service intervals. Keep a printed reference snippet near the workbench–highlighting the oil pump assembly or muffler gasket eliminates guesswork during reassembly, saving diagnostic time later.
How to Interpret Your Chainsaw’s Carburetor Blueprint
Locate the fuel inlet on the schematic–it’s marked as a small circular port near the needle valve. Verify its connection to the fuel line and priming bulb by tracing the dotted lines; they must align with the corresponding hose fittings in the exploded view. If the inlet shows wear or debris buildup during inspection, replace the O-ring and clean the passage with compressed air at 30 PSI to prevent fuel starvation.
- Identify the throttle plate by its butterfly shape–it sits between the venturi and intake manifold. Check the linkage rod for play; excessive movement indicates worn bushings, requiring a 7.5mm wrench to remove the retaining screw.
- Examine the idle speed screw (labeled “L” on the blueprint) adjacent to the throttle shaft. Turn it clockwise in half-turn increments while the engine runs to stabilize idle–avoid exceeding three full rotations to prevent lean mixture conditions.
- Note the high-speed jet (marked “H”) beneath the bowl cover. Use a flathead screwdriver to adjust it only when the engine is warm, starting from the factory setting of 1.5 turns out.
Cross-reference the part numbers listed in the legend with your inventory. The diaphragm (item #544010301) should flex without cracks–replace it if stiffness exceeds 20% of the original tension. When reassembling, apply a thin layer of silicone grease to the gasket mating surfaces to prevent vacuum leaks, ensuring the bowl cover screws are torqued to 5 Nm in a crisscross pattern.
Critical Elements in the Chainsaw Powerhead Schematic
Replace the cylinder assembly (P/N 537119302) immediately if compression tests fall below 90 psi or if scoring appears on the piston skirt. This component integrates the intake ports, exhaust channels, and spark plug seat–any corrosion or carbon buildup in these areas will degrade performance. Lubricate the mating surfaces with 2-stroke pre-mix oil during reinstallation to prevent seizing, using no more than 0.2mm of thickness to maintain proper heat dissipation. Always torque the cylinder bolts in a crisscross pattern to 12 Nm ±1 Nm to avoid warping.
Inspect the crankcase halves (P/N 537119303/537119304) for hairline cracks, especially around bearing bores–repair via epoxy injection is not recommended; replacement is mandatory. Verify the crankshaft seals (62mm outer diameter) for hardening or leaks; these should be swapped every 50 operating hours regardless of appearance. When reassembling, apply anaerobic thread locker to the crankcase screws (P/N 530069540) and tighten to 8 Nm in stages, alternating sides to ensure uniform clamping force. Misalignment here introduces excessive crankshaft play, leading to premature bearing failure.
