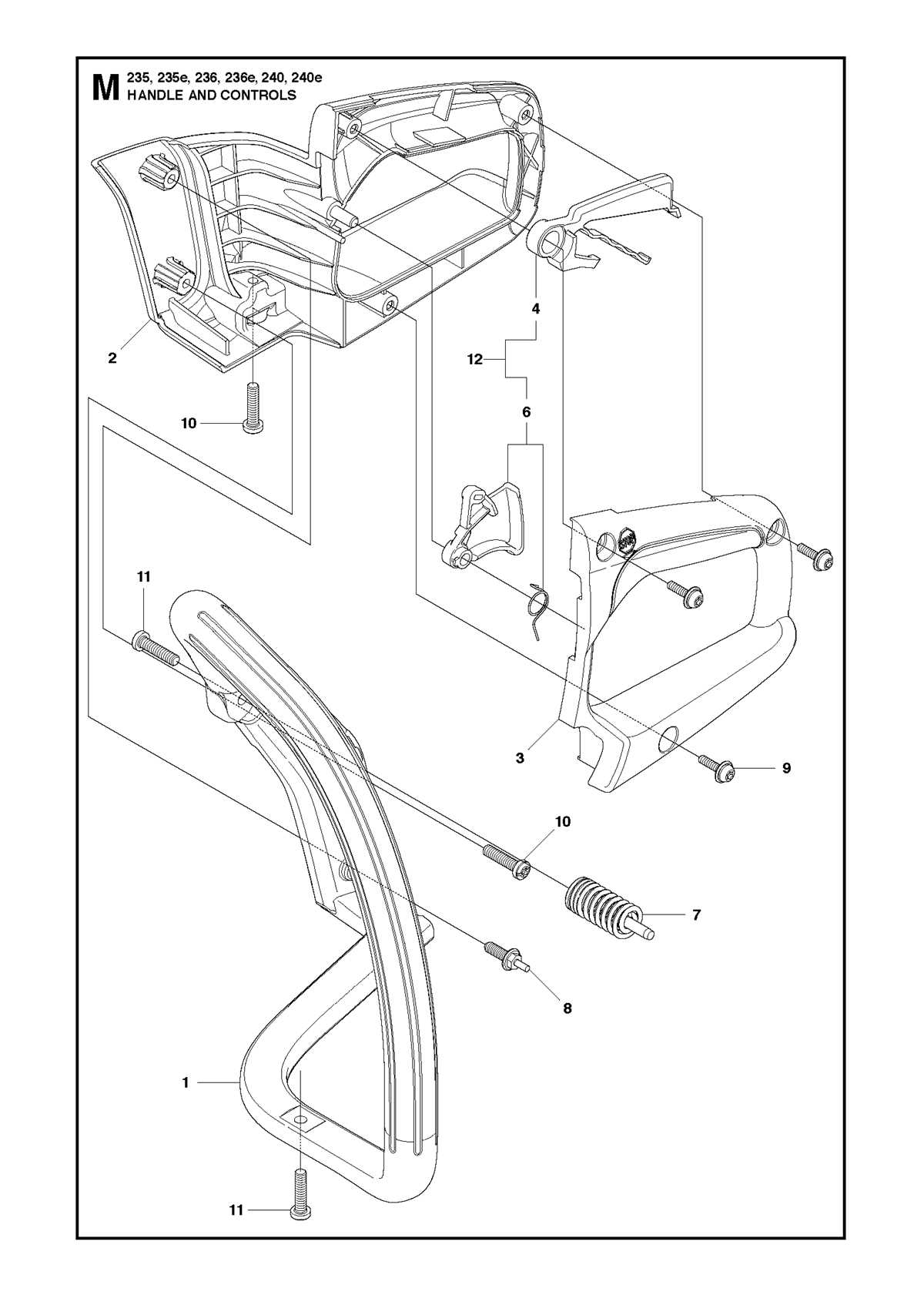

Begin by obtaining the official service manual for your saw’s specific series–parts compatibility varies between the 235, 236, and 240 variants. The manual includes exploded-view illustrations, torque specifications for fasteners, and OEM part numbers critical for accurate replacements. Avoid third-party diagrams unless verified against the manufacturer’s original schematics, as aftermarket sources often mislabel components.
Identify the engine assembly section first–common failure points include piston rings (part #5434126-55) and crankshaft bearings (OEM #5300378-93). The carburetor exploded view follows; note the needle valve (#531 40 18-60) and throttle shaft (#540 07 38-16), which require precise alignment during reassembly. For the clutch system, cross-reference the drum (#530 07 16-18) and sprocket (#544 23 04-02) dimensions–aftermarket sprockets may not match the original 7-tooth configuration.
When sourcing replacement components, prioritize suppliers listing Husqvarna’s Zama or Walbro carburetor rebuild kits (#545 08 05-22). Ignition modules (#511 50 16-03) and spark plugs (#503 41 75-20) should adhere to the 0.5mm gap specification. For the oil pump assembly, ensure the drive gear (#530 06 78-08) has intact teeth–minimal wear here disrupts automatic lubrication. Use a torque wrench for the cylinder base nuts (12 Nm ±2) to prevent warping.
Print or bookmark the chain tensioner schematic–aftermarket tensioner screws (#503 20 57-01) often strip; OEM replacements include a hardened steel insert. The guide bar (20″, #531 30 72-32) and chain (#531 31 16-56) must match the 3/8″ pitch and 0.058″ gauge. Disassemble the air filter housing carefully–clips (#503 24 01-01) crack if pried improperly. For storage, apply corrosion inhibitor to exposed metal surfaces.
Understanding Your Chainsaw Component Layout
Locate the air filter housing by removing the top cover–typically secured with one screw or latch near the rear handle. This assembly protects the carburetor from debris and should be cleaned every 5 operating hours or whenever performance drops. Use compressed air or a soft brush; never wash with water.
The cylinder and piston form the engine’s core, positioned beneath the flywheel. Inspect the piston ring gap with a feeler gauge–tolerances should not exceed 0.05mm. If scoring marks or excessive carbon buildup appear, replace the piston kit immediately to avoid catastrophic failure.
Trace the oil pump drive gear back to the crankshaft. Verify alignment by rotating the bar–oil flow should appear at the guide bar nose within 10 seconds. If delayed, disassemble the pump and check the plunger spring for tension; weak springs cause inconsistent lubrication and bar overheating.
Identify the ignition module behind the flywheel–test spark output with an ignition tester. Proper spark should jump a 0.7mm gap at cranking speed. No spark? Replace the coil; do not attempt DIY repairs on windings–precision winding ensures correct voltage delivery.
The chain catcher, a small metal tab beneath the sprocket cover, prevents derailed links from damaging the housing. Check for cracks or deformation–even minor flaws reduce safety. Welding or re-shaping compromises structural integrity; always install OEM replacements.
Examine the exhaust port for carbon deposits–use a plastic scraper, never metal, to avoid scratching aluminum surfaces. Clogged ports raise operating temperatures, reducing engine efficiency. Rinse with brake cleaner and dry before reassembly to prevent corrosion.
Refer to the manufacturer’s exploded view for torque specs–crankcase bolts require 10Nm, while guide bar nuts demand 4-5Nm. Over-tightening distorts components; under-tightening causes vibration and premature wear. Use a calibrated torque wrench for every reassembly.
Locating Critical Elements in Your Chainsaw’s Schematic
Start by pinpointing the cylinder assembly–typically centered in the upper half of the illustration. Verify its gasket seals and cooling fins for cracks or warping; these minor defects reduce compression and overheating risks. Adjacent, the piston ring set must sit flush within grooves; excess carbon buildup here signals improper combustion and requires scraping before reassembly. Below, the crankcase houses the crankshaft bearings–check for play by rocking the shaft gently; tolerance beyond 0.05mm warrants replacement to avoid catastrophic failure.
Trace the fuel delivery system from the carburetor (often near the rear handle) to the fuel filter and impulse line. Inspect the diaphragm inside the carb for tears; even pinholes disrupt the air-fuel ratio, causing hard starts or stalling. The ignition module, positioned left of the flywheel, contains the armature plate–ensure its magnet gap aligns precisely (0.3-0.4mm); misalignment weakens spark intensity. Lastly, examine the chain tensioner and bar mount studs for thread stripping; overtightening here bends the guide rail, increasing kickback hazards.
How to Pinpoint the Air Filtration Assembly in the Illustrated Breakdown
Begin by accessing the exploded view schematic for your chainsaw model. The air filtration unit is typically labeled in section 3 or 4, adjacent to the engine housing cover. Locate the right-side panel illustration–this is where intake components are grouped. If the schematic uses numbered callouts, cross-reference them with the corresponding parts list at the bottom or side of the document.
Identify the air box by its distinctive shape: a rectangular or oval casing with a hinged or snap-on lid. The filter element itself appears as a fine mesh or foam insert nested inside this housing. In most schematics, the filter is positioned directly beneath the carburetor linkage, emphasizing its role in pre-cleaning ingested air before combustion.
| Component | Location in Schematic | Visual Clues |
|---|---|---|
| Air box housing | Engine side, beneath recoil starter | Plastic casing with ventilation slits |
| Filter element | Inside air box, center position | Yellow or white foam/mesh rectangle |
| Mounting clip | Edge of air box lid | Spring-loaded metal fastener |
| Gasket | Between air box and engine block | Thin rubber seal, often red/black |
Trace the air flow path in the diagram: intake begins at the filter, then channels through the carburetor assembly (usually marked in a separate sub-section). Wiring harnesses or fuel lines may obscure parts of the illustration, so focus on the linear sequence–filter → intake manifold → combustion chamber.
Check for arrows or dashed lines indicating removal direction. The lid may require unscrewing a single bolt (visible on the outer edge) or releasing two side clips. Some schematics include inset diagrams showing the exact latch mechanism, often magnified for clarity. If the filter appears compressed or misshapen, the diagram likely shows a “before/after” comparison for correct installation orientation.
For models with pre-cleaners, locate an additional mesh screen preceding the main filter–this is frequently omitted in generic diagrams but critical for extended engine protection. The schematic may group it with the “auxiliary intake components” under a separate heading.
Verify the part number against the exploded view’s legend. Air filters often share similar silhouettes with breather elements; the correct component will have a denser weave or thicker foam material, explicitly labeled for debris retention. Misidentification risks installation of incompatible parts that fail to seal properly.
Locating and Swapping the Chainsaw Carburetor with a Schematic
Start by securing the engine housing cover–remove the three screws holding the air filter box using a T25 Torx driver. Detach the box and lift the spark plug wire cap to prevent accidental ignition. The fuel line connects to the carburetor’s right side; pinch it with pliers and slide it off the nipple. Disconnect the throttle linkage rod by pressing the retaining clip with a flathead screwdriver, then pull the rod free. Unscrew the two M5 bolts anchoring the carburetor bracket to the cylinder using an 8mm socket. Rotate the assembly counterclockwise to release the intake manifold seal–note its orientation for reinstallation.
Matching Replacement Components
Verify the new carburetor’s model number against the schematic: Zama C1Q-S83 or Walbro WT-259 variants appear in most 38cc powerheads. Check the gasket kit (Husqvarna part #503262001) includes the intake manifold O-ring, diaphragm, and needle valve. Lubricate the new diaphragm with a thin layer of two-stroke oil before installation to prevent tearing. Align the carburetor’s idle mixture screw port with the engine’s idle speed stop–misalignment causes erratic RPMs. Avoid overtightening the bracket bolts; torque to 8 Nm to prevent stripping.
Reconnect the throttle linkage by hooking the rod into the carburetor lever, then snap the retaining clip into place. Attach the fuel line by pushing it fully onto the nipple until it clicks–confirm no leaks by priming the bulb three times before starting. Reinstall the air filter box, ensuring the gasket seats properly to prevent debris entry. Test idle by starting the saw and adjusting the mixture screw clockwise until smooth operation; every quarter-turn increment affects performance noticeably. If hesitation persists, inspect the spark arrestor screen for carbon buildup–clean with a wire brush if accumulation exceeds 30%.
Decoding Chain Drive and Guide Rail Attachment in Schematic Illustrations
Locate the sprocket cover plate in the exploded view–it’s typically marked near the clutch drum and crankshaft assembly. Check for shading or hatch patterns: these indicate torque specifications, often 15-20 Nm for mounting bolts. Count the washers between the bar and engine casing; missing even one disrupts chain tension alignment. Verify the bar groove orientation matches the nose sprocket direction; misalignment causes premature wear on drive links.
Identifying Critical Fasteners
- Chain tensioner screw (usually M6 × 30mm) requires 8-10 Nm–over-tightening binds the mechanism.
- Bar mounting studs (M8 × 50mm) must be tightened in a star pattern to prevent warping.
- Side cover screws (M5 × 20mm) need 5-7 Nm; a loose fit allows debris ingress.
Gaps in the diagram often represent spacers–measure them physically (standard: 0.5mm for chain adjustment). Replace any deformed components immediately; even minor burrs misalign the cutting attachment.
- Trace the chain path from the clutch drum to the bar tip. Cross-reference sprocket teeth count with the manual’s technical data (e.g., 7T for 3/8″ pitch).
- Inspect the oiler holes: ensure they align with the guide rail’s central channels. Blocked ports cause dry cutting and overheating.
- Check the bar’s mounting holes for elongation–this signals wear and requires a new unit if deviation exceeds 0.1mm.
Rotating the sprocket cover plate reveals hidden springs or detents–handle these as they affect chain brake engagement. Lubricate threads during reassembly with molybdenum grease to prevent seizing.
