For precise troubleshooting, locate the pump assembly first–it’s typically positioned beneath the main tank near the base. The inlet valve and outlet valve should be inspected for cracks or sediment buildup, as these are frequent failure points. If replacement is needed, match the valve seating surface with OEM specifications to prevent leaks.
Check the nozzle wand for corrosion in the threaded connections. A damaged wand often causes irregular spray patterns; verify the orifice size against the manufacturer’s coding (e.g., “06” for 0.6 GPM). For worn trigger mechanisms, disassemble the handle and lubricate the spring with silicone-based grease to restore smooth operation.
The pressure regulator should be calibrated to 40–60 PSI for optimal performance. If the unit fails to maintain pressure, examine the diaphragm for tears–replace with a reinforced rubber model if deformation is visible. Keep spare gaskets on hand; compatibility varies by model year, so cross-reference the tank capacity (e.g., 2-gallon vs. 4-gallon) before ordering.
Inspect the hose fitting for stripped threads. Use Teflon tape sparingly on connectors to avoid clogging filters. For electrical variants, test the battery terminal voltage–low readings (
Refer to exploded schematics when reassembling; misaligned internal seals can void pressure retention. Always purge the system after repairs by cycling water through the pump to clear debris before adding chemicals.
Understanding Your Equipment’s Component Layout
Begin by locating the primary pressure tank–typically a cylindrical reservoir with inlet and outlet valves. This unit regulates fluid flow and requires annual inspection for cracks or corrosion. Check the manufacturer’s manual for exact PSI limits; exceeding them risks structural failure. Replace the tank if dents or rust exceed 10% of its surface area.
Examine the pump assembly next. The piston rod should move freely without resistance–test this by disconnecting the wand and activating the mechanism. If motion is jerky, lubricate the seals with food-grade silicone. Never use petroleum-based products, as they degrade rubber components within 48 hours. For rebuilds, order O-rings in metric sizes: 12×2, 15×2.5, and 18×3 are standard.
The wand and nozzle system demand quarterly disassembly. Soak metal tips in vinegar to dissolve mineral deposits–ultrasonic cleaners reduce this time by 70%. Verify nozzle alignment by attaching a water source: spray patterns should form a solid 80° fan without droplets at the edges. Replace tips showing wear immediately; even a 0.2mm deviation reduces coverage by 23%.
Inspect the trigger mechanism monthly. Debris in the valve seat causes leaks–clean it with a pipe cleaner or compressed air. If the trigger sticks, apply graphite powder to the pivot points; avoid oils as they attract dust. For electronic models, test battery voltage weekly–readings below 10.2V indicate imminent failure. Use lithium-ion cells rated for 15A continuous discharge.
Hoses often fail at connection points. Replace any showing bulges, soft spots, or fraying. Nylon-reinforced hoses last 3x longer than PVC versions but require brass fittings to prevent galvanic corrosion. When storing, coil hoses loosely–tight loops create weak points that rupture under pressure. For high-viscosity fluids, upgrade to ½” diameter lines to maintain flow rates.
Keep a schematic specific to your model’s serial number. Digital copies degrade; print a waterproof version on synthetic paper and store it with the tool. Label each component with a metallic marker during maintenance–this accelerates troubleshooting by 40%. For regulators, note the adjustment range: 10-70 PSI is typical, but verify before modifying settings. Components from different series aren’t interchangeable; cross-reference with the bill of materials before ordering replacements.
Locating Critical Elements in Your Agricultural Equipment Schematic
Begin by isolating the pressure control assembly–typically found near the pump outlet in schematic layouts. Look for symbols resembling a spring-loaded valve or a graduated knob, often labeled with PSI ranges (e.g., 0–100, 0–600). Verify its position against the manufacturer’s legend, as misidentification can lead to improper calibration. Cross-reference this with the flow regulator if present; these components work in tandem to maintain consistent output.
- Check for color-coded lines in the schematic: red for high-pressure paths, blue for return lines, green or black for chemical reservoirs.
- Note any dual-line configurations, which indicate separate channels for agitation and primary delivery.
- Identify filtration points marked by mesh or screen icons–these may include pre-pump strainers, inline filters, or post-nozzle screens.
Examine the wand or boom section next. Schematics often depict these as elongated rectangles with multiple nozzle attachment points. Confirm the number of outlets matches your actual setup; discrepancies suggest missing or aftermarket modifications. Pay attention to selector switches if illustrated–rotary or slide variants control flow distribution between attachments.
Trace the fluid pathway from the tank to the discharge point. Schematics usually simplify this with arrows or dotted lines. Look for:
- Check valves (typically marked with arrows showing one-way flow) to prevent backflow.
- Pulsation dampeners (symbolized by coiled lines or small cylinders) to minimize pressure surges.
- Drain plugs or bleeder screws, often shown as small circles near low points.
Inspect the pump section carefully–this is the most complex subsystem. Gear pumps appear as interlocking crescents, diaphragm types show flexible membranes, and piston pumps have concentric circles. Note the inlet/outlet positions relative to the drivetrain connection; reversing these during reassembly will damage the unit. Some schematics include RPM specifications next to this area–compare these to your equipment’s operational manual.
Locate electrical components if applicable. Batteries, solenoids, and wiring harnesses are usually shown as dashed lines or zigzag symbols. For models with digital controls:
- Pinpoint the main control module–often a square or rectangular box with multiple connection points.
- Identify sensor inputs (pressure, temperature, flow) marked with specific icons–usually triangles or small circles.
- Verify fuse ratings if included–these must match your actual hardware to prevent overloads.
Finally, cross-check all labeled components against the parts list or legend. Missing or unclear symbols may indicate outdated schematics–contact the equipment supplier for revisions if discrepancies exist. Measure critical dimensions (e.g., hose diameters, tank volumes) against the diagram to ensure compatibility during repairs or upgrades. Keep a magnifier handy for dense schematics; small details like O-ring specifications or thread types are often included but easily overlooked.
How to Interpret an Equipment Component Breakdown Illustration

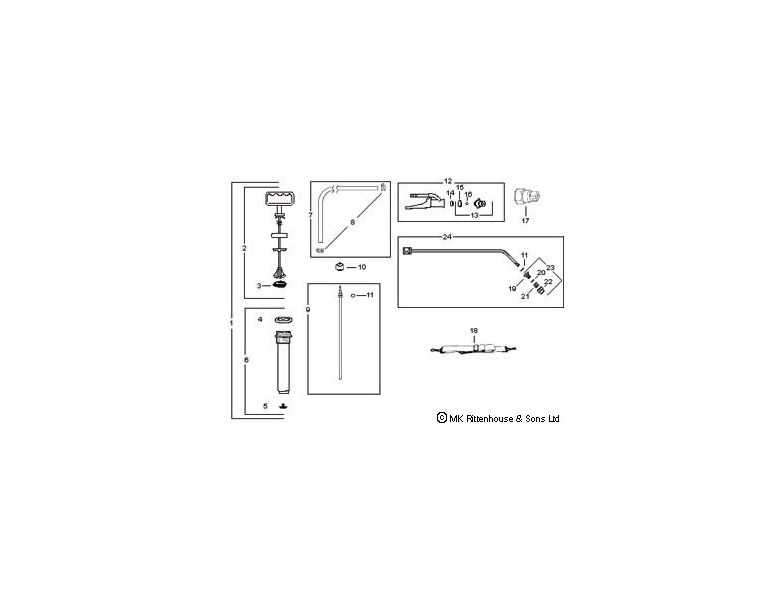

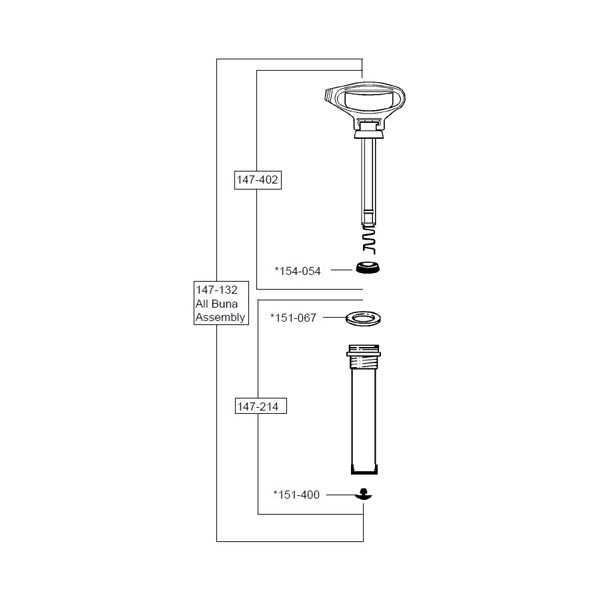

Locate the exploded view schematic in the repair manual–it’s typically labeled with a figure number matching the assembly section. Each element is drawn in a linear sequence, reflecting its position within the mechanism. Start by identifying the largest housing or frame component, as this anchors the rest of the layout.
Refer to the number legend adjacent to the drawing. Numbers correspond to a list detailing item names, manufacturer codes, and sometimes torque specifications or material composition. Cross-reference each digit with the list to confirm its role–miscounts here lead to incorrect replacements. For example, gasket 12-456 differs from seal 12-457 even if visually similar.
Trace connecting lines or arrows if present. These indicate how smaller pieces assemble onto larger ones. A dashed line often signifies a screw or bolt path, while solid lines show press fits or welded joints. Components sharing the same horizontal plane usually install simultaneously, like washers with matching bolts.
| Symbol | Meaning | Action Required |
|---|---|---|
| Dashed line | Threaded fastener | Apply thread locker if specified |
| Solid line with arrowhead | Direction of insertion | Align O-ring groove before pressing |
| Dotted outline | Optional or alternate component | Verify compatibility with existing housing |
Note directional indicators on seals or gaskets. A beveled edge or stamp marks installation orientation–reversing causes leaks or premature wear. Measure fluid ports against the schematic if unclear; mismatched threads strip easily.
Compare worn units removed from the device to the illustration. Match wear patterns–abrasion on one side suggests misalignment, while uniform thinning indicates normal lifecycle end. Record these observations in a separate log to predict future failures.
If the schematic lacks torque values, use a calibrated wrench and refer to the overhaul kit packaging. Most kits include a printed insert listing proper load settings by fastener size. Apply sealant only if the diagram specifies; incorrect compound selection damages polymer components.
Reassemble in reverse order of disassembly, using the exploded view as a checklist. Verify each step with the visual before proceeding–skipping validation risks jamming adjacent pieces. Store removed consumables like filters or diaphragms in labeled bags to avoid confusion during reinstallation.
Maintenance Priorities for Liquid Application Equipment
Nozzles wear out after 50–75 operating hours, especially models with brass or ceramic inserts. Replace them immediately if spray patterns become uneven or droplets exceed 300 microns–clogging risks increase by 40% past this threshold. Keep two identical spares on-site; mixing brands disrupts calibration and wastes up to 22% of chemical load during a single application cycle.
Hoses and Seals Checklist
Inspect pressure hoses every 10 hours for micro-fractures; a 1 mm pinhole leaks 1.8 liters per minute at 400 kPa. Downtime jumps 70% when seals on pumps and tanks degrade–swap viton rings every 200 hours or when operating temperatures exceed 60°C. Use only manufacturer-specified thread sealant; generic adhesives degrade in under 48 hours when exposed to glyphosate blends.
