For optimal disassembly or troubleshooting, begin by locating the ram assembly–the vertical sliding mechanism at the press’s core. Reference the slot alignment nearest the priming arm (typically positioned left of the central column) to avoid misplacement during reassembly. The shell holder retainer unscrews counterclockwise with minimal force; overtightening defeats its spring-loaded function.
Inspect the linkage rod–the slender shaft connecting the handle to the ram–for signs of wear. Even a 0.2mm deviation in tolerance will introduce inconsistencies in bullet seating. Lubricate sparingly with a graphite-based lubricant, targeting the pivot points where the rod interfaces with the toggle system. Synthetic oils attract particulate, risking seizing.
The die plate removal requires loosening the set screws (6mm hex key) on the rear plate before sliding the assembly forward. Note the orientation of the expander rod–its groove must align with the press’s internal track to prevent binding during case neck resizing. A misaligned rod introduces erratic tension, detectable by a 10-15% variance in primer seating depth.
For the primer feed system, unsnap the hopper cover by depressing the retaining clips on both sides simultaneously. The primer shuttle–visible through the feed slot–operates on a cam-driven mechanism. Clean the shuttle’s surface with a nylon brush only; metal tools will score the track, causing primers to jam at a rate of 1 per 50 rounds.
Rebuilder Component Guide for the LNL Progressive Press
Start disassembly by removing the powder measure assembly first–this prevents accidental misalignment of the metering system. Use a 5/32″ hex key to loosen the set screws on the powder die housing before lifting it clear. Store the hopper separately to avoid resin buildup, especially if using ball powder or granular propellants.
Inspect the shellplate indexing mechanism next. Apply lithium grease sparingly to the pawl spring and ratchet teeth–over-lubrication attracts abrasive debris. If indexing skips occur, check the tension spring for wear; replacement springs measure 0.75″ in free length with a 0.045″ wire diameter.
Critical Wear Points
| Component | Material | Max Tolerance (inches) | Replacement Interval (cycles) |
|---|---|---|---|
| Case ram | Heat-treated 4140 steel | 0.002 | 50,000 |
| Priming rod | Hardened stainless | 0.001 | 30,000 |
| Cam plate | Case-hardened alloy | 0.003 | 60,000 |
Replace the primer slide assembly if primer seating depth varies more than 0.005″. The OEM pivot pin has a 0.187″ diameter; aftermarket pins often undersize to 0.186″, which causes inconsistent seating. Always verify with a feeler gauge before final torque–8-10 in-lbs on the mounting screws is optimal.
Adjust the bullet seating die using a dummy round. Set the die depth so the ogive contacts the case mouth at the same point every cycle. For VLD profiles, use a comparator to ensure consistent 0.002″ jump to lands. Misalignment here causes pressure spikes–monitor with a chronograph and discard any loads exceeding ±12 fps deviation.
Clean the primer track with a brass wire brush every 1,000 cycles, focusing on the feed tube orifice. Primer debris accumulates at a rate of 0.0005″ per 2,000 cycles, leading to misfeeds. The track width should measure 0.210″ ±0.001″; wider gaps indicate wear requiring replacement of the track plate.
Troubleshooting Flowchart
If indexing stalls, first check the shellplate alignment–visually confirm the pawl engages each tooth fully. Second, test the motor voltage; it should remain above 11.8V under load. Third, inspect the drive belt; cracks wider than 0.02″ reduce torque by 18%. Final step: remove the crankshaft cover and verify the cam lobes’ surface hardness–soft cams (below HRC 55) cause inconsistent strokes.
Identifying Core Elements in Progressive Reloading Tool Construction
Start by locating the ram assembly, the vertical column guiding shell plates through each stage. The main shaft should slide smoothly without lateral play–excessive wobble indicates worn bushings or a bent shaft. Replace these immediately to prevent misalignment during cycling, which disrupts case positioning and risks improper powder dispensing.
Inspect the primer slide mechanism beneath the baseplate. The slide must move freely along its track, yet remain firmly seated when engaged. A faulty slide causes primers to jam or skip stations. Check for debris buildup every 500 rounds and apply dry lubricant to the rails–this prevents corrosion and ensures consistent primer feeding.
Hopper and Case Feed System Diagnostics
Examine the hopper’s agitator paddles for cracks or deformation. Bent paddles reduce agitation, causing cases to bridge or feed unevenly. Verify the agitator’s gear alignment–misaligned gears strip teeth and halt case movement. Adjust the hopper angle to 30° for optimal flow; angles outside 25-35° disrupt gravity-fed delivery.
The case feed mouth requires precise clearance: 0.010 inches between the shell plate and feed lips. Wider gaps allow double-case pickups; tighter gaps jam. Test by cycling empty brass–sluggish movement demands shim adjustments or lip replacement. Monitor the feed wheel tension; excessive tension wears the wheel’s rubber surface, replacing it annually or after 10,000 cycles.
Verify the powder measure’s metering assembly by disassembling the die set. The metering disc should align flush with the housing–even a 0.5mm offset alters charges by ±0.3 grains. Clean residue from the disc pockets weekly to maintain consistent throws. For stick powders, install the optional baffle plate to reduce flask vibration, stabilizing velocity deviations below 1%.
Step-by-Step Disassembly for Cleaning and Maintenance
Wear nitrile gloves to prevent finger oils from contaminating metal surfaces. Place the reloading press on a clean, stable workbench and secure it with clamps if necessary to prevent movement. Remove the primer catcher by squeezing its sides and pulling downward–this exposes the shellplate area.
Critical Disassembly Order
- Detach the powder measure by rotating the locking knob counterclockwise until loose, then lift straight up.
- Release the shellplate tension by turning the handle fully counterclockwise–remove the bolt and extract the plate.
- Unscrew the die body using a 7/8″ wrench, keeping the lock ring stationary to avoid damaging threads.
- Lift out the spent primer slide by pulling the lever forward until it disengages–store components in labeled trays.
Inspect all moving parts for brass shavings or powder residue. A brass brush with nylon bristles cleans threaded areas without scratching. Apply a light coating of grease (e.g., lithium-based) to the linkage pins and ram surfaces–avoid over-lubrication, which attracts debris.
Reassembly follows the reverse sequence. Test functionality by cycling an empty case through each stage: verify smooth primer seating, consistent powder drop, and proper bullet alignment. Check for abnormal resistance–common friction points include the shellplate hinge and powder measure linkage, which may require re-tightening or minor adjustments with a hex key.

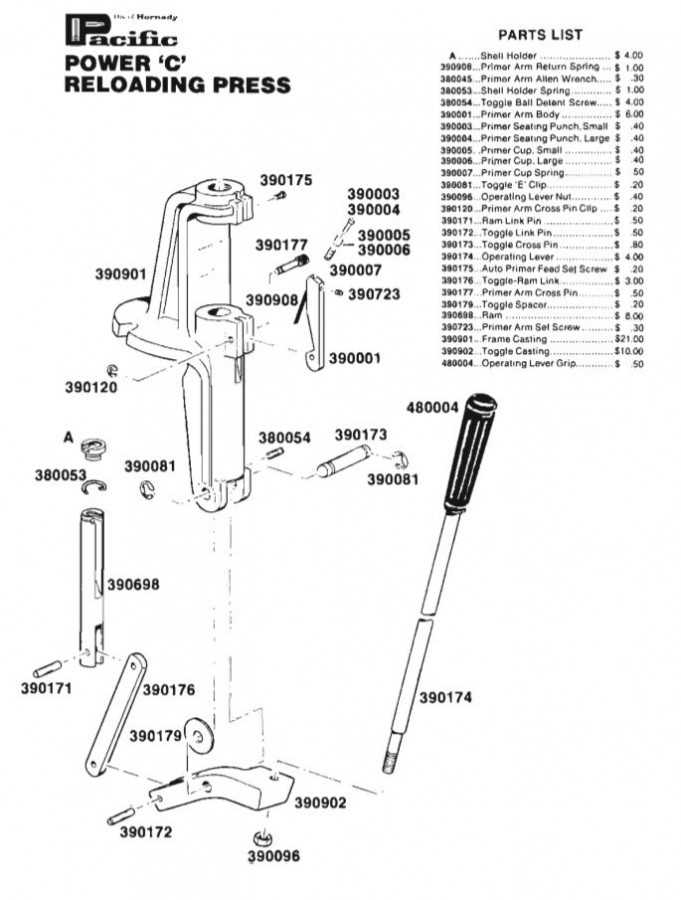

Finding Spare Components Through Official Schematics
Start by downloading the manufacturer’s breakdown from their official website–search for the model-specific exploded view PDF, which typically includes numbered callouts matching the product catalog. Each entry correlates to a unique item code; memorizing or bookmarking these codes accelerates future ordering. If the PDF lacks search functionality, open it in a viewer that supports text extraction to locate references quickly without scanning every page manually.
Use the callout numbers to cross-reference the online parts list, which often includes availability status and pricing. Filter results by status–ignore discontinued entries unless you specifically need legacy replacements. Some retailers display stock levels in real time; prioritize components marked “in stock” to avoid delays, especially for critical wear items like springs or firing pins.
Request physical copies from the manufacturer’s customer service if digital access is unreliable. Ask for the latest revision, as revisions address common failures or design updates. Keep this hardcopy near your workspace to compare worn components visually against the drawing without toggling between screens. Highlight frequently replaced items in the document for rapid identification during maintenance.
For unlisted components, describe the component’s function, dimensions, and location within the assembly when contacting support. Provide photos if possible–clear images from multiple angles help representatives verify compatibility. Avoid third-party schematic aggregators; these often contain outdated or inaccurate reproductions that lead to incorrect orders.
Bookmark the manufacturer’s spare component portal; set calendar reminders to check for schematic updates biannually. New revisions sometimes introduce revised nomenclature or consolidate multiple entries into a single upgraded replacement, reducing future ordering complexity.
Common Wear-and-Tear Components and When to Replace Them
Replace the powder measure bushing every 5,000 rounds or immediately if you notice inconsistent throws. A worn bushing leads to variations exceeding ±0.3 grains, which can affect pressure and accuracy. Check for grooves or cracks–these signal the need for replacement regardless of round count.
Inspect the case resizing die after 2,000 firings, especially with brass prone to sticking (e.g., military surplus). Look for:
- Visible scratches inside the neck or body
- Loose fit when sizing (brass doesn’t snap back crisply)
- Excessive lube residue buildup
If any of these appear, swap the die–continuing use risks case head separation.
The primer seating punch wears fastest with corrosive primers or high-pressure loads. Signs of failure include:
- Primer pockets that feel loose after seating (use a depth gauge; ±0.002″ tolerance)
- Visible flattening or cupping of the punch tip
- Primer flash holes showing burrs (indicates punch misalignment)
Replace after 3,000 rounds or at the first sign of inconsistency–factory specs prioritize precise seating depth to avoid slam-fires.
Examine the expander ball every 1,000 rounds for brass flowing into microscopic grooves. A telltale sign is neck tension that weakens mid-batch; test by pulling bullets with a scale–variances over 0.5 lbs indicate wear. Hardened coating wears faster than carbide, so check more frequently with non-carbide units. Always pair replacement with neck annealing to extend component life.
Swap out decapping pins if they bend (visible under 10x magnification) or develop a hook-shaped tip. A deformed pin risks:
- Puncturing flash holes, creating jagged edges
- Leaving primer debris in cases, fouling subsequent reloading
- Skipping primers entirely (common with crimped military brass)
Replace after 1,200 rounds or if decapping requires extra force–standard pins are 0.08″ diameter; measure with calipers to confirm wear.
Lubrication and Adjustment Impact
Even minor misalignment in the ram stroke accelerates wear on mating surfaces. Symptoms include:
- Case heads not seating fully into the shell holder (check with a flashlight)
- Uneven primer seating (test with a straightedge across the case heads)
- Noise–grinding or clicking during operation
Clean and relube the ram every 500 cycles; if issues persist, inspect the linkage for bent or loose screws. Factory torque specs for mounting bolts are 15-20 ft-lbs–overtightening distorts frames, subtightening causes slop.
