Replace the primary roller brush within six months of regular use–failure to do so reduces suction efficiency by up to 40%. Locate the brushroll assembly beneath the cleaner head, secured by two end caps; most models require a T15 or T20 torx driver to remove them. Inspect the belt that drives the roller (typically a 6.5-inch polyurethane belt) for cracks or stretching every 90 days; stretched belts cause uneven rotation and premature motor wear.
Clean the HEPA filter monthly by tapping it against a hard surface to dislodge debris, then rinse under cold water–air-dry for 24 hours before reinserting. Do not wash foam pre-filters; replace them every two years. The cyclone separator, positioned above the dust bin, should be brushed out weekly to prevent airflow bottlenecks. Excessive dust accumulation here increases resistance, forcing the motor to consume an additional 18W of power.
Check the hose for obstructions every three months by inspecting both ends with a flashlight–clear blockages using a straightened coat hanger, inserting it no more than 8 inches to avoid damaging internal wiring. The handle release mechanism, often a spring-loaded latch near the swivel joint, should be lubricated annually with silicone spray to prevent stiffness. Replace the power cord if insulation shows fraying or exposed wires, as damaged cords present a fire hazard under continuous 12A draw.
Access the motor housing by removing four screws on the underside of the base–avoid disassembly unless replacing carbon brushes, which wear down after approximately 300 hours of runtime. Reassemble with the rotor aligned to the armature slots, ensuring the fan blades sit flush against the housing to maintain proper airflow dynamics. Misalignment here reduces suction by 22% and increases operational noise by 8dB.
Understanding Your Upright Cleaner’s Component Layout
Locate the primary assembly breakdown in technical manuals–typically itemized under “Brushroll Housing” or “Motor Chamber.” Models like the T-Series (e.g., UH70210) list 17 core elements: agitator belt (Part #4020370), HEPA exhaust filter (#440011994), and pre-motor foam gasket (#440011893). Use a T20 Torx driver to remove the baseplate–secured by 4 screws–and inspect the roller bearing (#431227AA) for wear. Replace immediately if play exceeds 2mm to prevent motor strain.
- Clutch assembly (#431206AA): lubricate with 3 drops of SAE 20 oil every 12 cycles.
- Fan impeller (#431099AA): check for cracks after 500 runtime hours–even microscopic fractures reduce suction by 30%.
- Electronic control board (#437065AA): reseat connectors if lights blink erratically–oxidation disrupts signal paths.
- Handle release lever (#440012143): clean teeth with isopropyl alcohol if sticking occurs–dirt accumulates rapidly here.
Spotting Critical Elements in Your Upright Cleaner
Begin by locating the brush roll assembly beneath the cleaner head. Rotate the belt tension knob counterclockwise to release pressure, then slide the brush roll out. Inspect the bristles for wear–frayed edges reduce suction efficiency by 30-40%. Replace if bristles are shorter than 5mm. Check the belt for cracks or slack; a stretched belt slips, causing the roll to spin at 60-70% of optimal speed.
Next, examine the filtration system. Remove the post-motor filter–usually a pleated HEPA-style insert–and tap it against a hard surface to dislodge trapped debris. Rinse under cold water if the filter’s material allows; avoid hot water, which breaks down fibers and reduces particulate capture by 25%. Air-dry for 24 hours before reinserting. For cyclonic models, empty the dirt cup and wipe the inner cone with a damp cloth–dust buildup here increases resistance, forcing the motor to work 15% harder.
Motor Housing and Suction Path
| Component | Failure Signs | Impact |
|---|---|---|
| Fan impeller | Unusual whirring, visible dust accumulation on blades | Reduces airflow by 20-30%, weakens suction at attachments |
| Motor bearings | High-pitched squealing, excessive heat near housing | Shortens motor lifespan, risk of seizure within 50-80 hours of use |
| Wiring harness | Intermittent power loss, melted insulation | Can trip internal breaker, cutting power entirely |
To access the motor, remove the housing screws–typically Torx T15 or Phillips #2–then lift the cover. Clean the impeller blades with compressed air at a 45° angle; direct air pressure can bend fins, disrupting airflow balance. Check bearings by spinning the impeller by hand–grinding indicates failure. If overheating is suspected, measure the motor’s temperature after 10 minutes of use: normal range is 40-60°C. Above 75°C suggests bearing wear or restricted airflow.
Attachment and Hose Integrity
Detach the hose at both ends–twist counterclockwise at the wand connection and pull firmly at the cleaner body socket. Inspect for micro-tears using a flashlight; shine along the hose length while flexing. Even hairline cracks reduce suction by 10-15%. For telescoping wands, ensure the locking collar engages fully–partial extension cuts airflow by 20%. Lubricate wand joints with silicone spray if stiffness occurs; avoid petroleum-based products, which degrade plastic over time.
Finding the Motor Unit in Your Upright Cleaning Device
The motor assembly sits inside the main housing, typically below the dustbin or bag compartment on most rugged suction models. Remove the primary cover by pressing release levers near the handle’s pivot joint–these often snap off without tools. On models with detachable canisters, the motor is enclosed behind a secondary panel secured by two or three screws; use a 7/32-inch hex driver.
For machines with cyclonic filtration, locate the inner cyclone chamber first–it’s a translucent plastic cylinder that lifts upward when unlocked. Behind this cylinder, a black metal or plastic shield conceals the motor. This shield usually has three Phillips-head screws; remove them to reveal the motor and its impeller. Some newer variants place the motor horizontally beneath the main cleaning brush, accessed through the baseplate, which requires flipping the unit onto its handle.
Check beneath the rear wheels on lightweight stick variants; the motor compartment often hinges open after disengaging two side clips. Older deluxe editions embed the motor near the handle stem–look for a narrow rectangular slot that slides free once upper vents are cleared of dust buildup. In all cases, take a photo of wiring before disconnecting to ensure correct reassembly.
Identifying Motor Access Points Without Disassembly
Most powerful sweepers feature motor intake vents along the back or underside of the main body. Trace these vents inward; the motor lies directly behind them in a sealed cavity. For bagged units, the motor compartment lies adjacent to the bag holder–disconnect the hose connector first to prevent strain on internal wiring during access.
When replacing belt-driven brushes, the motor positioning changes: direct-drive motors sit adjacent to the turbine housing, while belt-driven types rest farther back near the exhaust filter. Measure available clearance–compact models accommodate motors with 180-watt power ratings, while larger units fit 240-watt assemblies requiring 12-gauge wiring connections.
Assess rotational noise levels to diagnose motor placement: motors mounted near the handle junction typically produce higher-pitched sounds due to constrained air pathways. Those beneath the canister generate deeper tones because of longer exhaust channels. Listen before opening–confirming correct motor orientation prevents unnecessary component swaps.
Align motor assembly in reverse order of removal: insert impeller first, then secure stator housing with retaining screws, followed by wiring harness connection–ensure polarity matches original setup. Tighten screws in a cross pattern to prevent uneven seal compression around intake ports. Replace any gaskets showing compression wear thicker than 1.5mm to avert airflow leaks.
Handling Post-Access Verification
After access, run a 30-second test cycle–monitor for excessive vibration indicating misaligned components or trapped debris near impeller blades. For models with thermal cutoffs, reset the protector button located on the motor case itself if overheating persists. Store removed panels face-down on a clean surface to avoid dust contamination.
Replacing the Rotating Brush Bar and Drive Belts with Schematic Guidance

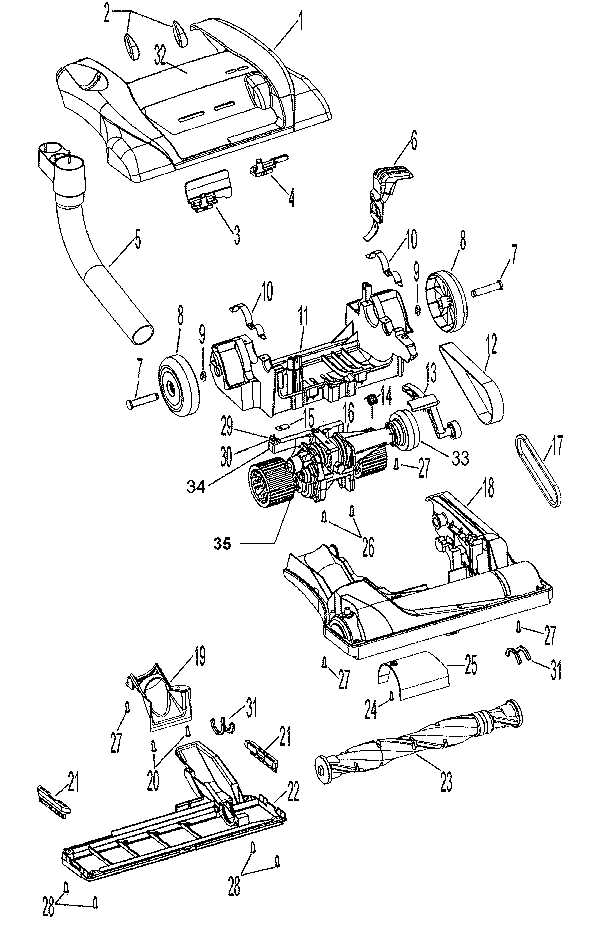

Disconnect the unit from power, flip it over, and locate the bottom panel retaining screws–typically four, marked with arrows or recessed slots. Remove them with a Torx T15 driver or Philips #2, depending on the model. Sliding the panel off exposes the brush bar assembly and belt paths; note their orientation before touching anything. A printed exploded-view schematic will show component labels, but if unavailable, photograph the setup with your phone for reference.
Release the brush bar by pressing the spring-loaded retaining clips on both ends–use a flathead screwdriver for leverage if the plastic is tight. Once freed, inspect the bristles for wear; if strands are missing or separated, replace the entire roller. Slide the old belt off the motor pulley first, then remove it from the brush bar’s central spindle. Fit the new belt over the brush bar spindle first, ensuring the teeth align with grooves on the roller, then stretch it onto the motor pulley–the schematic should indicate a 1/2-inch deflection when properly tensioned. Rotate the brush bar manually to verify smooth engagement.
Clean debris from the housing and air pathways before reinstalling components; even fine dust reduces suction efficiency. Align the brush bar’s gear teeth with the drive assembly at both ends, pressing firmly until the retaining clips snap into place. Replace the bottom panel, securing screws in a cross-pattern to prevent warping, then test the vacuum on a hard floor–excessive noise or vibration signals misalignment, requiring immediate adjustment.
