Replace or repair components efficiently by referencing a labeled illustration of the 3.5 horsepower engine’s internal structure. Locate the air filter assembly at the upper rear–accessible after removing the protective housing–while the carburetor sits adjacent, connected by a short intake manifold. The ignition coil and flywheel occupy the left side, shielded by a cast cover; markings on the flywheel indicate stator positioning for timing calibration.
For the piston-cylinder group, note the crankshaft orientation: the crankpin aligns horizontally when the piston reaches top dead center. The valve train (intake and exhaust) resides beneath the cylinder head–identify valve springs by their coiled design and rocker arms by their articulated shape. Lubrication relies on a splash-fed system; the oil dipstick’s hash marks correspond to a range of 0.35–0.40 liters for optimal operation.
Critical fasteners include the cylinder head bolts torqued to 10–12 Nm and the flywheel nut requiring 40–50 Nm. The muffler attaches via two M6 bolts; remove it to access the exhaust port for cleaning carbon deposits. When reassembling, apply thread locker (Loctite 243) to bolts prone to vibration, such as those securing the blade adapter or recoil starter assembly.
For electrical diagnostics, trace wires from the spark plug cap to the coil–resistance should measure 5–10 kΩ. The recoil spring must wind clockwise; replace the entire starter if fraying is visible. When sourcing replacements, match part numbers stamped on components (e.g., air filter element 17211-ZE1-000) to ensure compatibility with emissions-compliant variants.
Inspect the governor linkage for wear: the external arm should move freely without binding, while the internal gear (visible after removing the side cover) must engage smoothly with the throttle mechanism. If performance drops, check the fuel filter–a clogged unit restricts flow, mimicking carburetor issues. Replace it if sediment exceeds 1mm in depth.
Engine Model 120 Component Layout: A Hands-On Walkthrough
Locate the crankshaft pulley at the front of the assembly–it’s compatible with standard 10 mm and 12 mm bolts, depending on whether your setup includes a keyway. Measure the groove depth if installing a new belt; deviations beyond 0.3 mm indicate worn bearings requiring replacement. The pulley’s inner diameter must match the shaft’s 15 mm taper–no variations.
Before disassembling the cylinder head, note the valve adjustment sequence: exhaust valves sit 0.20–0.23 mm clearanced, intake valves 0.15–0.18 mm. Use shim sizes ranging from 1.8 mm to 3.2 mm in 0.05 mm increments. Incorrect clearance triggers misfires at idle when ambient temps exceed 25°C. Keep a micrometer within ±0.01 mm tolerance.
The carburetor’s main jet (#95) and pilot jet (#35) should be cleaned with 0.3 mm wire only–no compressed air, which can dislodge brass fittings. Soak the float bowl in non-ethanolic cleaner for 15 minutes if fuel varnish clogs the passages. Reassemble with a new needle valve (OEM #16100-Z5R-T01) to prevent flooding; aftermarket alternatives often leak at ≤3 psi.
The ignition coil requires a 1 mm air gap between the flywheel and stator. Secure it with Loctite 242 (medium-strength threadlocker) to prevent loosening under vibration. Test spark output at 12,000 RPM–readings below 12 kV suggest worn magnets or corroded spark plug cap threads (M14 × 1.25). Replace the cap if resistance exceeds 5 kΩ.
For the camshaft, verify that the timing marks align at ±1 tooth on the sprocket. A misalignment by 2 teeth reduces compression by 18% at 3,600 RPM. Lubricate lobes with molybdenum disulfide grease during installation; standard motor oil breaks down within 25 operating hours. Check camshaft endplay–maximum allowable is 0.12 mm, measured with a dial indicator.
- Piston rings must be installed in this order: top (compression), second (scraper), oil control. Stagger gaps by 120° to prevent blowby. Use piston ring pliers–force fitting damages chrome plating on the cylinder wall.
- Flywheel nut torque: 55 N·m. Over-tightening warps the rotor; under-tightening causes slippage at ≥7,000 RPM.
- Oil pump gears mesh at 0.07–0.14 mm backlash. Replace gears if wear exceeds 0.03 mm on the involute profile.
The exhaust manifold gasket must be copper (aftermarket paper gaskets fail within 50 hours at sustained loads above 4,000 RPM). Apply a bead of high-temp silicone (350°C+ rated) around coolant ports to prevent seepage. Bolt sequence: tighten in 3 steps–20 N·m, 35 N·m, then final 45 N·m to avoid warping the flange.
For the governor mechanism, set the lever to 24° ±1° from the vertical axis using a protractor. Adjust the spring tension so the engine stabilizes at 3,600 RPM ±100 RPM under load. Loose springs cause hunting; overly tight springs induce stalling at idle. Use only stainless steel washers (M6 × 1.0) to prevent galling at pivot points.

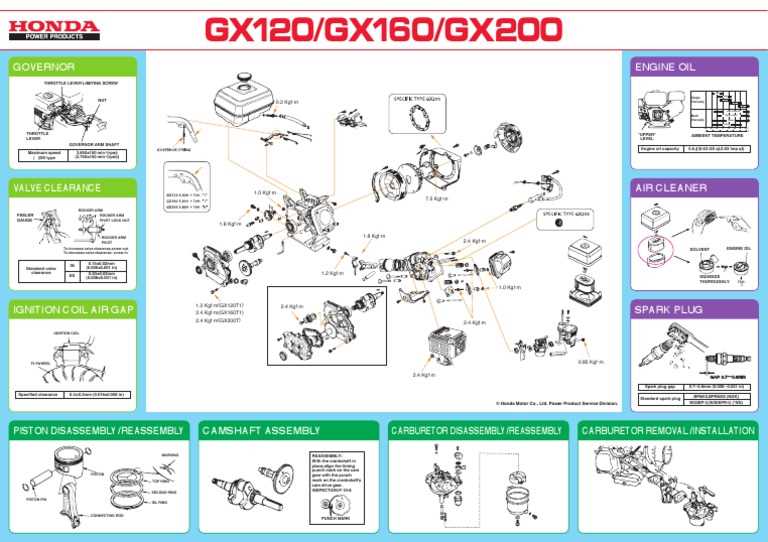

Locating the Authorized Engine Component Breakdown Illustration
The most reliable source for the official breakdown illustration of this 4-stroke powerplant is the manufacturer’s technical resources portal. Navigate to the “Service Manuals” section, filter by “GX series,” and select the model variant matching your engine’s displacement code–typically listed as “L15” for standard versions. PDF downloads are instant, with plate numbers corresponding to each assembly stage.
For off-site access, authorized distributors like eReplacementParts host mirrored copies of OEM schematics. Search using the engine’s serial number (located on the valve cover or crankcase) to pull exact revisions. Avoid third-party forums; discrepancies in aftermarket sketches can misalign fasteners by 2-3mm.
Alternative Verified Outlets
- Regional dealerships: Request the “IPC” (Illustrated Parts Catalog) by email; response times average 24 hours.
- PartsTree: Direct OEM linkages, but requires model-specific filters for carburetor or governor sub-assemblies.
- Salvage yards: Scan QR codes on disassembled units–some link to archived factory blueprints.
Engine-specific platforms like Small Engine Warehouse overlay exploded views with part numbers. Cross-reference these with the engine’s stamp: “EM” prefixes indicate emissions-compliant variants requiring distinct gasket kits. Downloads expire after 72 hours; save files immediately.
Critical Engine Elements in the GX120 Illustrated Inventory
Identify the flywheel magneto first–it’s the most frequent failure point in single-cylinder horizontal shaft units. Replace worn magnets or the entire assembly if resistance tests show readings below 50 ohms between ignition coil terminals. Skipping this check risks inconsistent spark delivery, leading to rough idle or hard starts. Keep a multimeter handy during disassembly to verify each component before ordering replacements.
Inspect the piston and cylinder kit annually if operating in dusty conditions. The GX120’s bore measures 60mm, with a 0.002–0.003 inch clearance tolerance–deviations beyond this accelerate ring wear. Replace rings if end gaps exceed 0.023 inches; failure to do so reduces compression to sub-100 PSI, crippling power output. Always hone the cylinder walls during rebuilds to ensure proper ring seating and oil retention.
Lubrication System Essentials
Prioritize the oil pump housing and gerotor clearance checks. The inner rotor should spin freely with no more than 0.0015 inches lateral play; tighter tolerances cause insufficient lubrication, while excessive play allows oil bypass. Clean the strainer every 50 hours–clogged screens starve the pump, welding premature bearing failure. Use SAE 10W-30 synthetic blend to maintain optimal viscosity under 120°C operational loads.
Never overlook the governor linkage adjustments–improper calibration leads to erratic RPM swings. The throttle lever should sit 2mm from the idle speed screw when disengaged. Tighten all pivot points; worn bushings introduce slack that disrupts smooth engine response. For precision, use a tachometer while fine-tuning to ensure stable operation at 3600 RPM under load.

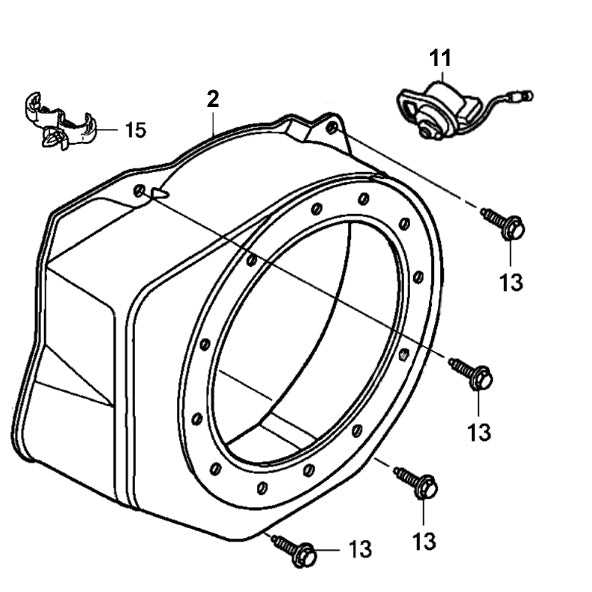

Matching Engine Components with Precision Using Schematic Guides
Locate the serial number stamped on the engine block, typically beneath the muffler or near the recoil starter. Cross-reference this with the corresponding illustration in the service manual–section 3.1 outlines major assemblies (crankcase, cylinder head) while section 4.2 details smaller elements like gaskets and fasteners. For example, a GX120-3 variant uses a 0.3 mm thicker head gasket (part code 12251-ZE1-305) than the base model, visible in the exploded view on page 18. Measure critical dimensions: valve clearances (0.10–0.15 mm intake, 0.15–0.20 mm exhaust) and piston ring end gaps (0.15–0.35 mm) before ordering substitutes. Many aftermarket suppliers list components by generic names; verify compatibility by comparing the component’s physical profile against the manual’s silhouette drawings.
Reference Table for Common Substitutes
| Component | OEM Identifier | Aftermarket Equivalent | Key Specification |
|---|---|---|---|
| Air filter | 17211-ZE1-000 | K&N HA-8004 | 25 micron, dual-stage foam/paper |
| Piston assembly | 13010-ZE1-300 | Wiseco FOR258P | 67.0 mm bore, chromoly ring set |
| Crankshaft | 13300-ZE1-630 | Criterion CRK12X | Balanced, hardened journals |
Use calipers to confirm shaft diameters against the blueprint–crankpin journals must not deviate more than 0.01 mm. Shops often mislabel gaskets for similar engines; the GX120’s intake manifold gasket (part 12244-ZE1-000) differs from the GX160’s by 3 mm in port spacing, despite identical bolt patterns. When sourcing carburetors, note venturi diameter (22 mm for standard models, 24 mm for ethanol-compatible “E” variants) and idle mixture screw thread pitch (M5 x 0.8). Document every deviation from the schematic; a 0.5 mm oversized piston requires matching cylinder bore honing, which third-party kits may not include.
