Start by locating the model number stamped on the engine housing–typically near the exhaust or recoil starter. This eight-digit identifier ensures you select compatible replacements instead of generic knockoffs that may fail prematurely. Manuals from the manufacturer often include exploded views on pages 12-15, though online sources frequently omit page numbers, so check the footer or index for “assembly breakdown” or “component layout” instead.
Replace the air filter every 20 operating hours, not just when it appears dirty. Clogged filters increase fuel consumption by up to 30 % and reduce engine lifespan. The correct filter element measures 52 mm in diameter with a 14 mm center hole–dimensions that differ from aftermarket alternatives labeled “universal,” leading to poor fit and inefficient filtration.
Inspect the cutting head assembly for wear every 5 tanks of fuel. The spool housing should rotate freely without grinding sounds; if resistance is present, grease the gearbox with SAE 80W-90 lubricant designed for small engines–automotive gear oil will damage seals. Replacement heads for curved-shaft models require a specific pitch (22.5°) and thread pattern (M10 x 1.25), incompatible with straight-shaft units that need a 24 mm hex drive.
Spark plugs last approximately 100 hours but degrade faster under heavy loads. Remove and check the gap weekly; the correct NGK BPMR7A or equivalent should measure 0.7-0.8 mm. Wider gaps cause hard starting, while narrower gaps produce weak sparks, both reducing cutting efficiency. Avoid sandpaper or metal tools for cleaning–they scratch the ceramic, leading to misfires.
Fuel lines crack after 12-18 months of storage, even if unused. Replace both the intake and return lines simultaneously to prevent premature failure. The inner diameter should match the carburetor outlets–3 mm for most models, 4 mm for heavy-duty versions. Use ethanol-resistant tubing rated for small engines; automotive fuel hose will degrade within weeks when exposed to gasoline mixtures.
Adjust the carburetor only after verifying the air filter, spark plug, and fuel system are in optimal condition. Start with the idle screw set at 1.5 turns out from seated position. Turn the low-speed adjustment clockwise until the engine hesitates, then back off 1/8 turn. High-speed adjustments should be made at full throttle, listening for a smooth, consistent sound–over-adjustment can burn the piston.
Identifying Key Components of Your Garden Tool
Locate the ignition coil near the engine housing–it’s typically secured by two screws or bolts. If your unit fails to start, test the coil with a multimeter: resistance should read between 2.5 and 5.0 kOhms. Replace it if values fall outside this range, as a faulty coil disrupts spark generation.
Clean the air filter monthly using compressed air or mild detergent. A clogged filter reduces engine efficiency by 20-30%, increasing fuel consumption. Inspect the carburetor gasket simultaneously; cracks or warping cause air leaks, leading to erratic idling or stalling. For precise adjustments, refer to the manufacturer’s torque specifications–usually 7-9 Nm for carburetor mounting bolts.
Common Wear-and-Tear Components
| Component | Lifespan | Failure Signs | Replacement Cost (USD) |
|---|---|---|---|
| Spark plug | 50 hours | Fouling, misfires | 3–8 |
| Drive shaft | 200 hours | Vibration, clicking noise | 15–40 |
| Fuel line | 100 hours | Cracks, fuel leaks | 5–12 |
Tighten the cutting head bolts to 12-15 Nm to prevent slippage during operation. Regularly lubricate the gearbox with lithium-based grease–this extends bearing life by 40%. If the shaft shows excessive play, disassemble it and check the needle bearings; worn bearings create uneven cutting and premature blade wear.
Finding the Serial Identifier on Your Outdoor Power Tool
Check the engine housing or frame for a stamped metal plate–this is the primary location for the unit’s unique code. Most models display an alphanumeric sequence beginning with “UT,” “XL,” or “ZT,” followed by 6–10 digits, typically positioned near the recoil starter or muffler. If obscured by dirt or wear, use a flashlight and gently scrape debris with a plastic scraper to reveal the imprint. Avoid metal tools to prevent scratching the surface. For units manufactured after 2015, also inspect the rear of the debris shield or beneath the fuel tank; newer designs often relocate labels for durability.
Alternative label placements:
– Underside of the shaft (near the cutting head)
– Rear handle assembly
– Plastic shroud covering the crankcase
– Near the carburetor on older models
If the plate is missing, cross-reference the purchase receipt, warranty documents, or original packaging–the identifier may be printed there. Battery-powered variants hide codes on the battery compartment or inside the handle.
How to Methodically Take Apart Your Outdoor Power Tool for Component Mapping
Before touching any fasteners, place the equipment on a flat, stable surface and secure it with a clamp or vise to prevent movement. Identify the primary housing screws–typically four to six Torx or Phillips-head bolts–located beneath the engine shroud or handle assembly. Use a screwdriver that fits snugly to avoid stripping threads; apply steady pressure while turning counterclockwise. If resistance is met, check for hidden clips or adhesive residue holding the casing in place, especially around exhaust ports or air intake vents.
Removing External Assemblies Without Damage
Detach the starter cord mechanism first by pinching the recoil spring housing with needle-nose pliers and gently pulling outward. Keep tension on the spring to prevent it from unfurling uncontrollably. Next, unscrew the spark plug wire using a 5/16″ socket, then remove the flywheel cover by prying it upward with a plastic trim tool–metal tools may scratch aluminum surfaces. Label all removed pieces with masking tape and note their original position, particularly if dealing with asymmetrical components like fuel lines or throttle linkages.
Once outer panels are removed, focus on the carburetor. Disconnect the fuel line by pinching the hose clamp with pliers and twisting until the line slides free. Avoid spilling gasoline; place a rag beneath connections. The carburetor itself is held by two screws–remove these, then lift the unit straight upward to avoid bending the float valve. Inspect the intake manifold for gasket remnants; scrape off old material with a plastic scraper to ensure a clean reinstall.
Accessing Internal Mechanisms Safely
To reach the crankshaft or piston, remove the cylinder head by undoing four bolts in a diagonal pattern to distribute force evenly. Use a magnetized screwdriver to retrieve bolts that fall into crevices. If the piston rod is seized, apply penetrating oil (e.g., PB Blaster) and tap gently with a rubber mallet–never force removal. Examine the piston rings for scoring or carbon buildup; replace if gaps exceed 0.02 inches. For gearbox extraction, unbolt the driveshaft housing and pull the shaft straight out–avoid angling it, as this can damage splines.
Finally, separate the cutting head by unscrewing the retaining nut with a 12mm wrench while holding the spool steady. If threads resist, apply heat via a heat gun for 30 seconds to expand metal–this should loosen corrosion. Clean all disassembled pieces with a degreaser (e.g., Simple Green) and dry thoroughly with compressed air. Store components in labeled plastic bags or compartmentalized trays to prevent misplacement during reassembly. Verify each step against a service manual’s exploded view for accuracy before proceeding further.

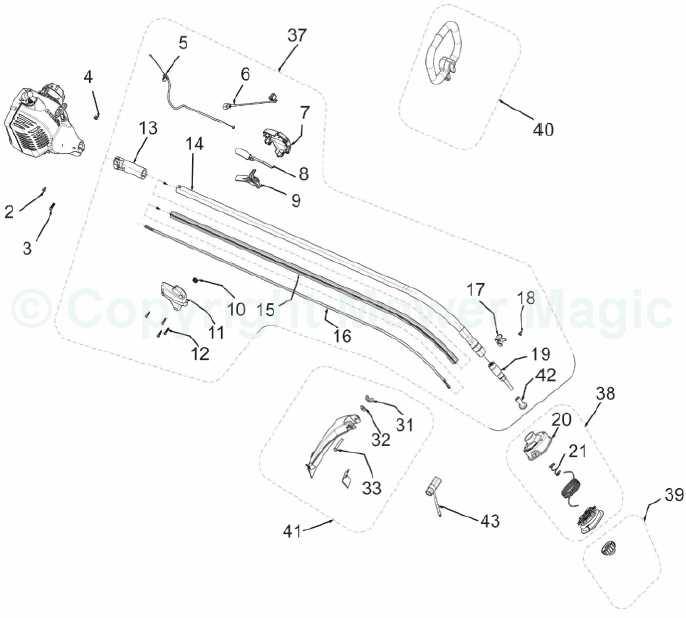

Best Online Sources for Genuine String Cutter Schematic Charts
Visit the manufacturer’s official support portal first. Most outdoor equipment brands host downloadable exploded views under their product resources section. For example, search for the model number followed by “service manual” or “parts breakdown” to locate high-resolution PDFs directly from the engineers.
- UTurn Tools (uturntools.com) offers a searchable database where each model’s schematic is paired with numbered item lists and OEM codes. Filter by gearbox, shaft, or motor assemblies for instant results.
- Jack’s Small Engines (jackssmallengines.com) maintains an archive of scanned factory blueprints. Look under “Equipment Diagrams” then navigate to the corresponding brush cutter category.
- eReplacementParts (ereplacementparts.com) provides interactive schematics where clicking a component reveals its part number and current stock status.
Check dedicated outdoor power tool forums. Enthusiast groups often upload rare manuals shared by members who disassembled units. Use forum search tools with phrases like “[model] gear assembly layout” or “fuel system breakdown” to find attachments.
Key Tactics for Locating Obscure Schematics
- Extract the full model code from the engine housing or decal–combine letters/numbers into a single search string (e.g., “ZL43-999”).
- Search auction sites for “NOS service packet”–original owners sometimes list unopened brochures containing fold-out blueprints.
- Email tool rental stores–they frequently receive surplus manuals from manufacturers and may forward digital copies.
Specialized repair shops sometimes publish custom exploded views on their websites. Look for shops that advertise “factory-trained technicians” as they often create annotated charts for complex reassembly. Add “exploded view” + “[model prefix]” to refine engine, clutch, or shaft breakdowns.
YouTube teardown videos occasionally include screenshots of the official schematics. Use video chapters or comments to jump to timestamps where the chart is displayed, then capture the frame with browser screenshot tools.
Alternative Sources
- Dealership portals–log into dealer-only sections with a generic account (try “demo/demo”) to access restricted downloads.
- University agricultural extensions–some maintain archives of machinery blueprints for student training.
- Local library digital collections–use OverDrive or Hoopla to borrow equipment repair manuals.
If digital methods fail, request a physical copy through interlibrary loan. Libraries catalog repair manuals under their non-fiction sections, and librarians can track down rare printed schematics from other branches or affiliated schools.
