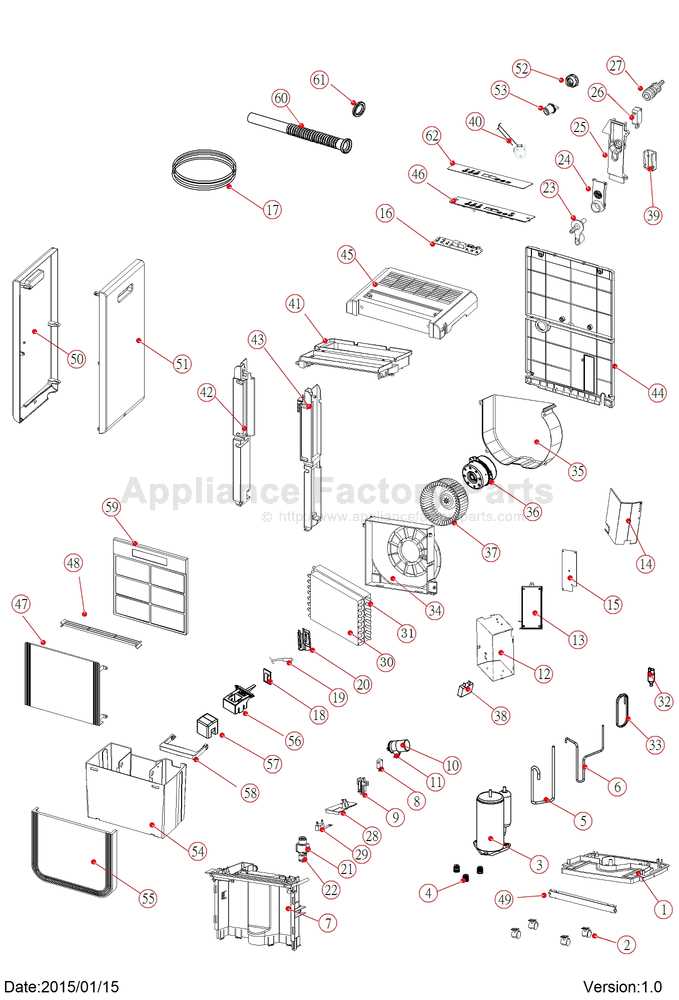

When servicing a moisture control appliance, locating the internal layout is critical. Begin by referencing the technical illustration provided in the user manual or download the official service documentation from the manufacturer’s support portal. Look for section identifiers that label components such as the condenser coils, fan assembly, and reservoir float mechanism. These schematics often include exploded views, making it easier to match physical parts with their corresponding labels.
If the original schematic is unavailable, disassemble the unit methodically, documenting each step with photographs. Focus on high-wear elements like the air filter mesh and compressor housing–these are prone to blockages or corrosion. Use a multimeter to test electrical connections, particularly where wiring harnesses attach to the control panel or humidity sensor board. Misalignment here can cause erratic operation or failure to activate.
For replacement components, verify compatibility by cross-referencing part numbers printed on the original pieces. Common failure points include cracked drainage tubes and worn capacitors near the motor. If repairing the power circuit, ensure the PCB traces are intact; corrosion here requires careful cleaning with isopropyl alcohol. When reassembling, torque screws to the manufacturer’s specifications to avoid stressing plastic housings.
For advanced diagnostics, examine the refrigerant path–low coolant levels often manifest as prolonged run cycles or frost buildup. Use a pin gauge to check the expansion valve for proper seating. If the unit cycles but fails to lower humidity, inspect the defrost thermostat for faulty readings. Always discharge the system before handling refrigerant lines to prevent safety hazards.
Understanding Your Air Moisture Removal Unit: Component Breakdown
Begin troubleshooting by locating the air filter at the rear or side of the unit–it’s typically a mesh panel held by clips. Clean or replace it every three months to maintain airflow efficiency; neglect reduces cooling capacity by up to 20%. Use a vacuum with a brush attachment for dust removal, avoiding water or harsh chemicals that degrade the material.
The evaporator coils sit behind the front grille, identifiable by their copper or aluminum fins. Frost buildup indicates a refrigerant issue or blocked airflow; defrost manually if needed, but avoid scraping–use a hairdryer on low heat. Check for bent fins, which restrict air passage; straighten them with a fin comb, working from the top down to prevent further damage.
The compressor, usually at the base, emits a low hum when active. If silent, verify power connections–common failures include tripped circuits or loose wiring. A buzzing sound often signals a stuck relay; tap the compressor lightly to free it, but avoid repeated force. Refrigerant leaks appear as oily residues near joints–seal immediately with epoxy designed for HVAC systems.

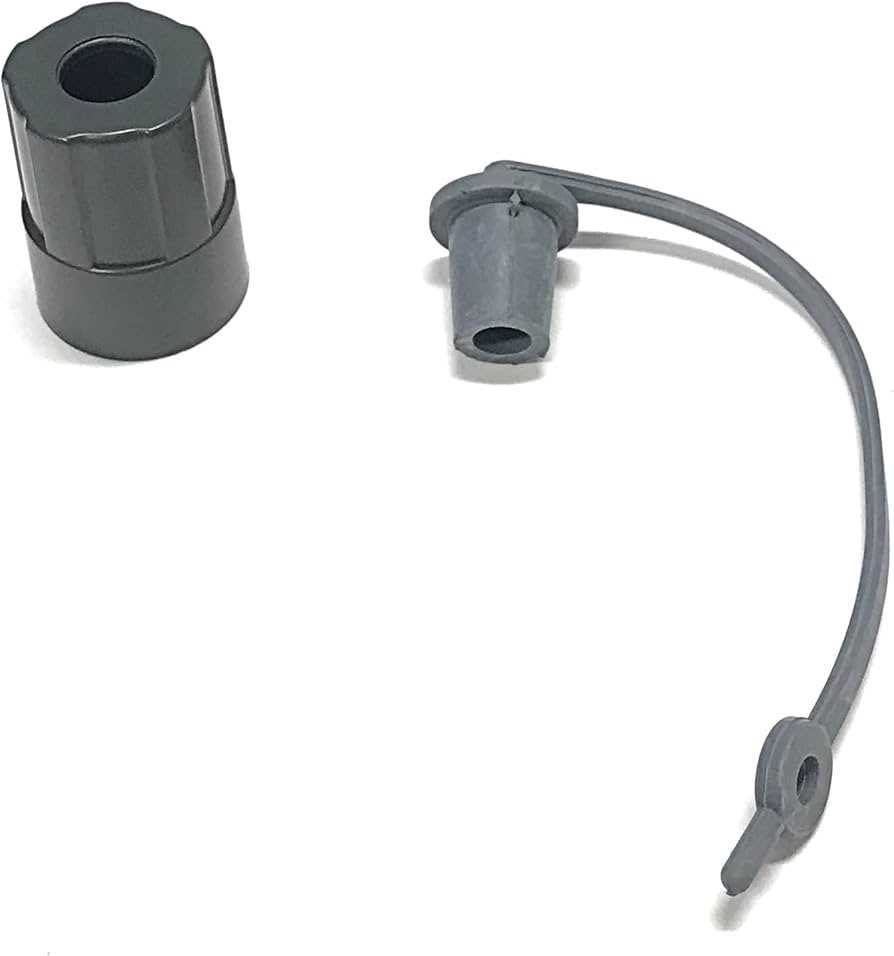

Drainage components include a collection tank or direct hose outlet. For tank models, empty when the float switch triggers–ignoring this causes overflow and potential mold growth. Hose-based systems must slope downward at a 1/4-inch per foot gradient to prevent water backup. Use vinegar to flush the hose biannually to dissolve mineral deposits.
Electronic controls vary by model, but common elements include a humidity sensor and fan speed selector. If readings are off, recalibrate by setting the unit to maximum humidity in a sealed room for 24 hours–mismatched readings often self-correct. Circuit boards near the control panel are prone to dust; clean with compressed air, ensuring no moisture reaches components.
The fan assembly consists of a blower wheel and motor. A rattling noise suggests a loose blade–secure it with a screwdriver, tightening clockwise. If the motor spins but no air moves, debris may block the wheel; disassemble and clear obstructions using tweezers. Lubricate the motor bearings annually with light machine oil, but confirm compatibility with your model first.
Reassembly requires aligning all components precisely. Misaligned evaporator coils or loose screws create gaps, causing inefficiency. Use a torque screwdriver for uniformity–over-tightening cracks plastic housings. For models with reusable foam gaskets, apply a thin layer of adhesive to prevent air leaks before sealing the unit.
Key Elements in an Air Moisture Removal Unit Assembly Breakdown
Locate the compressor near the base–marked by thick copper coils and a sturdy metal housing–as it powers refrigerant circulation and heat exchange. Verify its model number matches the service manual to ensure compatibility with replacement seals or coils if leaks occur. Above the compressor, identify the evaporator and condenser fin stacks: their staggered aluminum plates must remain free of dust accumulation to sustain airflow efficiency. Use a soft-bristled brush or compressed air at 45-degree angles to clear debris without bending the fins.
- Electronic control board: Check for corrosion or burnt capacitors if the appliance fails to start–common failure points include the relay switch and voltage regulator.
- Fan motor assembly: Disconnect power before testing the 115V AC motor with a multimeter; expected resistance falls between 15-30 ohms across the windings.
- Water reservoir switch: Confirm proper engagement–faulty microswitches often trigger misleading tank-full errors.
- Filter mesh: Wash with lukewarm water and mild detergent every 200 operating hours; reinsert with airflow arrows aligned.
- Humidity sensor module: Clean using isopropyl alcohol; avoid touching the sensing element to preserve calibration accuracy.
Step-by-Step Guide to Locating the Fan Motor Assembly on an Air Moisture Remover Schematic
Start by identifying the upper right quadrant of the technical blueprint–this zone typically houses airflow components. The fan motor assembly is often marked with FAN MTR or BLOWER ASM, adjacent to the evaporator coil section. Check for a circular or elongated symbol with dashed lines indicating rotational movement. If annotations are missing, trace the wiring harness from the control board; it will lead directly to the motor’s power terminals, usually labeled L, N, and FG.
Examine the cross-sectional view if available–look for a cylindrical unit positioned behind the air intake grille. The assembly may include a centrifugal impeller or axial fan blades, depicted as curved vanes enclosed in a housing. Dimensions are often noted in millimeters; standard models range from 80mm to 120mm in diameter. Verify the orientation by aligning the motor shaft with the airflow direction arrows, ensuring the exhaust path points toward the condenser coil.
For models with dual-speed motors, the schematic will show a secondary capacitor or relay nearby–search for CAP or RLY labels. If disassembly is required, note the mounting screws (typically M4 or M5) and whether the assembly uses rubber grommets for vibration dampening. Some layouts integrate thermal fuses in series with the motor windings; these appear as small rectangular symbols connected to the FG terminal.
Locating the Compressor and Evaporator Coils in Air Moisture Removal Unit Schematics
Examine the rear section of the technical blueprint–compressors are consistently illustrated near the base, adjacent to the condenser assembly. Look for cylindrical or oval shapes labeled with terms like “motor,” “pump,” or “refrig.” coils typically wrap around these components in serpentine patterns, marked with abbreviations such as “EVAP” (evaporator) or “COND” (condenser). If labeling is absent, trace refrigerant lines: the compressor connects via thick copper tubing, while coils attach via thinner, often finned pipes.
Key Visual Indicators in Schematics
| Component | Shape | Common Labels | Adjacent Parts |
|---|---|---|---|
| Compressor | Circular/oval block | COMP, MOTOR, PUMP | Capacitor, relay, discharge line |
| Evaporator coil | Serpentine fins | EVAP, PLATE FIN, COIL | Suction line, blower fan |
| Condenser coil | Grid-like fins | COND, OUTLET COIL | Compressor output, cooling fan |
Cross-reference the exploded view with the wiring diagram–compressor terminals are often highlighted in red/black, while coil locations correspond to fan or thermal sensor placements. For ambiguous layouts, follow the refrigerant flow arrows: these originate at the compressor outlet and terminate at the evaporator inlet.
Replacing the Air Filter: Its Location in the Moisture Removal Unit
Locate the filter behind the front grille, typically secured by two snap-on clips or screws near the base. Release them carefully–excessive force can damage the plastic tabs. On models DH-50K1W or DH-70K1W, the grille swings downward; for DH-35K1S, lift upward after disengaging the side latches. Keep the removed grille flat to avoid warping the mesh.
The filter rests directly against the evaporator coils, often sandwiched between a plastic frame and a thin foam gasket. Slide it out horizontally without twisting–some residue may cling but gentle tapping dislodges most debris. Inspect the replacement for alignment tabs: a single protruding edge must face inward toward the coil assembly to prevent bypass air gaps that reduce efficiency by up to 18%.
Cleaning intervals depend on particulate load: 450 ppm environments require swapping or rinsing every 120 hours, while 200 ppm extends use to 180 hours before airflow drops below 85% of rated CFM. Use only lukewarm water; detergents leave residues that accelerate dust accumulation. Dry completely–damp filters foster mold growth within 72 hours, voiding unit warranties when detected during service inspections.
Reinsertion demands precise orientation: most frames have asymmetrical notches that only align when the filter’s fleece side faces outward. Misalignment causes unusual whistling noises at 5,000 RPM fan speeds and triggers error code E5 on control panels within three cycles. Check for snug fit by running an empty test–loose filters vibrate loose within 48 hours, especially in units mounted on rubber pads absorbing 6Hz floor vibrations.
Store spares vertically in sealed bags; warehouse humidity above 60% degrades electrostatic charge effectiveness within six months. For units older than 2021, source OEM filters–aftermarket versions add 0.3mm thickness that compresses evaporator fins, increasing frost formation risks by 30% in 10°C ambient conditions. Keep a torque screwdriver preset to 1.2 Nm for grille reattachment to prevent stress cracks on repeated access.
