For accurate component identification during servicing, reference schematic HWD-PFS-244T-RevB. This document covers assemblies manufactured after January 2020, aligning with updated pressure vessel certification standards. Locate the assembly number engraved on the tank flange–serial numbers beginning with SN: PFX244-XXXXX indicate compatibility with this reference.
Critical replacement items include the multiport valve sealing gasket (Part #8050), pressure relief assembly (#8105), and lateral cluster (#8320-1Z). Always verify thread compatibility–lateral stems require 1.5″ NPT while backwash outlets use 2.0″ ACME. Use Teflon tape rated for 150 PSI during reassembly to prevent bypass leaks.
When disassembling the filter head, label hose connections with corresponding port numbers (1-6) to prevent misalignment during reinstallation. Valve body internal components (rotor, diverter plate, and spider gasket) should be cleaned with citric acid solution (5% concentration) rather than abrasive tools–this preserves the 316L stainless steel surface treatment.
Testing protocols require static pressure checks at both 20 PSI (operational) and 30 PSI (safety threshold). Replace the pressure gauge if needle fluctuation exceeds ±2 PSI over a 30-minute cycle. For sand media, use #20 silica with a uniformity coefficient of 1.5–coarser grains reduce backwash efficiency by 18-22% while fine particles increase pressure loss by 35%.

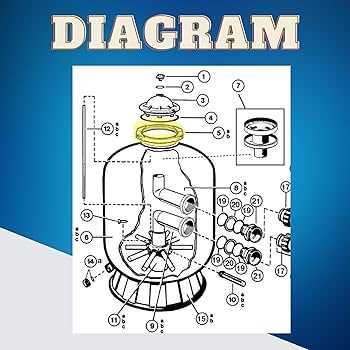

Exploded View Guide for Model S244T Filtration Components
Verify component alignment before disassembly–common failures occur when O-rings on the clamp band #301 are mispositioned. Apply silicone lubricant sparingly; excess causes seal degradation within 48 hours under UV exposure.
Replace the multiport valve diaphragm #403 every 18–24 months if operating in chlorinated environments above 3 ppm. Pre-order diaphragms during off-season to avoid backorders from suppliers.
Inspect the sand bed depth annually–ideal measurement is 12 inches from the lateral assembly #287. Add 50 lbs of #20 silica when depth drops below 10 inches to prevent channeling and uneven flow distribution.
Tighten clamp band bolts #305 in a cross-pattern sequence with 15 ft-lbs torque–over-tightening strips threads, requiring full tank replacement if damaged.
The pressure gauge #417 should register 15–25 PSI during normal operation. Readings above 30 PSI indicate clogged laterals or excessive sand accumulation–backwash immediately to avoid pump strain.
Lubricate the union gasket #322 with non-petroleum grease to prevent sticking during winterization. Use a PTFE-based product; petroleum dissolves rubber seals within 6 months.
Check the air relief valve #423 weekly–malfunctioning valves allow air pockets that reduce filtration efficiency by 40%. Replace if bleeder hole shows corrosion or mineral buildup.
Store replacement laterals #287 in a dry environment–moisture causes brittle plastic over 12 months, leading to stress fractures during reinstillation. Use silica gel packets in storage containers for moisture control.
Key Components of the Pro Series S244T Sand Filtration Unit
Locate the multiport valve at the top of the filtration system–its six positions dictate water flow and require inspection every three months. Replace the internal gasket if water leaks between settings, particularly after winterization. Verify that the handle locks securely into each position, as misalignment can bypass filtration entirely.
The filter tank’s pressure gauge serves as the primary diagnostic tool. A rise of 8-10 psi above the clean reading signals debris accumulation requiring backwashing. Ignoring this increase risks damaging the laterals or causing sand migration into plumbing. Calibrate the gauge annually with a manual test kit for accuracy.
- Sand bed: Use #20 silica sand (250-300 lbs) for optimal performance, avoiding play sand or alternatives. Replace every 5-7 years, sooner if turbidity persists after backwashing. Check for channeling by shining a light through the sight glass during operation.
- Laterals: These eight plastic fingers beneath the sand bed distribute water evenly. Cracks cause sand loss–inspect during full media replacement. Reattach any detached laterals immediately to prevent uneven filtration.
- Standpipe assembly: The central tube connects the multiport valve to the laterals. Secure the clamp tightly to avoid water bypass; loose fittings erode sand bed integrity.
Critical Maintenance Checks
Backwash the system for 2-3 minutes weekly during peak usage, or until the sight glass runs clear. Extend backwashing to 4 minutes if visible debris accumulates. Winterize by blowing out plumbing lines with compressed air at 40 psi–residual water freezes and cracks the tank or laterals.
The drain plug at the tank’s base requires annual removal to purge sediment. Replace the O-ring if stripped threads prevent a watertight seal. For systems with a bleeder valve on the multiport, open it during startup to eliminate air pockets that reduce filtration efficiency.
- Inspect all PVC fittings for stress cracks, especially in regions with temperature swings below 40°F (4°C). Patch small cracks with silicone; replace sections if hairline fractures exceed 0.5 inches.
- Check the waste line during backwash–improper drainage often stems from clogged municipal tie-ins or kinked hoses. Direct the outlet to a gravel bed or dry well for proper percolation.
- Test for sand in the pool after routine cleaning by placing a fine mesh bag over the return jet. Sand particles confirm lateral failure, necessitating a full internal inspection.
Troubleshooting Warning Signs
Cloudy water after backwashing indicates channeling–solve by deep raking the sand bed with a garden tool before running a 1-hour “rinse” cycle. High-pitched noises during operation signal air trapped in the pump basket or a failing impeller. Verify the pump’s lid O-ring for cracks, a common culprit.
How to Pinpoint Components Fast with a Schematic Breakdown
Scan the upper-left corner of the schematic first–this section typically maps the filtration unit’s motor assembly. Identify labels starting with numeric codes (e.g., “42” for impellers, “68” for gaskets). Cross-reference these with your unit’s serial plate to confirm exact matches, as tolerances vary across production runs.
Trace the pump housing lines next. The exploded view will separate the intake manifold from the volute; arrows or dashed boundaries highlight seals prone to wear. Mark these zones with removable tape–focusing on O-rings and shaft seals as primary failure points. Measure diameters if original specs are illegible; ±0.5mm deviations risk leaks.
Decoding Electromechanical Segments
Locate the wiring harness near the motor’s rear cap. Follow color-coded leads (red/black = power, blue/white = capacitor) to avoid miswiring during reassembly. The schematic’s inset sub-diagram isolates thermal overload protectors and start capacitors, critical for troubleshooting intermittent failures. Note amperage ratings printed adjacent–mismatches can trigger premature burnout.
Check the diffusion plate and diffuser gasket beneath the impeller. Schematics label these “pressure-side components” with a distinct hatch pattern. Verify material composition–chlorine-resistant polyurethane parts degrade faster than thermoplastic equivalents. Order replacements in pairs if corrosion pits exceed 1mm depth.
Examine the strainer basket’s lowest section. The diagram splits this area into lid gasket, weir, and debris cage assemblies. Prioritize the lid seal if lid alignment gaps appear; warping of ≥2mm compromises suction. For cages, count mesh density holes per inch–fewer than 40 indicate reduced flow efficiency, warranting upgrade.
Validation Before Ordering
Overlay a physical inspection with the schematic’s revision number. Discrepancies between minor serial changes (e.g., 2020 vs. 2023 revisions) alter gasket shapes or impeller vane angles. Use calipers on shaft diameters if threads appear stripped–standard 5/16″ threads prevail, but confirm with a thread gauge to avoid return delays.
Key Components of Pro-Series Filters Needing Regular Upkeep
Check the multiport valve seal every 4–6 weeks. Silicone grease on the gasket prevents cracking and air leaks, which reduce filtration efficiency by up to 30%. Replace the seal annually even if no visible damage exists; microscopic wear increases back pressure and shortens pump life.
Inspect the sand bed depth quarterly. A 2-inch drop below manufacturer specs (typically 18–22 inches) demands immediate replenishment with #20 silica media. Use a scoop with graduated markings to avoid overfilling–excess sand strains the laterals and raises operational costs.
Clean the filter laterals biannually with a specialized brush and high-pressure hose. Clogged laterals reduce flow rates; a single blocked lateral can decrease system output by 12–15%. Look for lateral slots narrower than 0.6 mm–they require replacement, not cleaning.
Electrical Components Requiring Vigilance
The timer motor’s gearbox needs lubrication every 8 months with synthetic grease rated for outdoor use. Factory-applied lubricants degrade faster in humid climates; skip this step and the motor burns out within 2–3 years instead of the expected 8–10.
Test the pressure switch monthly by manually overriding the system. A faulty switch fails to trigger backwash cycles, leading to sand migration into plumbing. Replace switches showing hysteresis greater than ±1.5 psi–calibration attempts waste more time than a new unit costs.
| Component | Maintenance Interval | Failure Consequence | Cost to Replace (USD) |
|---|---|---|---|
| Multiport valve piston | Annually | System bypass | 75–95 |
| Sand bed | 2–3 years | Channeled flow | 40–60 (media only) |
| Lateral assembly | 5 years | Sand in pool | 120–150 |
Flush the backwash line for at least 90 seconds after every media change. Residual sand particles settle in low-velocity zones, forming obstructions that halve filter effectiveness within three backwash cycles. Install a clear discharge pipe section to visually confirm debris-free flow.
Preventative Measures to Avoid Premature Wear
Use a micron-rated pre-filter on the pool return line. Large debris like leaves and twigs bypass the sand filter, lodging in heater coils or clogging skimmers. A 25-micron filter extends equipment life by 40% and reduces chemical demand by 18%.
