Replace faulty components immediately using this breakdown: the central chamber houses two key assemblies–the pressure valve and the multiport selector. Both connect to the lateral assembly via a single-threaded coupling (usually 1.5″ NPT). Before disassembly, mark the valve’s default position with a grease pencil–most failures stem from incorrect reassembly at this junction.
Inspect the internal spider gasket first–cracks as small as 0.3mm compromise flow rates by 40%. The basket’s locking ring (18-22 teeth) should rotate clockwise only; counterclockwise force strips threads in under 12 turns. Lubricate O-rings with non-silicone grease every 90 days–dry seals increase backpressure by 15 psi within three months.
Clamp bands on the housing require torque between 18-22 ft-lbs; over-tightening crushes the inner mesh, reducing particle retention by 30%. For sand-based models, note the lateral assembly’s inlet placement–offset holes should face the chamber’s base, not the side wall. Misalignment here reduces filtration efficiency by 22%.
When replacing the air relief valve, ensure the spring’s compression matches the original (typically 0.4-0.6mm). A mismatched spring alters relief cycles, causing either premature venting (every 45 seconds) or none at all. Check the pipe slope–ideal gradient is 0.5° from inlet to outlet for optimal self-purging of trapped debris.
Understanding Your Swimming System Component Layout
Begin by locating the pressure gauge on your tank assembly–it’s typically positioned near the top of the housing unit and indicates operational status at a glance. A reading between 10–20 PSI signals normal function, while anything above 25 PSI suggests clogging or airflow restriction. If values drop below 8 PSI, inspect the multiport valve or internal chamber for debris accumulation, especially around the standpipe assembly. Replace worn O-rings on the lid clamp immediately if leaks appear–these seals degrade faster under prolonged heat exposure or chlorine saturation.
Identify the laterals attached to the underdrain core; these slender, grid-like extensions distribute water evenly during backwashing. If broken, sand bypass occurs, reducing cleanup efficiency by up to 40%. Check each lateral for cracks–even hairline fractures disrupt flow patterns. For older models, note that older plastic laterals degrade after 4–5 years under UV exposure; switch to reinforced nylon versions rated for higher pressure resistance. Always rinse sand media separately before reinstallation to prevent fine particulates clogging the upper diffuser.
Examine the air relief valve on the top manifold–this small but critical fitting releases trapped air after cleaning cycles. Failure to open it post-backwash causes improper refill, leading to uneven water distribution or media channeling. If the valve sticks, disassemble and lubricate the shaft with silicone grease specifically formulated for aquatic equipment. Keep spare springs and gaskets on hand; standard auto parts replacements lack corrosion resistance for submerged environments.
Key Elements of a Sand-Based Water Purification System
Begin by locating the multiport valve–typically positioned at the top of the tank. This control hub directs flow through seven primary settings: “Filter,” “Backwash,” “Rinse,” “Waste,” “Recirculate,” “Closed,” and “Winter.” Verify the handle’s alignment with the faceplate markings, as misalignment can damage internal seals. The rubber diverter gasket inside the valve wears over time; inspect it every 6–8 weeks for cracks or deformities to prevent bypass leaks.
The pressure gauge, usually mounted on the valve’s side port, indicates system health. A rise of 8–10 psi above the clean baseline signals clogging in the media bed below. Replace the gauge if readings fluctuate unpredictably–calibration drifts are common after prolonged exposure to chlorinated water. Ensure the gauge’s threaded connection is wrapped with Teflon tape to prevent air intrusion, which skews readings.
| Component | Material | Lifespan | Maintenance Trigger |
|---|---|---|---|
| Standpipe assembly | Schedule 80 PVC | 10–12 years | Visible cracks or brittleness |
| Laterals | Polypropylene or ABS | 5–7 years | Broken fingers or excessive sand escape |
| Tank body | Fiberglass or thermoplastic | 15+ years | Structural bulging or leaks at seams |
Examine the underdrain system–comprising a central standpipe and radiating laterals–embedded in the bed media. Laterals snap onto the standpipe’s base; confirm all fingers are intact to avoid media migration. During backwashing, media loss exceeding 1/4 inch per season indicates lateral failure. Replace damaged laterals immediately; compromised filtration allows unfiltered debris to re-enter circulation.
Inspect the tank’s internal coating for blistering or delamination, particularly in units exposed to saline environments. Corrosion at weld points signals an impending breach–address it proactively by draining the tank and applying a two-part epoxy patch. For fiberglass units, use a gel-coat repair kit; thermoplastic models require solvent-welded patches. Never ignore minor surface irregularities; they accelerate under pressure cycles.
Tighten clamp bands connecting the valve to the tank annually using a torque wrench–specifically 25–30 ft-lbs for stainless-steel bands. Over-torquing distorts the flange seal, while under-torquing risks separation under backwash pressure. Replace the flange O-ring if compression exceeds 20% of its original diameter; silicone-based lubricants prolong its service life but must be reapplied after each disassembly.

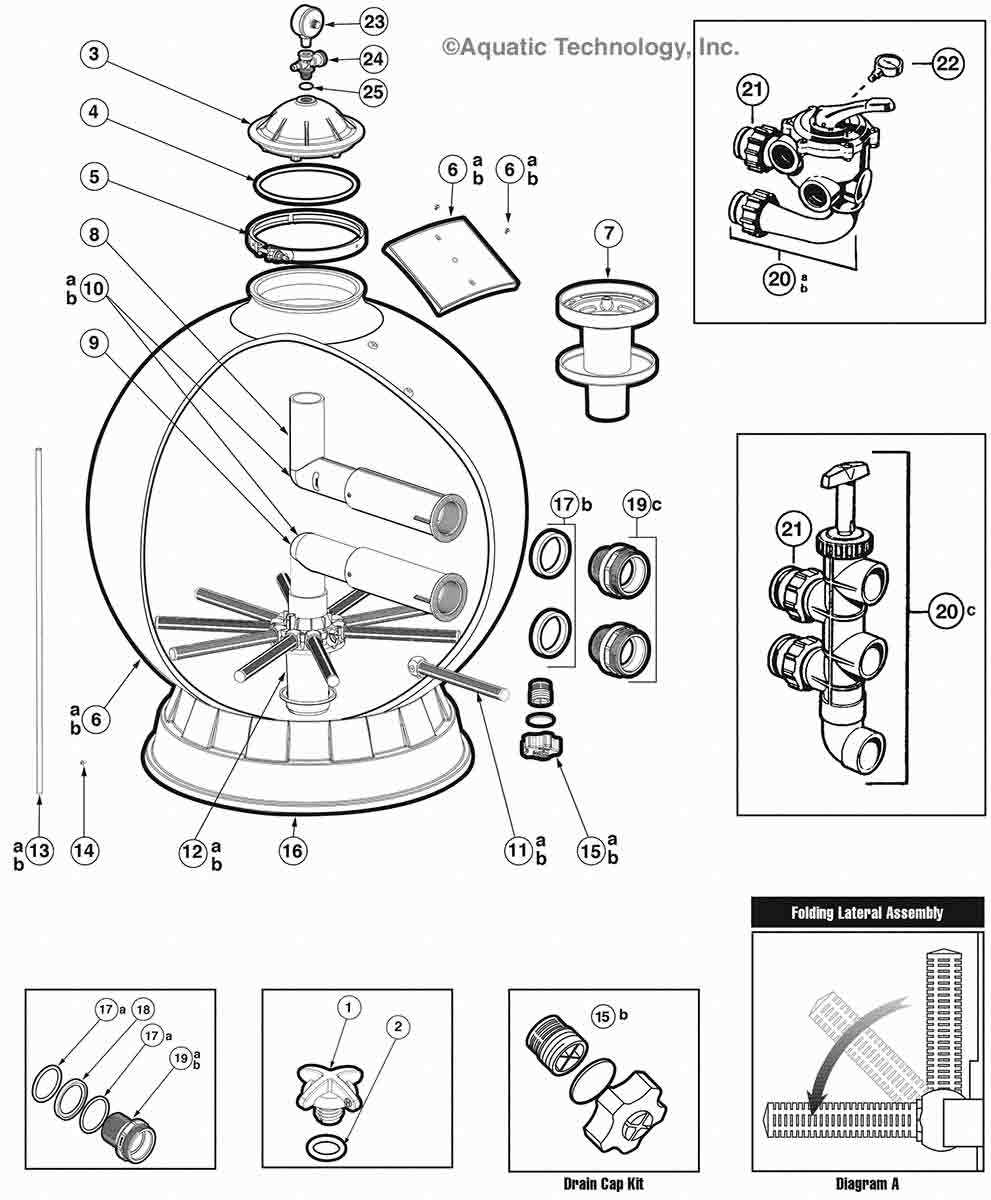

Step-by-Step Guide to Reading an Equipment Breakdown Schematic
Locate the component index–usually printed along the perimeter or in a separate legend–and match alphanumeric labels (e.g., A-7, B-3) to the listed items. Each label corresponds to a single element: screws, gaskets, impellers, or clamps. Verify the legend’s units of measurement (imperial vs. metric) to prevent mismatches during reassembly. Cross-reference exploded views with the product manual’s torque specifications to tighten fasteners correctly.
Key Zones to Examine
- Central Assembly: Identify the primary housing (outer shell), internal basket, and rotor. Note alignment pins or grooves–these dictate orientation.
- Seal Interface: Look for circular markings indicating O-rings or lip seals. Measure their diameter; replacement sizes often vary by 1/16 inch increments.
- Mounting Points: Count brackets, feet, or flanges. Confirm their spacing using calipers if absent from the legend.
- Pressure Valves: Locate relief or check valves. Follow arrow indicators on the schematic for flow direction.
- Electrical Leads: Trace wires from motor to terminals, noting color codes (e.g., red/hot, black/neutral). Disconnect power before handling.
Photograph each step–especially disassembly order–using a fixed-angle shot to replicate positioning. Store screws sorted by size (M4, M6) in labeled containers. If a component lacks a label, refer to sibling models within the same series; schematics often reuse sub-assemblies across variants.
Key Components for Equipment Maintenance and Their Roles
Replace the multiport valve gasket every 12–18 months or when leakage appears between ports–earlier if the system operates under heavy debris loads. The gasket seals the six-function selector, preventing cross-contamination between backwash, rinse, and filtration cycles. Opt for silicone-based models; they resist chlorine degradation better than rubber and last up to 25% longer.
The pressure gauge should read 8–12 PSI above baseline when clean. If readings exceed 20 PSI, the media bed requires cleaning. Install a brass-back gauge–plastic models warp at temperatures above 104°F, skewing readings by up to 3 PSI. Replace any gauge showing needle drift or air bubbles in the fluid; compromised accuracy leads to premature backwashing or insufficient cleaning.
Clamp bands secure housing halves during operation but fail under repeated thermal cycling. Inspect bands every 6 months for corrosion or thread stripping. Use 316 stainless steel bands for saltwater setups; standard zinc-coated bands corrode within 18 months. Apply anti-seize compound to threads to prevent galling during disassembly.
Laterals at the base distribute water evenly during backwash and collect it during filtration. If flow rates drop by 15% or sand bypasses into returns, inspect laterals for cracks. Replace any with hairline fractures–even pinprick leaks allow media migration. CPVC laterals handle 120°F water continuously; ABS alternatives soften above 110°F, risking collapse under vacuum.
The standpipe directs water between the valve and internal distribution system. Check for vertical alignment; misalignment shifts flow to one side, creating dead zones in the media bed. Use a Schedule 80 PVC standpipe–Schedule 40 versions crack under prolonged 30 PSI backwash surges. Cut replacement pipes with a chamfer tool to prevent burrs from disrupting seals.
Filter media lifespan varies: #20 silica sand lasts 5–7 years, glass lasts 7–10 years, and zeolite lasts 4–6 years. Replace sand when particle size reduces to below 0.45mm–finer grains pass through laterals. Glass media requires 20% less backwashing but demands a 15-second longer rinse cycle to clear fines. Zeolite reduces chlorine demand by 30% but loses ammonia removal capacity after 4 years.
O-rings on the housing lid create the primary water seal. Lubricate with PTFE-based grease before each re-installation; petroleum jelly causes swelling and premature failure. Replace O-rings if hardness exceeds 70 Shore A–brittle rings crack under vacuum during backwash. Store replacements in sealed bags with silica gel to prevent ozone exposure, which accelerates degradation.
Air relief valves vent trapped gas from the vessel, preventing pressure spikes during startup. Test monthly by opening the valve while the pump runs–water should spray briefly, then stop. Replace springs annually; weakened springs allow continuous leakage, reducing system efficiency by 8%. Install valves at the highest point of the housing; improper positioning creates air pockets that disrupt flow distribution.
