For precise repairs on the DE4-822 filtration system, begin with the manifold assembly. Order part #SPX4020Z1-MB for the upper section–this component frequently fails under prolonged chlorine exposure. Replace gaskets (#SPX4000R) simultaneously to prevent leaks at the thread seal. Manufacturer specs require torquing bolts to 12-15 ft-lbs; exceeding this risks cracking the housing.

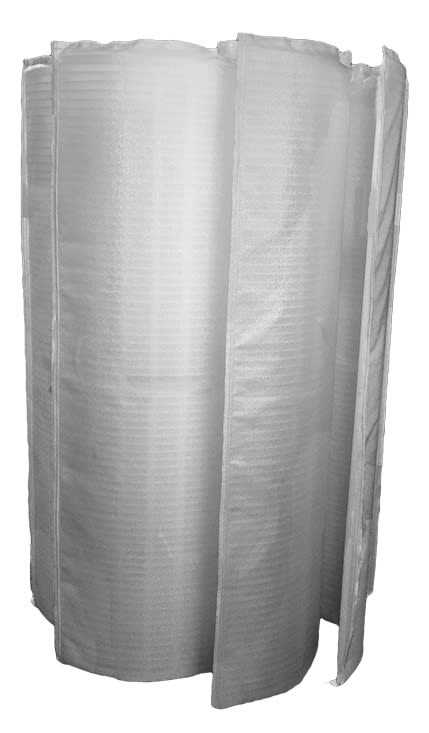

The filter grid array consists of eight 24-square-foot panels (part #DE-4820GRIDSET). Inspect each grid annually for frayed fabric or bent support ribs. A single compromised panel reduces filtration efficiency by up to 30%. When reinstalling grids, ensure arrow markings align with the base unit’s inlet ports–misalignment causes uneven flow distribution.
Use OEM backwash valves (#SPX3200V) exclusively. Third-party valves often lack the precision-cast plastic tolerances needed for proper sealing, leading to sand bypass issues. Lubricate the valve stem with HaySil 200 silicone grease (#SPX5000) every 6 months–petroleum-based alternatives degrade the rubber seals within 40 operational cycles.
Pressure gauge accuracy depends on the snubber orifices (#SP8530). Clean these monthly with compressed air to remove calcium deposits. A clogged snubber falsely over-reads by 3-5 PSI, prompting premature backwashing. For control boxes, replace thermal overload protectors (#SPX1015) if tripping persists after resetting–aftermarket parts often lack the exact bimetallic strip calibration.
Store replacement elements indoors at 50-75°F and 40-60% humidity. Elevated temperatures warp plastic components, while moisture absorption weakens adhesive bonds in composite grids. When sourcing parts, cross-reference the exploded view schematic labeled “Figure 3B” in the 2023 service manual–earlier diagrams mislabel the union nut positions for the drain plug assembly.
Understanding Your Filtration System’s Component Layout
Locate the pressure gauge–typically installed on the upper manifold–before disassembly. This reading helps identify clogging or faulty grid assemblies; values above 10 PSI indicate obstruction. Check the manual’s exploded view for exact placement, as models vary in port configuration. Replace the O-ring (Item #SPX0710) if brittle or deformed; silicone-based lubricant prevents future leaks.
Grid Assembly Maintenance Steps

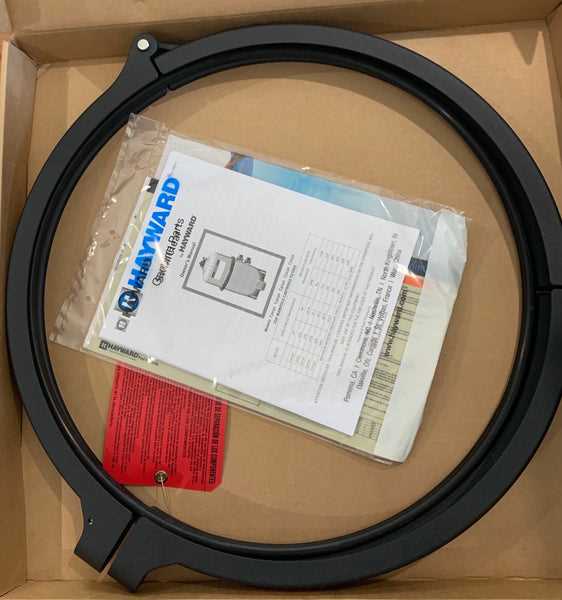

Detach the backwash valve by unscrewing the clamp band (12-inch diameter, #DE4800VGC). Rinse grids individually under a high-pressure hose–avoid power washers that damage fabric. Inspect for tears: a 1/4-inch gap requires immediate replacement. Dry grids thoroughly before reinstallation to prevent mold growth; store upright in a cool, shaded area.
Reassemble components in reverse order, ensuring gasket alignment between the tank collar and manifold. Tighten clamp band bolts evenly (torque spec: 15-20 ft-lbs) to prevent uneven pressure. Test for leaks with a soap solution; bubbles confirm gaps. Keep a spare air relief valve (#SPX0714) on hand–failure causes improper filtration cycles.
Locating the Authorized Exploded View Schematic for Your Pool Filter System
Begin by visiting the manufacturer’s primary support portal at hayward-pool.com. Log in or create an account to access restricted technical documentation. In the search bar, enter the exact model number–DE series filter–to filter out irrelevant results. The official exploded view schematic is typically listed under “Technical Manuals” or “Product Support Documents,” not in the general parts catalog.
The schematic is often embedded within the full service manual rather than provided as a standalone file. Download the PDF for the most recent revision (check the date–earlier versions may lack updated component numbers). If the manual doesn’t appear, try these alternative search terms: “exploded assembly drawing,” “component breakdown illustration,” or “disassembly view.”
For direct access, navigate through the product hierarchy: select “Commercial Pool Equipment” > “DE Filters” > your specific series. The exploded view should be the first or second document in the list. If it’s missing, use the site’s “Contact Us” form to request it–provide the model number, serial number (from the label on the tank), and your email for a faster response.
Third-party distributors like PoolSupplyUnlimited or Inyo Pools sometimes host mirrored schematics. Search their sites using the original equipment identifier–these diagrams are usually watermarked or low-resolution. Verify the component numbers against the manufacturer’s official list, as third-party sources may contain inaccuracies.
- Check the filter’s physical label for a QR code–scan it with your phone. Some newer models link directly to the exploded view.
- Visit the manufacturer’s YouTube channel for video tutorials. Occasionally, these include on-screen schematics.
- Search Google Images with the exact model number followed by “filetype:pdf.” Filter results by “Tools” > “Color” > “Black and white” to exclude irrelevant photos.
If the schematic remains elusive, consult the original packing slip or invoice–the model’s alphanumeric code is often printed there. Dealers who sold the unit may retain a digital copy in their records. Provide them with the purchase date and dealer ID number (if available) to expedite retrieval.
For offline access, print the schematic at 100% scale and laminate it. Use a dry-erase marker to track disassembly steps or note component conditions. Archive the file in a cloud service like Google Drive with the model number as the filename for future reference.
- Save the schematic as a PDF/A format to preserve vector quality.
- Avoid JPEG or PNG exports from the manual–these lose clarity when zoomed.
- Cross-reference component numbers with the bill of materials (BOM) if performing repairs.
Critical Elements in the Filter Assembly Schematic
Begin by locating the grid assembly–this component is the primary filtration medium, typically requiring annual replacement or thorough backwashing every 4-6 months, depending on usage intensity. The grids, often constructed from durable polymer-coated polyester, must be inspected for tears or calcified buildup; even minor damage compromises pressure differentials and reduces efficiency. Pair this check with the manifold connection points; corrosion here often indicates compromised seals, leading to leaks during high-pressure cycles. Use a torque wrench to verify clamp tightness (target: 15-20 ft-lbs) to prevent warping or misalignment.

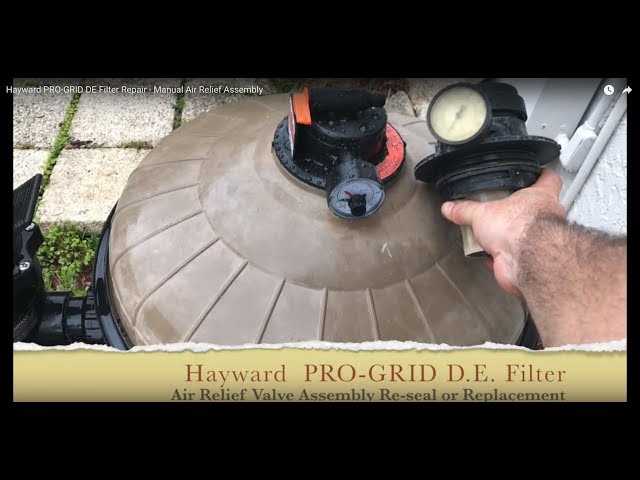

The air relief valve, positioned atop the tank, demands immediate attention if slow drainage occurs post-backwash. Disassemble the valve every 6 months to clear debris from the venting chamber–mineral deposits frequently obstruct the float mechanism, causing improper air release. The spring-loaded assembly inside should move freely; lubricate with silicone-based grease to avoid sticking. Avoid petroleum-based products, as they degrade rubber seals over time. If leaks persist, replace the entire valve housing–repairs are costlier than a $25 replacement unit.

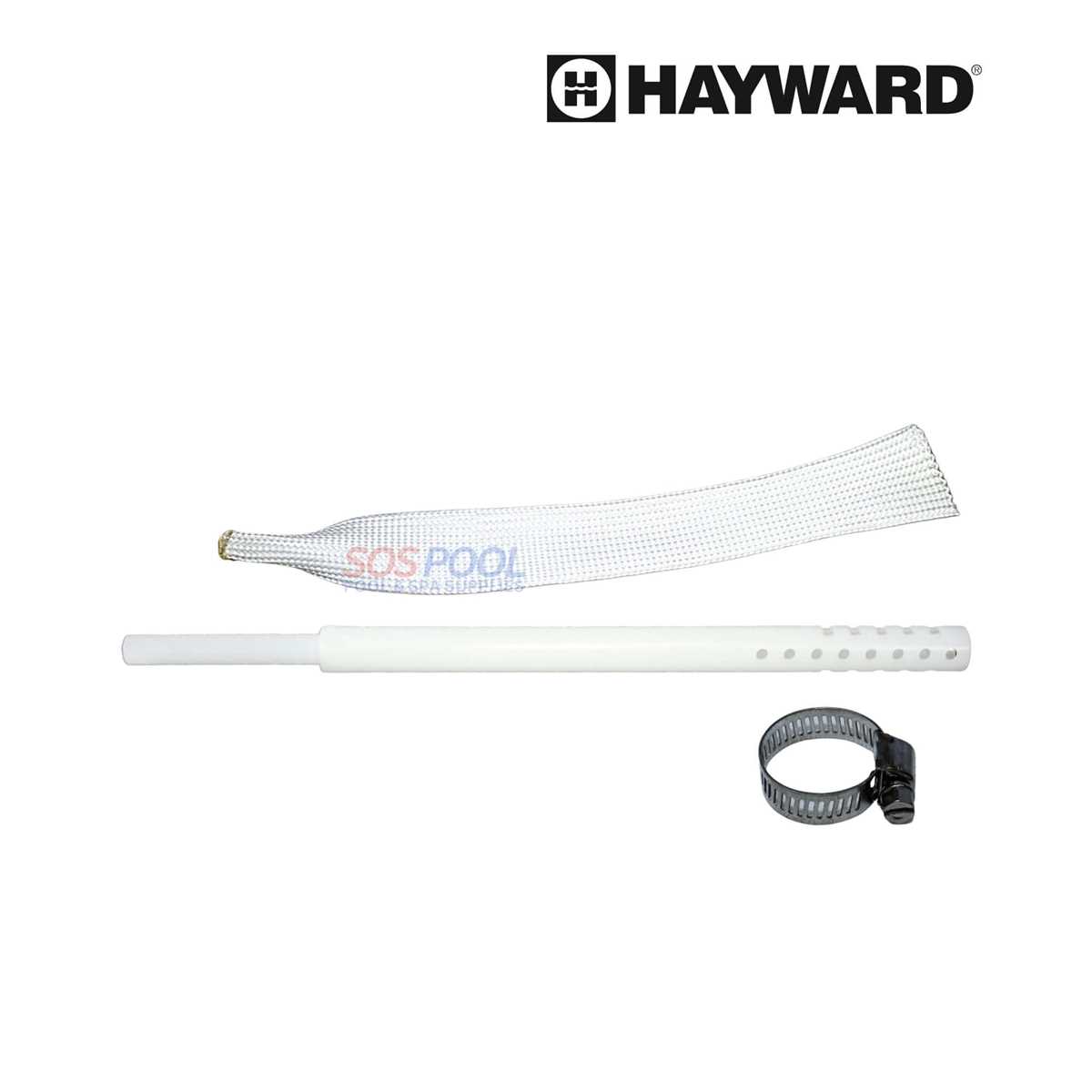

Examine the standpipe and laterals for cracks, particularly at stress points near bends. These internal conduits distribute cleaned water back to the pool; even hairline fractures lead to unfiltered bypass, detected only via dyed water tests. The base clamp, securing the assembly to the tank, requires periodic tightening (10-12 ft-lbs) to prevent vibration damage during pump operation. For high-calcium environments, substitute standard gaskets with EPDM versions; they resist scaling up to 3x longer than nitrile alternatives.
Identifying Compatible Components with Pool Filter Blueprints
Locate the exploded view in the technical schematic, focusing on the alphanumeric codes adjacent to each element. Verify these codes against the replacement item’s packaging or product listing–manufacturers often imprint identical identifiers on OEM and aftermarket pieces. Cross-reference measurements if codes are absent; tolerances for gaskets, seals, and internal grids rarely exceed ±0.5 mm.
Measure twice before ordering: filter tanks, slide valves, and multiport assemblies frequently share similar dimensions yet differ in thread pitch or groove depth. Use calipers for diameters and depth gauges for recessed fittings. A 1/4-inch discrepancy in a standpipe’s O-ring channel can prevent proper sealing, leading to bypass leaks even when external connections appear secure.
Compare the schematic’s pressure ratings with the replacement part’s specifications. Underrated components may rupture under backwash cycles, while overrated ones add unnecessary cost. For instance, a check valve marked for 30 PSI suits low-flow setups, whereas residential sand- or cartridge-based systems typically require 50 PSI tolerance.
Visual Clues Beyond Numerical Data
Examine the schematic’s material annotations–polypropylene cages, glass-reinforced nylon grids, and Viton sealing rings each react differently to chemicals and temperature fluctuations. A black EPDM gasket may degrade in saltwater environments within months, whereas a red silicone counterpart lasts years under identical conditions. Match not just dimensions, but also resin types listed in the legend.
Prioritize assembly sequence: some elements, like backwash tubes or air relief assemblies, interlock in a specific order depicted by arrow guides. Skipping or reversing steps risks damaging threads or misaligning internal baffles, which the schematic illustrates with numbered callouts. Keep a photo of the disassembled filter next to the blueprint to confirm orientation before final tightening–torque specifications rarely appear in exploded views but are critical for preventing cracks.
