Motorcycle Component Layout: A Field-Ready Reference
Locate the crankcase breather hose first–it connects above the transmission on models before 2004, routed alongside the rear cylinder. If leaks appear, check the hose clamps at both ends; original equipment uses 8mm crimp rings that fatigue after 8–10 years. Swap with stainless worm-drive clamps sized 1/4″–5/8″ for lasting tightness.
Oil filter relocation kits require precise clearance measurements. On Iron 883 and 1200 variants, verify 5.75″ minimum spacing between the filter base and frame downtube. Use a torque wrench set to 18 ft-lbs for housing bolts; over-tightening distorts the casting, causing seepage.
Common assembly errors include misaligned primary chain tensioners. Loosen the derby cover bolts in a star pattern, remove the gasket, then lubricate the tensioner shoe with 90W gear oil before reinstalling. Align the shoe’s notch with the crankshaft sprocket teeth–mismatch causes premature wear detected by metallic debris in the primary case.
Critical Fastener Specifications
- Cylinder head bolts: 18 ft-lbs, 5-step torque sequence starting center-outward
- Cam chest cover: 120 in-lbs, use copper anti-seize on threads
- Exhaust manifold nuts: 25 ft-lbs, stainless steel aftermarket resists seizure
- Swingarm pivot: 45 ft-lbs, grease bearings with lithium-based EP2 before assembly
Air cleaner backing plate upgrades demand custom spacer sizing. Measure the carburetor mounting flange thickness; models with 38mm CV carbs need 0.250″ spacers, while 40mm units require 0.375″. Fabricate from 6061 aluminum, de-burr edges, and apply high-temp silicone between the spacer and carb base to prevent vacuum leaks.
Charging system diagnostics begin with stator resistance tests. Disconnect the regulator/rectifier connector, probe the three yellow wires against ground–readings should range 0.3–1.5 ohms. Values outside tolerance indicate stator failure; replace the entire assembly, not just the wiring harness, to prevent recurrence. Keep multimeter leads shorter than 18″ to avoid induced voltage skew.
Electrical Troubleshooting Flow
- Verify battery voltage ≥12.6V after 12-hour rest
- Load test at 100A for 15 seconds; voltage drop should not exceed 0.5V
- Inspect stator windings with ohmmeter, compare to service manual specs
- Test regulator/rectifier under load using a 50W halogen bulb across battery terminals
- Check grounds; scrape paint from frame mounts, apply dielectric grease
Locating Genuine Motorcycle Component Schematics on the Web
The first stop for authentic schematics should be the manufacturer’s official service portal. For example, the H-D Dealer Services platform (service.harley-davidson.com) offers a direct link to exploded-view drawings for every model year. Users must create a free account with a valid VIN to access high-resolution PDFs that list OEM references alongside torque specs.
Aftermarket suppliers often mirror the factory schematics with added compatibility charts. RevZilla (revzilla.com) provides interactive breakdowns that overlay part numbers on a zoomable exploded view; simply filter by year and model range. J&P Cycles (jpcycles.com) offers similar schematics plus user-submitted photos, useful when verifying minor revisions between OEM runs.
For owners who prefer printable copies, Clymer and Haynes manuals contain ISBN-specific exploded-view plates. A single download from clymer.com or haynes.com yields a clean A3-sized sheet that can be laminated for workshop reference.
Specialized forums curate direct links to rare schematics. The Sportster Source (sportster.org) archive includes threads that consolidate year-specific PDFs; moderators routinely update posts with corrected drawings for models affected by running changes. Manual intervention ensures each link remains live even when OEM portals purge older files.
Partzilla (partzilla.com) accelerates searches by displaying an exploded view alongside a live inventory checker. Selecting any illustration node instantly populates current pricing, lead times, and cross-references to aftermarket equivalents.
Manufacturing distributors like Tucker Rocky (tuckerrocky.com) offer direct-ship exploded views for dealers; retail customers can request PDFs by contacting support with the exact build date and VIN. Response times average 24 hours, making this a reliable fallback when other portals delay updates.
When factory part numbering becomes ambiguous, the Iron 883 Register (iron883register.com) maintains a crowdsourced spreadsheet that maps internal assembly codes to retail kit numbers. This resource proves invaluable for identifying discontinued hardware still referenced in older service literature.

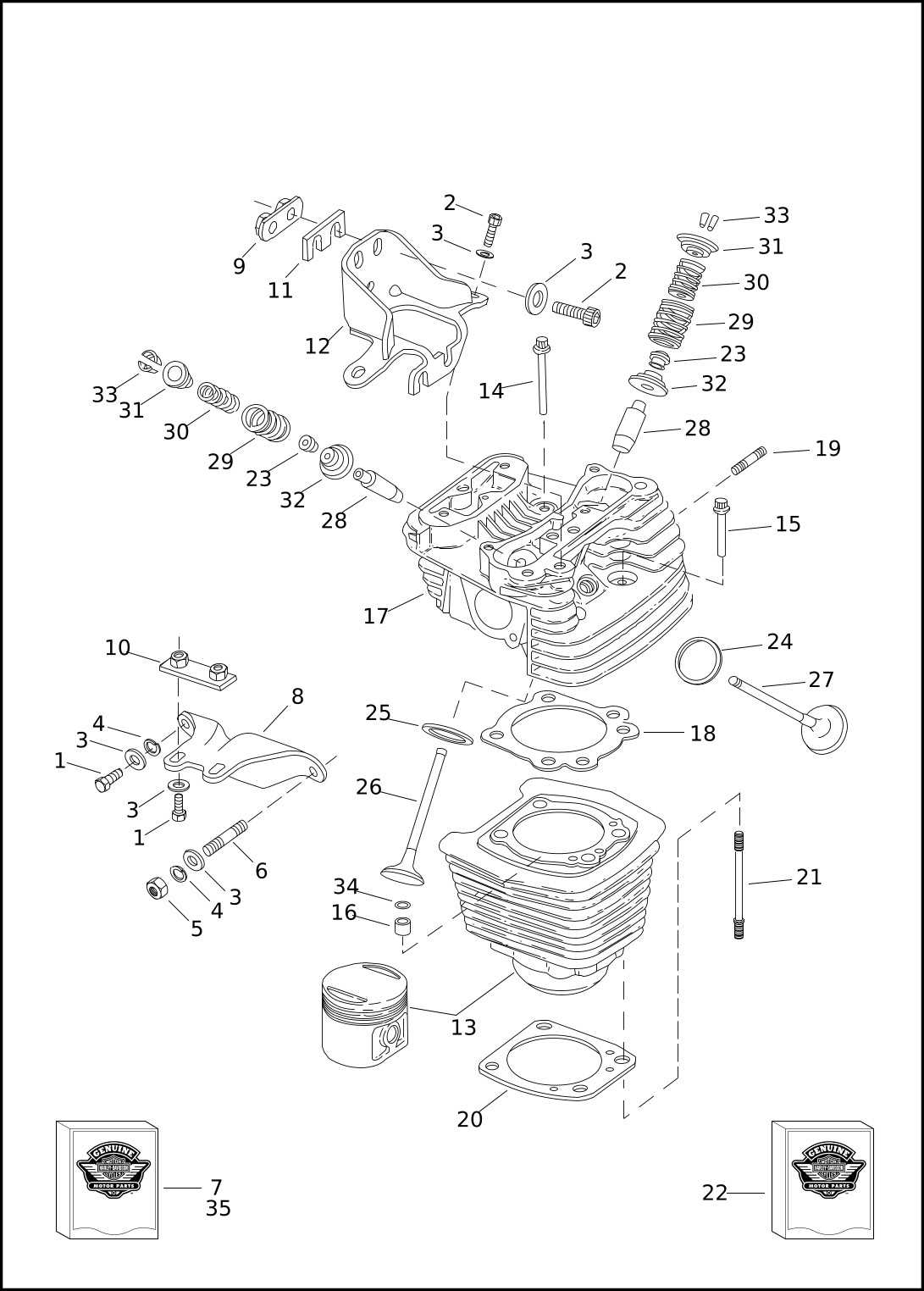

How to Decode an Exploded View Schematic for V-Twin Custom Bikes
Begin by identifying the reference number system–each component in the schematic is tagged with a unique alphanumeric code matching the manufacturer’s catalog. Locate the index or legend, typically positioned at the bottom or side of the sheet, which decodes these tags into part names and often includes quantities per assembly.
Trace assembly groups hierarchically. Primary systems (engine, transmission, suspension) are usually positioned centrally, with sub-assemblies radiating outward. Lines connecting items indicate fasteners–solid lines represent permanent attachments, while dashed or dotted lines signal removable bolts, clips, or cotter pins.
| Line Type | Fastener Type | Common Torque Spec (lbs/ft) |
|---|---|---|
| Solid | Press fit, welds | N/A |
| Dashed | Hex bolts (grade 5) | 12-18 |
| Dotted | Clips, snap rings | Hand-tight + lock |
Examine orientation bubbles–small circles containing arrows or letters near components reveal installation direction. “LH” indicates left-hand threads, while arrows point toward the front or top of the bike. Rotational parts (gears, pulleys) often include rotation arrows.
Note shaded or cross-hatched areas: these denote gaskets, seals, or O-rings. Solid shading suggests crushable material, whereas pattern fills indicate reusable joints. Adjacent numbers specify thickness tolerances in inches or millimeters–critical for ordering replacements.
Compare exploded views against real assemblies whenever possible. Lay components on a magnet tray in the exact sequence depicted; this reveals hidden washers, spacers, or alignment dowels frequently omitted in illustrations but essential for correct reassembly.
Verify thread engagement lengths–diagrams occasionally exaggerate fastener protrusion for clarity. Measure the actual bolt against the illustrated overlap to confirm correct grip length, especially in critical stress points like cylinder studs.
Cross-reference multi-sheet schematics by matching dotted “balloon” connectors–small circles with numbers linking components subdivided across pages. Always confirm the corresponding page number before transitioning to avoid misplacing less common hardware like pivot bushings or hidden brackets.
Critical Elements in a Classic V-Twin Powerplant Schematic
First, locate the crankshaft assembly at the core of the motor. This forged steel component converts linear piston motion into rotational energy, with counterweights balancing inertia forces at higher RPMs. Check journal surfaces for scoring or wear–replace if clearance exceeds 0.0015 inches. Proper alignment ensures minimal vibration and extends bearing life.
Piston rings demand precise installation. The top compression ring (typically ductile iron or steel) seals combustion gases, while the second ring (often taper-faced) scrapes excess oil. Gap measurements should be 0.003–0.004 inches per inch of bore diameter. Tight gaps cause seizure; wide gaps increase blow-by and oil consumption.
Valvetrain Essentials
- Camshaft: Profile determines powerband characteristics. Sport-oriented profiles lift valves quicker but may sacrifice low-end torque. Inspect lobe surfaces for pitting–polish with emery cloth if minor, replace if wear exceeds 0.002 inches.
- Lifters: Solid lifters require periodic adjustment (every 2,000 miles) to maintain 0.002–0.004 inches clearance. Hydraulic lifters self-adjust but need clean, filtered oil to prevent varnish buildup that causes noise.
- Pushrods: Measure straightness–replace if bent. Chrome-moly rods offer durability; titanium reduces reciprocating weight for high-RPM use but costs 3x more.
Cylinder heads house critical components:
- Intake and exhaust ports–polish to a 120-grit finish to reduce turbulence. Port matching to manifolds eliminates stepped airflow, improving volumetric efficiency.
- Valve seats–hardened steel alloys resist wear. Reconditioning requires 3-angle cuts (45°, 60°, 75°) for proper sealing.
- Combustion chambers–volume affects compression ratio. Decking heads reduces volume; milling valves increases it. Each 0.010-inch removal alters ratio by ~0.1 points.
Oil pump efficiency dictates internal lubrication. Gear-type pumps generate 45–65 psi at operating temperature. Inspect gears for scoring; replace if teeth show visible wear. Pressure relief valves must seat fully–test by blowing compressed air through the outlet side; leaks indicate failure.
Transmission components interface directly with the motor’s output. Primary drive ratios affect acceleration–lower ratios (e.g., 2.17:1) favor torque, while higher ratios (e.g., 1.75:1) emphasize top speed. Clutch plates require adjustment to maintain 0.045–0.065 inches free play. Friction plates last 15,000–25,000 miles under normal use but degrade faster under aggressive starts.
Cooling and Filtration Priorities
Air-cooled engines rely on cylinder fin design. Clean fin gaps thoroughly–dirt accumulation reduces cooling by up to 30%. Oil coolers prevent breakdown at sustained high loads; thermostatic valves bypass cooler until oil reaches 180°F.
Fuel delivery components include:
- Carburetors (e.g., Keihin CV)–adjust float levels to 0.240–0.260 inches from bowl gasket surface. Needle and seat size dictate fuel flow; lean conditions (high-altitude) may require larger jets.
- Fuel injectors (if equipped)–clean with ultrasonic bath if flow rate drops below 95% of specification. Spray patterns should be conical, not skewed.
- Fuel pump–mechanical pumps deliver 2–4 psi; electric pumps sustain 5–7 psi. Pressure regulators must maintain stable flow to prevent lean conditions.
