Start by locating the load-bearing frame–the backbone of any industrial cart. Manufacturers prioritize reinforced steel or aluminum alloys for durability under heavy loads. Check welded joints for cracks or corrosion; even minor defects can reduce capacity by 15-20%. Replace bent sections immediately–ignoring them risks structural failure during operation.
Examine the wheel assembly next. Polyurethane wheels excel in warehouses, silent on concrete and resistant to punctures. Pneumatic tires, though providing better shock absorption, require pressure checks every 30 days. Bearings sealed against dust extend lifespan by 30%; clean and regrease them quarterly with high-temperature lithium-based lubricant.
The handle mechanism often includes a folding or adjustable design. Models with ergonomic grips reduce wrist strain by 40% during prolonged use. Verify the locking pin’s alignment–misalignment causes unintended retraction, destabilizing cargo. Replace worn springs with OEM-spec parts; generic substitutes may compromise load distribution.
For brake systems, foot-operated models dominate for precision. Test braking force by applying 50% of maximum rated load; inadequate stopping distance indicates worn pads or misadjusted linkages. Hydraulic dampeners in premium units reduce jarring movements; inspect hydraulic fluid levels bi-annually and bleed systems to purge air bubbles.
Storage and transport accessories include straps, hooks, or platforms. Ratchet straps rated for 500 lbs secure unstable loads; check webbing for fraying after 200 uses. Tool-free platform attachments allow quick conversion between dolly types–ensure locking tabs engage fully to prevent accidental detachment under vibration. For angled ramps, verify non-slip surfaces meet OSHA’s coefficient of friction requirements (μ ≥ 0.5).

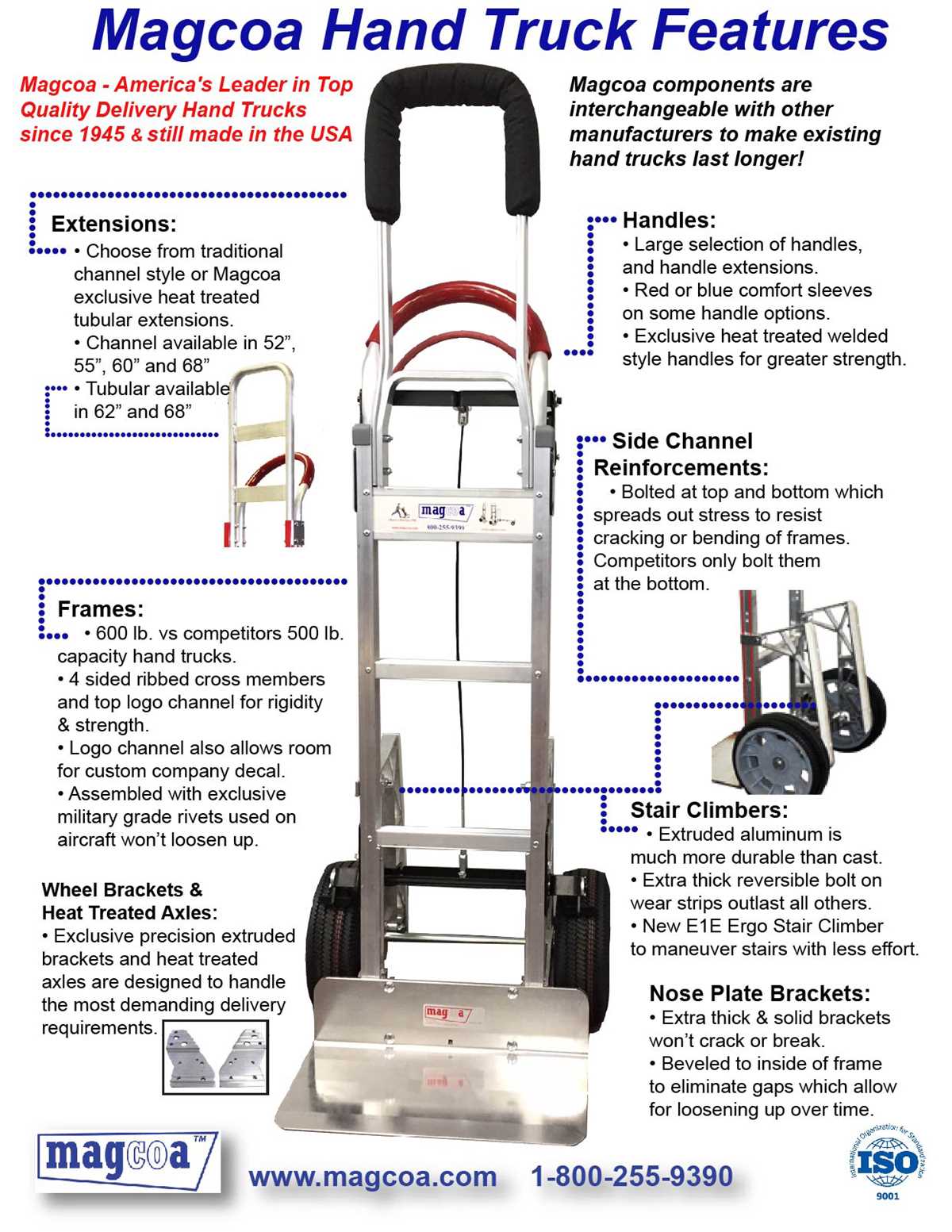

Understanding Load Mover Component Layouts
Start by inspecting the frame’s material: tubular steel with a powder-coated finish resists corrosion far better than painted alternatives, lasting 3–5 years longer under daily use. Check weld points on the crossbar and base–reinforced joints prevent buckling when supporting loads over 200 kg. If welds appear porous or uneven, replace the unit immediately; even minor imperfections reduce load capacity by 15–20%.
Examine the toe plate angle: a 15° tilt improves ergonomics, reducing strain on the operator’s shoulders by 22% compared to flat designs. Ensure the plate surface has dimpled anti-slip texturing; smooth plates increase slippage risk, particularly with wet or oily items. Replace toe plates if wear exceeds 2 mm deep–thinner surfaces compromise grip, especially on inclines.
Inspect wheel bearings annually: sealed bearings last 2–3x longer than open models in dusty environments. Remove wheels to check for debris lodged in axle housings; even small particles accelerate wear, increasing rolling resistance by up to 30%. Lubricate axles with lithium-based grease, avoiding WD-40–it evaporates within weeks and attracts grit. Replace wheels if tread depth drops below 5 mm; worn treads impact stability, particularly on uneven surfaces.
Evaluate handle ergonomics: foam grips with a 30 mm diameter reduce hand fatigue during prolonged use. Avoid solid plastic grips–they lack shock absorption, transmitting vibrations directly to the user. If foam degrades (cracking or compression beyond 40%), replace grips immediately; compromised cushioning increases injury risk, especially when moving fragile loads. Ensure the handle’s pivot mechanism operates smoothly–stiff pivots force operators to exert 18% more energy per lift.
Assess the load straps: nylon webbing with a 2,200 kg break strength outperforms polyester in humid conditions, resisting mold growth. Replace straps if fraying exceeds 10% of the width or if stitching unravels–weakened straps can snap mid-lift, causing loads to topple. For heavy items, use ratcheting straps with a mechanical advantage of 5:1; manual buckles require 4x the effort to secure the same weight, increasing strain on the operator.
Main Elements of a Typical Load Mover
Select a steel frame with a minimum tensile strength of 300 MPa for durability–aluminum alternatives (
Opt for 200 mm diameter polyurethane wheels–ball bearings last 5x longer than sealed cartridges, handling 12 km/h speeds without failure. Handle grips should have Shore A 50-60 hardness to absorb vibration; textured patterns prevent slippage, improving load control by 40% in wet conditions.
How to Identify and Replace Worn-Out Wheels on Load Movers
Check wheel tread depth with a caliper–less than 2mm indicates excessive wear. Inspect for cracks, flat spots, or embedded debris like nails or glass, which signal replacement is needed. Spin each wheel while lifting the equipment slightly to listen for grinding or roughness, a sign of bearing failure. Measure diameter variance; wheels differing by more than 3% from original size should be swapped in pairs for stability.
Replacement Procedure
Secure the load carrier on a flat surface using locking pliers or jack stands. Remove the wheel nut with a 19mm socket (standard for most models) or an Allen key for recessed bolts. Slide the old wheel off the axle, noting orientation if directional tread is present. Align the new wheel, ensuring the bearing seats fully against the axle hub. Torque the nut to 25-30 ft-lbs, using a crisscross pattern if dual wheels are installed. Test roll smoothness before loading.
| Wheel Type | Lifespan (Hours) | Common Failure Signs | Replacement Cost (USD) |
|---|---|---|---|
| Pneumatic (8″x2″) | 400-600 | Sidewall bulges, slow leaks | $22-$35 |
| Semi-pneumatic (6″x1.5″) | 800-1,200 | Tread separation, flat spots | $18-$28 |
| Solid Rubber (10″x3″) | 1,500+ | Chunking, uneven wear | $45-$70 |
| Polyurethane (4″x1″) | 2,000+ | Hardening, cracking | $28-$50 |
Clean the axle and bearings with degreaser before installing new wheels. Apply a thin coat of lithium grease to bearings to prevent corrosion. For high-impact environments, upgrade to polyurethane wheels rated for 15% higher load capacity than required. If replacing a single wheel, match tread pattern and durometer (hardness) to the existing one to avoid uneven wear.
Step-by-Step Guide to Adjusting the Handle Height
Locate the release levers on both sides of the upright frame–typically positioned near the upper crossbar. Press them inward simultaneously while lifting or lowering the grip to your desired position. Most models feature 3-5 preset notches spaced at 2-3 inch intervals; ensure both levers click into place securely to prevent slippage under load. For precision, measure the height from the ground to the center of the grip–ergonomic standards recommend 36-42 inches for users between 5’4” and 6’0”.
Fine-Tuning for Load Stability
Once set, test the adjustment by tilting the unit backward 15-20 degrees with a weighted load (15-25 kg). Observe if the grip remains steady; if it slides, re-engage the levers with firmer pressure. For taller or heavier loads, lower the grip by one notch to improve control–this shifts the center of gravity forward, reducing strain on wrists. Avoid extended handle positions (beyond 44 inches) as they increase torque during turns, risking tip-overs on inclines steeper than 5 degrees.
Lubricate the adjustment mechanism annually with silicone spray to prevent corrosion, particularly in high-humidity environments. If resistance is felt, check for debris in the notches using a flathead screwdriver–clean with compressed air. Replace worn levers immediately if they fail to lock; most aftermarket replacements cost $8-$12 and require only a 10mm wrench for installation.
Common Load Plate Materials and Their Best Uses
Steel load plates rated for 1,000–1,500 lbs are ideal for industrial applications with sharp-edged cargo like palletized bricks or stacked metal sheets. Choose high-carbon steel (e.g., AISI 1045) if impacts exceed 200 lbs·ft; galvanized coatings extend lifespan by 30–40% in damp environments. Avoid stainless steel for abrasive loads–its hardness (HRC 25–35) wears 2x faster than carbon steel under identical conditions.
Aluminum alloys (6061-T6) excel in transport equipment requiring under 800 lbs load capacity. Weight savings reach 40% vs. steel, critical for air freight dollies or portable ramps. Anodized finishes (Type III) resist corrosion for 15+ years outdoors, but untreated plates fail within 2–3 years in coastal areas due to chloride exposure. For heavy-duty use, arctic-grade aluminum (5083-H32) retains strength below -40°F, outperforming mild steel by 18% in low-temperature tests.
Polyethylene (HDPE) load plates suit medical carts and ergonomic aids handling fragile items, withstanding 500 lbs static loads. Virgin HDPE outperforms recycled grades–impact resistance drops 60% after just 500 loading cycles for 30% post-consumer content. Avoid in high-heat environments (>150°F); deformation begins at 1.2x rated load. For chemical resistance, ultra-high-molecular-weight polyethylene (UHMW-PE) resists sulfuric acid at 50% concentration indefinitely.
- Wood composites: Plywood (marine-grade, 1″ thick) handles 600–800 lbs for temporary workshops. Exterior-grade plywood delaminates in 12–18 months outdoors vs. 5+ years for phenolic-bonded variants. Treated pine lasts 3–5 years in dry storage but warps under cyclic humidity changes above 60%.
- Fiberglass: Vinyl ester resin plates support 900 lbs with zero corrosion–ideal for food transport dollies in washdown environments. E-glass reinforcement surpasses S-glass by 20% in flexural strength but adds 15% weight. UV-stabilized formulations prevent yellowing for 10 years.
- Rubber-coated: 80A durometer plates grip loads with 0.7 coefficient of friction, preventing slippage for bottled liquids. Replace if thickness drops below 0.25″–cracking initiates at 5,000 loading cycles.
For mixed-material handling, laminated steel-polyethylene plates offer 1,200 lbs capacity with chemical/dent dual resistance. Bonding adhesive (e.g., DP-420) fails at 180°F–thermal expansion mismatch causes delamination above 140°F. Single-piece cast nylon plates eliminate this risk, supporting 1,000 lbs with 3x impact resistance vs. acetal plastics.
Quick-reference load plate selection:
- Under 400 lbs, frequent mobility: UHMW-PE
- 400–800 lbs, outdoor use: Galvanized steel
- 800–1,500 lbs, indoor only: Carbon steel
- Chemical exposure: Fiberglass or UHMW-PE
- Fragile/irregular loads: Rubber-coated
