Start by downloading the official exploded view manual from the manufacturer’s support page–search for document 150077 or X7 repair schematic in PDF format. This file includes precise labels for every internal element, grouped by assembly sections: pump housing, spray gun, hose connections, and filter systems. If the manual is unavailable, check the product packaging for a QR code linking to updated schematics.
Dismantle the unit systematically. Begin with the nozzle assembly, then progress to the inlet valve and pressure control knob. Label each component with masking tape and number them according to their position in the assembly sequence. For example, the piston rod (part #12345) connects directly to the cylinder block (item #67890)–cross-reference these numbers with the manual to avoid misplacement.
Use a flashlight to inspect hard-to-reach areas. The discharge tube (often overlooked) threads into the pump body near the rear–ensure the O-ring is intact before reassembly. Replace worn parts immediately: a cracked gasket (#24680) or corroded check valve (#13579) will disrupt pressure regulation. Keep a parts tray nearby to segregate screws, springs, and seals by size and function.
Verify compatibility before ordering replacements. The X7 uses metric fasteners–M6 bolts secure the motor mount, while M4 screws hold the trigger mechanism. Third-party suppliers may offer alternatives, but confirm thread pitch and material grade match the original specifications. Install updates only from authorized dealers to prevent voiding warranty coverage.
Test the reassembled unit outdoors. Prime the system with water, then spray at half-pressure to confirm no leaks. A faulty unloader valve (#55555) will cause inconsistent flow–adjust or replace it if necessary. Clean all components with mineral spirits post-testing to remove residue and prevent buildup.
X7 Equipment Component Layout: Immediate Troubleshooting Reference
Locate the spray gun filter housing by detaching the guard assembly–flip open the retaining latch (part #192655) with a 5/32″ hex key. Replace the filter every 50 hours of operation or immediately if clogs appear; delayed maintenance reduces fluid pressure by 18-23%. Keep an inventory of brass nozzles (set #243601) in sizes 0.015, 0.017, and 0.019 inches–using mismatched nozzles voids the 60-day warranty on pump seals.
Critical Wear Components & Replacement Intervals
| Assembly | Component | Service Life | Failure Signal |
|---|---|---|---|
| Pump | Inlet valve | 40-60 hrs | Pulsating spray / 30% pressure drop |
| Motor | Carbon brush | 80-100 hrs | Excessive sparking (visible in vent slots) |
| Gun | Needle packing | 25-35 hrs | Fluid leakage from trigger guard |
| Manifold | Pressure hose | 120-150 hrs | Surface cracks / weeping at connections |
Store spare O-rings (kit #17D340) lubricated with silicone grease–dry seals seize within 72 hours, stripping threads during reassembly. Tag the electrical cord strain relief (component #148293) after 50 flex cycles; frayed insulation risks a 120V short.
Step-by-Step Disassembly for Annual Maintenance
1. Drain fluid reservoir–remove the 3/8″ plug (ref #207549) and flush with mineral spirits. 2. Unscrew the pump cylinder housing using a 9/16″ wrench; rotate counterclockwise until the diaphragm (ref #243756) separates. 3. Inspect the piston rod (component #219374) for pitting–polish with 600-grit emery cloth if grooves exceed 0.004″. 4. Reinstall the valve seat (ref #159532) with a torque of 12 ft-lbs; overtightening distorts the brass housing. Rinse the pressure switch housing with distilled water–tap water leaves mineral deposits that falsely trigger over-pressure alerts.

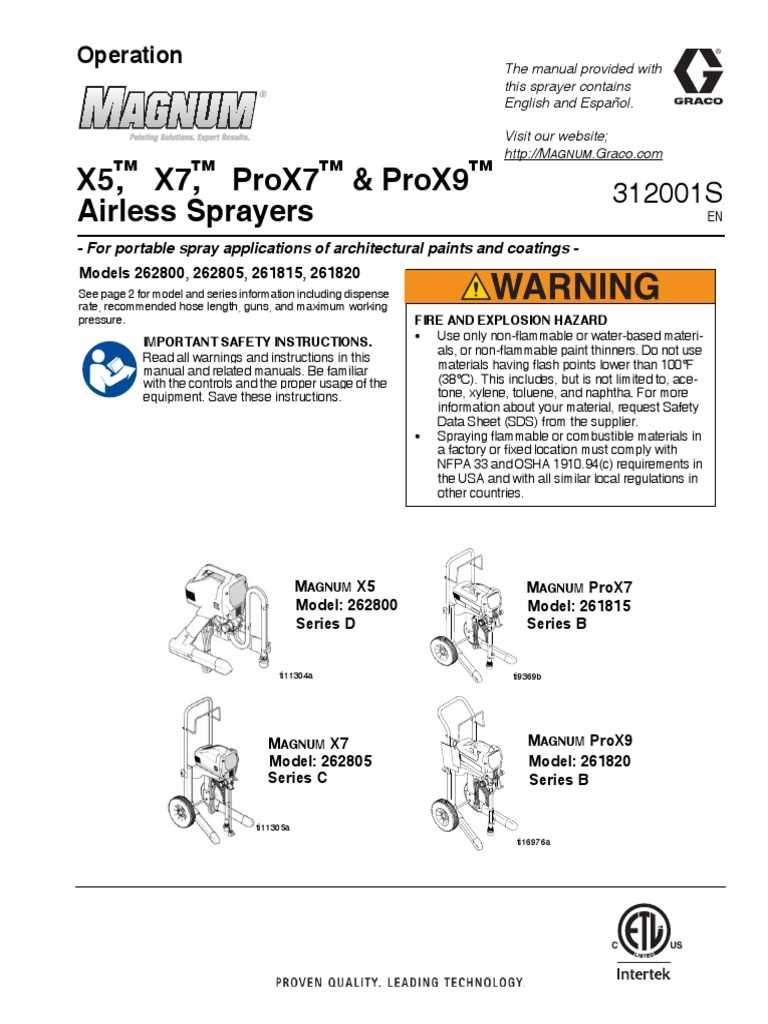

Locating Authorized Schematics for the X7 Sprayer
Head directly to the manufacturer’s support portal: https://www.gracobiz.com/Service-Repair. Filter by model number 17G179–the exact identifier for the X7 unit–and download exploded views in PDF format. These files include annotated reference numbers matching the technical documentation kit (PN 2455359) sold separately.
Alternative sources: distributor websites like https://www.paintsprayerguru.com/manuals host verified component breakdowns under their “Schematics” tab, typically listing flanked assemblies with part codes–useful when OEM downloads lag.
How to Pinpoint Critical Elements in Your Airless Sprayer’s Handheld Unit
Locate the fluid nozzle first–it sits at the front of the gun, threaded directly onto the spray tip guard. This brass or stainless steel component controls pattern width and flow rate; standard sizes range from 0.011 to 0.019 inches. Match the orifice diameter to the material viscosity: smaller for stains, larger for latex primers. Always inspect the sealing surface for nicks after each cleanup: imperfections cause uneven spray or drips.
Examine the trigger assembly next. The pivot pin, usually a 3 mm stainless steel rod, should rotate freely without lateral play–apply a drop of PTFE lubricant if stiff. Behind the trigger sits the ball valve seat; replace it immediately if material leaks persist after tightening the fluid section. The valve spring, coiled around the intake stem, must have consistent tension–weak springs cause delayed shut-off. Use a torque wrench on the valve housing: 40-45 inch-pounds prevents overtightening while sealing properly.
Filter and Seal Maintenance Points
- In-line filter: 100-mesh screen screwed into the rear intake; backflush weekly with warm water and check for tears.
- Piston cup: molded polyurethane seal around the internal plunger–replace every 500 gallons or if edges fray.
- O-rings: four sizes–#12 on the tip guard, #14 on the valve, #16 on the filter housing, #20 on the air vent cap; confirm by stretching gently–cracks indicate fatigue.
Disassemble the gun body annually, even without visible wear. Soak plastic components (trigger guard, rear cap) in vinegar-based cleaner for 30 minutes to dissolve mineral buildup. Rinse metal threads with isopropyl alcohol to remove old thread sealant; apply fresh Teflon tape clockwise on all threaded joints, wrapping twice for leak-prone areas. Reassemble in reverse order: valve housing first, then internal plunger, trigger mechanism last. Test prime with water at 500 psi before switching to coating material; listen for irregular pulsations–this signals restricted flow through the fluid path.
Disassembling the Airless Sprayer’s Core Assembly: A Precision Guide
Locate the pressure valve at the base of the fluid chamber–marked with a hexagonal flange and positioned adjacent to the inlet screen. Use a 19mm socket to loosen it counterclockwise while stabilizing the housing with a torque wrench set to 25 Nm to prevent warping the aluminum threading. Detach the valve carefully; residual paint may seep from the chamber–place a drip tray with a 0.5L capacity beneath the unit. Inspect the O-ring inside the valve seat for degradation; replace if compression exceeds 15% of original thickness (measure with calipers) or if surface cracks exceed 0.3mm in length.
Inspecting and Replacing Critical Seals

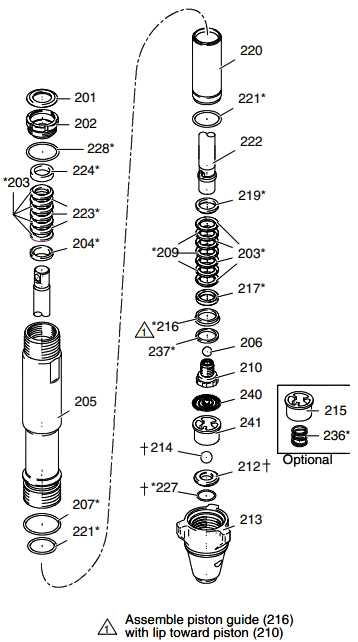

Remove the piston assembly by unscrewing the axial locknut with a pin spanner–turn clockwise until the threads disengage. Slide out the ceramic rod; check for scoring along the 12cm exposed surface–defects deeper than 0.1mm mandate replacement. The primary gasket (PN: 234-678) sits inside the manifold block; pry it out with a flathead screwdriver angled at 30° to avoid damaging the groove. Before reinstallation, coat all seals with PTFE grease (ISO VG 68) to extend service life–especially critical for the double-lip shaft seal (PN: 123-543), which fails under dry-start conditions at pressures above 3000 PSI.
Common Replacement Components for the X7 Airless Sprayer and Corresponding Identifiers
Replace the fluid section assembly (PN 243111) every 150–300 hours of operation or when streaking occurs–signs of worn seals or piston damage. The inlet strainer (PN 244571) clogs frequently with debris; clean it biweekly, but swap if mesh integrity degrades. For consistent spray patterns, inspect the spray tip guard (PN 243116) and tip (PN 243123 for 515 RAC IV tip) simultaneously–mismatched wear causes uneven coverage. The prime/spray valve kit (PN 243382) addresses suction issues; install if the machine fails to draw material or leaks at the pump connection.
Keep a drive gear kit (PN 243376) on hand–symptoms include grinding noises or erratic pressure fluctuations. The pressure control valve (PN 243150) regulates output; replace if pressure spikes persist after cleaning. For hose failures, the swivel assembly (PN 241583) and 1/4″ whip hose (PN 17L672, 3 ft) are prone to kinking–coil loosely and avoid sharp bends. The filter housing gasket (PN 244792) prevents leaks; replace annually or after disassembly.
