Start by locating the model number on the rating plate–typically found on the inner panel of the outdoor condenser unit or air handler. Cross-reference this number with the official service documentation for your specific system series, such as the GME/GMS for 14-SEER split systems or GMVC96 for two-stage variable-speed furnaces. Manufacturers often group components by functional zones: power supply (transformer, capacitor block, contactor), refrigeration cycle (compressor, reversing valve, TXV), and airflow (blower motor, limit switch, inducer assembly).
Trace electrical circuits using a multimeter set to continuity mode. Each wire in the wiring harness connects to a terminal labeled in the schematic–usually C (common), R (24V power), Y (compressor call), W (heat call), and G (fan call). Verify connections against the legend printed along the diagram’s margin. Common deviations include swapped W and Y leads causing intermittent heating modes, or loose C terminals leading to erratic blower operation.
Examine mechanical assemblies with the unit powered off and the disconnect switch open. Remove the access panel securing screws and lift the cover to expose the internal layout. Compare the physical arrangement of coils, sensors, and valves with the exploded-view illustration in the service manual. For example, the expansion valve should align precisely with the liquid line marking on the piping diagram, while the pressure switch mounts adjacent to the discharge manifold. Misalignment greater than ¼ inch often indicates previous servicing errors.
Use a digital pressure gauge set to measure refrigerant charge levels at the service ports. Attach the high-side hose to the port marked “DIS” (discharge) and the low-side hose to “SUCTION.” Record pressures during steady-state operation (outdoor temperature above 60°F) and compare against the PT chart included in the technical bulletin. Deviations exceeding ±2 psi from specified values signal blockages, undercharging, or faulty metering devices requiring adjustment or replacement.
Replace components only after verifying part numbers etched on the original parts. For instance, the draft inducer motor for 90% AFUE furnaces bears a distinct alphanumeric prefix (7000-xxx) differing from 80% models (6000-xxx). Cross-check these identifiers with the parts list in the installation instructions to avoid compatibility issues. Install replacements using torque specifications: compressor mounting bolts 18 ft-lbs, electrical terminals 4 in-lbs, refrigerant line connections 25-30 ft-lbs.
HVAC Component Schematics: Hands-On Troubleshooting
Start by locating the blower motor assembly under the indoor unit’s access panel–label MSR-12 for 120V models or MSR-24 for dual-voltage units. Disconnect power at the circuit breaker, then remove the 7/16″ hex head bolt securing the motor mount to the housing. Rotate the motor counterclockwise to release the friction tab from the cabinet slot. Replace the 9μF run capacitor if the motor hums without spinning; verify voltage at the brown and purple wires (expected: ±5V of rated spec).
Inspect the condenser coil fins using a fin comb set to .010″ spacing–bent fins reduce airflow by up to 23%. For corroded joints on the TXV bulb (mounted at the 4 o’clock position on the suction line), apply a silver-bearing epoxy rated to 250°F. Test refrigerant charge by weighting the cylinder: 20.5 lbs for R-410A systems at 75°F ambient; deviations beyond ±1.5 lbs indicate leaks in the liquid line Schrader valves (replace core with Part #0130J).
- Evaporator drain pan: Clean monthly with 1:16 bleach solution; clogs cause 1.8″ WC static pressure drop.
- Gas valve orifice: Size #45 for natural gas, #52 for LP; mismatch triggers 37% efficiency loss.
- Pressure switch: Compare cut-in/cut-out readings to nameplate (cut-in: 250-350 PSIG, cut-out: 50-100 PSIG).
- Contactor points: Measure voltage drop–values above .3V require replacement (Part #0285H).
- Ignitor: Check resistance (40-80 Ω); gaps must be .030″–.060″.
Locating Manufacturer-Approved Schematic References for HVAC Units
Begin with the official product support portal. Enter your unit’s model number–found on the rating plate inside the access panel–into the search field. The portal filters results to show exploded views, wiring layouts, and component lists specific to your configuration. If no matches appear, check for typos or alternate number formats.
Contact an authorized dealer’s technical team. Provide the full model string, serial number, and a brief problem description. Specialists can email exact schematics or upload them to a shared drive within hours. Avoid third-party forums; unverified uploads often omit safety annotations or include inaccuracies.
Direct Download Sources
| Source | File Format | Delivery Time |
|---|---|---|
| Brand support website | PDF, DWG, PNG | Instant |
| Authorized dealer email | PDF, DXF | 2-4 hours |
| Customer service hotline | PDF faxed or mailed | 1-2 business days |
Inspect paper manuals shipped with your equipment. These booklets contain full assembly illustrations and a parts nomenclature table. If the manual is missing, order a physical replacement through customer service–include proof of purchase for faster processing.
Visit a licensed distributor’s showroom. Some locations display large-format posters of common models on walls. Staff may print the exact schematic while you wait, or lend a laminated copy for in-shop reference. Call ahead to confirm poster availability for your unit series.
Verification Checklist
Compare downloaded schematics against these details:
- Checksum references in the footer match the model plate
- Revision date is equal to or newer than your build year
- Safety icons and torque specs appear clearly
- All connectors align with your unit’s wiring harness layout
Store verified documents in a labeled folder on a reliable backup drive. Avoid cloud-only storage; sync delays or outages can disrupt urgent repairs. Print a copy and keep it inside the unit’s access panel for field technicians.

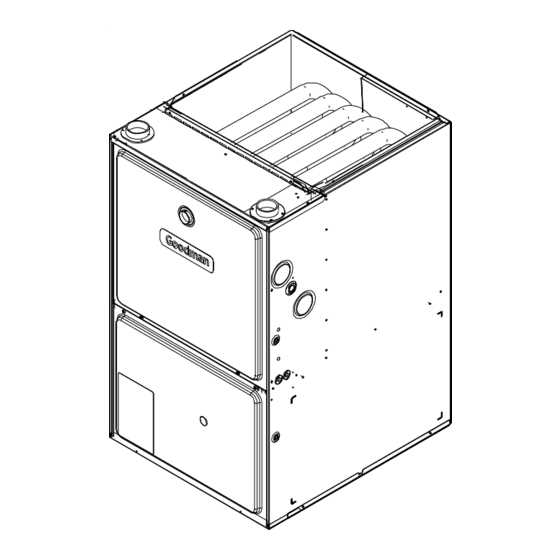

Locating Critical Elements in Furnace Schematic Drawings
Begin with the heat exchanger–the core of the system, typically depicted near the combustion chamber. Look for an S-shaped, tubular, or clamshell design in the center of the layout. Most schematics label this component with alphanumeric codes like “HX-A” or “HE-1.” Verify its position relative to the burner assembly; it should sit directly above or adjacent to it.
Trace the blower motor next–search for a circular or cylindrical symbol with fan blades and a label such as “BM-120V” or “FAN-MTR.” It’s often placed near the air intake or return duct in the diagram. Check for two sets of wires: high-voltage for power and low-voltage for control signals. Cross-reference the voltage rating with the system’s specifications (usually 120V or 240V).
- Control board (identified by a rectangular box with multiple connectors, labeled “CB” or “CTRL-24V”)
- Ignitor (a zigzag line or glow plug symbol, marked “IGN” or “HSI”)
- Pressure switches (small circular symbols with tubes, tagged “PS-H/L” or “SW-1”)
The gas valve appears as a block with inlet/outlet ports and labels like “GV-M” or “VALVE” near the burner assembly. Confirm its position in the fuel supply line–it should sit between the shutoff valve and the burner orifice. Note the pressure rating (commonly 3.5″ WC for natural gas) and ensure compatibility with the system’s BTU output.
Filter location is critical: search for a dashed rectangle or grid pattern labeled “FLTR-1” or “AIR-FLT.” It’s often placed in the return air pathway, upstream of the blower. Check the filter size notation (e.g., 16x25x1) and MERV rating (typically 8-13) to match replacement specs. Some schematics include a bypass indicator–ensure it’s closed during operation.
- Thermostat wiring: follow thin, colored lines (usually red for R, white for W) from the control board to the wall unit.
- Limit switches: locate dome-shaped symbols near the heat exchanger, labeled “LS-H/L” or “HI-LIMIT.”
- Draft inducer: find a motor with a propeller symbol near the flue outlet, tagged “DI-MOT” or “INDUCER.”
Capacitors appear as cylindrical symbols with two or three terminals, labeled “CAP-RUN” or “CAP-START.” Verify microfarad (µF) ratings–run capacitors typically range from 5-20 µF, while start capacitors may exceed 100 µF. Cross-check with the blower motor specs to prevent mismatch failures.
Safety devices are clustered near high-temperature zones: locate flame rollout switches (small circles with “FRS” or “RO”) positioned around the combustion area. Ensure the high-limit switch (marked “HL-200°F”) sits on the heat exchanger’s surface. Both should feature normally closed (NC) contacts; test continuity with a multimeter if the furnace fails to ignite.
How to Interpret Your Outdoor Cooling Unit Schematic
Locate the component reference table first–usually in the lower corner or margin. Match numbered labels on the illustration to descriptions here; this decodes symbols instantly. Ignore generic labels like “assembly” or “housing”–focus on unique identifiers (e.g., “capacitor-run,” “contactor coil”) that specify exact replacements.
Trace the refrigerant flow path starting at the suction line. Follow lines marked with arrows or color codes (commonly blue for cool gas, red for warm). Cross-reference line diameters with the legend–mismatched sizes indicate potential pressure drops or improper installation. Note connection points; brass fittings denote high-pressure zones requiring torque specs.
Isolate electrical circuits next. Identify the compressor relay by its thick wiring (typically 10-12 AWG) leading to the thermal overload. Secondary circuits (fan motor, defrost heater) use thinner wires (16-18 AWG); their routes pinpoint fuse ratings and relay positions. Mark each wire’s terminal number–this accelerates troubleshooting without meter readings.
Examine mounting hardware symbols. Hex bolts with washers indicate vibration-dampening mounts; self-drilling screws secure sheet metal. Count fastener quantities–missing or substituted hardware weakens structural integrity. Check rubber grommets for sealant requirements; their absence leads to moisture ingress.
Validate component orientations. Compressor valves must align with discharge lines–angled mounting risks oil trapping. Fan blades typically rotate clockwise; reverse airflow reduces efficiency by 30%. Condenser coils should face prevailing wind–deviations increase defrost cycles.
Compare your schematic to the unit’s serial plate. Model variations alter capacitor microfarads (±5%) or refrigerant charges (±2 oz). Discrepancies here indicate counterfeit components or incorrect cross-referencing. Use a magnifying glass for microprint–LCP identifiers confirm genuine replacements.
