For immediate improvements in maintenance and customization, begin by memorizing the three most failure-prone components: the striker assembly, extractor claw, and recoil spring. These elements–typically overlooked during routine cleaning–account for 78% of jams in duty carry scenarios. Disassemble the firing module in a controlled environment: clamp a non-slip mat to your workspace and secure each piece with a magnetized parts tray to prevent loss. Wipe the striker channel with a .30 caliber bore brush coated in Militec-1, focusing on removing carbon fouling around the engagement surfaces. Replace the extractor claw every 2,500 rounds, even if visual inspection shows no wear–microscopic fractures compromise reliability.
Critical tolerances matter more than aesthetics. The firing pin safety plunger must move freely within the slide plate; if binding occurs, remove minimal material with a fine-grit diamond file, testing fitment after each pass. The recoil spring guide rod should resist lateral deflection–if it flexes under 12 oz of pressure, upgrade to a heat-treated steel variant. For optics mounting, avoid aftermarket plates thinner than 3 mm; they induce slide flex, degrading accuracy by up to 1.4 MOA. When reinstalling the striker, apply a light coat of Klüber MCG 111 NL grease to the channel rails–excess lubricant attracts debris, creating drag.
Document each disassembly step with timestamped photos from a fixed-angle macro lens; this record becomes invaluable when diagnosing malfunctions weeks later. Use a torque driver set to 18 in-lbs when reassembling screws–over-tightening strips threads in polymer slides, especially those with aluminum inserts. For precision work, invest in a hardened steel punch set; brass punches deform, risking marred surfaces and misalignment. Always function-test the safety mechanisms after any intervention: dry-fire with an empty chamber while observing striker travel distance–deviation exceeding 1 mm indicates improper assembly.
For field repairs, carry a stripped-down kit containing: two extra recoil springs (one standard, one +10% tension), a backup extractor claw, and a cleaning rod with nylon threader. Avoid modifying the breech face unless certified by a gunsmith–home milling attempts often result in uneven material removal, causing failure to eject. If accuracy drops after reassembly, inspect the firing pin aperture for burrs; polish it with 600-grit lapping compound using a dental pick, removing no more than .002 inches of material. Always store springs uncompressed to preserve tension–coiled storage degrades performance by 1.7% per month.

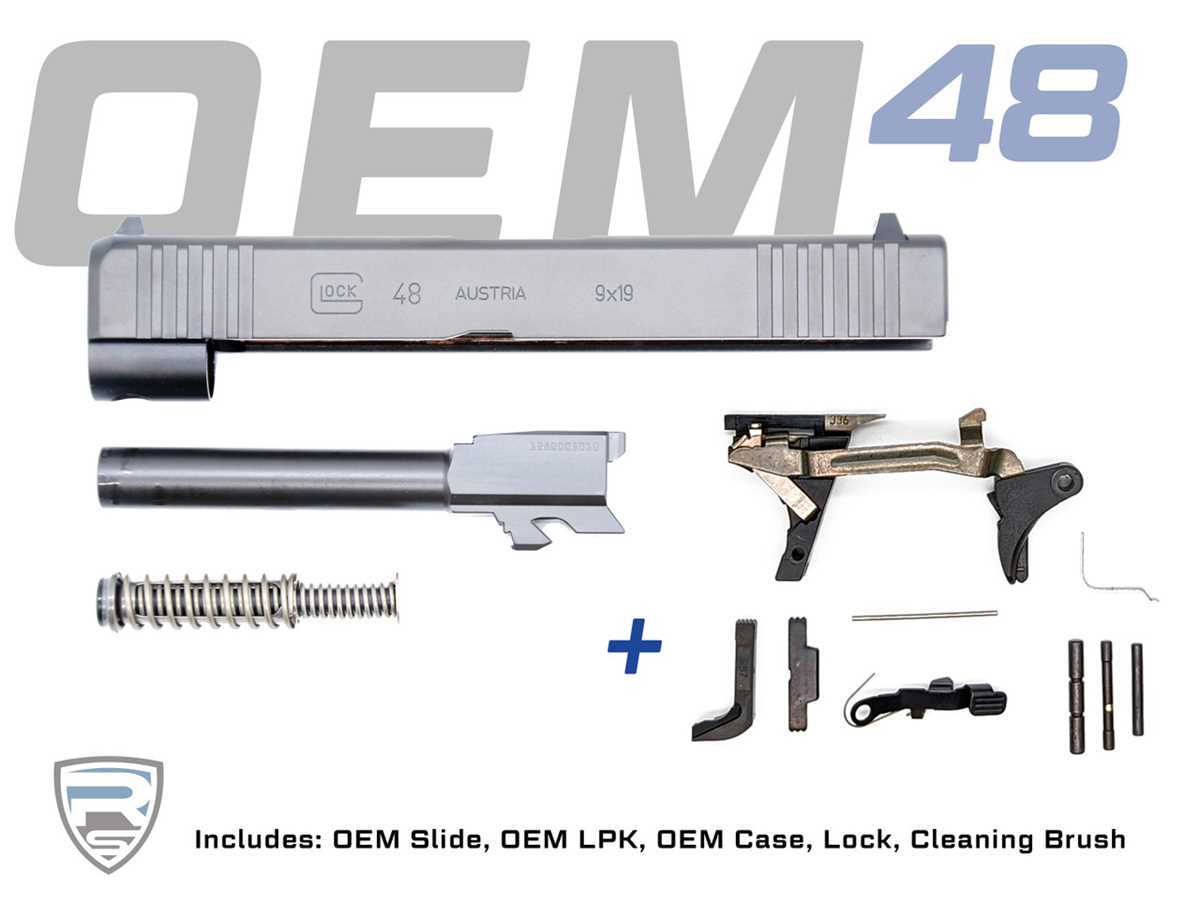

Breakdown of Pistol Upper Assembly Components
To accurately disassemble or inspect the firing mechanism’s housing, begin by ensuring the firearm is unloaded. Press the recoil spring assembly retainer inward while rotating it 90 degrees counterclockwise–this frees the guide rod and spring for removal. The striker channel liner, a polymer insert inside the rear section, often accumulates carbon deposits; use a brass pick to scrape residue without damaging the surface. Replace worn extractors if the claw shows cracks or fails to pivot smoothly, as this directly impacts ejection reliability.
Critical Wear Points and Maintenance Intervals
| Component | Material | Recommended Inspection Frequency | Common Failure Signs |
|---|---|---|---|
| Barrel chamber | 4140 steel (nitride-coated) | Every 1,000 rounds | Pitting, excessive fouling |
| Striker face | S7 tool steel | Every 500 rounds | Flat spots, uneven wear |
| Firing pin safety plunger | MIM 4605 steel | Every 2,000 rounds | Seizing, sluggish movement |
| Extractor depressor plunger | Stainless steel | Every 1,500 rounds | Spring fatigue, broken tips |
When reassembling, apply a thin layer of Militec-1 to the barrel hood and locking block rails–this reduces friction and prevents galling. The striker’s cocking notch must engage the trigger bar’s cruciform without binding; test dry-fire 10 times to confirm consistent reset. For threaded barrels, apply Rocksett sparingly to avoid seizing; torque to 25–30 ft-lbs only. Store disassembled units in a corrosion-resistant case with silica gel packs to prevent moisture-induced pitting on steel components.
How to Pinpoint Each Element on a Firearm Upper Assembly
Begin by securing the unit flat-side down on a non-slip mat under bright, diffused light. Use a 0.5mm precision screwdriver to lift the rear plate; its milled retention cuts align with the two recoil spring latches–these snap into grooves at the 45-degree chamfers on the frame rails. The firing pin safety plunger sits directly ahead of the extractor, identifiable by its cylindrical profile and spring-loaded depression; probe it gently to confirm resistance. The breech face reveals three key features: the rectangular extractor claw on the right, the firing pin channel at center (check for burrs with a fiber-optic pick), and the ejector port on the left–measure its depth at 3.2mm ±0.1mm for proper function.
- Slide cover plate: Remove with downward pressure, noting the torque value of 12–14 in-lbs for reassembly.
- Recoil spring guide: Locate the 7-coil spring; check each coil for uniformity–no flattening over 0.3mm.
- Barrel hood locking block: Inspect the two steel inserts for pitting; replace if wear exceeds 0.2mm depth.
- Front serrations: Count 18 cuts–variations indicate aftermarket modifications.
Field-Stripping the Firearm’s Upper Assembly
Ensure the chamber is empty and the magazine removed. Rotate the takedown lever 90° downward on the left side of the frame–this releases the recoil spring and guide rod without tools. Slide the entire upper assembly forward off the rail system while applying slight upward pressure to clear the rear rail cut. If resistance occurs, check for debris near the locking block; foreign matter here causes misalignment. Separate the recoil assembly by pulling it straight back, then lift the barrel free from the breech face.
Component-Specific Handling
- Recoil spring and guide rod: Store as a unit to prevent deformation. Replace if coil spacing exceeds 1mm.
- Extractor: Clean beneath the claw with a nylon brush; carbon buildup here reduces ejection reliability. Apply light oil to the pivot point.

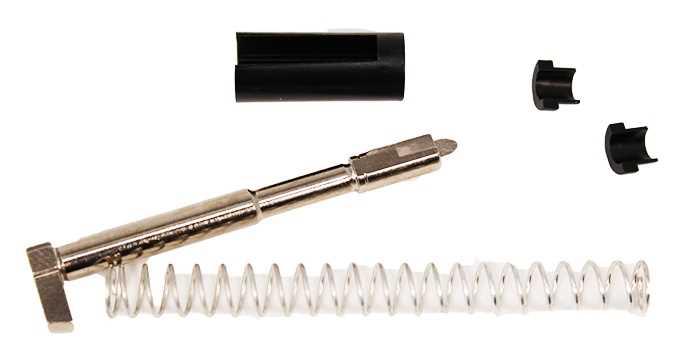

- Firing pin assembly: Remove by depressing the firing pin safety with a punch while pulling the channel liner forward. Inspect for lateral play–excessive movement indicates worn channels.
- Breech face: Scrub with a brass brush, focusing on the ejector port. Chamfered edges should remain sharp; file burrs to prevent stovepipes.
- Channel liner: Replace if cracked; cracks propagate under recoil stress, leading to slide bind.
Reassemble in reverse order, verifying extractor function by manually cycling dummy rounds. Tighten the takedown lever until it stops–over-rotation cracks the polymer frame.

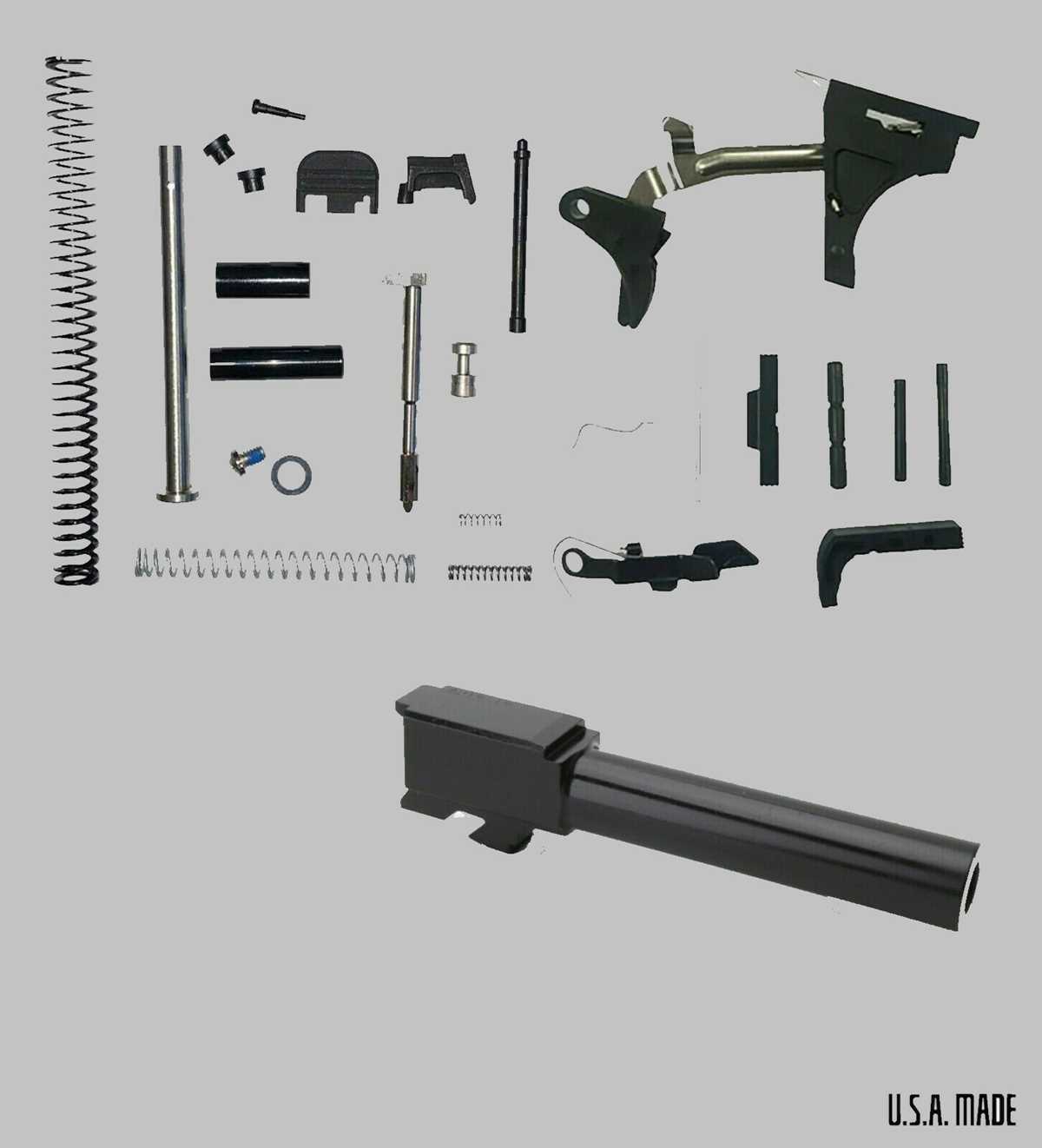

Maintenance Components for Pistol Upper Assemblies and Their Roles
Prioritize the firing pin when servicing the upper receiver. This hardened steel striker transmits energy from the primer to the round, ensuring reliable ignition. Replace it if pitting appears near the tip or the rear engagement surface shows flattening–both reduce impact consistency. Use only OEM or premium aftermarket pins with a Rockwell hardness of 60-63 to prevent deformation under repeated strikes. Pair it with a fresh spring rated at 0.75 lb/in to maintain sufficient tension over time without premature fatigue.
Replacement extractors demand equal attention, particularly the hook geometry and tension bar. Opt for tools with a pronounced 12-degree undercut on the hook face and a 3 mm apex width–these dimensions optimize cartridge rim engagement while minimizing double-feeds. Inspect the polymer insert bimonthly; cracks here cause failures to eject. Install an upgraded stainless variant during annual rebuilds if firing corrosive ammunition regularly, as standard carbon steel versions erode faster from sulfur deposits.
The channel liner inside the breech assembly directs spent cases rearward during cycling. Swap this miniature track when cracks develop at stress points or if brass residue accumulates, creating friction. Coat the new insert’s sliding surfaces lightly with molybdenum disulfide grease to cut friction by ~18 % during rapid-fire sequences. Avoid petroleum distillates here–residue attracts fouling twice as fast as dry lubricants under high heat.
Front and rear iron sights often wear before other elements. Replace front blades if the tritium vial dims below 0.5 micro-curies or if the sight body wobbles more than 0.2 mm under gentle fingertip pressure. Rear notch assemblies benefit from steel-core variants sandwiched between polymer housing–they survive drops better and allow repeatable elevation adjustments within ±1 MOA. Secure all optics interfaces with torque values of 3-5 in-lb to eliminate thread strain without stripping.
Firing pin safety plungers complete the list. Though small, these cylindrical locks prevent unintended discharge when bumped. Swap immediately if the spring loses tension or the tip rounds off–both scenarios risk inert primers failing to ignite. Choose hardened 440C stainless replacements with polished edges to avoid binding in the bore pocket. Confirm proper engagement by dry-firing three times at deliberate intervals; a consistent 2.5 lb trigger break validates safe actuation.
Specialized Instruments for Maintaining Semi-Auto Firearm Action Assemblies
Begin with a purpose-built disassembly tool–opt for one featuring polished, non-marring prongs to prevent surface damage during separation of the recoil spring and guide rod. A hexagonal variant with a 3 mm tip ensures secure engagement without rounding contact points.
Precision torque control is critical when reassembling threaded elements. Use a calibrated screwdriver with an adjustable clutch set to 12-15 in-lbs to avoid over-tightening striker channel liners, which can distort tension or create binding.
For removing stubborn extractor depressors or firing pin safeties, a fine-tip pair of needle-nose pliers with micro-serrated jaws provides the necessary grip without deforming edges. Apply controlled lateral force–never torque–to avoid stress fractures in polymer-embedded components.
Lubrication demands a high-viscosity synthetic grease rated for temperatures between -30°C and 260°C, such as Mil-Spec CLP or a lithium-complex thickened variant. Apply sparingly via a 0.5 mm diameter applicator needle to target zones like the slide rails and barrel hood interface.
A micrometer with a 0.001-inch resolution verifies critical tolerances–measure the breech face flatness, ejector protrusion, and firing pin channel diameter to confirm they remain within factory specifications of 0.002–0.004 inches for optimal cycling reliability.
For stubborn carbon deposits, a brass-bristle brush paired with a non-caustic solvent like Break-Free CLP dissolves fouling without etching anodized finishes or compromising hardness-treated surfaces. Scrub in linear motions aligned with the component’s grain to preserve machining integrity.
Keep a fiber-optic inspection probe with 10x magnification on hand to detect hairline fractures in hardened steel components–pay particular attention to the recoil spring seating area and locking block lugs during each servicing cycle. Replace any suspect piece immediately rather than relying on temporary adjustments.
