Start by locating the aerator–the small mesh screen at the tip of the spout. Unscrew it counterclockwise using pliers if necessary, but wrap the jaws in tape to avoid scratching. If the water flow is uneven or weak, this part is often clogged with mineral deposits. Soak it in white vinegar for 30 minutes, then scrub with an old toothbrush. Dry thoroughly before reinstalling.
The valve cartridge is the core of the handle mechanism. Turn off the water supply under the sink, then remove the decorative cap on the handle (usually snapped or screwed on). Unscrew the retaining nut with a basin wrench or adjustable pliers, gripping firmly but not overtightening to avoid stripping threads. Pull the cartridge straight out–if it sticks, wiggle gently while pulling. Compare the old part to a replacement cartridge (model-specific, typically sold by the manufacturer) before inserting the new one. Align the notches or tabs with the valve body, then reassemble in reverse order.
Check the O-rings and washer seals at the base of the spout and handle stem if leaks persist. These degrade over time, especially with hard water. Apply a thin layer of silicone-based plumber’s grease to the new O-rings before installation to prevent cracking and ensure a watertight seal. Replace any corroded supply lines–look for braided stainless steel hoses with ½-inch IPS threads to match standard shutoff valves.

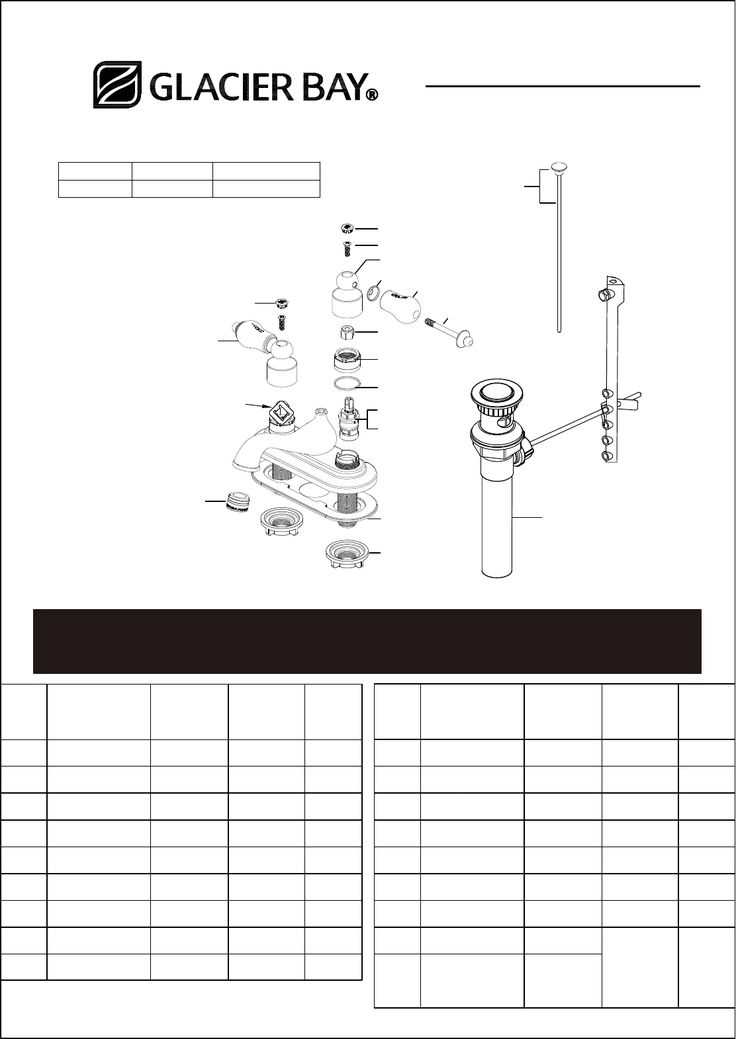

For internal components like gaskets or springs, refer to the exploded view in the product manual. If no manual exists, search the manufacturer’s website using the model number engraved on the underside of the spout or handle base. Online retailers like *SupplyHouse* or *FaucetDirect* often include downloadable schematics with product listings. Cross-reference part numbers–some universal kits (e.g., *Danco* or *Fluidmaster*) fit multiple models, but incompatible replacements may cause malfunctions.
When ordering spare linkages for two-handle systems, measure the stem length and note the threading (common sizes are 3/8-inch and ½-inch). Poor alignment during reassembly risks stripped threads or misaligned handles. Test the handles by turning them to the off position before reinstalling the trim. If resistance is felt, disassemble and check for debris in the valve seat–a tiny rubber washer or screwdriver tip can help clean it. Always shut off the main water supply before disassembly to avoid flooding.
How to Identify Components in Your Single-Handle Mixer Repair Kit
Start by locating the aerator insert beneath the spout–it threads onto the outlet and is often the first component to clog with sediment. Remove it with pliers wrapped in cloth to avoid scratching, then soak it in white vinegar for 30 minutes to dissolve mineral deposits. If the flow remains uneven, inspect the cartridge spindle next; this brass or ceramic core regulates water temperature and pressure. A faulty spindle typically causes inconsistent streams or leaks around the base–replace it if cracks or worn seals are visible.
For two-handle models, the valve stem assembly sits inside each escutcheon (the decorative plate). Pry off the plastic cap covering the screw with a flathead screwdriver, then unscrew the stem counterclockwise using an 8mm hex key. Inside, you’ll find the o-rings and washer seat–these rubber components degrade over time and should be replaced if the handle drips after shutoff. Home Depot’s replacement kits (item #0083995) include all necessary seals, but verify the stem’s threading matches; some older models use reverse threads.
- Cold-water stem: Left-hand thread (turn clockwise to tighten).
- Hot-water stem: Standard right-hand thread.
- Single-control models: Evaluate the cartridge first; stems are rarely the issue.
When disassembling the spout, check the diverter mechanism if your setup includes a tub spout or handheld shower. This small lever or rod inside the spout pipe redirects water flow–if water trickles from both outlets simultaneously, the diverter’s spring or ball bearing may be stuck. Lubricate with silicone grease (not petroleum-based) or replace the entire spout if corrosion is present. For pull-down sprayers, the hose weight (a cylindrical brass counterbalance) often gets tangled; ensure it moves freely along the hose’s length.
Troubleshooting Leaks by Component
- Base of spout: Replace the mounting nut gasket (a flat rubber ring between the spout and countertop). Damage here causes slow leaks under the sink. Use plumber’s putty for temporary fixes, but silicone caulk (100% waterproof) is more durable.
- Handle joint: Tighten the set screw beneath the handle cap–looseness here creates wobbly controls. If worn, replace the screw (usually 3mm Allen or flathead).
- Supply lines: Braided stainless-steel hoses rarely fail, but check for kinks or splits near the shut-off valves. Flexible PEX lines are prone to bursting under high pressure; re-secure them with pipe clamps if bulging.
For less common issues, inspect the pop-up drain linkage if the stopper doesn’t lift or seal properly. The pivot rod connects to the drain lever via a ball-and-socket joint–adjust the rod’s angle by loosening the retaining nut and sliding the clip up or down. If the stopper sits too high or low, fine-tune the clevis screw on the back of the drain pipe. Chrome-plated brass drains may develop pinhole leaks; replace the entire assembly (item #0084012) if polishing doesn’t restore a watertight seal.
How to Match Your Sink Hardware Model for Repairs
Start by locating the brand logo or model number engraved on the underside of the spout or along the base plate. Most contemporary designs from this line feature a six-digit code, often beginning with “GB” followed by four numerals. If the engraving is worn, inspect the original packaging or receipts–many retailers print the model identifier on purchase documents.
For single-handle lever styles, check the cartridge type before ordering replacements. Common variants include ceramic disc or compression mechanisms, identifiable by the number of splines on the stem (typically 12, 18, or 24). Measure the cartridge’s total length–standard sizes range from 2.5 to 3.5 inches–to avoid mismatches. Some older models use a quarter-turn ball valve; these require proprietary seals not compatible with newer designs.
Spotting Distinct Series by Design Features
Vessel sink installations often use tall, arched spouts with dual handles, distinct from the low-profile gooseneck models found in standard basins. The vessel series frequently demands longer supply lines (12–16 inches) due to elevated height, while deck-mounted units usually suffice with 8-inch braided hoses. Check the aerator threading–some high-arc models use a 15/16-inch male thread, whereas most basin types standardize on 55/64-inch.
Lever-operated units with a square base differ from those with a rounded footprint. The square-base models typically utilize a metal pop-up drain assembly, while rounded versions integrate plastic flapper mechanisms. Drain rods for these two types are not interchangeable–measure the rod’s length (between 4 and 6 inches) and diameter (usually 5/16 or 3/8 inch) to ensure compatibility.
For widespread configurations with separate hot and cold handles, note the center-to-center spacing. The industry standard is 8 inches, but some compact vanity versions use 4-inch spacing. Handles themselves vary–some have set screws concealed under decorative caps, while others require removing a Phillips-head screw from the underside. Count the splines on the valve stem (most use 12, but a few older models employ 16) to confirm the correct handle kit.
Troubleshooting Without Packaging or Engravings
If identifiers are missing, compare the finish and handle shape to manufacturer catalogs. Brushed nickel models often pair with lever handles featuring a flat front edge, while polished chrome versions frequently use rounded levers. Cross-reference the spout’s reach–vessel styles typically extend 7–9 inches from the base, while basin models measure 4–6 inches. Count the number of mounting holes (single-hole, centerset, or widespread) to narrow options.
When in doubt, disassemble the unit to examine internal components. Cartridges from this manufacturer often have unique grooves or notches that align with specific wrench tools–take clear photographs before removal. Supply lines stamped with part numbers (e.g., “SL12” for 12-inch lines) can also serve as reference points. Retailers specializing in plumbing fixtures maintain databases correlating these details to exact models, allowing orders via cross-referenced descriptions.
Step-by-Step Guide to Finding Your Fixture Component Schematic
Begin by identifying the manufacturer’s mark on the spout or handle–most brands etch logos, model numbers, or date codes on the underside. Use a flashlight to inspect hidden surfaces; common locations include the side of the escutcheon plate, the base of the aerator, or inside the supply tube openings. If the mark isn’t visible, measure key dimensions: spout reach (from center of mounting hole to spout tip), handle width, and thread diameters (typically 1/2″ or 3/8″ for standard setups). Record these figures in millimeters for precision–many European schematics use metric units. Cross-reference your notes with official repair manuals; brands like Pfister and Delta often publish detailed exploded views organized by product series rather than individual model numbers.
Visit the manufacturer’s support portal and enter your measurements into their compatibility tool–most sites filter schematics by dimensional ranges rather than exact SKUs. If the original brand’s database yields no results, check third-party suppliers like Moen’s “Repair Center” or AquaTouch’s parts cross-reference chart. These databases often include discontinued lines and reverse-engineered schematics for orphaned fixtures. Below is a quick-reference table for locating critical identification details on common fixture types:
| Fixture Type | Primary ID Location | Secondary ID Location | Typical Marking Format |
|---|---|---|---|
| Single-handle spout | Underside of spout body | Aerator base | 3-5 digit alphanumeric code |
| Dual-handle valve | Side of escutcheon | Handle screw cap | Brand name + series code |
| Pull-down sprayer | Counterweight bracket | Spray head connection | Date code (MMYY) + model suffix |
| Wall-mount fixture | Valve body rear | Supply line coupling | PN# followed by revision letter |
