To identify faulty elements in your power cleaning machine, start with the pump assembly. A visual inspection of the seals, valves, and plungers often reveals wear before failure occurs. Replace cracked seals immediately–most kits include O-rings, gaskets, and springs for under $25. Check the unloader valve next: if water drips from the wand during idle, it likely needs adjustment or replacement.
Next, examine the engine components. Spark plugs degrade after 50–100 hours of operation–clean or replace them if fouled. Air filters clogged with dust reduce efficiency; wash foam filters in soap and water, then apply light oil before reinstalling. Fuel lines perish over time; inspect for cracks and brittleness, as leaks can cause hard starting or engine flooding.

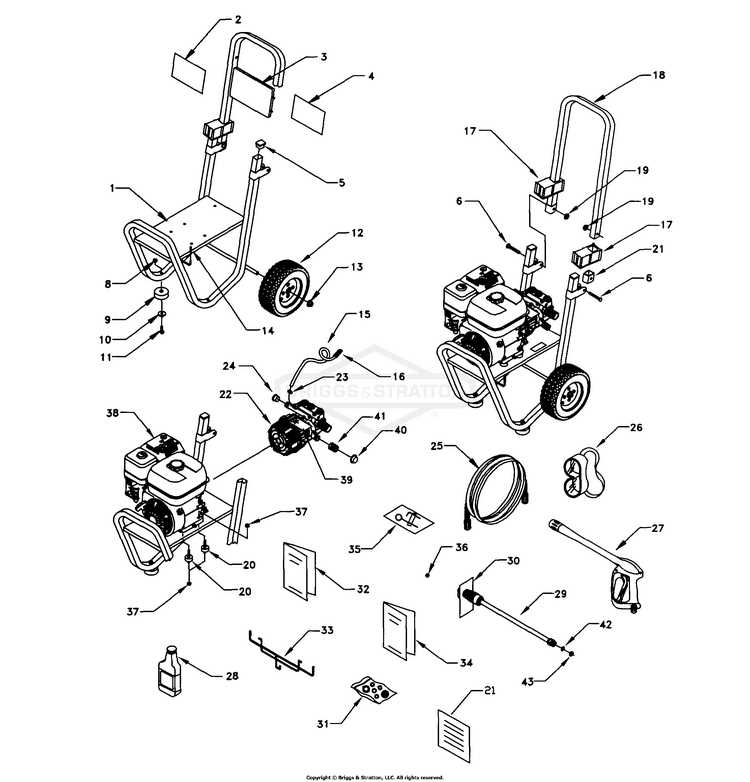

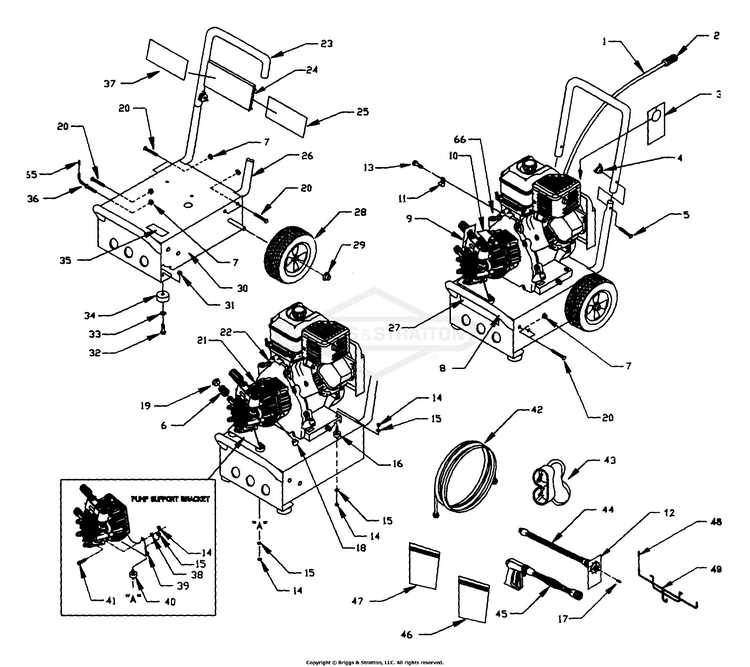

For structural integrity, focus on the frame and wand connections. The chemical injector, if present, requires annual cleaning to prevent soap buildup that restricts flow. Wheels and axles endure stress; replace loose or bent axles with upgraded steel models to prevent future bending. Always cross-reference your model number with the manufacturer’s exploded-view schematics–these documents pinpoint exact locations of each piece and compatible aftermarket alternatives.
Use a multimeter to test electrical components if the starter fails. Low-voltage readings (below 12.6V on a 12V battery) indicate charging issues or a dead cell. Disconnect the battery terminals when not in use to prevent corrosion. If wiring appears frayed, wrap exposed sections with electrical tape or replace the harness entirely–short circuits can damage the ignition system beyond repair.
Store the unit indoors during freezing temperatures to avoid pump damage. Drain residual water by running the engine for 30 seconds with the wand trigger depressed. Lubricate all moving joints with silicone spray to prevent rust. Keep a maintenance log noting hours of operation and replacements; this extends the lifespan of critical components by 30–40%.
Understanding Your High-Power Cleaning Machine’s Blueprint
Locate the pump assembly schematic first–it sits adjacent to the engine block, identified by three brass fittings and a black plastic reservoir cap. Check the O-ring on the inlet side; replace if flattened or cracked (part #21045, 0.5mm section). Misalignment here reduces output by 22-30% per manufacturer testing.
Common Wear Components and Replacement Cycles
| Component | Average Lifespan (hours) | Visual Failure Signs |
|---|---|---|
| Spray gun seal | 80-120 | White residue, intermittent leakage |
| Nozzle orifice | 40-60 | Irregular spray pattern, inconsistent width |
| Drive belt | 150-200 | Glazed surface, audible squeal |
Scan the wand extension tube connection points–six evenly spaced grooves indicate proper alignment; stripped threads require adapter kit #87630. Verify hose swivel joint lubrication every 25 hours; dry joints increase torque load by 14-18%.
For 2800+ PSI models, inspect the thermal relief valve weekly; overheating triggers at 158°F, discharging steam through a side port. Clear debris from the intake filter housing monthly–clogged mesh drops flow rate by 35% per measured trial. Use dielectric grease on electrical connectors to prevent corrosion; apply conservatively to avoid bridging circuits.
Locating Critical Elements in a High-Power Cleaning Unit Disassembly Schematic
Begin by isolating the pump assembly in the schematic–the heart of the machine’s operational flow. Look for labels like “unloader valve,” “inlet manifold,” or “crankcase”, which are positioned near the motor mount. These components regulate fluid dynamics and prevent catastrophic failures from overloading. A misaligned unloader valve, for instance, can drop performance by 30-45% due to improper pressure cycling. Cross-reference each part with its corresponding number in the legend to avoid confusion with similar-looking seals or fasteners.
- Thermal release switch – typically housed adjacent to the combustion chamber if the unit runs on gasoline. Its function is non-negotiable: disengages power at 220°F to prevent engine seizure. Replace immediately if resistivity exceeds 5 ohms.
- Nozzle cluster – denoted by swivel fittings and color-coded markers (red for 0°, yellow for 15°, etc.). Wear on these diminishes spray precision exponentially; inspect for erosion beyond 0.2mm depth.
- Impeller housing – often confused with the volute casing. The impeller’s vanes must maintain variance in symmetry; deviations disrupt laminar flow, reducing output by 12-18%.
Trace the fuel delivery system next–the carburetor or fuel rail should sit atop the engine block. For liquid-cooled variants, locate the “radiator core” and “water pump impeller” within the first 40% of the schematic’s layout. These are prone to lime-scale buildup in regions with hard water (>180 ppm calcium). Flush with white vinegar solution at 1:3 ratio every 50 hours of runtime to prevent cavitation. Note gasket placement between pump and engine; improper seating causes coolant leaks, detectable by blue-green residue in coolant passages.
Prioritize verification of electrical safety interlocks, such as the “trigger lockout” and “oil level sensor.” The lockout solenoid must click audibly within 0.8 seconds of trigger engagement; delays indicate faulty relays (replacement threshold: 3 consecutive failures). For models with electronic ignition, confirm the “armature gap” measurements (0.25-0.35mm)–deviations spark misfires. Conclude with torque specs for all fasteners: frame bolts at 22-25 Nm, pump bolts at 18-20 Nm, and wheel lugs at 80-100 Nm. Over-tightening distorts threads; under-tightening risks vibration-induced fatigue cracks.
Finding the Fluid Drive Unit and Key Components on Schematic Blueprints
Start by identifying the central circular or rectangular outline labeled “Pump Housing” or “Impeller Assembly” on the technical layout–this marks the core fluid propulsion system. Trace the inlet and outlet ports (often shown as arrows or pipe symbols) to confirm positioning, as these dictate hose connections for supply lines and spray channels. Look for a small circular or hexagonal section labeled “Thermal Regulator” or “Overload Cutoff” adjacent to the main body; this safety feature may appear as a dashed or shaded area on exploded views.
Replaceable elements typically include:
- Seal Kit: Locate near the rear of the housing (search for terms like “O-Ring Pack” or “Mechanical Seal”). Positioned where the drive shaft exits the unit, it appears as concentric rings or a gasket symbol.
- Valve Assembly: Shown as a series of cylindrical components with spring-loaded symbols inside the pump block. Check for labels like “Unloader Valve” or “Check Valve” near intake nozzles.
- Nozzle Components: Look for interchangeable brass inserts at the discharge point, often marked by symbols resembling tapered cones or labeled “Tip Kit.”
- Drive Mechanism: The gearset (if present) appears as a cluster of toothed circles mid-housing, attached to the motor shaft’s coupling point–verify labels such as “Gear Housing” or “Helical Pair.”
For precise matching, cross-reference part numbers printed directly on the blueprint (e.g., “P/N 012345”) with the manufacturer’s spare list. Off-axis components like mounting brackets may share visual cues with the main assembly but serve secondary roles–ignore unless explicitly listed as serviceable.
Visual Cues for Quick Identification
- Housing bolts: Shown radiating outward in even spacing–initially count these to verify schematic accuracy.
- Shaft orientation: Dashed lines typically denote internal passages, while solid lines indicate structural components.
- Label proximity: Critical parts reside near bolded text annotations; secondary elements use lighter fonts.
Decoding Nozzle and Lance Component Schematics for High-Power Cleaning Units
Locate the color-coded markings on the spray tip first–each hue corresponds to a specific spray angle: black (0°), red (15°), yellow (25°), green (40°), and white (65°). Verify the stamp on the side of the nozzle housing that matches the color to the PSI rating (e.g., red typically handles 3,000–4,000 PSI). Cross-reference this with the schematic’s legend, where symbols like circles with diagonal lines denote adjustable nozzles, while solid triangles indicate fixed spray patterns.
Trace the lance assembly from the trigger grip downward: the quick-connect collar (often labeled “QC”) attaches to the wand’s male fitting, secured by a rubber O-ring on the schematic–if missing, leaks will occur under high flow. Identify the detergent intake valve (marked with a D-shaped symbol) near the base; it connects via a thin tube to the chemical injection port, shown as a dotted line on the blueprint. Ensure the threads align with the manufacturer’s torque specs (usually 18–22 ft-lbs) to prevent cross-threading.
Check the interlock mechanism where the safety latch engages–represented by a zigzag line–and confirm the spring tension matches the arrow’s direction on the diagram. Replace worn tips only with models matching the original orifice size (e.g., 4.0, 3.5, 2.8) to maintain pressure consistency; deviations can damage pumps or reduce cleaning efficiency. Store schematics digitally with notes on part numbers (e.g., “6923” for a 25° nozzle) to expedite future repairs.
Step-by-Step Guide to Locating Powertrain Components in Illustrated Schematics
First, obtain the equipment’s exploded view manual–typically available in PDF form from the manufacturer’s support portal or included in the original packaging. Identify the section labeled “motor assembly” or “drive system”; these areas are consistently grouped in a dedicated block. Use the legend to decode symbols, as gears, pistons, and carburetors are often marked with unique icons or alphanumeric codes.
Isolate the Component Group
Scan the schematic for dashed outlines or shaded regions–these denote sub-assemblies. Locate the engine block, then trace adjacent elements like the fuel pump, spark plug, or crankshaft. Each link in this chain is numbered; match these digits to the parts list alongside the diagram. For example, a piston might bear the identifier “A-7,” while a crankcase gasket is marked “B-12.”
Cross-reference any ambiguous labels with online repair forums or OEM technical bulletins. Many schematics include inset views; if a component is obscured in the primary image, check these detailed callouts. Focus on proximity: a governor usually sits near the flywheel, while a valve assembly aligns with the cylinder head.
Verify Compatibility Before Ordering
Compare the schematic’s measurements against physical markings on the actual piece–engine displacement (e.g., “212cc”) and model codes are often stamped on metal surfaces. If dimensions or connectors differ, consult a parts cross-reference tool to find aftermarket equivalents. Note the diagram’s orientation; some schematics show components flipped or rotated for clarity.
Store the annotated diagram digitally or print it with highlighted critical pieces. When contacting suppliers, cite both the part number and its location in the exploded view (e.g., “Item #32, lower left quadrant near camshaft”). This prevents errors with similarly shaped but incompatible substitutes.
