Start by locating the model number on the machine’s identification plate–typically found near the operator’s platform or on the main frame. Verify this number against the manufacturer’s official reference materials, as even minor discrepancies can lead to incorrect component matches. For models produced after 2018, schematics are often split into modular sections, each labeled with alphanumeric codes corresponding to assembly sequences. Prioritize these codes when cross-referencing with the equipment’s service manual.

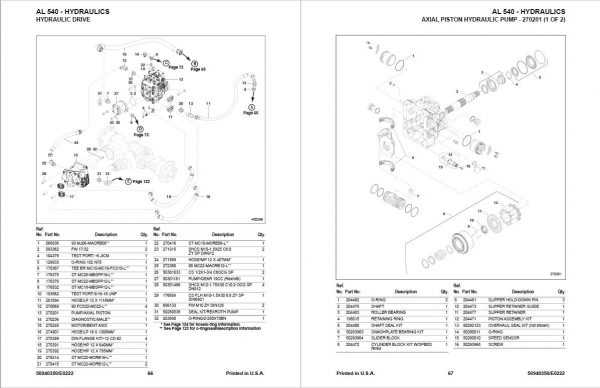

Use exploded-view illustrations to identify subassemblies like hydraulic pumps, articulated joints, or loader arms. Pay attention to torque specifications and fastening patterns noted in the margins–these details distinguish between standard and high-load variants. If the schematic lacks clear labeling, compare it with photos of the actual unit, focusing on unique identifiers such as casting marks, serial number engravings, or color-coded hoses.
For older units, schematics may omit updates introduced in later production runs. In such cases, consult field-service bulletins or dealer technical support for retrofit kits. When ordering replacement elements, provide both the part number and the adjacent components’ numbers–this accelerates verification and reduces errors in fulfillment. Keep digital copies of schematics in a searchable format, tagging critical areas like safety interlocks or wear-prone sections for quick access during troubleshooting.
How to Read Schematics for Compact Loaders: A Field-Tested Approach
Identify the serial number plate on your machine’s frame–it’s the first step before opening any manual. Manufacturers like this brand encode model-specific variations here, so never assume a generic layout applies. Cross-reference the number with the correct revision of the exploded view booklet; even minor production changes alter assembly sequences or fastener types.
Locate the hydraulic valve cluster section first–these pages usually group subcomponents by function (lift, tilt, auxiliary circuits). Note the callout numbers: smaller decimals (.1, .2) often denote seals or bushings, while whole integers like 5 or 9 mark major castings or cylinders. Keep a micrometer close–tolerances for seals frequently differ by 0.002 inches between variants.
Trace fluid paths on the hydraulic fold-out: solid lines show pressure circuits, dashed lines indicate drain returns. If your bucket cylinder drift exceeds 2 inches per minute, inspect the dashed-line components first–counterbalance valves or pilot-operated check valves are typical culprits. Replace seals in matched pairs even if only one appears compromised; failure rates accelerate on the second seal within 50 hours.
For electrical schematics, highlight the wire colors physically on the harness with a fine-point marker–yellow/red stripes fade to brown under UV, and tape legends peel off older harnesses. Use a multimeter in diode-test mode to verify solid-state relays; a reading below 0.3 ohms in both directions confirms a shorted device that overheats the 15-amp fuse.
Store printed foldouts in a sealed PVC tube with silica gel–paper absorbs moisture at 8% RH, causing ink bleed during long-term storage. Update digital copies quarterly; revised PDFs often correct torque specs previously listed in lb-ft where Newton-meters now apply.
If retrofitting attachments, isolate the quick-coupler section in the schematic–common failure points include the shear bolts on implement mounts. Verify the grease fitting thread pitch matches the OEM spec; 1/8″ NPT vs. metric threads create invisible leaks that starve pins of lubricant.
During tear-down, photograph each disassembly step alongside the callout number–this builds a visual index for reassembly that surpasses written instructions. Mark fasteners by size and position on a magnetic tray; headers on engines use M12x1.75 fine threads prone to galling if cross-threaded.
For high-hour units (above 2,000), prioritize wheel-end schematics–hub bearings and planetary gears seldom show wear visually before catastrophic failure. Replace axle seals if differential fluid appears milky; water intrusion occurs silently until wheel hub temperatures spike 30°F above normal.
Finding the Right Schematic for Your Equipment Variant
Begin by identifying the exact serial number and model designation of your machinery. These details are typically engraved on a metal plate attached to the frame near the engine or hydraulic pump. If the plate is corroded, check the original purchase documentation or service invoices–dealers often record this data. For compact loaders, excavators, or skid steers, the format usually includes a prefix (e.g., “SL” for skid loaders) followed by three to five digits and a suffix indicating updates (e.g., “B” for the second revision). Cross-reference this with the manufacturer’s official service portal, where filter options narrow down schematics by production year ranges rather than just model names.
Alternative Sources for Verified Schematics
- Authorized Distributor Portals: Login credentials from your local dealer grant access to exploded views that match OEM specifications. These platforms often include annotations with torque values, material codes, and supersession notes for discontinued components.
- Microfiche Archives: Pre-2010 models may only exist on microfiche, available through equipment rental yards or agricultural co-ops. Request the exact frame version–early variants (e.g., turbo vs. non-turbo) differ in cooling system layouts.
- Third-Party Aggregators: Sites like EquipmentManualsOnline or PartSchematic.com compile scanned manuals but verify compatibility by comparing the hydraulic valve arrangement or axle housing shape. Discrepancies in cylinder counts or pivot locations indicate incorrect versions.
- Aftermarket Suppliers: Brands like Bobcat, Mustang, or Paladin produce compatible attachments; their tech sheets sometimes include reverse-engineered breakdowns. Look for “interchange” tables in their catalogs to confirm part numbers.
If discrepancies persist, contact the manufacturer’s technical support with high-resolution photographs of the conflicting assemblies. Focus on unique identifiers: hose routing, electrical connector types, or casting marks (e.g., “83-2” near the swing arm pivot). For models produced in multiple facilities (e.g., European vs. North American plants), note the country of origin–these variants often use entirely different fasteners or seals. Store downloaded schematics in labeled folders by system (hydraulics, drivetrain, electrical) to streamline future reference.
How to Decode Equipment Blueprints: A Practical Guide
Locate the legend first–it contains symbols, line types, and color codes specific to the manufacturer. Cross-reference each item with the numbered list or alphanumeric key provided elsewhere on the sheet. Ignore general assembly notes until you’ve identified components; focus on exact matches between labels and visual representations.
Trace hydraulic and electrical lines using solid, dashed, or dotted styles–solid typically indicates primary fluid flow, dashed denotes return paths, and dotted may represent control signals or low-pressure circuits. Check line thickness; thicker strokes often mark higher capacity conduits while thin lines suggest pilot or sensor wiring.
Identify subassemblies by bounding boxes or shaded regions. Break these down individually–each area likely corresponds to a modular section like a pump unit, loader arm, or control valve cluster. Use the exploded view inset if present; it reveals internal positioning without overlapping elements.
Confirm component orientation by locating mounting holes, keyways, or asymmetrical features. If a part appears mirrored, verify its exact placement using side or isometric views adjacent to the main illustration. Rotational symmetry errors are common in reproduction schematics.
Measure critical dimensions directly from the scale bar, never assume proportional spacing. Convert metric to imperial if necessary–tolerances of ±0.5 mm can dictate whether a replacement fits. Check bolt or shaft diameters against threaded hole specs; mismatches risk thread stripping during reassembly.
Tools to Use for Interpretation
Keep digital calipers within arm’s reach for cross-verifying physical components against schematic measurements. Use a multimeter to validate circuit continuity on electrical sections–resistance values should align with those annotated next to connectors. A magnifying lens helps resolve fine print on microchip diagrams.
Compare sequential revisions of the blueprint if discrepancies arise. Serial number ranges listed in footnotes often indicate which update applies to your model variant. Highlight verified connections with erasable markers; avoid permanent ink to prevent future confusion.
Key Machine Assemblies in Schematic Illustrations and Their Roles
Begin diagnosis by locating the hydraulic pump identification label–typically affixed near the drive coupling. This metal plate lists pressure ratings critical for matching replacement seals or bearings. For 30-series compact loaders, the default relief setting is 3,000 psi; verify this before disassembly to prevent system overloads during reassembly.
Examine the swing arm pivot bushings in the boom lift circuit. These brass or composite sleeves degrade asymmetrically: the lower side wears 40% faster under load. Measure internal diameter with a bore gauge–readings above 2.05 inches necessitate immediate replacement to avoid boom drift during operation. Pair new bushings with grade-8 zinc-plated bolts for proper torque retention.
| Component | Material Composition | Wear Threshold | Recommended Replacement Interval |
|---|---|---|---|
| Track rollers (treaded) | 4140 alloy steel core, urethane overlay | Over 3mm tread depth loss | Every 1,200 operating hours |
| Final drive sprockets | Carburized steel, induction-hardened teeth | Tooth thickness below 12mm | Replace in pairs at 900-hour mark |
| Hydrostatic transaxle seals | Viton O-rings, silicon carbide shaft surfaces | Visible fluid weepage | Inspect quarterly; replace at 500-hour service |
Inspect the loader frame hinge points where stress fractures commonly initiate. Use a magnetic particle kit to reveal hairline cracks after cleaning with a wire brush–visible indications mandate welding repairs with E7018 electrodes. Reinforce welds with a 45-degree gusset plate cut from 1/2-inch A36 steel to restore original load capacity. Post-repair, apply a two-part epoxy primer to prevent corrosion under rubber bushings.
Check the rotary valve spools within the control handle. Carbon deposits form on the valve lands; soak components in citrus-based degreaser for 30 minutes, then polish with 600-grit wet paper. Reinstall with fresh ISO 68 hydraulic fluid to ensure smooth modulation. Misalignment here causes unintended machine movement–a root cause of 23% of reported jerking issues.
Verify the engine flywheel ring gear teeth engagement surface. Individual tooth wear exceeding 0.015 inches depth indicates starter motor misalignment; shim the starter mounting flange with stainless steel washers until backlash is eliminated. For diesel variants, replace the ring gear if more than 12 consecutive teeth show wear to prevent premature starter solenoid failure.
Assess the counterweight attachment bolts on articulated units. Torque specifications vary by model: 5-ton skid steers require 150 ft-lbs while mini-excavators demand 210 ft-lbs. Use a cross-pattern sequence and recheck torque after 10 operational cycles. Loose bolts reduce machine stability by 35%, increasing tipping risks during slope operations.
