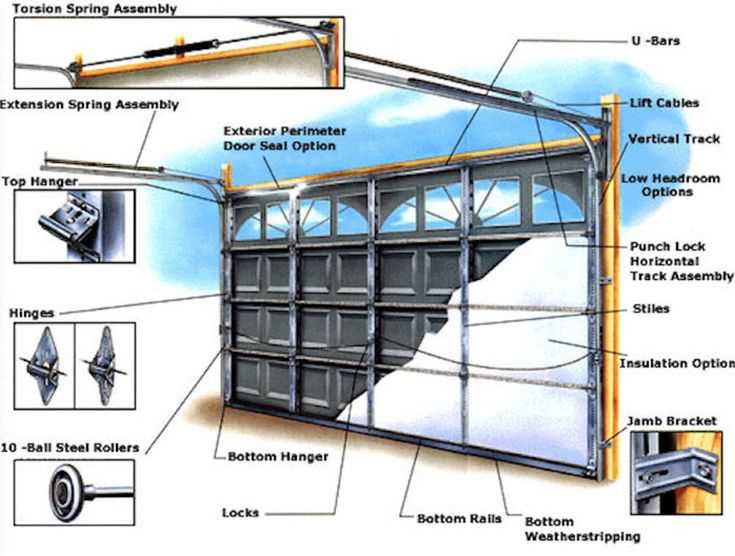

Refer to a labeled schematic of sectional overhead mechanisms before attempting repairs. Key assemblies include torsion springs (rated for 30,000–50,000 cycles), extension springs (weighing 10–25 lbs per unit), steel tracks (14-gauge thickness minimum), and rollers (nylon-reinforced for quieter operation). Locate the counterbalance system–positioned above the header–before adjusting tension; improper handling can cause serious injury.

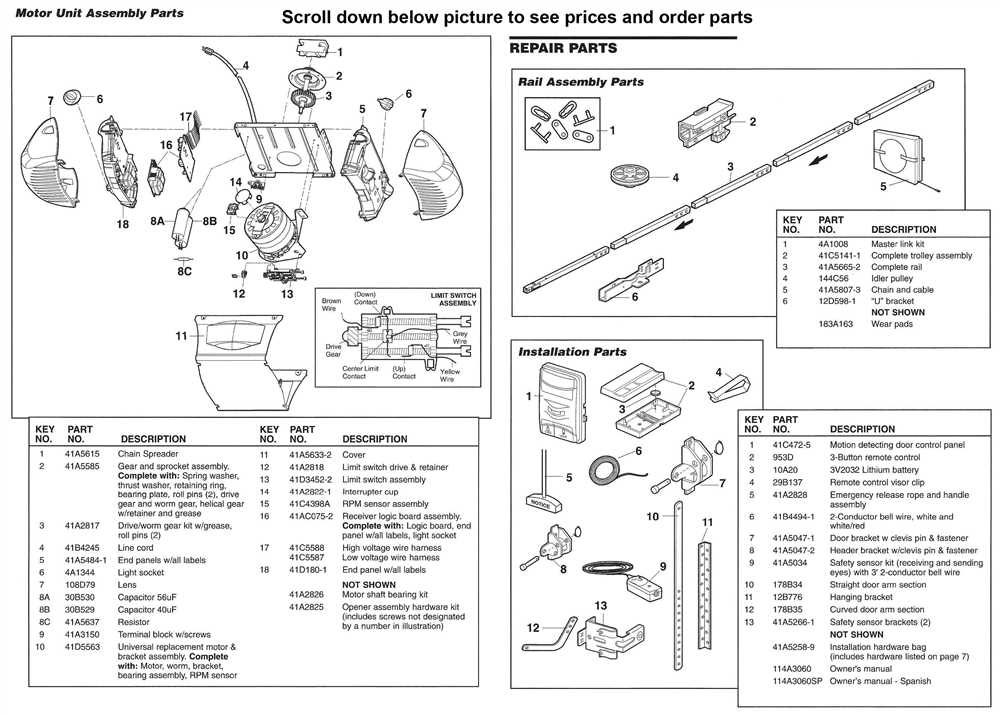

Identify the operator unit first if troubleshooting opens/closes failures. A ½ HP motor handles 16×7 ft panels, while ⅓ HP suffices for lighter models. Inspect the drive gear (plastic teeth wear faster than steel) and limit switches (adjust in ¼-inch increments). For safety reversal testing, use a 2×4 placed under the closing path–forced resistance should trigger immediate halt.
Examine the bottom seal and weatherstripping every six months. Rubber seals degrade at 2–3% per year; replace if compression resistance drops below 15 lbs. For sectional panels, check stiles and hinges–loose fasteners cause jamming. Lubricate pivot points with silicone-based grease (avoid petroleum products; they attract dust and accelerate wear).
Track alignment requires precision: gaps between rollers and vertical guides should not exceed ⅛ inch. Misalignment reduces lifespan of opener belts (typically 7–10 years). For torsion spring replacement, note wire size (measured in thousandths of an inch) and inside diameter (2–2.5 inches standard)–match specifications exactly to avoid catastrophic failure.
Understanding Your Overhead Entry System Blueprint
Start by locating the torsion spring assembly–it’s the coiled mechanism mounted above the opening, secured to wall brackets. Measure the wire diameter (typically 0.207–0.283 inches) and count active coils (20–40 for residential units) to verify compatibility with your counterbalance system. Misidentification risks costly errors; use calipers, not tapes, for precision.
Examine the track layout: vertical sections should align flush with the jamb, while horizontal runs must maintain a consistent 5° downward slope toward the rear. Gaps exceeding 1/8 inch indicate bent rails–replace damaged segments immediately to prevent roller derailment. Avoid lubricating tracks; dry surfaces ensure proper friction for smooth operation.
Critical Hardware You’re Probably Overlooking
Inspect the cable drums–grooved wheels at each spring shaft end. Ensure grooves match cable thickness (3/32–1/8 inch diameter) and that set screws are torqued to 25 ft-lbs. Loose drums cause uneven lifting; striped cables signal imminent failure. Replace both cables simultaneously, even if one appears intact, to maintain symmetry.
Check the lift handle: standard residential models use a gravity-operated latch (T-handle or trigger style). Test the engagement by pulling the manual release cord–it should disconnect smoothly without resistance. If stiff, apply silicone spray to the pivot points; petroleum-based lubricants attract debris and accelerate wear.
Assess the weatherseal: bottom strips (typically bulb or fin design) degrade faster than side seals. UV-resistant EPDM lasts 5–7 years; cheaper vinyl cracks within 2. Replace bottom seals during summer months when thermal expansion eases installation–pry out old material with a flat bar, then press new seals into the retainer channel without stretching.
Wiring and Safety Components Decoded
Trace the photo-eye alignment: transmitter and receiver beams must intersect no higher than 6 inches above the threshold. Clean lenses monthly with a microfiber cloth–even slight obstructions trigger false alarms. Test sensitivity by waving an opaque object through the beam path; the motor should reverse instantly when interrupted.
Verify the capacitor rating: single-phase openers use 25–40 µF, while DC motors require 18–22 µF. Swollen or leaking capacitors demand immediate replacement–match voltage (typically 370V) and capacitance exactly. Incorrect values overheat motors, reducing lifespan by 60–70%.
Confirm the emergency release mechanism: the red cord should hang 6 feet from the ground, terminating in a plastic handle. Pull-and-release tests monthly–failure to re-engage risks uncontrolled descent. If jammed, remove the opener cover and cycle the trolley manually along the rail to reset. Never force disengaged systems; internal gears strip easily.

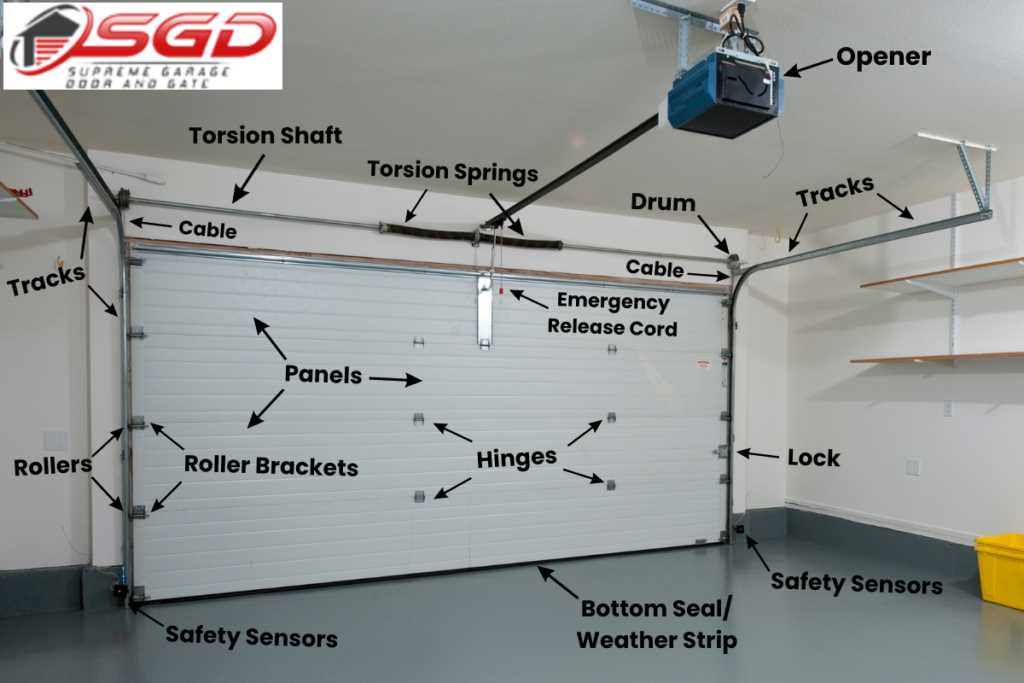

Critical Elements in a Typical Overhead Panel System
Start by inspecting the torsion spring mechanism–mounted horizontally above the entrance. A single break in this coiled assembly can render the entire system inoperable. Verify the spring’s winding direction (left or right) before attempting adjustments, as improper tension risks violent failure. Replace at the first sign of fraying or rust, never attempt repairs with household tools.
Structural Frame and Rolling Hardware
The vertical rails, often 10-gauge steel, must align precisely within the track channels. Misalignment by even 3mm causes binding, increasing motor strain. Lubricate rollers–nylon for quiet operation, steel for heavy loads–every six months with lithium-based grease, avoiding WD-40 which attracts dust. Check bracket fasteners (1/4″ lag screws) for torque; loose connections lead to sagging panels over time.
Panels themselves, typically polyester-coated aluminum or insulated polystyrene, require annual inspection for dents or gaps. A 1/4″ separation between sections allows weather seals to compress effectively; wider gaps indicate track misalignment. For insulated variants, verify the R-value hasn’t degraded–press firmly on centers to detect soft spots signaling core separation.
The counterbalance system’s cable, 7×19 aircraft-grade steel, should never show kinks or frayed strands. Route cables through pulleys with a minimum 1.5″ diameter to prevent premature wear. If replacing, match the gauge exactly–undersized cables snap under load, while oversized ones won’t seat correctly in drum grooves. Test emergency release mechanisms quarterly by disconnecting power and manually lifting; resistance indicates misaligned springs or dirty tracks.
Automated Drive and Safety Features
The motor unit’s rail, extending at least 12″ beyond the header, must remain debris-free. Clean the photo-eye lenses monthly with isopropyl alcohol–dust buildup triggers false obstruction errors. For belt-driven systems, inspect the belt’s teeth for wear; smooth spots reduce grip, causing slippage. Chain-driven variants require lubrication on the sprocket and chain, but apply sparingly–excess grease migrates onto panels.
Limit switches dictate travel distance; reprogram if panels fail to stop flush with the floor. For models with backup batteries, test under load (not just indicator lights) semi-annually–weak batteries drain quickly during power outages. Wall-mounted control buttons should be positioned beyond a child’s reach, ideally 5′ from the ground. Always disengage the trolley disconnect before servicing electrical components to prevent accidental activation.
How to Spot and Fix Failing Entryway Components Before They Fail
Start by examining rollers–polyurethane or steel–every six months. Visible cracks, flat spots, or uneven wear signal replacement. A roller with a diameter below 2 inches under load will strain the opener mechanism, reducing its lifespan by 30-40%. Measure them using calipers; if variance exceeds 0.5mm across the set, replace the full batch to prevent misalignment.
Inspect torsion springs for rust, gaps in coils, or a stretched appearance. A spring rated for 10,000 cycles losing 10% of its coil diameter drops lifting capacity by 15%. Use a spring winding bar to test tension: if the shaft rotates less than 7.5 turns for a standard 7-foot panel, the spring is fatigued. Replace springs in pairs to maintain balance–mismatched tension warps tracks within 100 cycles.
Check cables for fraying, especially near the bottom bracket. A frayed 7×19 strand cable loses 50% strength if three outer wires are broken. Replace immediately if strands separate; even one compromised cable doubles stress on the remaining components. Secure cables with set screws torqued to 12-15 ft-lbs to prevent slippage during operation.
| Component | Failure Sign | Tool Needed | Lifespan After Issue |
|---|---|---|---|
| Hinges | Squeaking, looseness > 2mm | 10mm socket, grease | 6-12 months |
| Track brackets | Rust at weld points, bent flanges | 12-24 months | |
| Weather seals | Cracks > 5mm, compression loss | Utility knife, adhesive | 3-5 years |
Tighten hinge bolts first if the panel exhibits excessive noise or wobble. Loose hinges transfer vibrations to the opener rail, causing premature gear wear. Use a torque wrench set to 25-30 ft-lbs–over-tightening strips threads in aluminum panel frames. Apply lithium grease to the contact points to dampen vibrations and extend hinge life by 25%.
Test safety sensors monthly by blocking the beam path. Misaligned sensors–indicated by blinking LEDs–cause erratic operation. Adjust sensors to a 6-inch height and ensure they face each other directly; even a 5-degree deviation reduces detection range by 40%. Clean lenses with isopropyl alcohol to remove dirt obstructing the infrared signal.
Lubricate the opener chain or belt annually with 100% synthetic grease. A dry chain stretches 0.5% per year, increasing noise and reducing efficiency. Apply grease sparingly–excess attracts dust, forming a gritty paste that accelerates wear. For belts, inspect teeth for cracks; a single missing tooth reduces load capacity by 12%.
Replace worn tracks immediately if dents exceed 2mm or the rail deviates more than 1/8 inch from plumb. Straighten minor bends with a rubber mallet; severe deformation requires new tracks. Secure new tracks with self-drilling screws at 12-inch intervals–spacing wider than 18 inches causes sag, misaligning rollers and increasing friction by 30%.
