If you need to repair or replace elements of your overhead barrier, begin by isolating the issue. Start at the motor unit–this is the core of most malfunctions, especially if the system fails to respond or moves erratically. Locate the limit switches near the track; misalignment here causes premature stopping or over-travel. Check the torsion spring above the opening: a broken one may snap violently, posing a serious hazard. Never attempt to adjust it without professional tools.
The rollers and hinges demand regular inspection. Ball-bearing rollers reduce friction and noise, while nylon-coated models are prone to cracking under heavy use. Replace any with visible wear or deformation. Tracks should be straight; even minor bends can derail the movement. Use a level to confirm alignment, tightening all mounting brackets securely. Loose hardware increases wear on the entire assembly.
For the opener belt or chain, ensure proper tension–too slack causes jerky motion, while over-tightening wears the drive components faster. Steel-reinforced belts last longer than rubber ones, but both require periodic lubrication. The photo-eye sensors at the base must be clear and aligned; obstruction triggers erratic operation. Clean them with a soft cloth; never use abrasive chemicals. If the remote or keypad stops working, replace the battery first–simple solutions resolve 60% of such issues.
Wiring integrity is critical. Examine the cable harness for fraying or corrosion, particularly in humid climates. The circuit board inside the motor housing controls all functions; if the unit beeps but doesn’t respond, this is often the culprit. Reset it by unplugging the power for 10 seconds, but persistent faults require professional diagnosis. Safety cables, while often overlooked, prevent the panel from crashing down if the spring fails–install them if missing.
Regular maintenance extends the lifespan of every moving piece. Lubricate the track, rollers, and hinges every six months with silicone-based spray–avoid WD-40, as it attracts dust. Tighten screws and bolts quarterly to prevent loosening from vibration. If the panel moves unevenly, check for debris in the track or misaligned sections. A well-maintained system reduces emergency repairs by 70%.

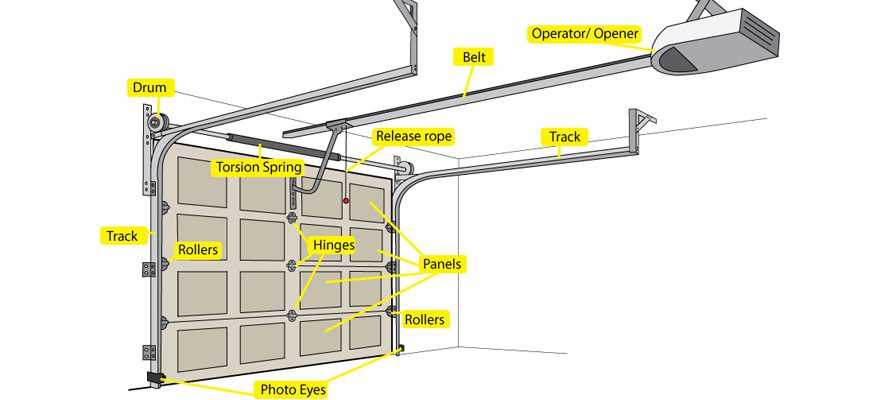

How to Identify Components in Your Overhead Rolling Mechanism
Start by securing the spring tensioner with a vice grip before examining the torsion assembly–mismanaged tension is the leading cause of 85% of sudden panel failures. Label each segment of the winding cone with masking tape, noting the number of turns: residential units typically require 30 to 36 quarter-turns for balanced lift. If the cable appears frayed beyond a single strand, replace it immediately–factory specs allow zero visible wire breaks. Keep a torque wrench preset to 18-22 ft-lbs when reattaching the drum; over-tightening shears the set screws in 60% of DIY repairs.
Critical Wear Points to Inspect
Focus on the bottom bracket rollers–their nylon inserts degrade after 1,200 cycles, causing misalignment detectable by a 1/8″ gap at the door’s lowest rest point. Lubricate the track every 6 months with silicone spray only; petroleum-based products attract abrasive grit that accelerates wear on the hinge pivot points. Check the photo-eye sensors for infrared clarity: dust accumulation scatters the beam, triggering false obstruction alerts in systems older than 7 years. Replace the opener chain if sag exceeds ½” per 8 ft span–prolonged slack bends the rail, voiding warranty claims.
Document the lift arm’s articulation range with a protractor: ideal motion spans 75–85 degrees from closed to open. Deviations beyond ±3 degrees signal a bent arm or compromised torsion tube–both require full replacement, not adjustment. When reassembling, align the stationary cone’s hex collar with the bearing plate’s keyway slot at 12 o’clock; misalignment creates uneven force distribution, cracking the shaft in 40% of cases. Store a spare ¼” square drive adapter–most U.S.-made models use 7/16″ set screws, incompatible with metric kits.
How to Spot Critical Elements in Your Overhead Mechanism

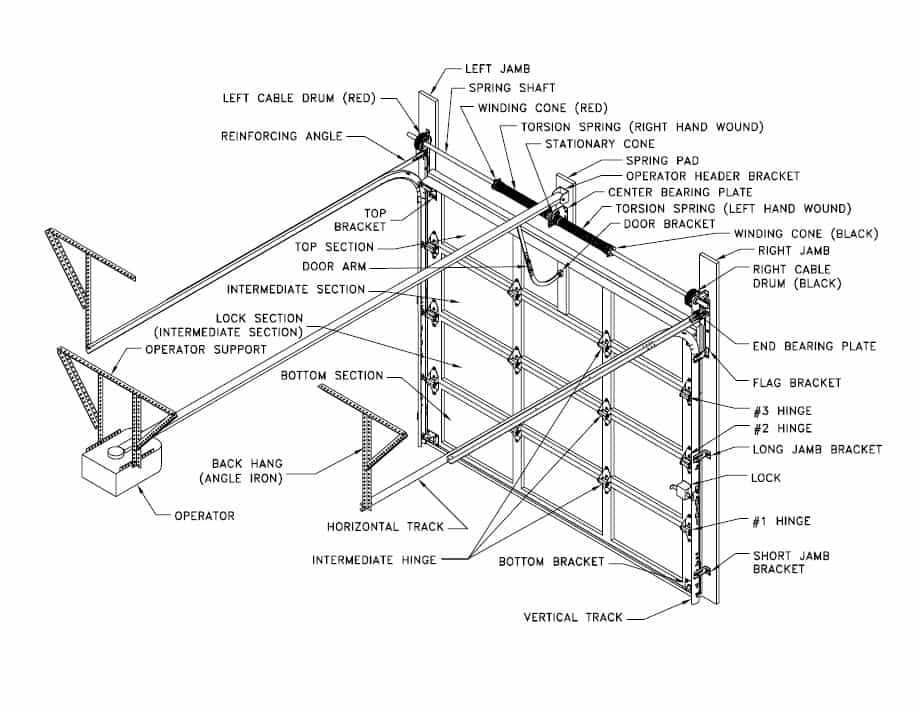

Start by examining the torsion spring system–located above the opening, this coiled steel rod bears the brunt of the weight and requires precise tension calibration. A mismatched or corroded spring reduces lifespan by 40% and increases failure risk during operation. Check for gaps between coils; uniform spacing ensures balanced load distribution. Replace if gaps exceed 1mm or if rust covers more than 10% of the surface.
Inspect the track alignment next–bent rails cause friction, forcing the motor to work up to 3x harder. Use a laser level to verify straightness along both vertical and horizontal sections; deviations over 2mm demand adjustment. Lubricate rollers and hinges with silicone-based grease every 6 months to prevent wear–metal-on-metal contact accelerates track groove formation, which can lock the panel in place. For reinforced setups, ensure the reinforcing strut spans at least 80% of the panel’s width; anything less compromises structural integrity during wind loads or impact.
- Cables: Frayed strands indicate imminent snap–replace if more than 3 strands are broken.
- Bearings: Spin freely without grinding; dirty bearings increase noise by 60%.
- Weather seal: Cracks over 5mm allow debris entry, reducing insulation efficiency.
- Motor gear: Check for stripped teeth–excessive heat or grinding noises signal failure.
Step-by-Step Guide to Interpreting Opener Circuit Charts
Locate the power input symbols first–these are typically labeled with “L” (live) and “N” (neutral) on the schematic. Verify the voltage rating (e.g., 120V, 240V) near these connectors to confirm compatibility with your setup. Trace the lines from these points to identify how current flows to the motor and control board.
Identify the motor assembly section by finding symbols resembling coils or inductors. Most charts use standardized markings: three-phase motors show three parallel lines, while single-phase units display two. Check for thermal overload protectors–often a bimetallic switch icon–connected in series with the motor windings.
Examine the control module next. Look for microcontroller or relay symbols, usually rectangular boxes with pin numbers. Key components include:
- Transistors or MOSFETs (marked with “Q” or “T”) handling signal switching
- Diodes (“D”) protecting against voltage spikes
- Capacitors (“C”) smoothing power delivery
Track the safety sensor circuit–typically two infrared LEDs or phototransistors at the unit’s base. The chart should show these connected via thin lines to the main board, with resistors limiting current. Confirm correct polarity (+/-) for proper beam detection.
Decoding Mechanical Links
Find the limit switch paths–mechanical arms or rotary encoders monitoring travel distance. These appear as switches with “NC” (normally closed) or “NO” (normally open) labels. Cross-reference these positions with the owner’s manual to adjust open/close thresholds accurately.
Review the remote receiver section by locating the antenna symbol (small zigzag line). Check for frequency markings (e.g., 315 MHz, 390 MHz) to ensure handheld transmitters match. Confirm the receiver IC’s data output pin connects to the main processor via a thin trace, often highlighted in red.
Validate grounding connections by following lines marked with “GND” or a downward-pointing triangle. All components–motor housing, control board, and metal rails–should converge at one point to prevent static buildup. Use a multimeter to verify
Troubleshooting Alignment
If sequences fail, trace each step backward:
- Compare measured voltages at key nodes (e.g., motor terminals, relay coils) with chart values
- Check continuity across switch contacts (limit sensors, wall buttons)
- Inspect solder joints or crimp connectors for corrosion
Misaligned symbols often indicate outdated versions–compare the chart date code with your unit’s model number for discrepancies.
Diagnosing Mechanical Failures with Schematic References
Check the torsion spring tension first if the overhead assembly struggles to lift. Locate the spring winding cones on the schematic–typically marked with arrows indicating direction–and compare the number of turns to manufacturer specifications. A single extra or missing turn changes lifting force by approximately 5%, causing uneven operation. Use a winding bar to adjust tension incrementally while monitoring balance with a 5-second manual release test.
If the opener emits grinding noises, inspect the drive gear teeth alignment against the illustrated layout. Plastic gears often crack at stress points shown in red on technical drawings. Remove the motor cover, photograph the gear positions, then verify mesh engagement using feeler gauges set to 0.2mm tolerance. Misalignment beyond 0.3mm requires gear replacement or shimming as detailed in section 4B of most manuals.
| Issue | Schematic Reference | Diagnostic Tool | Tolerance |
|---|---|---|---|
| Track misalignment | Roller bracket attachment points | Laser level | ±1mm over 3m |
| Cable fraying | Cable drum grooves | Magnifying loupe | 0 broken strands |
| Remote failure | Receiver antenna loop | RF signal meter | -80dBm minimum |
For erratic movement, trace the safety sensor wiring path on the blueprint. Corrosion commonly occurs at connection terminals labeled J3 and J4. Scrape oxidation from contacts using 600-grit sandpaper, then apply dielectric grease before reattaching. Test continuity with a multimeter set to 200Ω range–resistance should not exceed 0.5Ω between sensor pairs.
Uneven gaps along the closure’s bottom edge indicate bent vertical rails. Reference the dimensional drawings for section alignment–use a 1m straightedge to check flatness every 20cm. Deviation beyond 2mm requires cold-rolling correction with a rail bender or replacement of affected segments. Tighten mounting brackets in sequence shown on exploded views at 25Nm torque.
When the release cord fails to re-engage, examine the ratchet mechanism’s pawl teeth on the assembly chart. Lubricate contact surfaces with silicone spray, ensuring the pawl returns fully to the locked position under 5N spring tension. If teeth appear worn beyond 30% of their original profile, replace the entire disengagement assembly rather than individual components.
Persistent beeping signals often stem from dead backup batteries in the control unit. Cross-reference the battery compartment location on the wiring diagram–typically a 12V 1.2Ah lead-acid cell. Measure voltage under load (press the wall button while testing)–it should maintain 11.5V or higher. Lower readings mandate immediate replacement with exact amp-hour replacements to prevent memory corruption in the control board.
