For precise repairs on models like the 2019–2023 half-ton pickup, start by securing a schematic of the upper and lower A-arms. The left and right control arms connect via ball joints to the spindle, while the coil spring sits between the lower arm and frame. Replacement kits often include bushings, but verify OEM part numbers–MOOG K80057 (left lower arm) and MOOG K80058 (right lower arm) are common aftermarket equivalents.
Inspect the steering knuckle for cracks, especially around the hub bearing mount. A worn bearing (timken SP500300) will cause growling at speeds above 40 mph. Replace it during any suspension overhaul–removing the axle nut requires a 35mm socket and a breaker bar (torque to 150 ft-lbs).
Tie rod ends (MOOG ES3488) should move smoothly under load; binding indicates internal wear. Check the drag link–its spherical joint connects to the pitman arm and fails gradually, causing loose steering. For 2WD models, the sway bar links (MOOG K80629) attach to the frame with bushings; torn bushings (Energy Suspension 3.5113G) lead to clunks over bumps.
When aligning components, cam bolts on the upper arms allow ±1.5° of adjustment. Use a laser alignment tool to set caster at 3.5° ±0.5° for stability. Lubricate all zerk fittings (NLGI #2 grease) every 5,000 miles–ignoring this step accelerates bushing failure. For heavy-duty use, upgrade to polyurethane bushings (Energy Suspension) but expect slightly firmer ride quality.
Track bar bushings (Prothane 6-1101) crack under 70,000 miles; replace them before they tear, as misalignment causes the axle to shift laterally. Torque all fasteners in sequence–start with the upper control arm bolts at 130 ft-lbs, then lower arm bolts at 150 ft-lbs. Always recheck after 50 miles, as new bushings settle.
Key Components of Your Pickup’s Steering and Wheel Assembly
Identify worn ball joints by lifting the vehicle and checking for vertical play in the wheel hub. Dodge’s 4th-gen models (2009–2018) use a four-bolt style; replace them in pairs to prevent uneven tire wear–torque specs are 120 ft-lbs for upper joints and 150 ft-lbs for lowers.
Replace control arms if bushings show cracks or separation. OEM arms (Mopar 5160081AA) include integrated ball joints, saving labor; aftermarket alternatives lack this feature. Always align the vehicle after installation–camber should read 0.25° ± 0.5°, toe set to 0.1° in.
Inspect tie rods for horizontal play by shaking the wheel side-to-side. Inner and outer ends should move as a unit; if play is detected, replace the entire rod assembly–individual components aren’t serviced separately on these models. Use a pickle fork sparingly; it damages boots, necessitating full replacement. Torque castellated nuts to 55 ft-lbs, then tighten further to align cotter pins.
Upgrade sway bar links to polyurethane if frequent off-road use causes squeaks–factory rubber bushings degrade after 60k miles. Ensure links match OEM length (22.5″ for 2012–2018); mismatched lengths cause handling imbalance detectable at 45+ mph. Retorque sway bar mounts at 1,000-mile intervals during the first 3k miles post-install.
Locating Critical Elements in Your Pickup’s Leading Undercarriage Schematic
Begin by isolating the upper control arm–visible near the wheel hub assembly on the blueprint. Its dual bushings, often marked “MOOG” or “Mevotech,” degrade at 80,000–100,000 miles; check for cracks or fluid leaks before replacement. The arm’s pivot bolts must torque to 110 ft-lbs using a calibrated wrench–overexertion warps the mounting tabs.
The coil spring sits nested between the lower arm and chassis tower, identifiable by its tapered ends and color-coded bands (yellow for 1,500 lb/in ratings). Rust inferior to 10% surface area is repairable with wire-brush treatment, but helical fractures mandate full swap–no weld repairs exceed OEM fatigue limits. Always compress springs with a dedicated tool; improper release risks projectile injuries.
Track down the steering knuckle where it interfaces with the hub and brake caliper–look for the spindle’s threaded holes (M14 x 1.5 for 2012–2018 models). Corrosion here accelerates bearing failure; flush with die-cast cleaner if surface oxidation exceeds 0.3mm depth. The knuckle’s ball joint must articulate freely–any stiff rotation flags internal wear requiring integrated hub assembly replacement.
Identify the sway bar links by their threaded studs connecting the stabilizer shaft to the lower arm. Replace both links simultaneously even if only one squeaks–mismatched bushings induce uneven body roll, verified via 0.5° lateral play at 50 mph. Use polyurethane inserts in high-impact regions like Texas or Alberta; rubber counterparts deteriorate 40% faster under thermal cycling.
The shock absorber’s nitrogen-charged monotube design specifics hide in the schematic’s lower right corner–marked “FOX” or “Bilstein” for heavy-duty variants. Leaking oil below the piston seal (visible as a dark ring) voids warranty; always pair new shocks with fresh jounce bumpers to prevent metal-on-metal contact during rebound stops.
Locate the tie rod inner and outer ends on the right-side view–misalignment here skews toe settings, verified with a laser toe plate. Outer rod ends require 24mm sockets for removal; torque new components to 50 ft-lbs then turn an additional 90° for proper seating. Aftermarket “quick-disconnect” kits introduce 0.2mm slop–stick to OEM thread pitches for precision.
Pinpoint the track bar along the frame rail, opposite the radiator support–its rubber isolators compress under load cycles, causing 1/8″ lateral drift per 30,000 miles. Replacement isolators must match durometer ratings (±2A hardness); softer compounds reduce road noise but increase wander on crowned roads.
Finally, verify the wheel bearing hub assembly’s ABS tone ring teeth–count them on the diagram (48 teeth for 2013+ models). Corrosion here mimics bearing failure; tap the hub face with a brass drift–any dull thud confirms internal race separation. Always press new units with an 8-ton hydraulic tool–hammer strikes void the quiet-seal warranty.
Step-by-Step Guide to Locating Upper and Lower Pivot Components on Assembly Schematics
Begin by identifying the wheel hub assembly in the top-left quadrant of the schematic–upper pivot components attach directly above it via a single bolt or ball joint, often labeled “A-arm” or “wishbone.” Trace the curved or angular member extending toward the frame rail; its broader, reinforced end connects to the chassis with bushings, while the narrower pivot point secures to the spindle. Use color-coding if available: red or yellow typically denotes the upper pivot, while blue or green marks the lower counterpart.
Lower pivot components appear 2–3 inches beneath the hub, featuring dual mounting points–one at the spindle and a second at the frame’s substructure. Measure the distance between bushings: upper assemblies span 12–15 inches, lower ones 18–22 inches. Cross-reference labels like “SA-3” or “LC-7” against the legend, where “SA” indicates steering-side upper pivots and “LC” marks lower chassis attachments. Rotate the schematic if orientation is unclear; pivot arms always align perpendicular to the vehicle’s longitudinal axis.

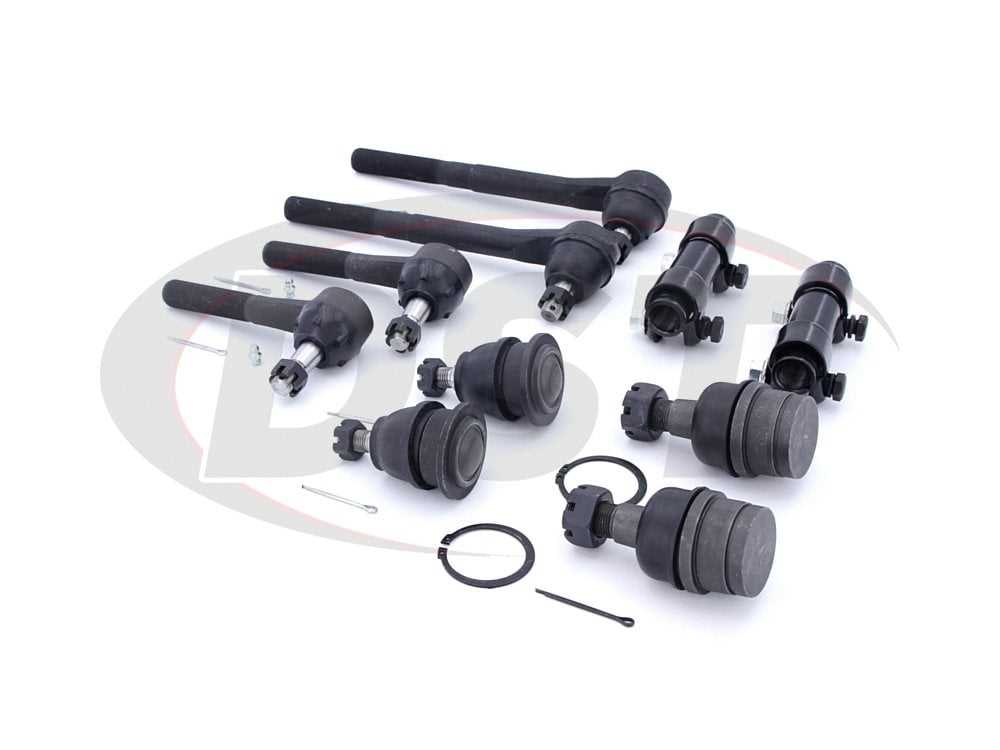

Interpreting Ball Joint and Bushing Locations in Undercarriage Schematics
Locate the steering knuckle assembly first–ball joints connect the spindle to the control arms. Upper joints attach near the strut tower or upper arm pivot, while lower joints fasten beneath the knuckle, often marked by a tapered stud for press-fit installation. If the schematic shows color-coded zones, dark gray or black typically indicates high-load pivot points. Verify torque specifications: 80-100 ft-lbs for most OEM joints, but aftermarket variants may require 120+ ft-lbs.
- Identify bushing types by their housing shape: oval or flared sleeves usually belong to sway bar links, while cylindrical bushings with thick internal sleeves support control arms.
- Check for split lines in the illustration–these denote where bushings separate during disassembly.
- Note orientation: flanged bushings on the driver side often point rearward, while passenger-side bushings angle toward the wheel well.
- Compare exploded views with isometric diagrams–rotated perspectives reveal hidden tabs or crush tubes essential for reinstallation.
Use a multimeter’s continuity setting to verify circuit paths in integrated electronic ball joints. Probe the terminal labeled “sense” against chassis ground; a closed circuit confirms signal integrity. For poly bushings, inspect the schematic for force arrows–these indicate compression/rebound axes, critical for proper alignment. If the diagram lacks labels, reference the nearby stabilizer links; bushings share identical durometer ratings in groups of two or four.

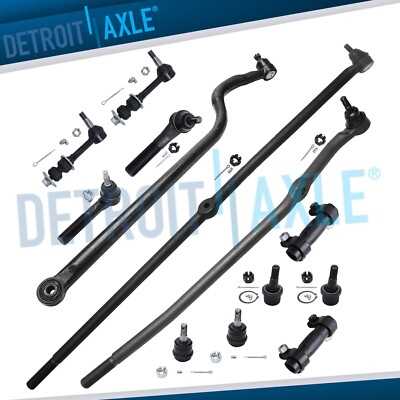

Tracing the Steering Linkage: Tie Rods and Drag Links in the Assembly Layout
Inspect the inner and outer tie rod ends first–compare thread wear patterns against manufacturer specs (e.g., torque-to-yield requirements: 50-70 ft-lbs for inner, 45-65 ft-lbs for outer). Use a digital angle gauge when tightening; improper preload causes slop within 5,000 miles. Replace drag link bushings if outer diameter measures below 0.984″ (25.0 mm) or shows radial cracks exceeding 0.040″ depth. The pitman arm connection point should sit precisely 14.2° from horizontal axis–verify with a protractor before disassembly to prevent misalignment during reassembly.
Component Interaction Table
| Linkage Part | Diagnostic Check | Replacement Threshold | Torque Spec (ft-lbs) |
|---|---|---|---|
| Tie rod end (outer) | Ball stud rotational torque (8-14 in-lbs) | Stud play >0.015″ | 45-65 |
| Drag link (centerlink) | Bushing durometer (70-80 Shore A) | Bushing deflection >0.060″ | 70-90 |
| Pitman arm | Spline engagement (full 36 teeth) | Spline wear >10% | 180-220 |
Apply molybdenum disulfide grease (NLGI Grade 2) to fresh bushings–this reduces stiction by 30% compared to lithium-based alternatives. After installation, cycle the wheel cut-to-cut three times before torque-checking; settling occurs within 50-100 steering cycles. Replace adjuster sleeves if thread pitch exceeds 1.5 mm wear–ignoring this risks slippage under 800 lbs lateral load.
