Start by identifying the exact build year and model variant of your Class 8 long-haul tractor. Chassis configurations differ between sleeper cab, day cab, and mid-roof versions–mislabeled schematics waste hours tracing misaligned electrical or HVAC routes. Obtain the OEM service manual for your specific production series, as aftermarket copies often omit critical revisions made after mid-2018 emissions updates.
Focus first on the powertrain section. Locate the turbocharger subassembly diagram: verify wastegate actuator mounting points and charge-air cooler hose clamps before disassembly. Incorrect torque specs on these components cause boost leaks detectable only under load testing. For drivetrain repairs, reference the differential carrier breakdown–axle shaft seals and wheel-end bearings are listed separately from final drive ratios to prevent misordered replacements.
Electrical system schematics require a multimeter calibrated to 0.5% tolerance. Trace circuits from the central bussed electrical center, noting color codes for CAN bus terminations. Ignore generic harness diagrams; instead, demand pin-out charts specific to your ECM firmware version. Fault codes P0563 and SPN 91/FMI 31 correlate to alternator failures only in vehicles manufactured between Q4 2020 and Q1 2022–later models reroute those sensor loops.

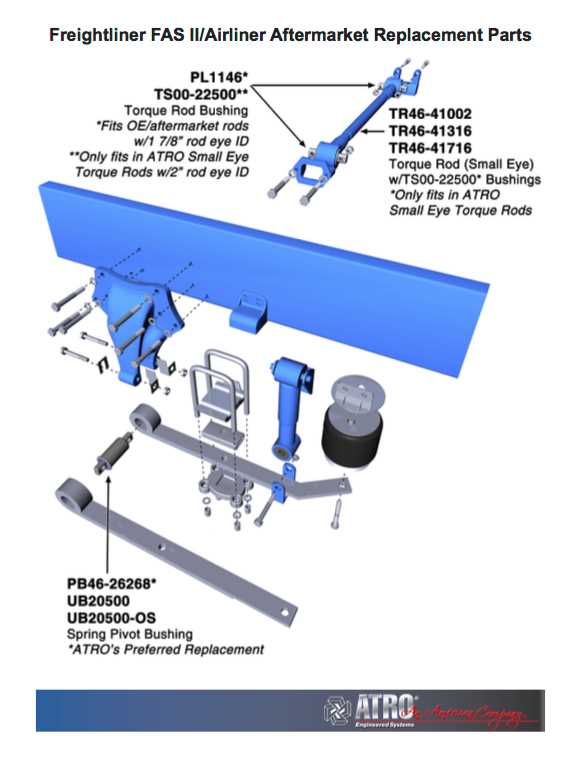

Suspension rebuilds hinge on the torque rod and air spring schematic. Measure ride height with factory-provided spacers; preset heights for 6×2 and 6×4 configurations differ by 1.25 inches. Brake diagrams must align with your ABS generation–PLC-controlled systems (pre-2021) use a dedicated wheel speed module diagram, while integrated VECU systems consolidate signals on a single page.
Interior component layouts split between sleeper and dash modules. Locate the HVAC blend door schematic–servo motor part numbers changed three times since 2019, affecting recirculation mode operation. For collision repairs, request structural frame measurements as CAD exports: factory jig points deviate after repair manual illustrations, risking misaligned fifth wheel mounts.
Understanding Heavy-Duty Truck Component Schematics: A Field Manual
Begin by locating the VIN label–engineered into the driver’s side door jamb–to cross-reference OEM schematics with serial-specific revisions. Manufacturers encode updates in minor digit sequences; a misalignment between your model year and the diagram version can lead to incorrect torque specs or incompatible substitutes. For example, 2020-2022 chassis variants feature a revised DEF doser assembly with a 12mm hex bolt instead of the earlier 14mm, a detail buried in revision sheet C-4987-REV2.
Use manufacturer-issued exploded views only for torque-sensitive assemblies like hub bearings or drivetrain components. Aftermarket PDFs often omit critical preload values–for instance, wheel end preload on steer axles should never exceed 180 ft-lbs, yet generic repair guides might list a range up to 220 ft-lbs, risking premature bearing failure. Validate specs against the original equipment service bulletins, not third-party forums.
Decoding Symbols and Annotations
Filter diagrams by functional group rather than searching alphabetically. Engine cooling systems, for instance, integrate multiple sub-systems: radiator, fans, water pump, and thermostat housings are grouped under “Cooling Circuit,” while oil cooler lines fall under “Lubrication.” The difference matters–swapping a coolant hose for an oil line due to misreading the color-coding (green for coolant, yellow for oil) can lead to catastrophic engine seizure within 150 miles.
Pay attention to dashed versus solid lines in wiring schematics. Solid lines denote power circuits, while dashed indicate sensor feedback loops; confusing them during fuse replacement (e.g., the #10 fuse in the under-dash panel powers the ECM, not the marker lights) can trigger fault codes or disable critical safety systems like electronic stability control. Always disconnect the battery ground cable before probing any electrical diagram.
Store digital schematics on a tablet with offline access–WiFi dead zones at rural truck stops or border crossings render cloud-dependent apps useless. Prioritize OEM-supplied files over generic repair databases; a 2019 recall for transmission valve body clips (PN 235093) was documented only in the manufacturer’s direct portal, not in aftermarket catalogs, delaying replacements by months for operators relying on non-OEM sources.
When ordering replacements, match the exact part number suffix to avoid compatibility gaps. A turbocharger labeled “C10-003” differs from “C10-003A” by a single internal washer–enough to cause a 0.2 lb/min airflow variance, reducing fuel efficiency by 3-5% over 100,000 miles. Always verify the suffix against the serial tag on the removed component, not just the box label.
How to Access Authorized Heavy-Duty Truck Component Schematics
Begin with the manufacturer’s dedicated portal: Daimler Trucks North America’s ServiceNet. This platform provides direct access to OEM-approved layouts for all engine, chassis, and electrical assemblies under the 2018–2024 production series. Navigate to the “Technical Publications” section, where exploded views are categorized by VIN ranges and model years. For immediate downloads, use the advanced search filter with your truck’s exact serial number–this eliminates mismatches between visually similar components.
Alternative Sources for Verified Blueprints
- Dealer login portals: Authorized service centers maintain password-protected repositories (e.g., DTNA’s DealerConnect) with high-resolution scans updated quarterly. Request access through your local distributor’s parts manager.
- Third-party catalogs:
- TruckPartsInventory.com: Aggregates verified manufacturer PDFs with direct links to purchase pages. Use the “Schematic” tab after locating your specific system (HVAC, EGR, etc.).
- HeavyTruckParts.net: Offers interactive diagrams with hotspots linking to part numbers. Filter by engine type (Detroit DD15 vs. Cummins X15) to avoid misalignment.
- Printed manuals: Obtain the “Model Year Service Manual” (Part #FLM-XXXX) from DTNA’s print-on-demand service–contains 1:1 reproductions of factory schematics.
Decoding Heavy-Duty Powertrain Schematics: A Practical Guide
Identify the legend first–it maps symbols to real components. Common markers include solid lines for fluid pathways, dashed for electrical circuits, and arrows showing direction of flow. Ignore this step, and critical connections disappear into visual noise.
Locate the primary assembly block, typically drawn as a rectangular outline with labeled ports. High-pressure zones like fuel rails or turbocharger housings use bold borders; low-pressure areas like return lines have thinner strokes. Compare these against actual engine surfaces to verify scale.
Trace airflow paths backward from the intake manifold. The schematic splits clean air from recirculated exhaust at the EGR cooler, marked by a heat-exchanger symbol–a series of parallel wavy lines. Follow each branch: the turbo inlet arrow must align with the compressor wheel housing, or boost pressure readings become irrelevant.
Component Hierarchy and Sub-System Isolation
Separate mechanical linkages from electrical controls using color coding if available. Wiring harnesses appear as thin, colored strands terminating in round or square connectors. Match pin numbers on the ECM block diagram to the harness routing chart–mismatches here cause cascading faults in DPF regeneration cycles.
Isolate the cooling sub-system by following the coolant pump icon–a circular arrow with inlet and outlet ports. The expansion tank should show a vent line leading to the radiator cap; if absent, check for air pockets forming in the upper heater core circuit.
Verify sensor placement by cross-referencing OEM reference codes printed adjacent to each symbol. A MAP sensor drawn inside the intake plenum must align within millimeters of the actual mounting boss, or altitude compensation tables will drift out of specification.
Diagnostic Validation Through Schematic Reading
Build a pressure-flow model using the diagram. Draw a circle around the fuel filter housing, then mark every downstream injection nozzle with a dot. Pressurize the system at 25,000 kPa; any leakage points will appear as drops on the schematic–address these before interpreting fault codes.
Use a multimeter on continuity mode to confirm electrical paths. Touch probes to relay pins marked in the wiring overlay; resistance readings below 0.5 ohms indicate proper crimping. Skip this step, and intermittent CAN bus errors can mimic injector coil failures.
Step-by-Step Guide to Locating Electrical System Components Using Schematics
Start with the vehicle’s electrical manual–locate the section labeled “Wiring Routes” or “System Layouts.” Most manuals group circuits by function: powertrain, lighting, HVAC, or safety. Note the page references for fuse boxes, relays, and junction points, as these are critical anchors for tracing wires.
Identify the component you need to service–whether a sensor, connector, or harness splice. Cross-reference its name or part number with the schematic’s legend. Schematics typically use standardized symbols: circles for connectors, squares for sensors, and curved lines for wire paths. Verify color codes alongside wire gauges, as mismatches often signal errors.
Trace the power source backward. Begin at the battery or main fuse block, following the red (positive) or black/yellow (switched power) wires through relays to the target component. Mark each branching point on the schematic with a highlighter to avoid backtracking. For ground paths, look for symbols resembling downward-pointing triangles connected to chassis points.
Use a multimeter to confirm continuity before disassembly. Set the meter to ohms (Ω) and probe both ends of the wire segment identified on the schematic. A reading above 0.5Ω indicates corrosion or a break–focus repairs there. For voltage checks, switch to DC volts and test live circuits against the schematic’s expected values.
Common Symbols and Their Meanings
| Symbol | Component | Key Details |
|---|---|---|
| ○ | Connector | Numbered pins; verify mating pair |
| □ | Sensor/Switch | Label indicates function (e.g., “TPS” for throttle position) |
| ⚡ | Fuse/Relay | Match amp rating to manual specs |
| △ | Ground | Check chassis attachment point |
Isolate circuits by disconnecting power at the fuse. Remove the fuse corresponding to the circuit you’re servicing, then retry the component. If functionality returns after reinserting the fuse, the issue lies downstream–inspect connectors and splice points near the load. For intermittent faults, wiggle wires while monitoring voltage drops on the meter.
Document deviations from the schematic. If wires diverge from the documented path (e.g., rerouted for aftermarket mods), update your notes. Label harnesses with masking tape at key junctions to simplify future diagnostics. For complex trucks, create a simplified sketch overlaying the schematic with actual wire routes–this saves hours during repeat repairs.
Troubleshooting Shortcuts
Prioritize high-resistance faults in connectors by spraying contact cleaner into terminals and cycling the connection. Avoid splicing wires unless necessary; use crimp connectors rated for the wire gauge. Replace entire harness segments if insulation shows cracking or fraying, as partial repairs often fail under vibration.
