When inspecting or repairing an industrial loader’s lifting assembly, begin by isolating the three core sections: the outer frame (often called the carriage), the sliding channels (rails that guide movement), and the hydraulic push cylinders. The outer carriage typically houses the roller clusters–small but critical bearings that ensure smooth vertical travel. If these rollers show wear beyond 0.5mm, replace them immediately; misalignment here causes load instability and premature wear on the entire system.
Inside the sliding channels, locate the lift chains–high-strength alloy links rated for 3-5x the loader’s maximum capacity. Check for elongation by measuring 10 links: if the segment exceeds the manufacturer’s baseline by 3% (e.g., 406mm to 418mm), the chain must be replaced. Avoid using generic hardware store chains; industrial-grade variants (e.g., DIN 8187) withstand shock loads from sudden stops or uneven payloads.
The hydraulic push cylinders–mounted at the base of the assembly–require precise fluid levels and seal integrity. A leaking seal reduces lift speed by 15-20% and introduces contaminants into the hydraulic system. Use a pressure gauge to verify cylinder performance: at full extension, pressure should drop no more than 5% from idle within 5 seconds. If readings exceed this threshold, inspect the piston rod for scoring or pitting, which accelerates seal failure.
For accurate identification, refer to the equipment’s schematic plate–usually riveted to the side of the carriage. This plate details wire gauges, fastener torques, and bearing part numbers specific to your model. Cross-reference these values with OEM documentation; aftermarket components often differ in material composition, leading to mismatched wear patterns. When in doubt, compare the serial number with the manufacturer’s parts database–this avoids costly trial-and-error replacements.
During maintenance, prioritize lubrication points: pivot pins, roller bearings, and chain sprocket teeth. Use high-pressure grease (NLGI 2, lithium complex) for rollers and a dry lubricant (molybdenum disulfide) for chains. Apply sparingly to avoid attracting debris, which accelerates abrasive wear. For pivot pins, torque to 25-30 Nm after greasing; over-tightening distorts the assembly’s geometry, causing binding.

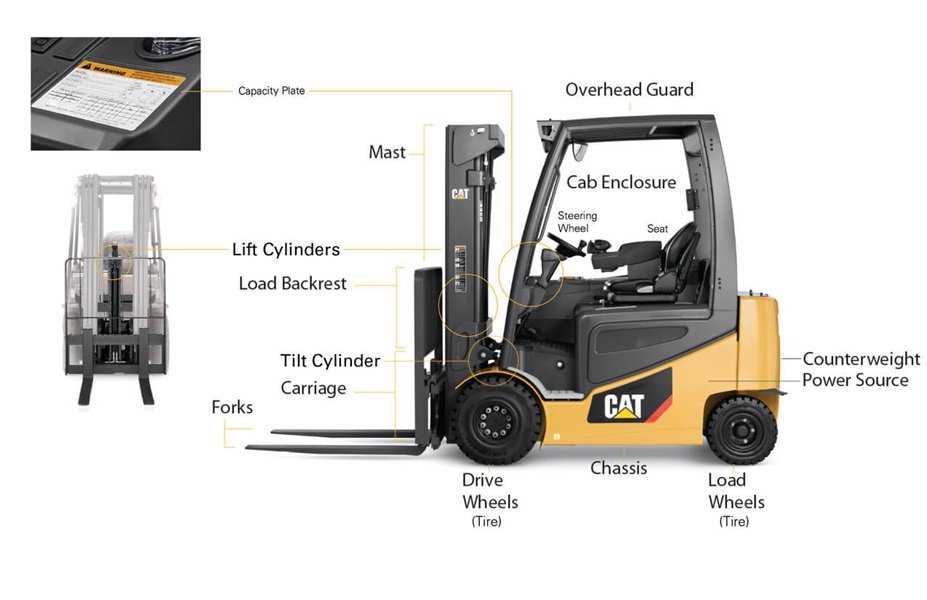

Understanding Lift Truck Upright Component Layouts
Begin by identifying the inner and outer rails–critical for vertical stability. Measure rail thickness (standard: 8–12mm) and check for deformations; even 1mm deviations cause binding. Locate the roller assemblies: top, side, and load rollers should rotate freely with a max 0.05mm lateral play. Replace rollers if grooves exceed 0.3mm depth–ignoring this accelerates rail wear by 40%.
Inspect the lift chains–ANSI B29.1 specifies 6×19 or 8×19 strand configurations for Class II trucks. Verify chain stretch: anchor pins at both ends must align within 2mm; misalignment reduces lifting capacity by 15%. Lubricate chains with ISO VG 100 synthetic oil every 200 operating hours to prevent galling–water-based lubes degrade load-bearing capacity. For the hydraulic cylinders, confirm piston rod smoothness (Ra ≤ 0.4µm) and seal condition; micro-cracks (>0.1mm) require immediate replacement to avoid fluid contamination.

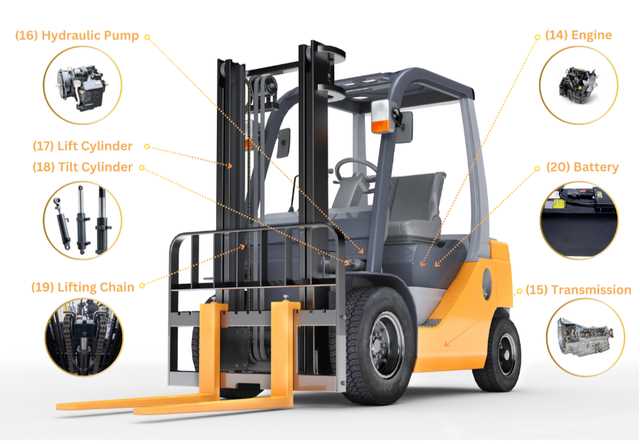

Key Structural Elements of a Vertical Lift Mechanism
Begin inspection by locating the inner and outer channels–these form the backbone of the assembly’s sliding function. The outer pair houses rollers and bushings, while the inner section guides the lifting carriage. Check for uneven wear on the channel faces, particularly along weld seams where stress concentrations develop. Use a straightedge to detect deviations exceeding 1.5mm–this indicates misalignment requiring realignment or replacement.
The load rollers and guide rollers demand priority attention. Load rollers bear 60-70% of operational forces, so inspect for flat spots or diameter reductions greater than 0.5mm. Guide rollers prevent lateral drift; measure clearance between roller edges and channel walls–ideal spacing sits between 0.3-0.6mm. Wider gaps cause wobble, narrower ones accelerate wear. Replace rollers in matched pairs to maintain uniform performance.
Critical Wear Points and Inspection Protocol
- Chains: Verify elongation by measuring 10 pitches–standard tolerances allow a 2% increase before replacement. Inspect link plates for hairline cracks using dye penetrant testing. Lubricate with graphite-based grease to reduce friction at articulation points without attracting contaminants.
- Cylinders: Check for cross-tube leaks–fluid seepage exceeding 5 drops/minute signals seal failure. Inspect bore scoring using a borescope; scratches deeper than 0.2mm compromise hydraulic integrity. Replace rod seals if surface roughness (Ra) exceeds 0.4µm.
- Carriage plates: Examine for deformation at fork pin holes. Misalignment causes fork sway; correct using hydraulic jacks during reinstallation. Test locking mechanisms–ensure pawls engage fully without binding under load.
Hydraulic components demand pressure testing before disassembly. Isolate the lift circuit and apply 180% of rated load pressure for 30 seconds. Monitor for pressure drops exceeding 5%–this reveals internal leaks in valves or hoses. Replace flexible hoses showing external abrasions deeper than 20% of wall thickness. Metal tubes with dents over 5% of diameter restrict flow and require immediate replacement to prevent catastrophic failure.
Document all measurements using a template with tolerance thresholds. Create annotated sketches noting wear patterns–this reveals usage trends (e.g., frequent right-side impacts indicating operator habit errors). Replace components based on condition, not age; standard intervals often lead to premature disposal of serviceable elements. For rebuilds, use OEM-specified torque values–fasteners on pivot points typically require 15-20% higher preload than body bolts to withstand dynamic loads.

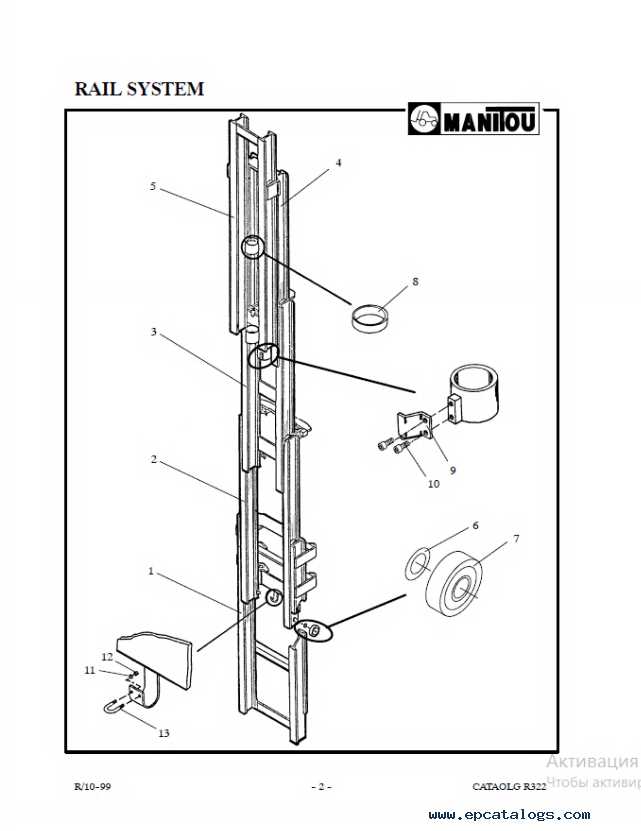

Interpreting an Industrial Lift Assembly Component Breakdown
Locate the reference numbers first. Each number corresponds to a specific element in the assembly’s bill of materials, typically listed in ascending order from bottom to top or left to right. Cross-reference these with the part names in the adjacent legend–manufacturers often group related components (e.g., hydraulic fittings, wear pads) under sequential numbering for faster identification.
Identify the core structural segments: the inner and outer channels, plus any intermediate sections. These are usually depicted as elongated, parallel shapes with distinct cross-sections. Look for color-coding or shading–darker hues often denote reinforced zones or high-stress areas, while lighter tones may indicate wear-resistant surfaces or guide rails.

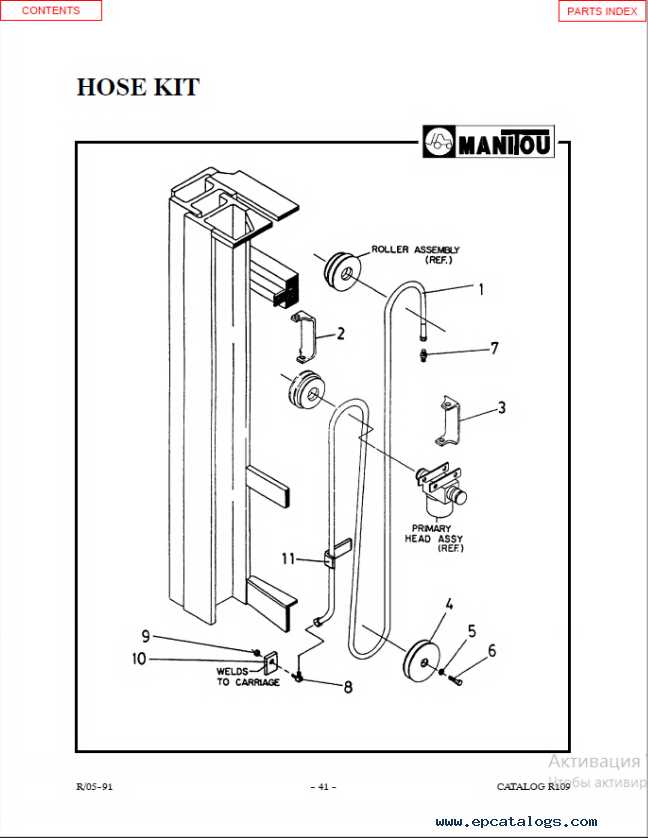

Trace hydraulic lines and actuator rods. These appear as dashed or dotted lines connecting cylinders to control valves or lift chains. Note the anchor points–where hoses attach to pivot mounts or manifolds–since misaligned connections during reassembly can cause leaks or uneven lifting.

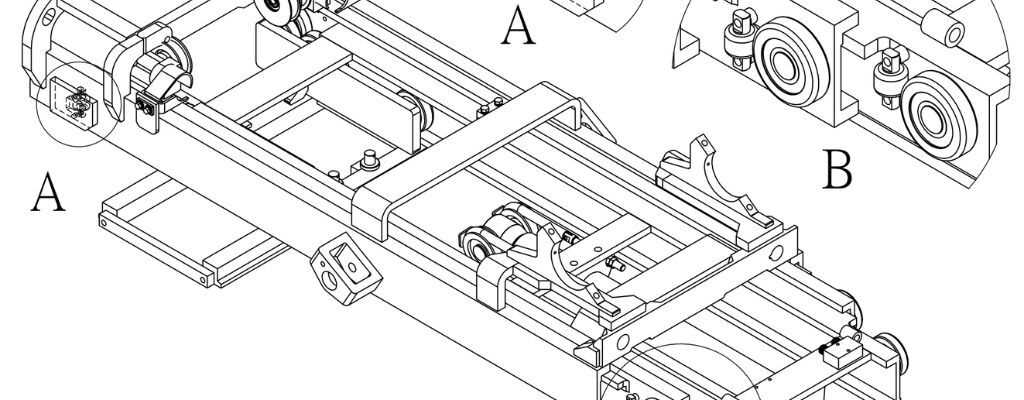

Examine the elevation mechanism. Chains or cables will be drawn as thick, continuous lines looping around sprockets or pulleys, while load rollers and bushings appear as small circular or oval shapes nested between vertical frames. Check tolerances in the legend; even a 0.5mm mismatch can affect smooth operation.
Verify fastener placements–bolts, pins, and clips are often minimized in the view but critical for stability. Look for exploded inserts highlighting counterbalance weights or side shifters; these modular add-ons will have their own sub-assemblies with distinct part numbers. If the diagram includes torque specs, note values for high-stress joints (e.g., pivot pins) to prevent over-tightening.
Compare the exploded view with a physical inspection. Rotate or tilt the assembly to match the angle shown–certain angles reveal hidden components (e.g., thrust bearings, grease fittings) not visible from front-on perspectives. Use a flashlight to spot discrepancies between the diagram’s wear indicators and actual surface conditions.
Step-by-Step Guide to Replacing Worn Industrial Lift Carriage Rollers
Begin by securing the equipment on a flat, stable surface and engaging the parking brake. Release hydraulic pressure by lowering the lifting mechanism completely, then disconnect the battery or power source to prevent accidental activation. Use a hydraulic jack or support stands to elevate the carriage frame slightly, ensuring it remains stable–never work under an unsupported load. Wear gloves, safety glasses, and steel-toe boots to protect against sharp edges and heavy components.
Remove the carriage side covers by unscrewing retaining bolts–typically 12mm or 14mm–using a socket wrench. Note the position of each roller and its orientation, as internal bearing alignment varies by model. Some rollers may require a puller tool for extraction if corrosion or dirt has seized them in place. Apply penetrating oil (e.g., PB Blaster or Liquid Wrench) to stubborn fittings and wait 10-15 minutes before attempting removal.
Inspect the roller mounting shafts for wear, scoring, or bending. A micrometer or caliper can measure shaft diameter tolerances–compare readings against manufacturer specifications (usually ±0.002 inches for standard models). Replace shafts if measurements fall outside acceptable ranges. Clean the mounting area with a wire brush and degreaser, removing all old grease and debris to ensure proper seating of new components.
| Component | Common Size | Torque Spec (Nm) | Replacement Signs |
|---|---|---|---|
| Upper Rollers | 40–60mm diameter | 45–60 | Flat spots, excessive play, screeching |
| Lower Rollers | 50–70mm diameter | 50–65 | Cracks, uneven wear, wobble |
| Guide Rollers | 30–50mm diameter | 35–50 | Grooves, noisy operation, misalignment |
Install new rollers by aligning them with the mounting shafts, ensuring bearings face the correct direction. Apply high-temperature grease (NLGI Grade 2) to bearings before seating. Tighten bolts incrementally in a cross pattern to prevent uneven pressure–refer to the torque values in the table. Reattach side covers, securing bolts to the same torque specifications. Reconnect the battery or power source and perform a functional test, raising and lowering the carriage slowly to confirm smooth operation.
For models with polyamide rollers, check clearance between the roller edge and frame–ideal spacing is 0.5–1.0mm. Metal rollers require 0.2–0.5mm clearance. Use a feeler gauge to verify; adjust mounting bolts if necessary. Lubricate all moving contact points with a lithium-based grease, avoiding over-application to prevent contamination. Document replacement details, including roller part numbers and installation date, for future maintenance tracking.
Troubleshooting Binding or Uneven Movement
If the carriage binds after replacement, recheck shaft alignment–misalignment as small as 0.3mm can cause issues. Loosen bolts and gently tap rollers into position with a rubber mallet, retightening in stages. Verify that hydraulic hoses or electrical cables are not snagging on the new components. Test the system under load, listening for unusual noises and observing smooth travel. If problems persist, disassemble and inspect for damaged seals or misinstalled bearings.
