Begin by accessing the official manufacturer’s repair manual through authorized dealership portals. These documents include precise exploded-view illustrations of the powertrain, electrical systems, and body panels, organized by assembly groups. Verify the VIN sequence to ensure compatibility–subtle variations exist between trim levels equipped with turbocharged engines versus hybrid configurations.

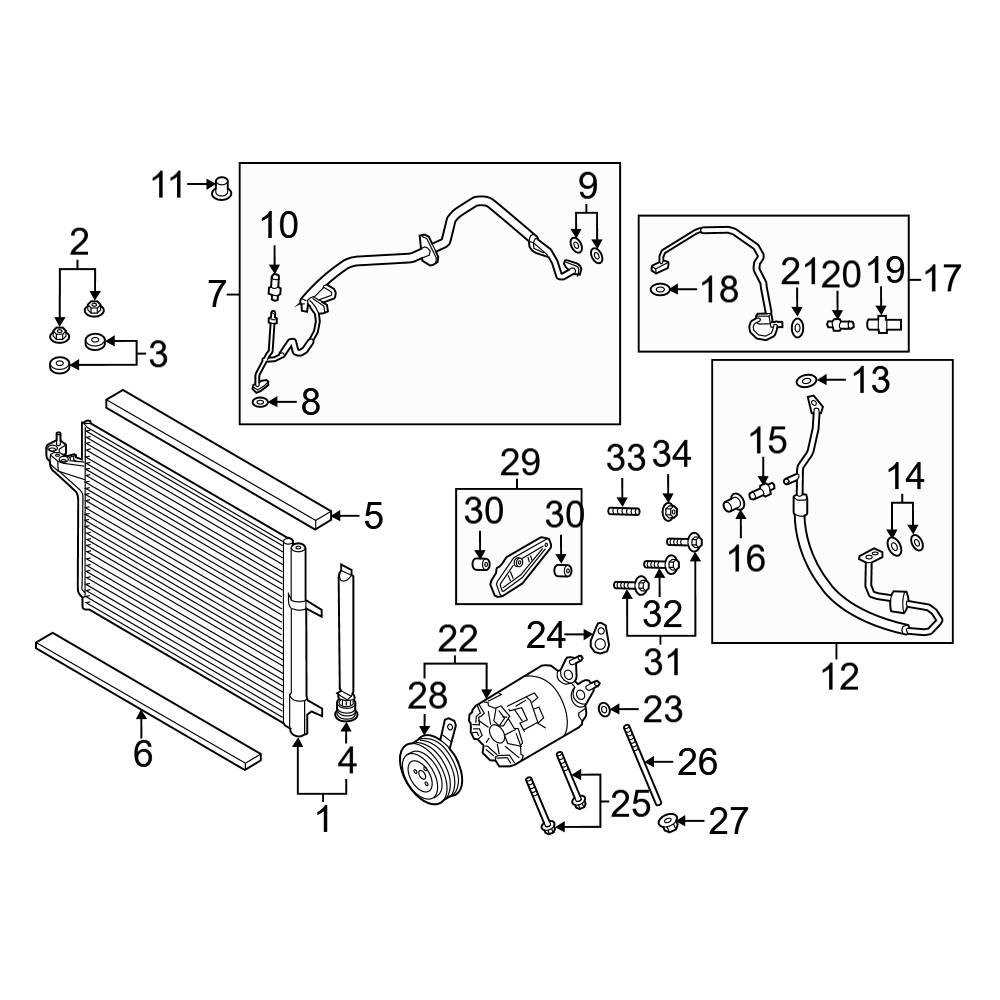

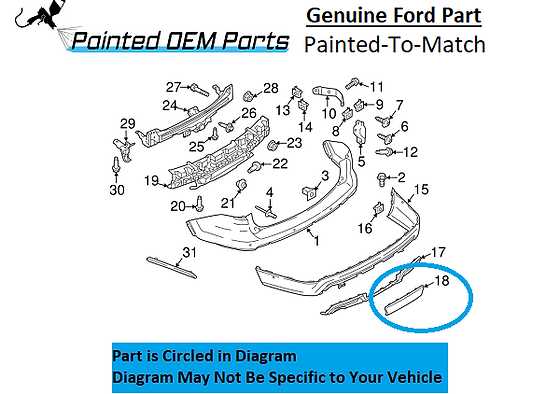

For off-the-shelf components, cross-reference third-party catalogs like RockAuto or PartsGeek, which offer labeled schematics tied to OEM part numbers. Avoid relying solely on generic aftermarket images–some vendors omit mounting brackets, sensor connectors, or gaskets in visual representations, leading to installation errors. Prioritize diagrams that include torque specifications and alignment markers for suspension components.
When sourcing used parts, use salvage-yard databases such as Car-Part.com, which provide zoomable schematics tied to specific vehicle donors. Filter results by mileage and crash history to avoid compromised components. For electrical repairs, consult wiring harness schematics–color codes and pinout locations vary between adapters and main junction boxes, and incorrect connections can trigger permanent module failures.
For DIY maintenance, print or save sectional diagrams before disassembly. Label removed fasteners and brackets with painter’s tape–reassembly without guidance risks misaligned seals or stripped threads. High-wear items like cabin air filters or serpentine belts often lack visible part numbers; refer to the schematic’s callouts for exact replacements.
How to Accurately Identify Components for Your Compact SUV Model
Begin by locating the official OEM schematic for your vehicle’s trim level–base, SE, or Titanium–using the VIN-specific parts catalog on the manufacturer’s service portal. Each assembly breakdown, like the 1.5L EcoBoost engine or the 6-speed automatic transmission, includes numbered callouts that correspond to unique identifiers, such as F8RZ-12A650-AA for the air filter housing. Cross-reference these codes with aftermarket suppliers like RockAuto or PartsGeek to compare pricing without sacrificing compatibility.
For interior components, the center console cluster diagram splits into sub-assemblies: climate controls, infotainment bezels, and shifter mechanisms. Note that wiring harnesses (e.g., pigtail connectors for the rear wiper motor) are often listed under electrical systems rather than body parts. Use a multimeter to verify pinouts before ordering replacements–color-coded diagrams for the BCM (Body Control Module) are available in repair manuals like Chilton or AllDataDIY.
Suspension upgrades require precise tuning; coil springs and struts differ between FWD and AWD configurations. The rear toe link (part #XL3Z-5K848-A) for example, is specific to models with adaptive damping. Aftermarket alternatives from Moog or Monroe often include installation hardware, but OEM bushings (e.g., control arm bushing #CV6Z-5493-B) typically outlast them by 20-30%.
When sourcing sheet metal, examine the stamped part number on the original panel–hoods, quarter panels, and tailgates vary by production batch. Salvage yards provide the best value for discontinued items like the front bumper cover reinforcement (structural beam #BL3Z-17K576-A), but verify thickness with calipers to avoid mismatched welds. For powertrain components, turbocharger rebuild kits (e.g., Garrett 771169-5003S) include gaskets and seals, but always purge old coolant before reinstalling the intercooler to prevent debris contamination.
Locating Genuine Schematics for Your 2017 Compact SUV
Begin with the manufacturer’s authorized portal: Ford Parts Online. Select the model year, then drill down to the specific trim–like the SE or Titanium–to retrieve exact exploded-view schematics. Each illustration includes OEM reference numbers, dimensions, and torque specs, ensuring compatibility without guesswork.
| Source | Access Method | Key Details |
|---|---|---|
| Dealer Tech Sites | Subscription via Motorcraft | VIN-specific schematics, wiring harness layouts |
| Third-Party OEM Replicas | Free download at Parts.com | Search by part category (e.g., suspension, HVAC) |
For mechanical assemblies like the 1.5L EcoBoost or 6F35 transmission, consult the Ford ETIS system. Requires a VIN for precision, but returns dealer-level diagrams with component interactions, fluid specs, and diagnostic techniques.
Step-by-Step Breakdown of the Engine Bay Component Arrangement
Locate the air intake system first–it sits atop the powertrain, connected directly to the mass airflow sensor via a corrugated tube. Remove the plastic cover by unfastening the two clips at the front and sliding it toward the firewall. The sensor wiring harness is brittle; disconnect it by pressing the release tab before twisting or pulling.
The coolant reservoir occupies the driver’s side corner, marked with min/max fill lines molded into the translucent plastic. Check the cap’s rubber seal for cracks–debris lodged here causes leaks at operating temperatures. The power steering fluid dipstick sits adjacent, distinguishable by its shorter neck and metallic ring at the base.
Trace the upper radiator hose from the thermostat housing to the radiator core. The hose clamp uses a Torx T25 head–replace the clamp if corrosion is visible, as overtightening leads to coolant bypass. Below, the serpentine belt routes around the idler pulley; inspect its bearing for play by spinning it without the belt engaged.
The battery tray holds two securing nuts: one at the front near the positive terminal and another at the rear, accessible only after removing the tray liner. Disconnect the negative terminal first–use a 10mm wrench and twist the nut counterclockwise while holding the post steady with pliers. Corrosion on the terminals indicates alternator overcharging; clean with a wire brush and apply dielectric grease.
Critical Components Beneath the Valve Cover
The ignition coil pack bolts onto the valve cover with three 8mm bolts. Each coil’s boot requires inspection–cracks here create misfires. Pull the coil straight up to avoid damaging the spark plug tubes; the plugs themselves are recessed 12cm and require a 5/8” deep socket with a 6-inch extension.
The PCV valve connects to the rear of the valve cover via a 90-degree elbow. Remove the hose by squeezing the ribbed connector–not by tugging. The valve rattles when shaken; if silent, it’s clogged with sludge and must be replaced. Below, the oil dipstick tube threads into the block with a 14mm bolt–sealant failure here causes vacuum leaks detectable with carb cleaner spray at idle.
Auxiliary Systems and Fasteners
Brake booster vacuum hose connects to the intake manifold via a check valve. The valve only allows airflow in one direction; test by blowing through it–air should pass toward the engine only. The ABS module sits forward of the master cylinder; its wiring connector uses a fragile plastic lock–release it with a flathead screwdriver to avoid snapping the tab.
The fuse box cover on the passenger side hinges upward. Each fuse slot is labeled with amperage; use needle-nose pliers to extract them, gripping the top edge. Relays click when shaken; faulty units require replacement. The windshield washer fluid reservoir mounts behind the driver’s side headlight–remove the single 10mm bolt to slide it forward for refilling.
How to Pinpoint Electrical System Elements in Your Vehicle’s Schematic
Begin by isolating the wiring schematic’s fuse box section–typically clustered near the top or left side of the document. Each fuse slot is numbered and labeled with its amperage rating (e.g., “F15, 15A”). Cross-reference these numbers with the owner’s manual’s fuse assignment table to identify which circuit governs specific functions, such as the headlight relay or power window modules. Misidentifying a fuse can lead to incorrect diagnostics, so verify color-coding: red for 10A, blue for 15A, and yellow for 20A, for example.
Trace power distribution paths using thick black or red lines in the schematic–these denote high-current feeds from the battery or alternator. Follow these lines to junction blocks (marked as “J1” or “JB2”), where they split into thinner branches for accessories like the climate control panel or infotainment system. Note splice points (labeled “S101”), where multiple circuits converge; these are common failure points due to corrosion or loose connections.
Key Component Symbols to Memorize
- Relays: Rectangle with internal coil and switch contacts (e.g., “R3” for horn relay). Check the pinout–terminal 85/86 for coil, 30/87 for output–to locate the correct terminals during testing.
- Grounds: Inverted triangle with a “G” prefix (e.g., “G102”). These attach to chassis points; corroded grounds cause intermittent failures like flickering dash lights.
- Sensors: Zigzag lines or rectangles (e.g., “T-MAP” for temperature sensor). The schematic shows wire colors (BRN/WHT for brown with white stripe) to match during continuity tests.
Locate the Body Control Module (BCM) or Powertrain Control Module (PCM) in the schematic–usually a centralized box with multiple thin lines radiating outward. Each line corresponds to an actuator or sensor, labeled with system-specific codes (e.g., “A/C Request Signal” or “Throttle Position Sensor”). Use a multimeter to probe the module’s connectors; measure voltage on pin “C12” (reference voltage) or “C34” (signal return) to confirm circuit integrity.
Identify harness routing by following dotted or dashed lines linking components to connectors (e.g., “C201” for the instrument cluster plug). These lines often cross-reference to separate wiring harness diagrams; note the connector’s cavity numbers (e.g., “C302-12”) to avoid plugging into the wrong terminal. For lighting circuits, track dashed blue lines to bulbs–the schematic may show a bulb icon with a filament resistance value (e.g., “21W”) for load calculations.
- Print the schematic in color if possible; grayscale obscures critical wire color distinctions.
- Use a highlighter to mark circuits under test–avoid highlighter bleed on adjacent lines.
- Compare the schematic’s connector views (e.g., front/rear) with physical connectors to ensure terminal alignment.
- Check for revision notes; older schematics may omit later-model sensor upgrades.
- Verify diode symbols (arrow-shaped) near inductive loads (e.g., starter motor) to prevent backfeed damage during repairs.
Focus on dashed circles labeled “Test Point” (e.g., “TP:5V REF”), which indicate accessible terminals for live measurements. For CAN bus networks, locate twisted pair lines (yellow/green and white/green) terminated at the OBD-II port–these carry serial data between modules. A missing 120Ω termination resistance (measured between CAN-H and CAN-L) causes communication errors, often misdiagnosed as module failures.
