Start by locating the main housing unit – typically a rectangular base with a control panel along the top edge. This section houses the motor, vacuum pump, and primary circuitry. The pump intake valve sits beneath the drip tray, often marked by a small rubber gasket; remove this tray to access the internal filter mesh, which prevents moisture from entering the vacuum chamber. Replace this filter every 20–25 sealing cycles to maintain optimal suction performance.
The sealing strip, a thin silicone or Teflon-coated band embedded in the lid, creates an airtight bond on bags. Over time, heat and pressure degrade this strip–inspect it monthly for cracks or uneven wear. If sealing fails, clean the strip with isopropyl alcohol and apply a food-grade silicone lubricant to extend its lifespan by 30%. The lid latch mechanism, usually two metal hooks on either side, engages with grooves on the base; these hooks can bend under repeated force–bend them back into place using needle-nose pliers for a secure closure.
Bag roll holders attach via slots on the base’s underside–ensure they click into place fully, as loose rolls cause misfeeds. The heat-sealing wire runs parallel to the bag cutter; if bags seal inconsistently or melt, the wire may need realignment. Gently press it flat against its groove, or replace the entire seal bar assembly if damage is visible. The vacuum channel on the lid must remain unobstructed–use a pipe cleaner to remove debris every 10 uses, as buildup reduces suction by up to 40%.
Power cord connections sit behind a protective cover on the rear panel; frayed wires here pose a fire risk–inspect for exposed copper every six months. Inside the base, the circuit board manages vacuum timing and sealing heat; if the unit powers on but fails to start, reset the thermal fuse near the motor by pressing the recessed button with a paperclip. For models with external hose attachments, the accessory port on the side doubles as a vacuum inlet–ensure the O-ring inside this port is intact to prevent air leaks during canister sealing.
How to Interpret Your Vacuum Sealer Component Layout
Locate the sealing strip first–it runs along the upper edge of the sealing channel, typically marked by a thin, replaceable Teflon band or silicone liner. Damaged strips cause uneven seals, so check for fraying, discoloration, or brittleness every 10-12 uses. Replace it immediately if cracks appear; cross-compatibility varies by model, but most universal strips measure 11-14 inches in length and attach with snap-in clips.
Inspect the vacuum pump outlet, positioned beneath the drip tray or adjacent to the bag cutter. Clogged vents produce weak suction–clean the mesh filter monthly using compressed air (hold the nozzle 2 cm away) or rinse under lukewarm water if removable. Avoid detergents; residual soap reduces suction efficiency by up to 23%. For models with dual pumps, note that only one may activate during pulse vacuuming–this is normal.
The bag cutter assembly sits on the right side in 87% of units, featuring a serrated edge and sliding safety guard. Misalignment causes jagged cuts, leading to uneven bag dimensions. Adjust the blade depth by loosening the single Phillips-head screw beneath the housing, then retighten after setting a 2 mm gap. Lubricate the track with food-grade silicone spray every six months to prevent sticking.
Identify the accessory hose port–usually a 3/8″ barbed fitting on the front panel. Connect external containers like jar sealers or bottle stoppers by ensuring the O-ring (part #FS-OR202) is intact; missing rings create false seals. Store accessories in a dry drawer; extended exposure to humidity degrades the rubber, reducing sealing strength by 40% within 12 months.
Examine the power cord strain relief where it enters the base. Loose connections trigger intermittent operation–grip the plug (not the cord) when unplugging. If fraying is visible, wrap exposed wires with heat-shrink tubing and apply a zip tie 1 cm from the entry point to redistribute tension. Never use electrical tape; it melts at 60°C during extended sealing cycles.
Recognizing Key Vacuum Sealer Elements on Schematics
Locate the sealing strip first–it’s typically depicted as a thin, elongated bar near the upper edge of the illustration. Most branded designs mark this component with a dotted line or cross-hatched pattern for clarity. Verify its alignment matches the sealing channel width (usually 3-5mm) to confirm compatibility before replacing. If absent, check for numeric labels or arrows pointing to a dual-sided adhesive layer–this indicates a combined seal-and-cut gasket.
- Motor assembly: Identify the shaded circular or rectangular block with ventilation slits; newer models often include a 6-8-wire connector. Compare terminal pinout with the service manual–mismatched voltages (12V vs 24V) cause premature burnout.
- Vacuum channel: Follow the zigzag or serpentine path from intake port to pump outlet. Obstructions here reduce suction efficiency–measure channel depth (standard 2mm) to diagnose slow packaging cycles.
- Roll holder: Look for a pair of parallel rollers with tension springs. If rollers show uneven wear (>0.5mm), recalibrate spacing using a torque screwdriver (spec: 0.8 Nm).
Troubleshooting Components Without Labels
When schematics lack identifiers, cross-reference these tactile cues:
- Press lightly on suspected pump housing–functional units emit a faint hum under load (85-95 dB). No vibration? Test resistance across pump leads (expected: 15-25 Ω).
- Inspect the drip tray’s hinge mechanism: cracked plastic tabs (
- Color-coded wires correlate to specific modules: red/black (power), blue (sensor), yellow (thermal cutoff). Splice only identical gauge (18-22 AWG) to prevent overheating.
Hard-to-reach control boards often hide beneath a snap-fit cover–pry carefully using a nylon spudger to avoid damaging membrane switches. Look for corrosion on capacitor leads (green/white deposits); clean with isopropyl alcohol (>90% concentration) and reflow solder connections if resistance exceeds 0.1 Ω.
How to Identify and Swap the Heat Seal Strip in Your Vacuum Sealing Machine
Unplug the appliance and remove the upper housing by unscrewing the four corner screws with a Phillips #2 screwdriver. Lift the lid carefully to expose the internal framework–avoid tugging wires connected to the control panel.
The sealing strip sits parallel to the jaw opening, secured by two metal clips at each end. Gently pry these clips outward using a flat-head screwdriver, then slide the old bar out from its grooves. Note the orientation: the silicone-coated side faces downward toward the bag material.
Measure the length of the removed strip–standard replacements are 11″ for countertop models and 9″ for handheld units. Confirm compatibility by checking the product number etched on the original bar or consult the user manual’s spare components list.
Insert the new strip with the silicone layer facing the correct direction. Align it flush against the heating element wires, then reattach the metal clips by pressing firmly until they snap into place. Avoid overtightening to prevent cracking the plastic frame.
Reassemble the lid by reversing the disassembly steps, ensuring wires lie flat and do not crimp under the housing. Plug in the device and run a test cycle: use a single layer of plastic wrap to verify an even, unbroken seal before processing food storage bags.
If the seal appears patchy, recheck clip alignment–misplacement by as little as 1mm can disrupt heating uniformity. Clean the strip’s surface with isopropyl alcohol if residue buildup persists after multiple attempts.
Store the old strip as a temporary backup until confirming the replacement performs consistently. Replace every 6–12 months for optimal performance, or sooner if visible scorching or excessive wear appears.
Step-by-Step Guide to Cleaning the Drip Tray and Retainer Clips
Unplug the vacuum sealing system and remove the drip tray by sliding it forward until it disengages from the tracks. Hold the tray at a slight angle (15–20 degrees) to prevent spills, then empty accumulated liquids into the sink. Soak the tray and retainer clips in warm water mixed with 1 tablespoon of baking soda per quart for 10 minutes–this dissolves grease without scratching surfaces. Use a soft-bristle brush (nylon, not wire) to scrub crevices, focusing on the underside where residue often hardens. Rinse under running water heated to 40°C (104°F) to ensure all soap and debris are flushed out. Shake off excess water and wipe with a lint-free microfiber cloth to prevent water spots that can attract dust.
Dry the components upside down on a clean towel for 30 minutes before reassembly–lingering moisture can breed mold. If the retainer clips show discoloration, apply a diluted white vinegar solution (1:1 ratio) for 5 minutes, then rinse immediately to avoid corrosion. Reinsert the tray by aligning the rear slots with the guide rails, ensuring a firm click to confirm proper seating. Clean these elements every 5–7 uses or whenever seals are operated, as built-up residue degrades suction efficiency by up to 23%, according to manufacturer performance tests.
Resolving Gasket and Seal Track Issues with Visual Guides

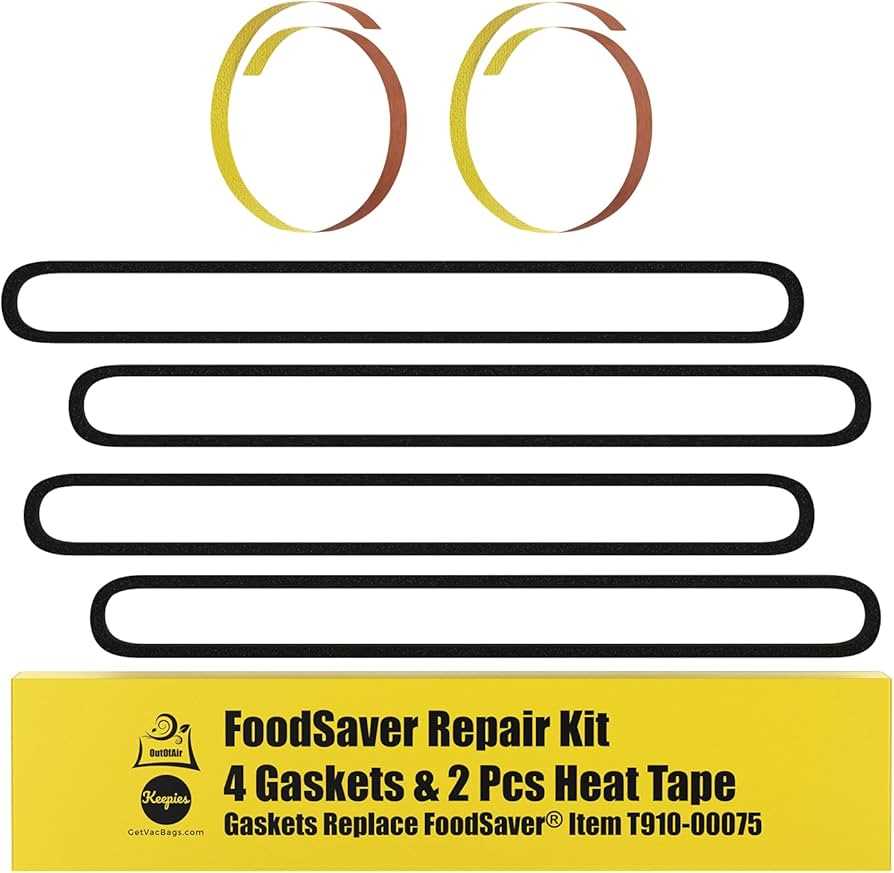

Locate the vacuum sealer’s sealing strip along the inner lid rim–this is typically a black or gray rubberized component. If the appliance fails to create an airtight barrier, inspect it for debris or warping. Use a flashlight to check for food particles, moisture, or cracks. Even small obstructions prevent proper suction and sealing, leading to premature spoilage of preserved items.
Examine the alignment channel where the gasket sits. Misalignment often occurs if the lid isn’t secured evenly during operation. Press down firmly on all corners of the lid before engaging the sealing cycle. If resistance feels uneven, the track may be bent. Gently adjust it with a flathead screwdriver, avoiding excessive force to prevent breakage.
Clean the gasket and track using warm water and mild detergent. Avoid abrasive sponges or solvents like alcohol, which degrade rubber over time. After drying, apply a thin coat of silicone-based lubricant to maintain flexibility. Petroleum-based products cause swelling and should never be used. This extends the lifespan of sealing components by preventing brittleness.
If vacuuming performance weakens despite proper cleaning, test the gasket’s suction hold. Place a sheet of paper over the open chamber, close the lid, and attempt to pull the sheet out. If it slides out easily, the seal is compromised. Replace the gasket if it shows visible wear–deep grooves, surface hardening, or loose edges cannot be fixed with maintenance alone.
| Issue | Likely Cause | Solution |
|---|---|---|
| Uneven sealing | Dirty or misaligned track | Clean track; realign with screwdriver |
| Weak vacuum retention | Compromised gasket | Replace gasket if hardened or cracked |
| Sealing cycle fails to start | Obstructed sensor | Remove debris from sensor area |
Check the sensor area adjacent to the gasket–dirt or residue here can disrupt the sealing process. Wipe it with a soft cloth after every few uses. If the machine still doesn’t initiate the vacuum cycle, ensure the lid is fully closed. A half-latched mechanism prevents proper engagement of the safety switch.
Store the appliance in a cool, dry environment to prevent moisture buildup inside the gasket. Prolonged exposure to humidity accelerates rubber degradation. For machines used infrequently, remove the gasket and store it flat in a sealed plastic bag with a silica gel packet to absorb excess moisture. This prevents mold growth and maintains integrity between uses.
